Xvive

352569

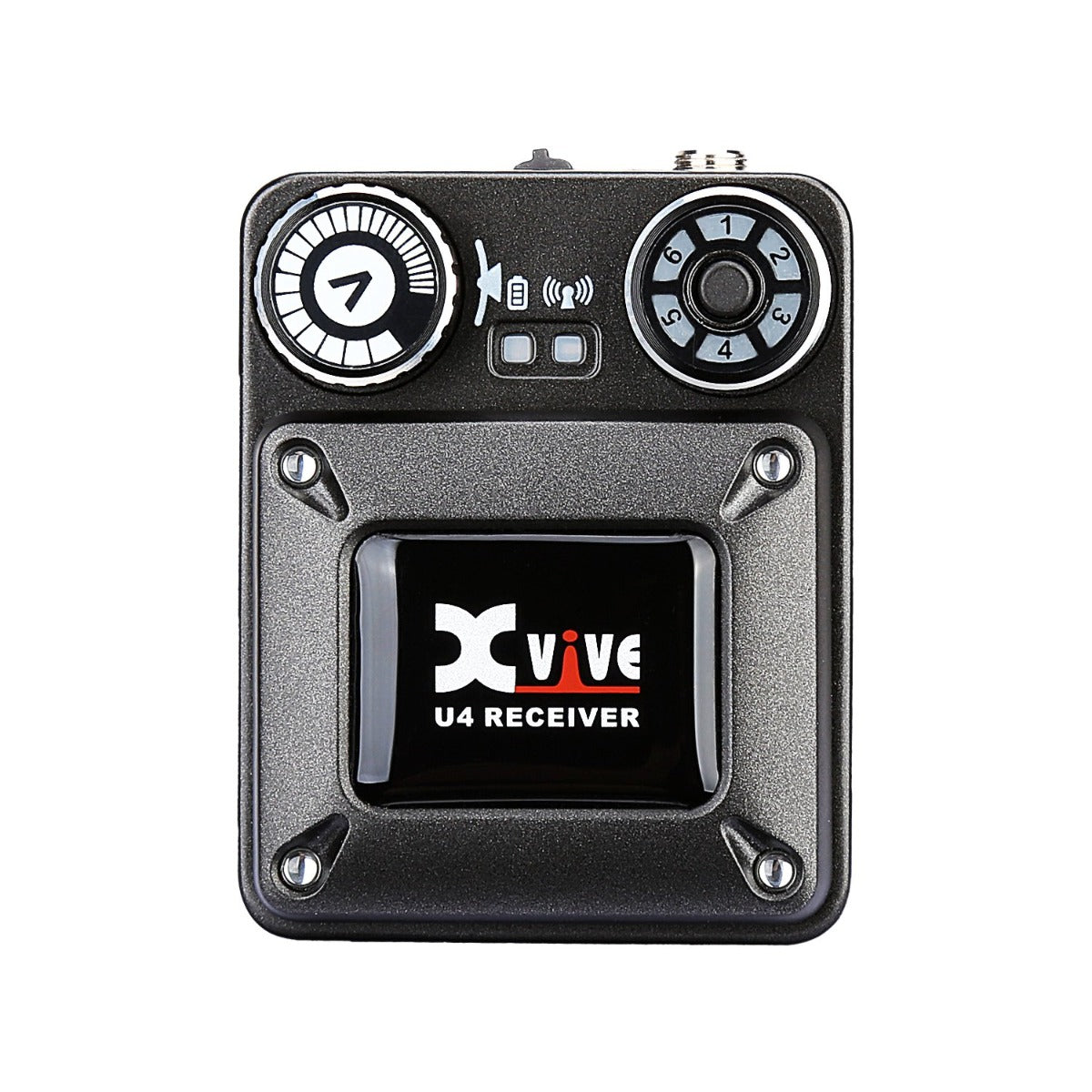

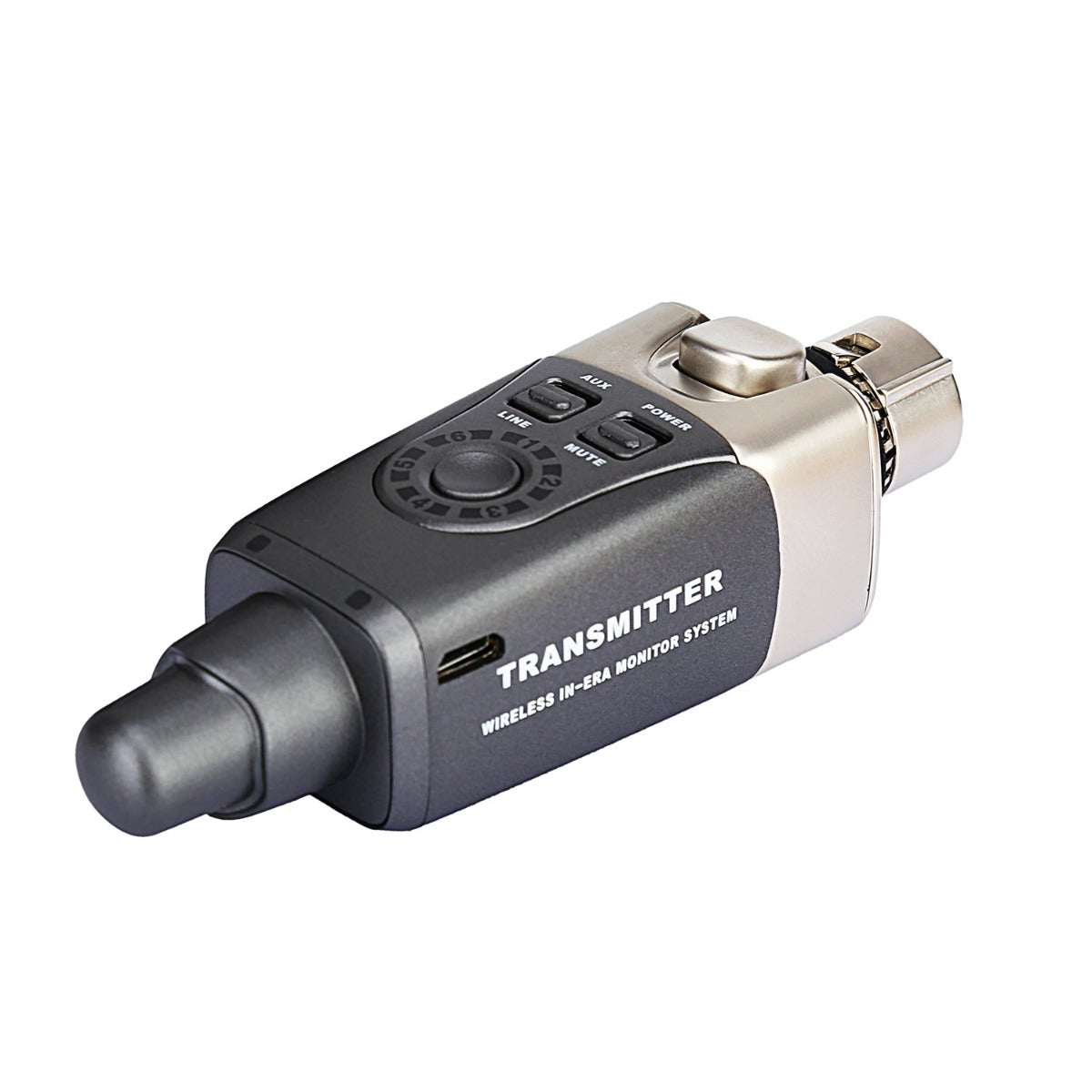

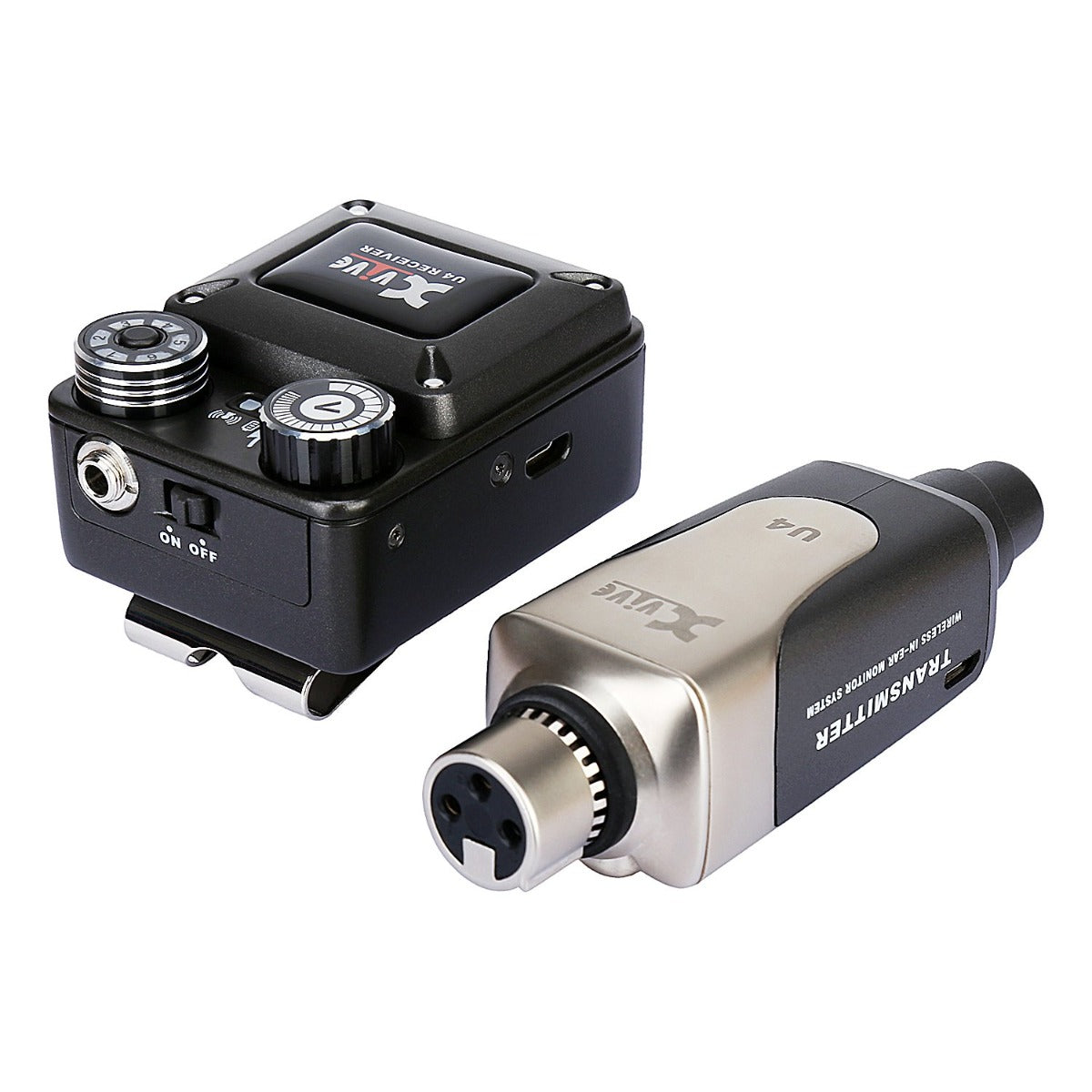

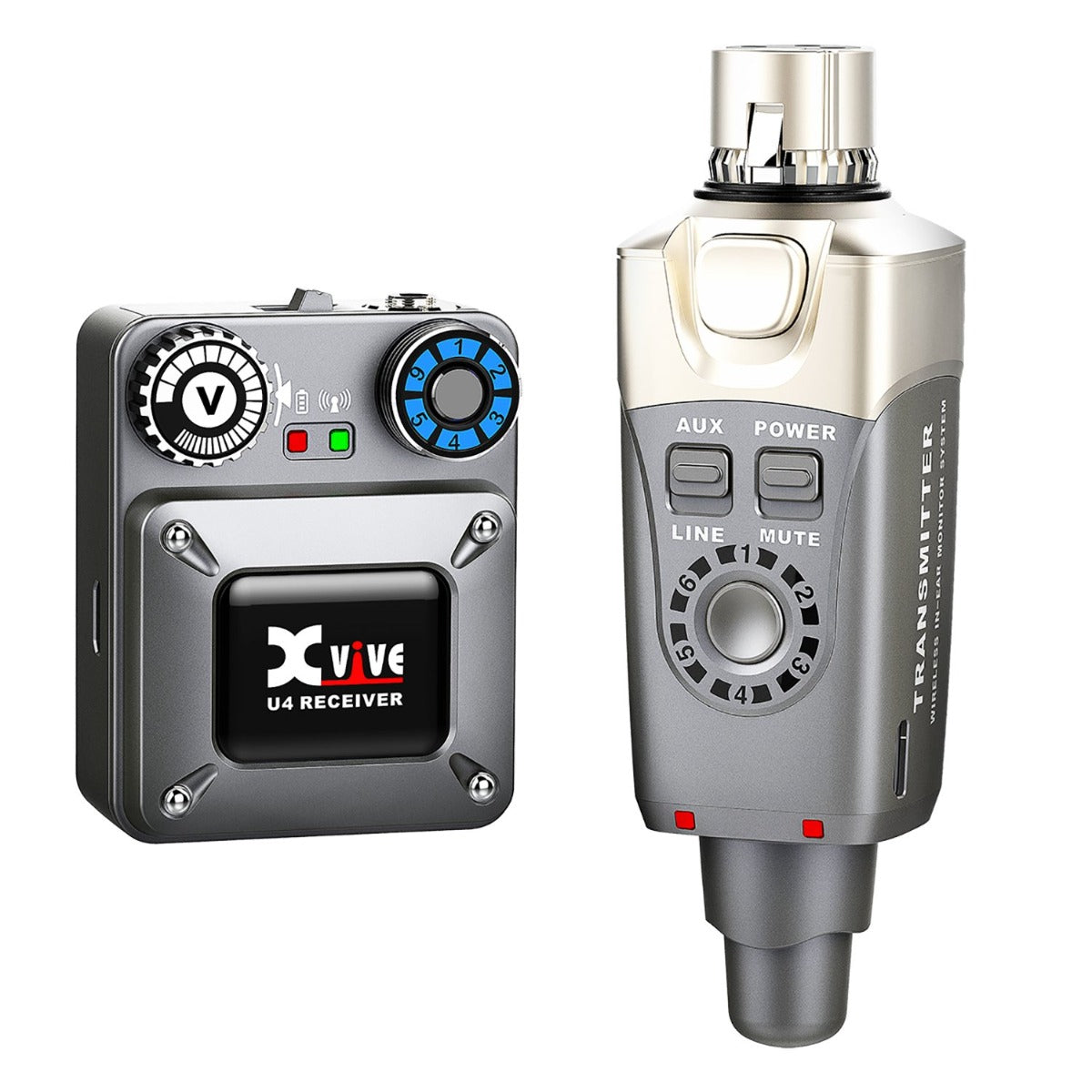

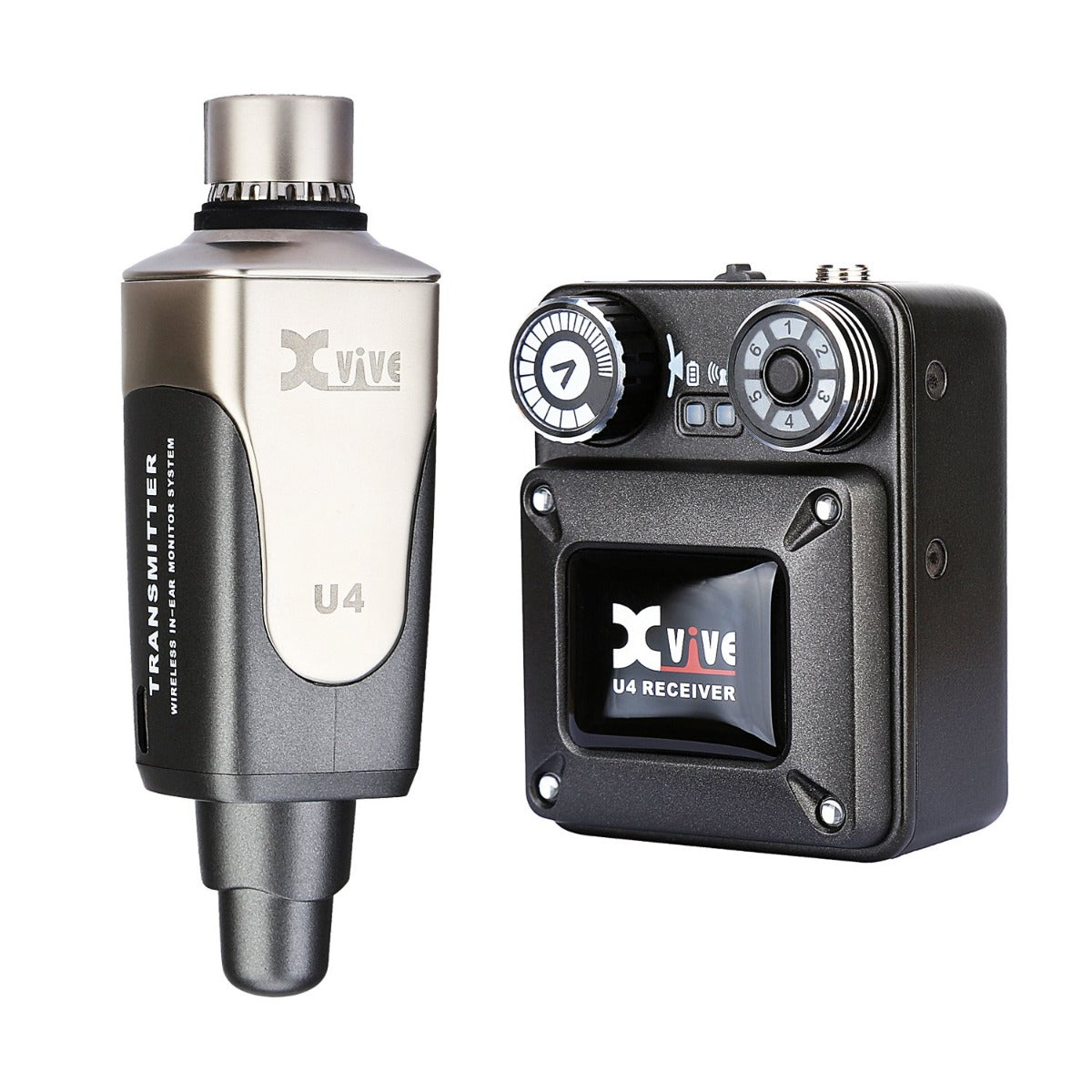

XVIVE U4R4 In-Ear Monitor Wireless System 2.4Ghz (4x Receivers)

Product Information:

XVIVE U4R In-Ear Monitor System -4x Receiver & 1x Transmitter

The U4 personal wireless monitoring system delivers great sounding audio to your favourite in-ear monitors.
Enhance your stage performance with freedom from wires with U4’s easy to use and portable plug-and-play design. Built using the highest quality components housed in a durable metal chassis ensures reliable wireless performance at every show.

Easy to carry, easy to set up, plug in and turn on the power to build your wireless In-ear monitor system

LINE MODE
Use with mixers or other professional audio devices that send line-level signals.

AUX MODE
Use when connecting consumer audio devices such as portable audio players or computers.

Provides smooth frequency response with any headphones.

Transmitter with the 1/4”ts conversion put in to the mixing Aux channel, set transmitter to aux mode. Or Transmitter put in the mixing XLR main output, for Band playing, silent rehearsal etc.. set transmitter to Line mode.

Use one transmitter to send signal to Multiple Receivers- creates monitoring for the entire band. Send the signal from one transmitter to as many receivers as needed simultaneously, Simply set as many receivers as needed to the same channel as the transmitter. OR - In situations where multiple “mixes” are needed on stage, each unit has 6 select-able channels for creating up to 6 individual discrete mixes. If you use more than one transmitter, The receiver can switch between different sound sources by simply changing the channel selector.

2.4GHz wireless in-ear monitor receiver create your personal monitor mix. Solid RF connection over a 90 feet range (actual range depends on RF signal absorption, reflection and interference)

Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any volume. High Resolution 24-bit/48kbps audio. Broad 20Hz-20KHz frequency response. Dynamic Rang 107 dB.

Less than 5ms Latency, Simultaneous broadcasts on 6 channels. 5 hours of battery life (rechargeable battery for both transmitter and receiver)

Provides smooth frequency response with any headphones.

Specifications:

  • 2.4Ghz wireless In-ear monitor System -4x Receiver & 1x Transmitter
  • Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any volume
  • High Resolution 24-bit/48kbps audio
  • Less than 5ms Latency, Simultaneous broadcasts on 6 channels

Wireless Type
2.4GHz band is optimal for wireless, Approved for use worldwide.

Musical applications
Works with any audio mixer or other gear with a line level balanced or unbalance audio output. Great for live performance, studio recording and rehearsals.

Other applications
Theatre, House of Worship, Schools, Corporate Presentations

Audio Frequency Response
20Hz – 20KHz (-3dB)

Working Range
9090ft.Actual range depends on RF signal absorption, reflection and interference.

Sampling Rate
High Resolution 24-bit/48kbps audio

Dynamic Range
107dB

Signal-To-Noise Ratio
Up to 107 dB signal-to-noise ratio provides clear, detailed audio at any volume.

Battery Life
Up to 5 hours

Delay time
5ms Latency, Simultaneous broadcasts on 6 channels

Input
Mono balanced XLR or mono unbalanced 1/4”TS input with supplied adaptor

Headphone type
Provides smooth frequency response with any headphones with 3.5mm
