VOX-AC30HWR2X

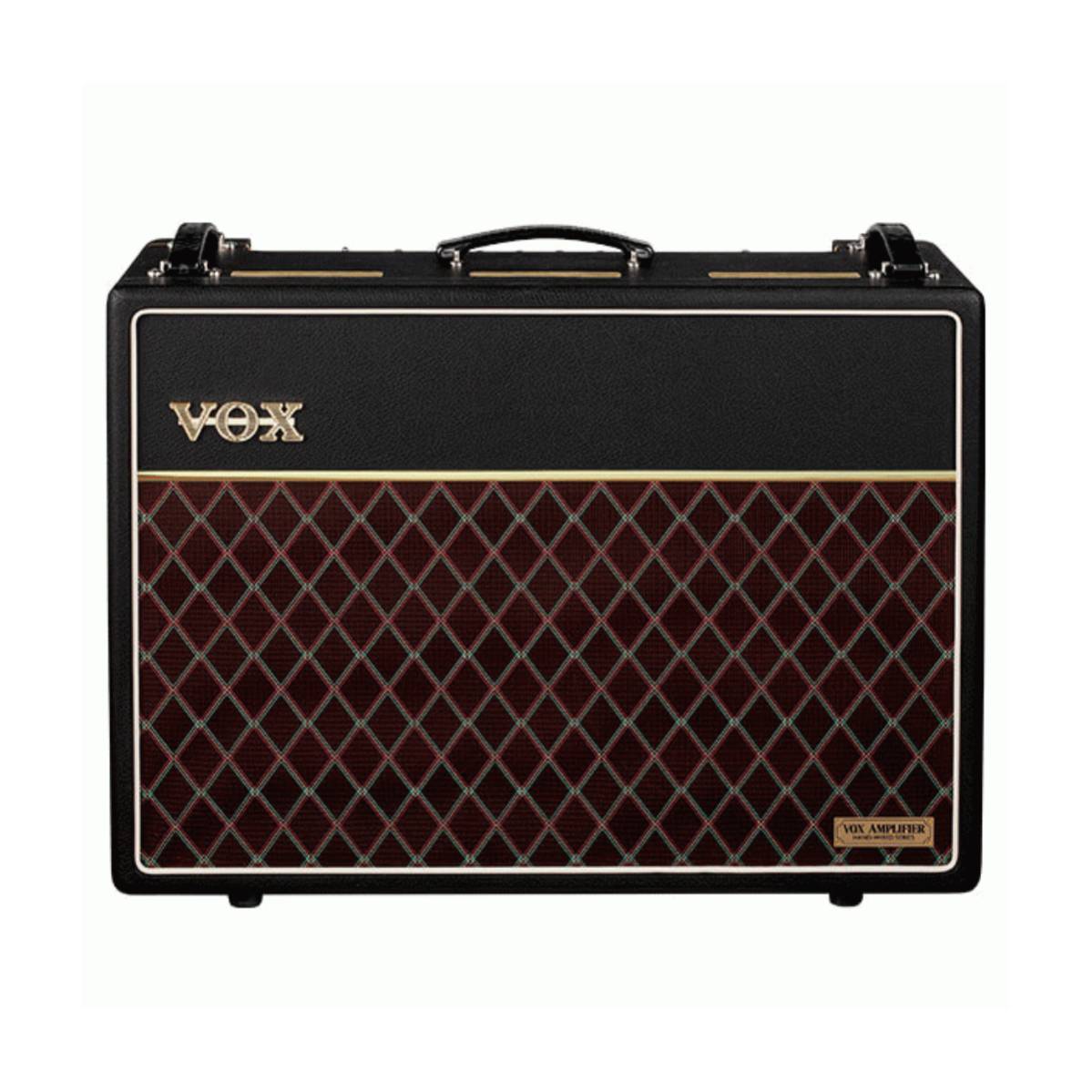

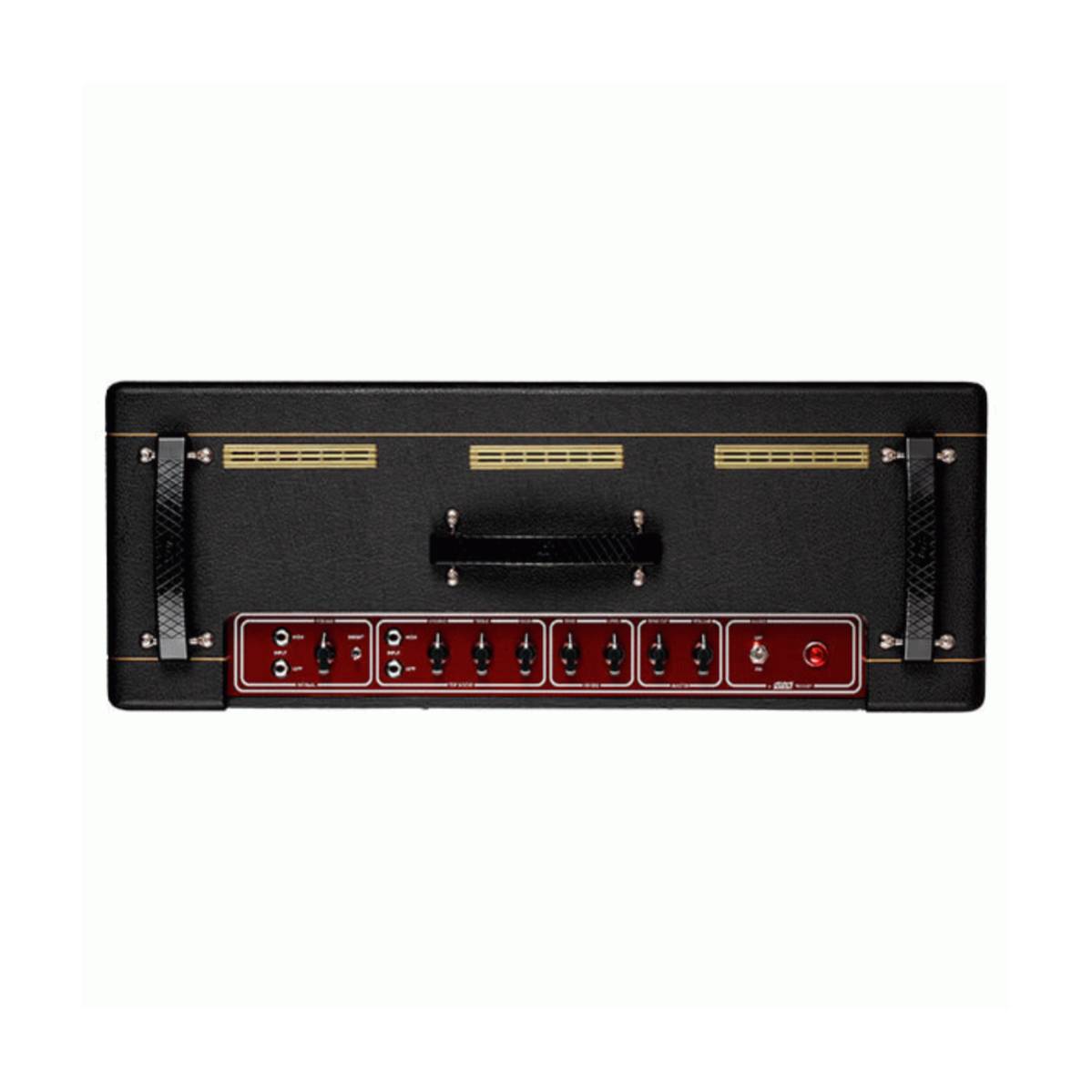

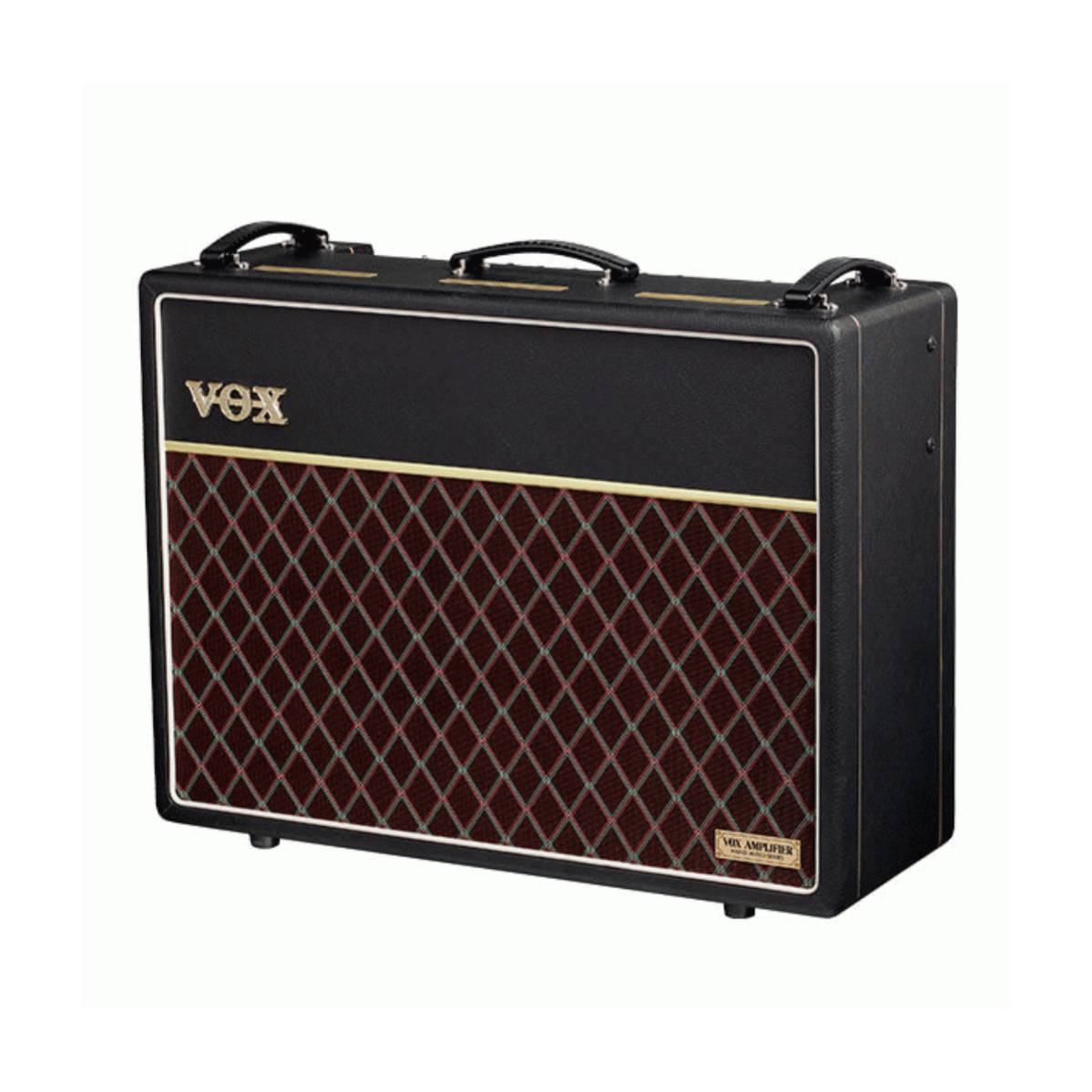

VOX AC30 Hand-Wired Guitar Amplifier 30w 2x12 Combo Amp w/ Blue Alnico - AC30HWR2X

IN STOCK

Pay With AfterPay Zip Mastercard Visa

Product Information

The VOX AC30 Hand-Wired is the ultimate expression of the legendary AC30, meticulously recreated from an original 1963 copper-panel amplifier to deliver the unmistakable British chime, dynamic response and harmonic richness that defined generations of iconic recordings. Built using traditional hand-wired turret board construction, custom-wound transformers and vintage-accurate cabinet construction, it faithfully captures the character of the original while adding practical modern enhancements for today's players. :contentReference[oaicite:0]{index=0}

Delivering 30 watts of all-valve power through a pair of Celestion Alnico Blue speakers, the AC30 Hand-Wired offers exceptional headroom, sparkling cleans and the signature VOX overdrive when pushed. Modern additions include a transparent FET-buffered effects loop, custom-voiced spring reverb, bypassable master volume and flexible speaker outputs, making it equally at home on stage, in the studio or in professional recording environments. :contentReference[oaicite:1]{index=1}

Features

  • Hand-wired turret board construction
  • Recreated from an original 1963 copper-panel AC30
  • 30-Watt all-valve guitar combo amplifier
  • Newly designed power circuit recreates authentic vintage voltage sag
  • Custom-wound output transformer
  • 2 x 12" Celestion Alnico Blue speakers
  • Classic Top Boost circuit
  • Custom-voiced spring reverb
  • Transparent FET-buffered effects loop
  • Bypassable master volume
  • Dual speaker outputs with detachable internal speaker connection
  • Vintage copper control panel and brass vents
  • Designed for studio, stage and professional recording

Specifications

General

  • Model: AC30 Hand-Wired
  • SKU: AC30HWR2X
  • Amplifier Type: All-Valve Combo
  • Output Power: 30 Watts RMS

Valve Configuration

  • Preamp Valves: 4 × ECC83 / 12AX7
  • Driver Valve: 1 × ECC81 / 12AT7
  • Power Valves: 4 × EL84
  • Rectifier Valve: 1 × GZ34

Speaker

  • Speaker Configuration: 2 × 12" Celestion Alnico Blue
  • Speaker Impedance: 8 Ohms (each)

Controls

  • Controls: Channel Volume, Bass, Treble, Tone, Master Volume
  • Master Volume: Bypassable

Connections

  • Inputs: Normal High, Normal Low, Top Boost High, Top Boost Low
  • Effects Loop: Send & Return (FET Buffered)
  • Footswitch Input: 1 × 1/4"
  • Speaker Outputs: 2 × 1/4"
  • Supported Speaker Loads: 8Ω / 16Ω

Effects

  • Reverb: Built-in Spring Reverb

Dimensions

  • Dimensions (W × D × H): 705 × 263 × 567 mm
  • Weight: 32.0 kg

Included Accessories

  • Included: Power Cable, VFS1 Footswitch, Owner's Manual

Warranty

1 Year Warranty
