UA-VOLT2MAX

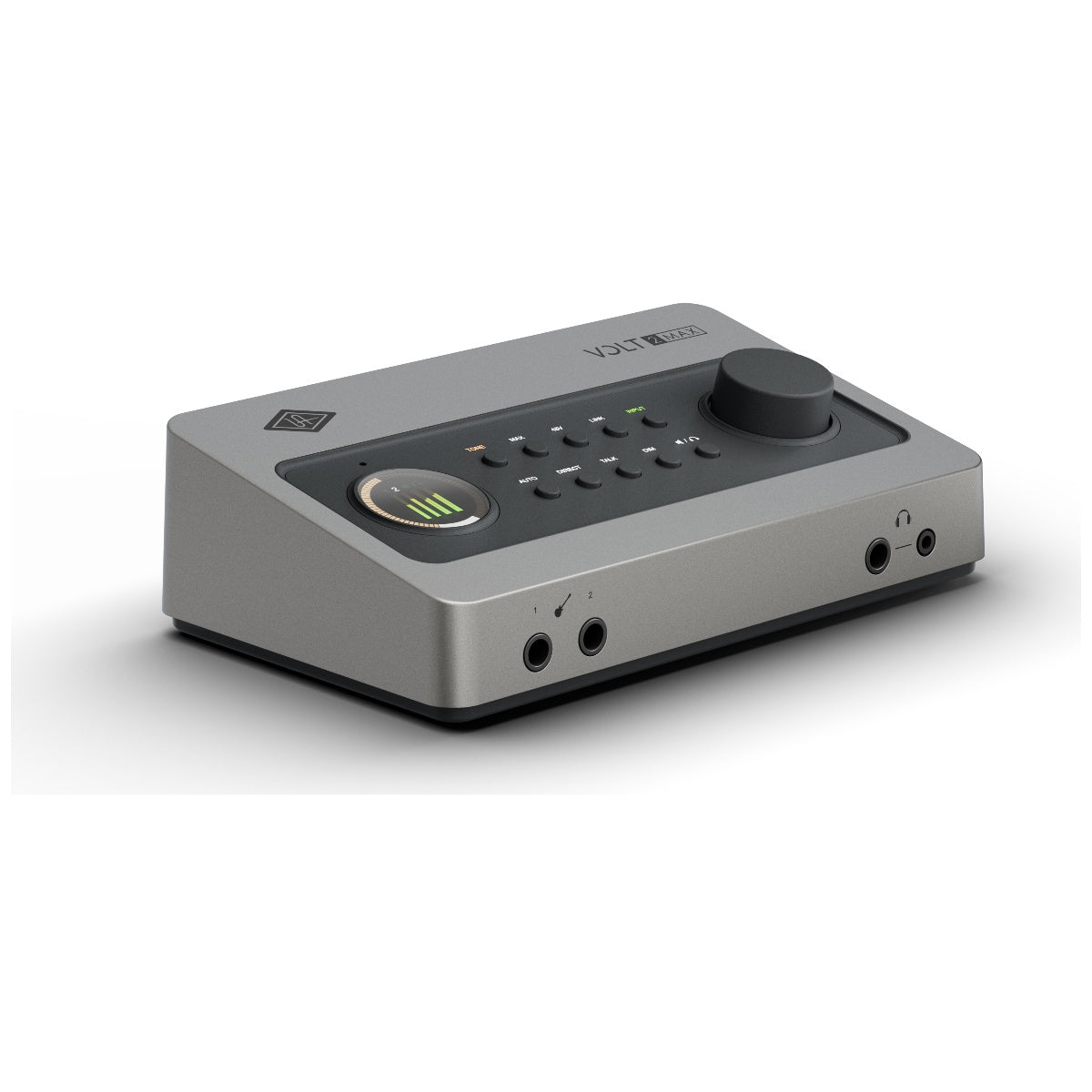

Universal Audio UA Volt 2 Max USB Audio Interface 10-in/4-out
Pay With
Product Information
The Universal Audio Volt 2 Max is a next-generation 10-in / 4-out desktop USB audio interface designed for musicians, producers, songwriters, podcasters, and content creators who want professional studio sound with hands-on control. Featuring 32-bit / 192 kHz conversion, dual Tone Shaping Preamps, onboard Max compression, a full-colour Smart Display, Auto-Gain, Clip Protection, ADAT expansion, MIDI connectivity, and a built-in talkback microphone, Volt 2 Max brings a powerful recording workflow to a compact desktop format.
Built by the same Universal Audio team behind the renowned Apollo interfaces, Volt 2 Max features two digitally controlled mic preamps with 60 dB of available gain and three selectable harmonic character modes — Warmth, Focus, and Shine. These provide Tube, Solid State, and British Class-A-inspired tonal options, giving vocals and instruments additional colour and character before they reach your recording software.
Max Processing adds onboard real-time compression with six musical presets designed for vocals, guitars, bass, and other sources. Inspired by classic studio compressors including the LA-2A and 1176, these presets can be combined with the three Tone Shaping modes to provide more than 18 tonal combinations directly from the interface.
Two mic / line inputs and two front-panel Hi-Z instrument inputs allow vocals, guitars, basses, and stereo sources to be recorded simultaneously. Independent 48V phantom power is available for condenser microphones, while ADAT or S/PDIF optical input provides digital expansion for adding additional channels when your recording setup grows.
A full-colour Smart Display provides clear visual feedback for input levels, settings, and gain reduction. Auto-Gain automatically sets suitable recording levels, while Clip Protection helps manage unexpected peaks, allowing you to focus on the performance instead of constantly watching meters.
Volt 2 Max also includes MIDI In and Out, two studio-quality headphone outputs, a built-in talkback microphone, a USB hub for connecting compatible peripherals, and Loopback for podcasting, livestreaming, and content creation. Full integration with the UAD Console app and LUNA provides session recall and low-latency cue mixes for an efficient studio workflow.
USB bus power and class-compliant operation make Volt 2 Max suitable for both desktop and mobile recording. It also includes the UAD Volt Studio Bundle and a comprehensive collection of third-party software, giving you a complete toolkit of EQs, compressors, reverbs, guitar and bass amps, instruments, and production software.
Features
- 10-in / 4-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
- Two Tone Shaping Preamps with 60 dB of digitally controlled gain
- Three preamp character modes: Warmth, Focus, and Shine
- Warmth mode provides tube-inspired tonal character
- Focus mode provides solid-state-inspired tonal character
- Shine mode provides British Class-A-inspired tonal character
- Max Processing with six onboard real-time compression presets
- Compression presets inspired by classic LA-2A and 1176 studio compressors
- More than 18 tonal combinations using Tone Shaping and Max Processing together
- Two mic / line inputs and two front-panel Hi-Z instrument inputs
- Independent 48V phantom power on each microphone channel
- ADAT or S/PDIF optical input for digital expansion
- Up to eight additional channels via ADAT at 44.1 or 48 kHz
- MIDI In and Out for connecting keyboards, controllers, and synthesizers
- Built-in talkback microphone for studio communication
- Full-colour Smart Display with gain-reduction metering
- Auto-Gain automatically sets recording levels
- Clip Protection helps prevent unexpected peaks from ruining takes
- Two studio-quality headphone outputs with one shared cue mix
- Built-in USB hub for compatible peripherals
- Built-in Loopback for podcasting, streaming, and content creation
- Full integration with UAD Console and LUNA
- Session recall and low-latency cue mix support
- USB bus powered and class compliant
- Compatible with Mac, Windows, iPad, and iPhone
- Rugged desktop construction designed for long-term studio use
Included Software
- LUNA Digital Audio Workstation: Universal Audio's recording, mixing, and mastering environment
- Topline Vocal Tune: Vocal tuning software included with the UAD Volt Studio Bundle
- UA 610 Tube Preamp & EQ Collection: Classic UA tube preamp and EQ emulation
- Century Tube Channel Strip: Tube channel strip for recording and mixing
- Teletronix LA-2A Tube Compressor: Classic optical tube compression
- UA 1176 Classic FET Compressor: Classic FET compression
- Pure Plate Reverb: Plate-style reverb effect
- Galaxy Tape Echo: Vintage-inspired tape echo effect
- Oxide Tape Recorder: Tape recording emulation
- Vibe Analog Machines: Analog-inspired processing tools
- PolyMAX Synth: Polyphonic software synthesiser
- Anthem Analog Synth: Analog-style software synthesiser
- UAD Lion '68 Super Lead Amp: Guitar amplifier plug-in
- UAD Showtime '64 Tube Amp: Vintage-style tube guitar amplifier plug-in
- Melodyne Essential by Celemony: Pitch and timing editing software
- Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance: Includes Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
- Virtual Drummer DEEP by UJAM: Virtual drum instrument
- Virtual Bassist DANDY by UJAM: Virtual bass instrument
- Splice INSTRUMENT: Included virtual instrument
- Prisma - Producer Lab by UVI: Included UVI production software
- FL Studio Producer Edition: Three months free
Specifications
- Brand: Universal Audio
- Model: Volt 2 Max
- Product Type: USB Audio Interface
- Simultaneous I/O: 10-In / 4-Out
- Maximum Audio Resolution: 32-Bit / 192 kHz
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
- Bit Depth: 32-Bit
- Microphone Preamps: 2
- Microphone Preamp Gain: 60 dB
- Preamp Tone Shaping: Warmth, Focus and Shine
- Onboard Compression: Max Processing
- Max Processing Presets: 6
- Mic / Line Inputs: 2 x XLR / 1/4" Combo Jack
- Instrument Inputs: 2 x Front-Panel 1/4" TS Hi-Z
- Phantom Power: +48V Switchable Per Channel
- Optical Input: ADAT or S/PDIF
- ADAT Input: 8 Channels at 44.1 / 48 kHz, 4 Channels at 96 kHz, 2 Channels at 192 kHz
- S/PDIF Input: 2 Channels at All Supported Sample Rates
- MIDI: MIDI In / Out
- MIDI Connector: 1/8" TRS Mini-Jack, Type A
- Talkback: Built-In Microphone
- Smart Display: Full-Colour Display with Gain-Reduction Metering
- Auto-Gain: Yes
- Clip Protection: Yes
- Loopback: Yes
- Monitor Outputs: 1 x Stereo Pair
- Headphone Outputs: 2 x Stereo Outputs with One Shared Cue Mix
- USB Host: USB 2.0
- USB Hub: 1 x Peripheral Port, 5VDC @ 0.5A Maximum
- USB External Power Input: USB Type-C, 5VDC @ 1A Minimum
- USB Connector Type: USB Type-C
- USB Bus Powered: Yes
- Power Consumption: 4.1W Typical / 5.7W Maximum
- Power Switch: Rear Panel
Instrument Input Specifications
- Frequency Response: 20 Hz – 20 kHz ±0.02 dB
- Dynamic Range: 116 dB A-Weighted
- THD + Noise: -108 dB (0.0004%)
- Maximum Input Level: 13 dBu
- Input Impedance: 1 MΩ
- Available Gain: 60 dB Digitally Controlled
- Connector: 1/4" TS Unbalanced
Microphone Input Specifications
- Frequency Response: 20 Hz – 20 kHz ±0.08 dB
- Dynamic Range: 119 dB A-Weighted
- THD + Noise: -110 dB (0.0003%)
- Maximum Input Level: 14 dBu
- Input Impedance: 2 kΩ
- Available Gain: 60 dB Digitally Controlled
- Phantom Power: +48V Switchable Per Channel
- Connector: XLR Combo Jack, Pin 2 Positive
Line Input Specifications
- Frequency Response: 20 Hz – 20 kHz ±0.05 dB
- Dynamic Range: 119 dB A-Weighted
- THD + Noise: -108 dB (0.0004%)
- Maximum Input Level: 22 dBu
- Input Impedance: 10 kΩ
- Available Gain: 60 dB Digitally Controlled
- Connector: 1/4" TRS Balanced or TS Unbalanced via Combo Jack
Monitor Output Specifications
- Frequency Response: 20 Hz – 20 kHz ±0.05 dB
- Dynamic Range: 126 dB A-Weighted
- THD + Noise: -112 dB (0.0003%)
- Maximum Output Level: 20.2 dBu
- Output Impedance: 200 Ω
- Connector: 1/4" TRS Balanced, DC Coupled
Headphone Output Specifications
- Frequency Response: 20 Hz – 20 kHz ±0.08 dB
- Dynamic Range: 116 dB A-Weighted
- THD + Noise: -103 dB (0.0007%) into 300 Ω
- Maximum Output Power at 32 Ω: 45 mW
- Maximum Output Power at 300 Ω: 24 mW
- Connectors: 1/4" and 1/8" TRS Stereo Unbalanced, DC Coupled
System Requirements
- macOS: macOS 12 Monterey or Newer
- Windows: Windows 10 64-Bit or Newer
- iPad / iPhone: iPadOS / iOS 16 or Newer
- Computer Processor: Intel, AMD or Apple Silicon
- Computer Connection: Available USB 2.0 or Higher Port
- Internet Connection: Required for Software Downloads
- DAW Compatibility: Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and Other Major DAWs
