Samson makes wireless easier than ever with the XPDm Handheld System, a unique wireless microphone solution that is ideal for singers, presenters, educators and interviewers. Operating on the 2.4GHz license-free frequency, this digital wireless system offers simple setup and rock-solid wireless operation at an unbeatable value.
Easily connect the XPDm Handheld System into your audio setup with the lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs.
The XPDm Digital Wireless System delivers high-quality audio using digital transmission at 2.4GHz, the results sound as good as a traditional wired microphone. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to other wireless systems.
The HXD1 handheld transmitters allows for a completely cordless performance and captures vocals with absolute clarity. Offering 20 hours of run time from two AA batteries, and an impressive 100’ of wireless operation, the HXD1 delivers reliable performance in any application. A Q6 neodymium mic element provides a wide dynamic range and a multi-axis, shockmounted capsule that minimizes handling noise for a reliable, professional sounding wireless mic solution.

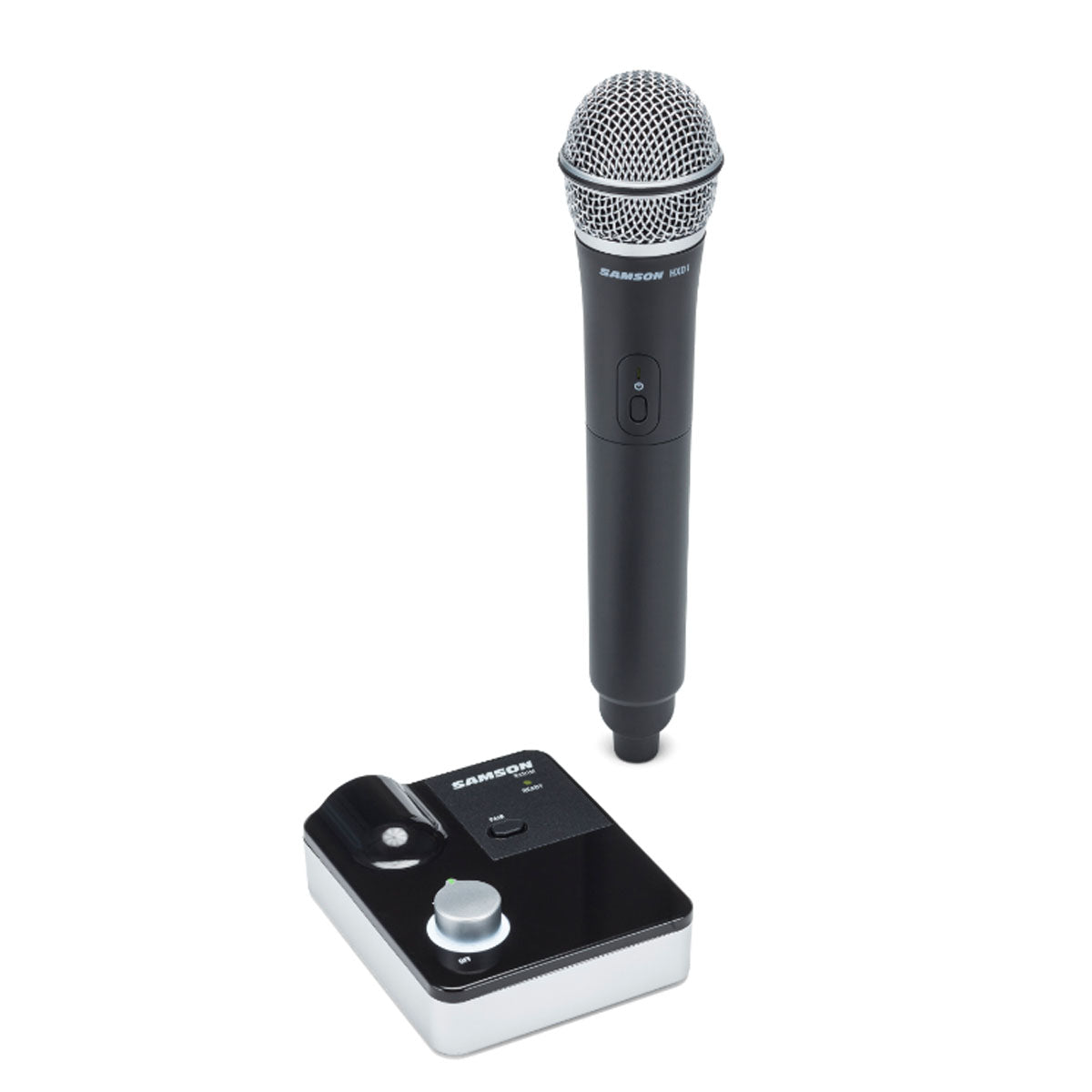

XPDm Handheld Digital Wireless System
Dual-channel, high performance digital wireless system
Operates on 2.4GHz License-free frequency

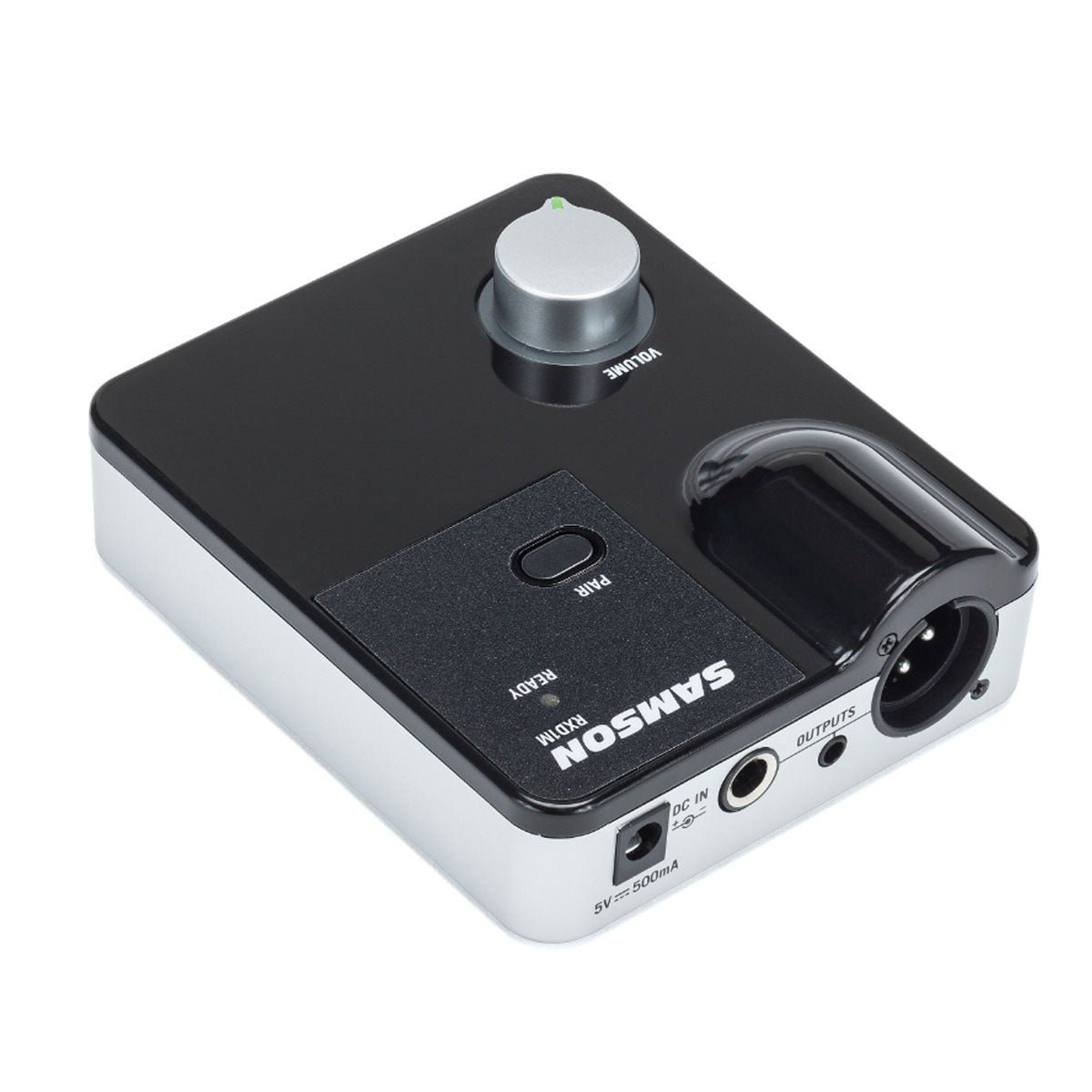

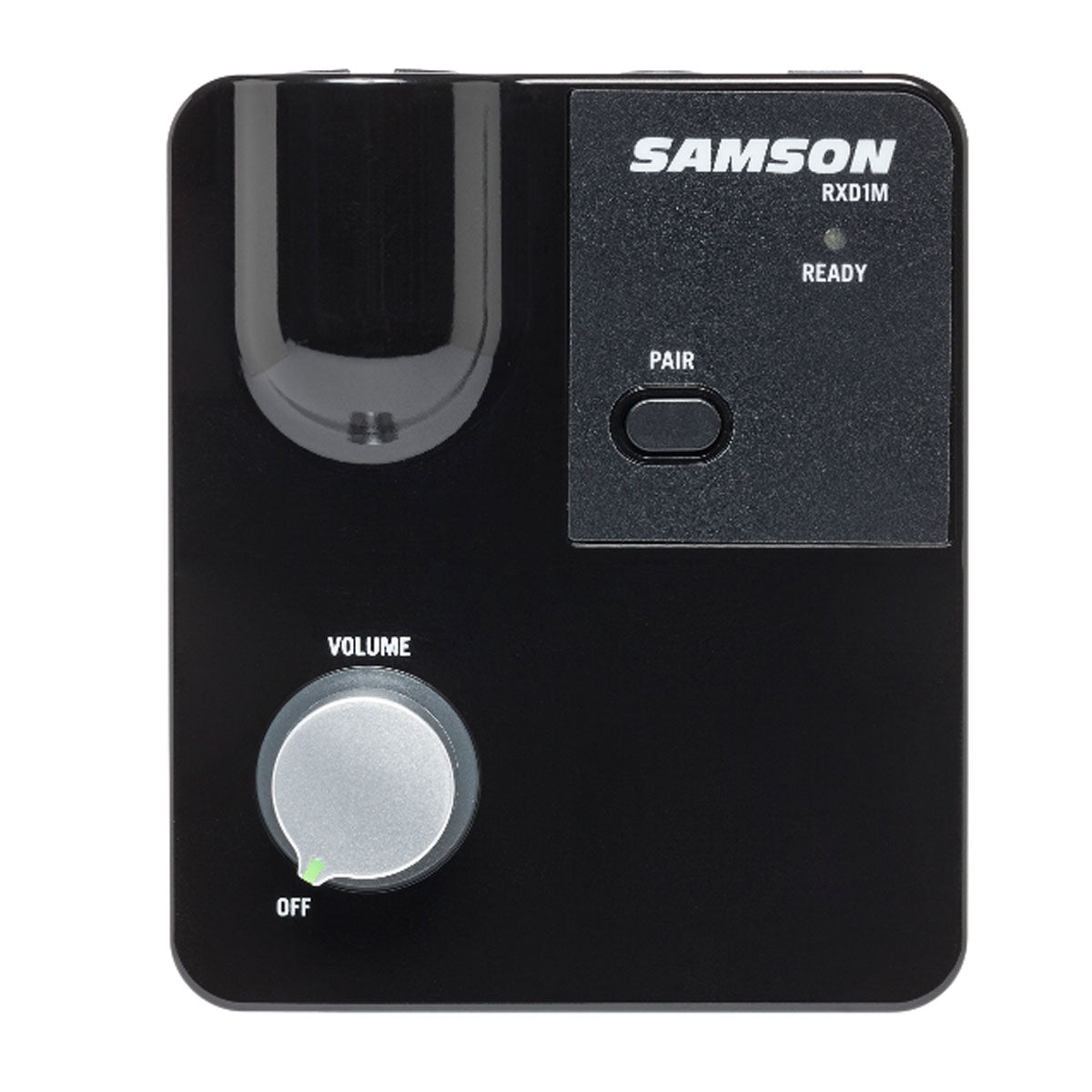

RXD1M Tabletop Receiver

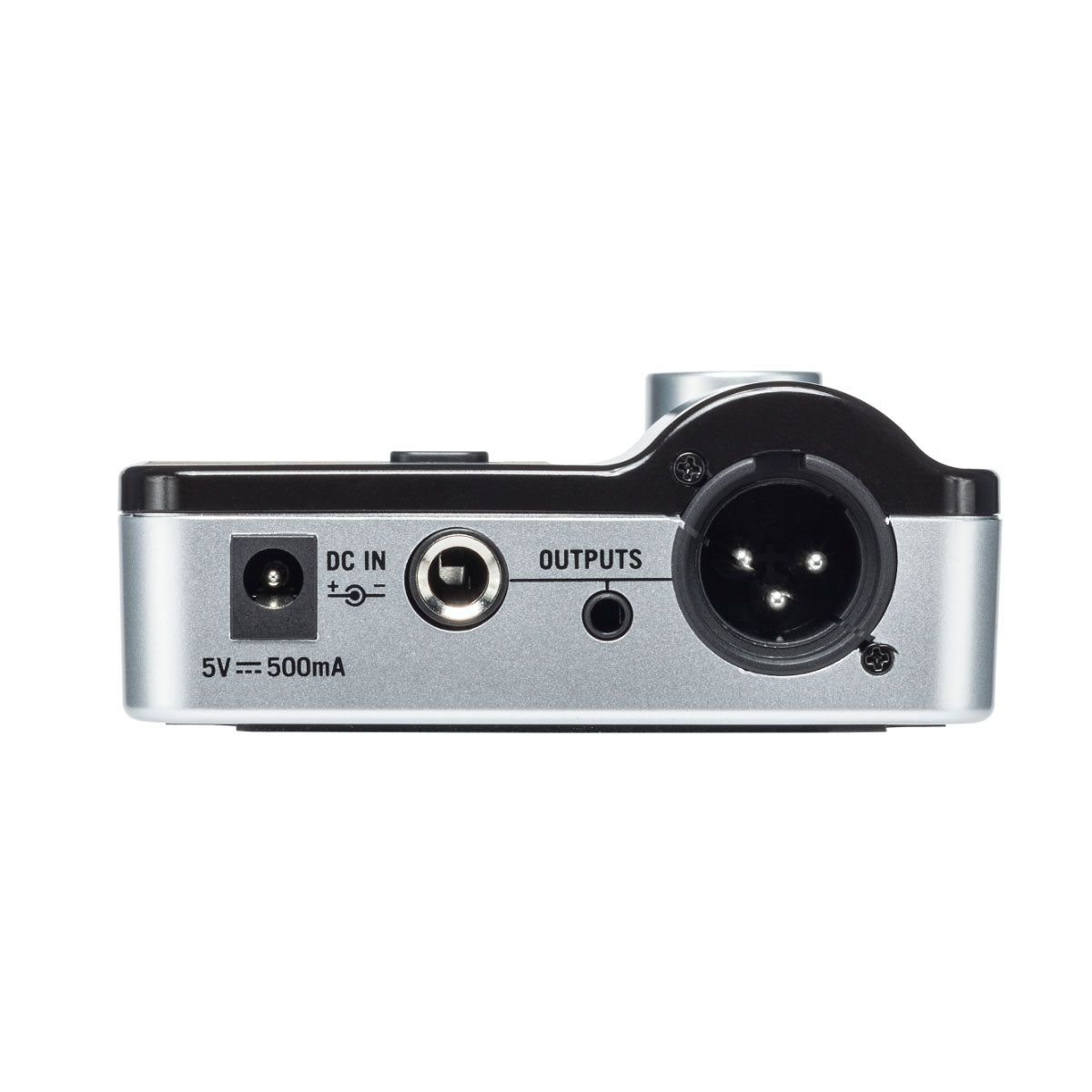

Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs
One-touch pairing button
Rotary volume knob with integral power switch
HXD1 Handheld Transmitter
Q6 Dynamic Microphone capsule
Offers up to 20 hours of battery life using two AA batteries
300’ operating range
RXD1M Digital Receiver
Simultaneous Systems: 2
Working Range: 100' (30m) line of sight
Working Frequency: 2.404~2.476GHz
Modulation type: GFSK
Audio Frequency Response: 20Hz–16KHz
T.H.D.: <0.1% (@ 1KHz, -10dBu)
Signal to Noise: >85dB
Audio Output Level
1/8" (3.5mm) & 1/4" Jack (unbalanced): 5dBu
XLR Jack (balanced): 5dBu
Audio Output Impedance
1/8" (3.5mm) & 1/4" Jack (unbalanced): 2KΩ
XLR output jack (balanced): 4.5KΩ
RF Sensitivity: -78dBm/20dB SINAD
Operating Voltage: 5V/500mA
Product Dimensions: 4.25" (110mm) x 3.75" (95mm) x 1.5" (39mm)
Product Weight: 0.33lb (152g)
