Product Information

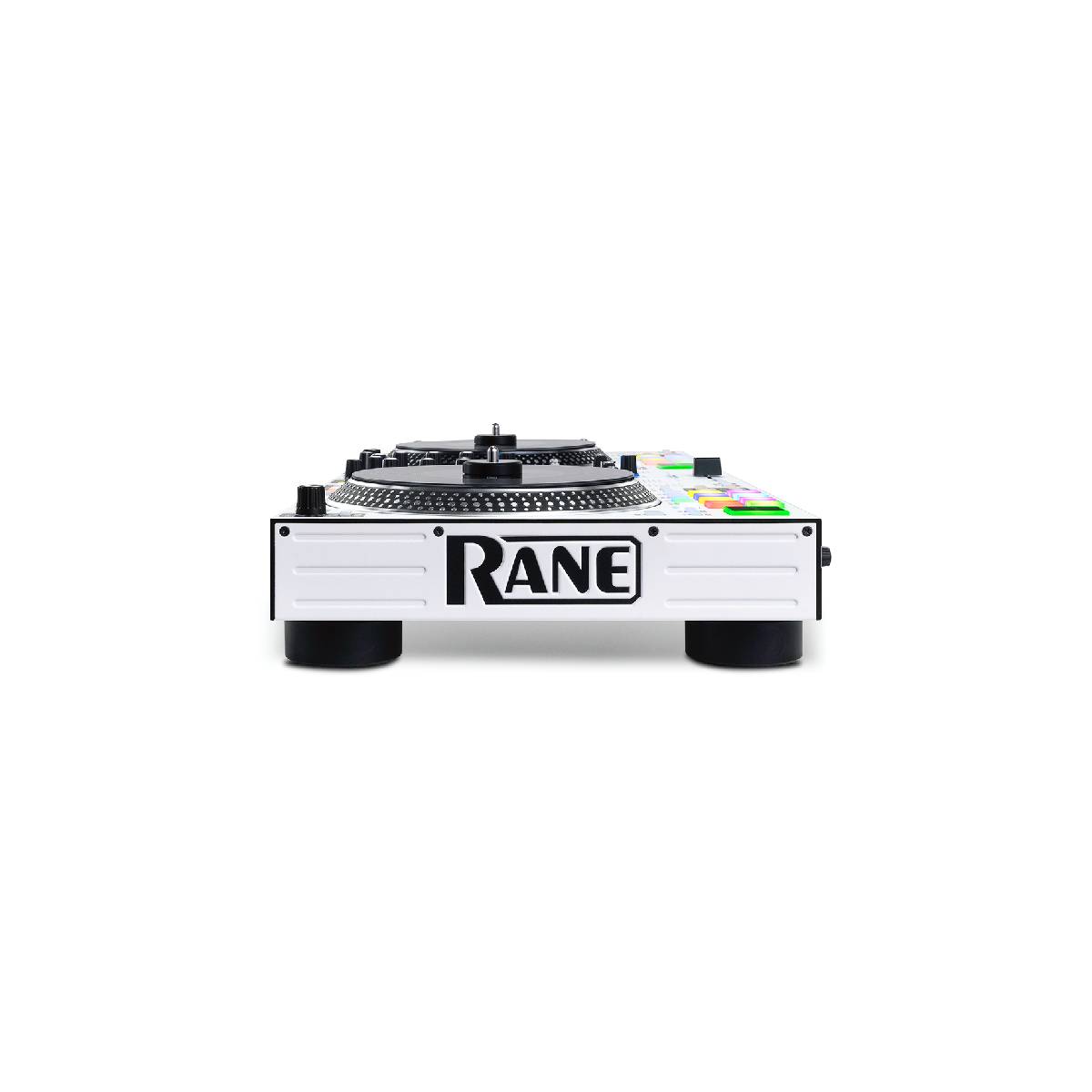

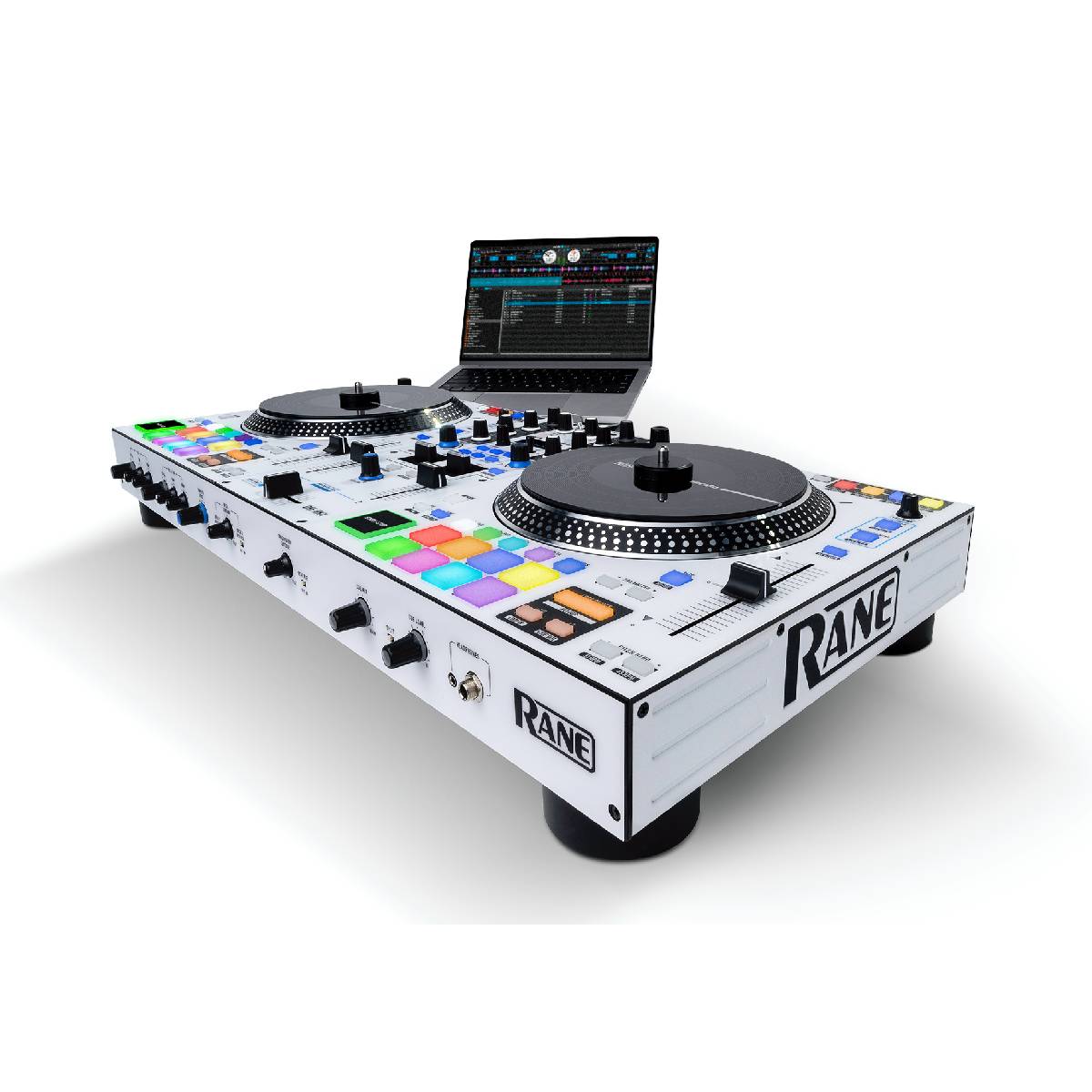

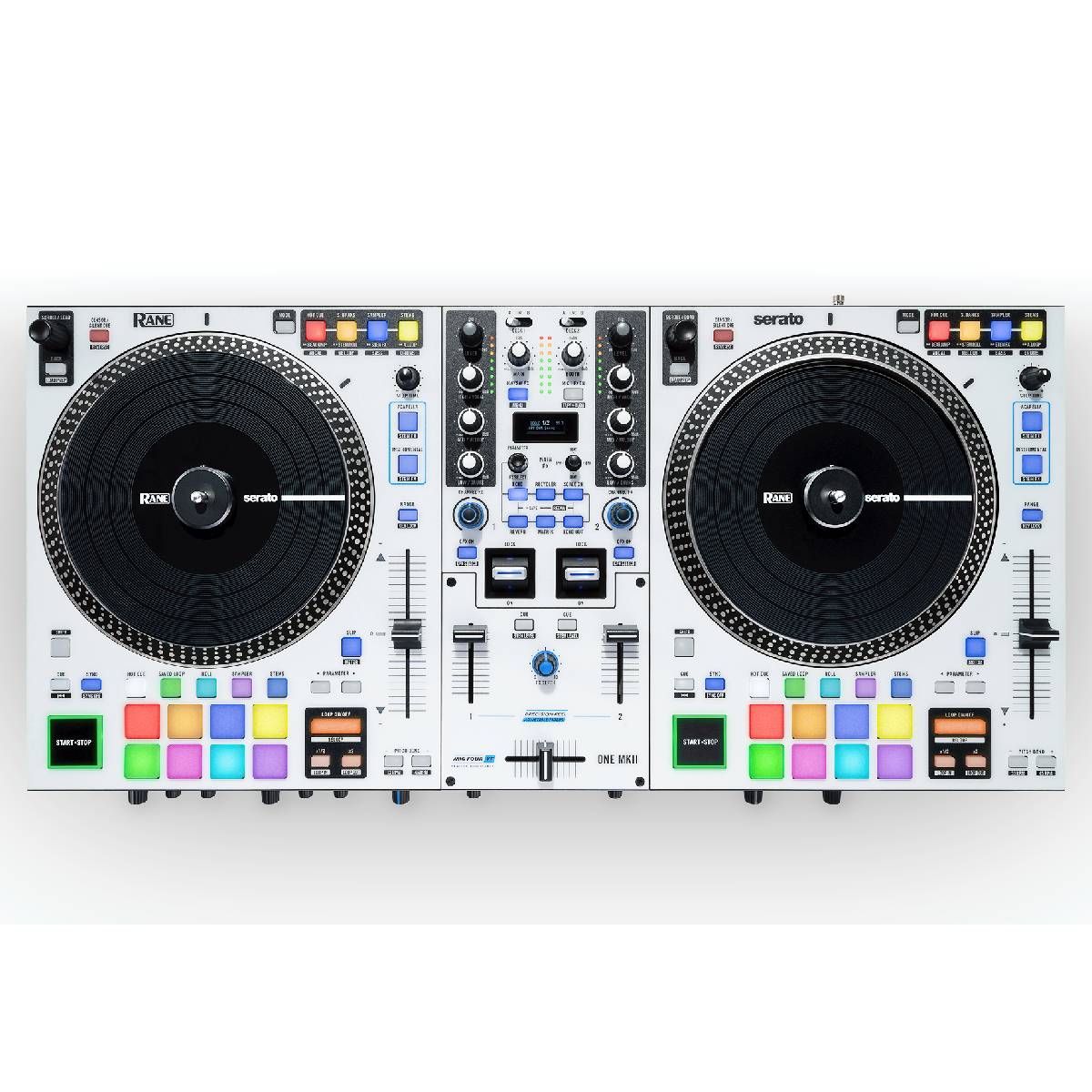

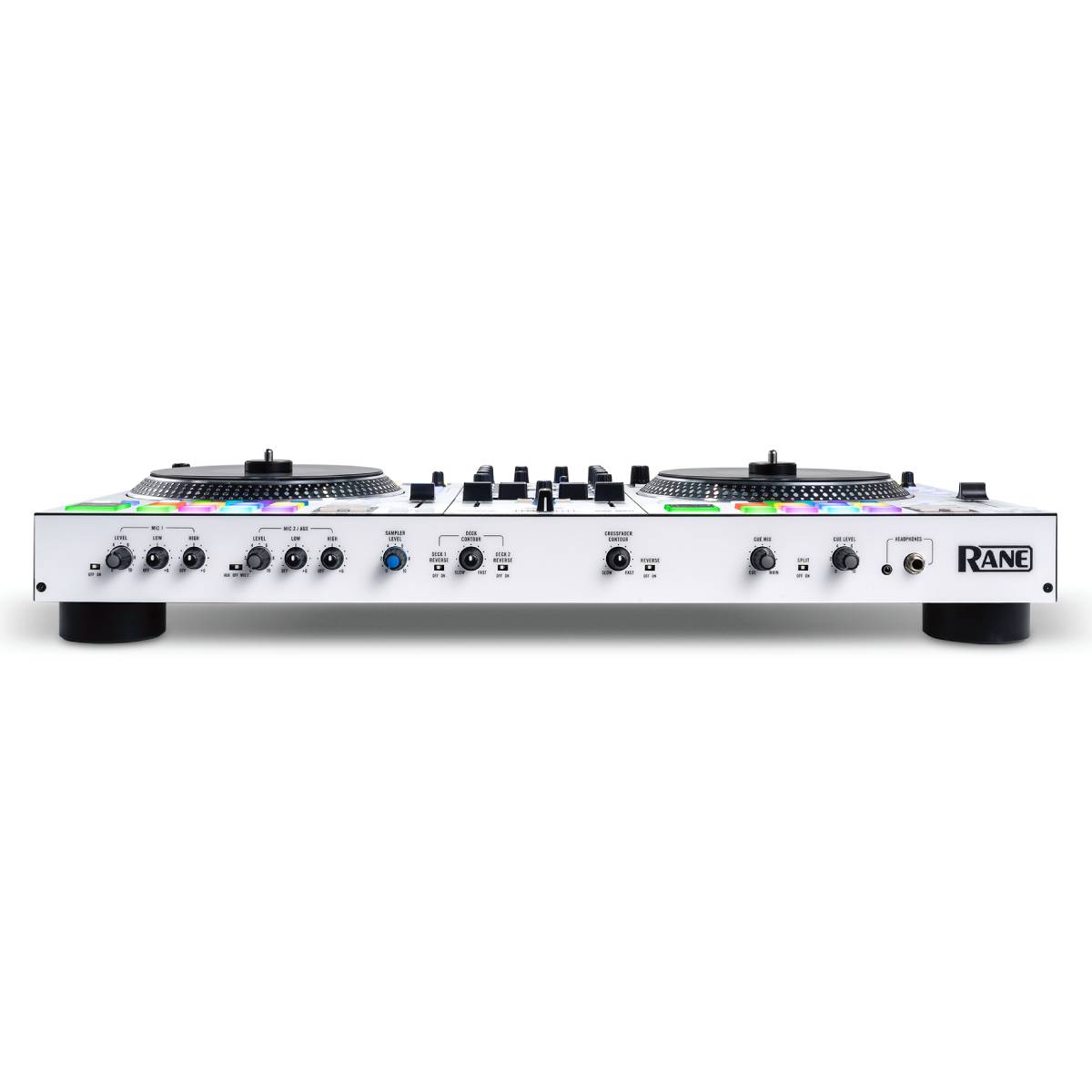

RANE ONE MKII Motorized DJ Controller
The RANE ONE MKII is a performance-ready motorized DJ controller designed to give professional DJs complete creative freedom during any live set. Flexible and adaptable for open-format workflows, the RANE ONE MKII offers motorized, high-torque platters that deliver the tactile response professional DJs need while maintaining technical precision with digital controls.
The system also features Fader FX, enabling the volume faders to be used as linear controls for Pitch, Filter, Roll, and Ring Modulator FX, as well as four different tone generators. With 29 internal hardware effects and a dedicated display, the MKII ensures smooth transitions and dynamic mixes for clubs, bars, and high-energy live events. Stems controls unlock powerful Serato DJ Pro integration, making it easy to isolate, remix, or transform tracks live.
The MKII also introduces customizable pad modes, a dedicated sampler knob, tension-adjustable PRECISION FEEL channel faders, and the MAG FOUR crossfader, ensuring DJs can tailor the controller to their unique style. Finished in a sleek white colorway, the RANE ONE MKII provides modern aesthetics and improved control surface visibility.
Key New Features
- Dynamic Internal FX Suite – 29 meticulously crafted effects, including fader-controlled transition FX, opening new creative possibilities.
-
Stems Controls for Creative Flexibility

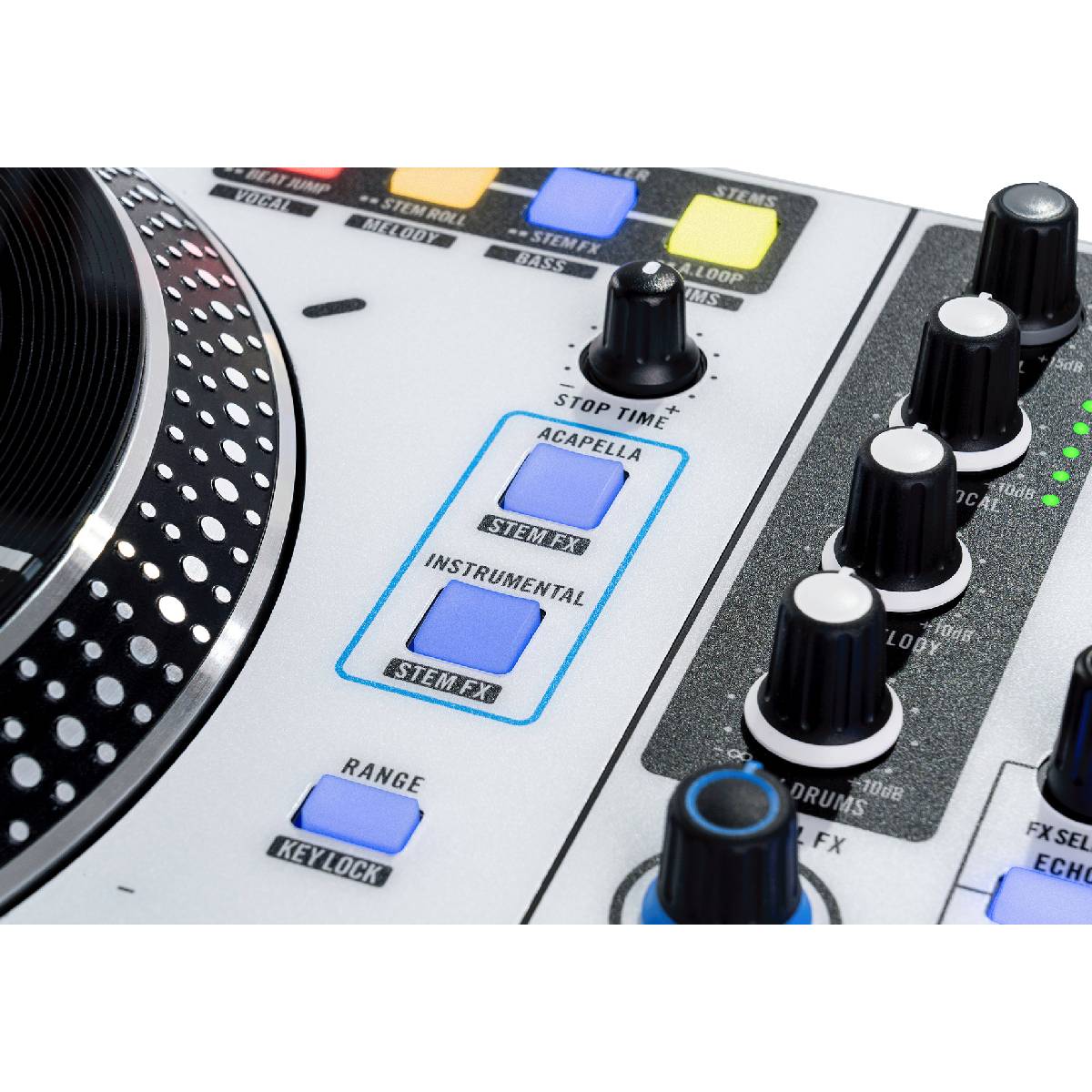

- Acapella & Instrumental Buttons – Isolate or remove vocals/instrumentals in real time.
- Stems Level Control – Adjust balance of audio elements with EQ knobs.
- Stems Pad Modes – Mute, loop, or apply FX to vocals, bass, melody, or drums individually.
- Secondary Pad Buttons – Access multiple pad modes simultaneously without menu diving.
- Channel FX – Filter knobs offer control of Filter, Filter Roll, Flanger, and Noise FX.
- PRECISION FEEL Faders – Tension-adjustable, ultra-smooth channel faders for dynamic mixing.
- Stunning White Finish – Stylish design enhances visibility and stage presence.
Changes from Previous Model
- Added DSP, OLED, joystick, and HW/SW FX control buttons
- Added Channel FX enable/disable buttons
- Touch strips replaced with 4 buttons for pad mode access
- Performance pads split for up to 3 pad modes per deck
- Repurposed Slip, Censor, and Range/Keylock buttons for Acapella, Instrumental, and Slip functions
- Upgraded channel/up faders to PRECISION FEEL faders
- Added dedicated Sampler volume knob on front panel
- New White colorway
Versatile, portable, and built to last, the RANE ONE MKII is the ultimate performance tool to empower and inspire any professional DJ.
Specifications
Digital Audio
- Converters: Cirrus Logic, 24-bit PCM, 48 kHz
- Digital Signal Processing: 32-bit, floating point, double precision
-
Dynamic Range (A-weighted, unity gain):
- ADC: 113 dB
- DAC: 113 dB
- CD Input to Analog Output: 110 dB
- CD Input to USB Output: 113 dB
- USB Input to Analog Output: 113 dB
Inputs
-
Microphone 1/2 (Combo XLR/1/4” TRS, Mic/Line switchable)
- Analog Gain: 25 dB
- Maximum Input: 110 mV
- Gain Trim: Off to +26 dB (unity at center)
- Tone Control: 2-band
-
Aux Input (RCA stereo pair)
- Maximum Input: 4 Vrms
- Dynamic Range (A-weighted): 114 dB
- Gain Trim: Off to +12 dB
- Tone Control: 2-band
-
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
-
CD
- Maximum Input: 4 Vrms
- Gain Trim: Off to +12 dB
- Tone Control: 3-band, full-cut to +10 dB
- THD+N (20 kHz BW @ 1 kHz): 0.004%
-
Phono
- RIAA Curve: ±0.25 dB
- Gain (@ 1 kHz): 31.5 dB
- Maximum Input (@ 1 kHz): 106 mV
- Dynamic Range (A-weighted): 102 dB
-
CD
Outputs
-
Main Outputs (XLR)
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N: 0.004%
- Frequency Response: Flat
-
Booth Outputs (XLR)
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N: 0.004%
- Frequency Response: Flat
-
Master Outputs (RCA stereo pair)
- Maximum Output: 4 Vrms
- THD+N: 0.004%
- Frequency Response: Flat
-
Headphone Outputs (1/4” & 1/8” TRS)
- Maximum Output Voltage: 4 Vrms (no load)
- Output Power: 50 mW (50 ohms)
- Dynamic Range (A-weighted): 108 dB
Pads
- 16x multi-color back-lit pads (8 per deck, 10 modes each)
- Secondary performance pad buttons with 8 pad modes
Faders
- (1) MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
- (2) PRECISION FEEL tension-adjustable faders with Contour knob and Reversal switches

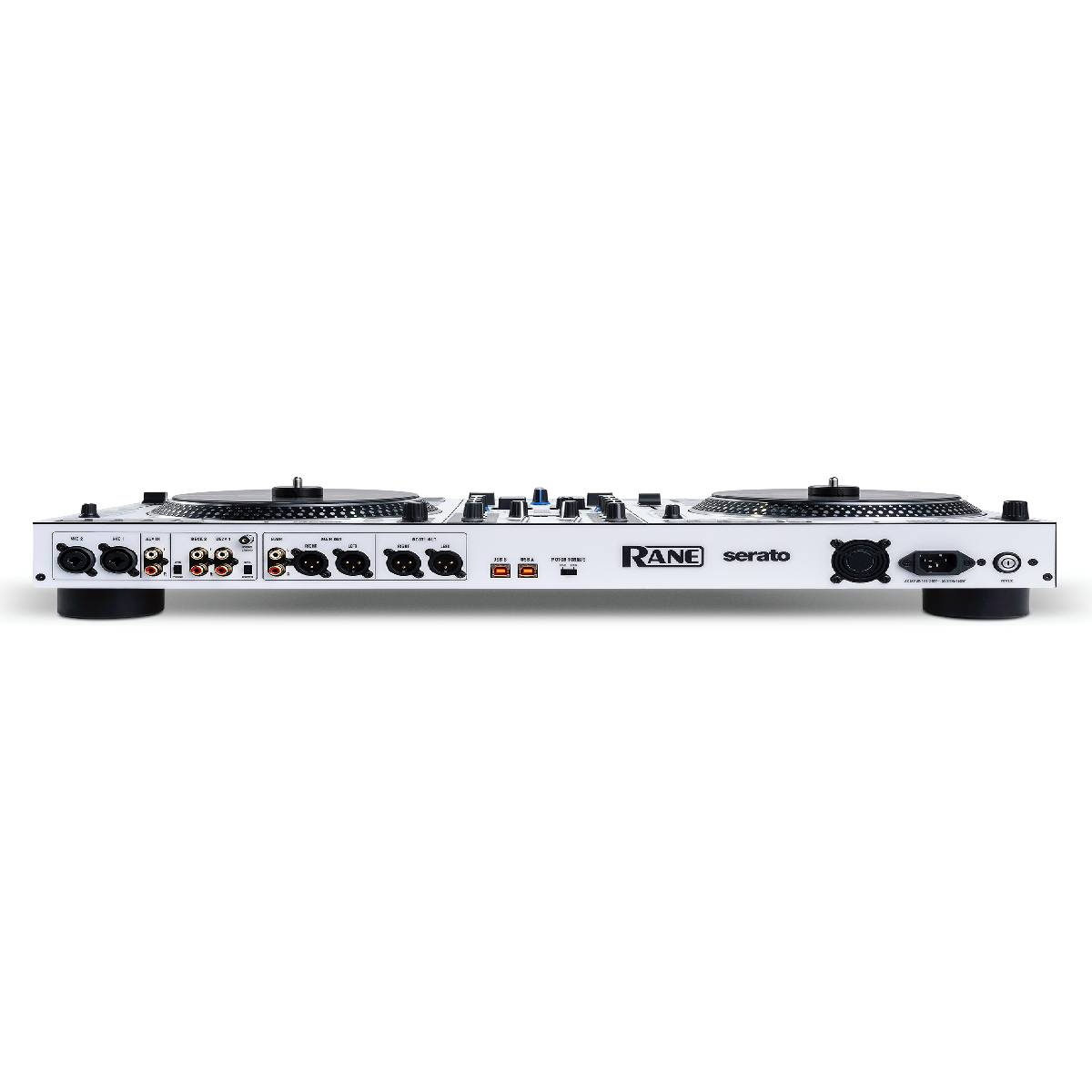

Connectors
- (2) XLR outputs (Main)
- (2) XLR outputs (Booth)
- (1) RCA stereo output pair (Master)
- (2) XLR / 1/4” TRS inputs (Mic 1-2)
- (2) RCA stereo input pairs (Deck 1-2)
- (1) RCA stereo input pair (Aux)
- (1) 1/4” TRS output (Headphones)
- (1) 1/8” TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
Power
- Connection: IEC
- Voltage: 100–240V, 50/60 Hz
- Consumption: 50 W
Dimensions
- 26.5” x 13.6” x 4.9” (674 x 345 x 124.3 mm)
Weight
- 24.56 lbs. (11.14 kg)
Warranty
