65/DJS-S

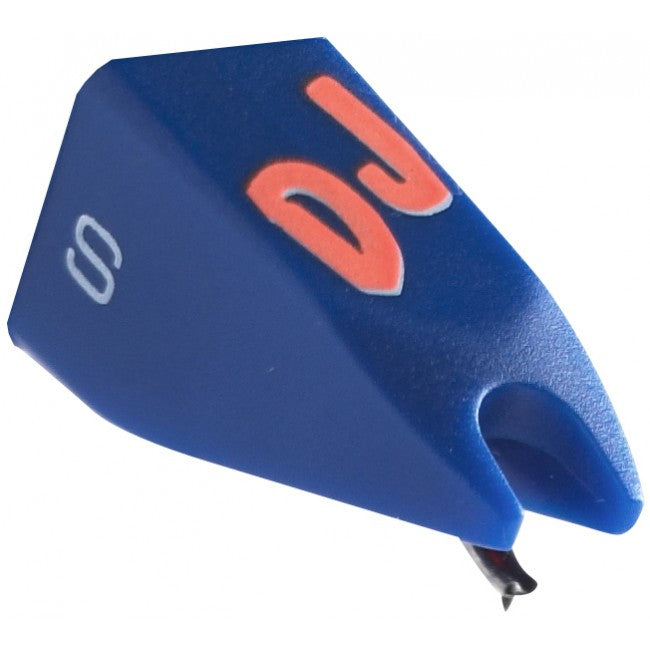

Ortofon DJ DJ S Replacement Stylus (x1)

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information:

Ortofon DJ S Spherical Stylus 1 x DJ S Replacement Stylus for Concorde or OM

Ortofon's DJS can be thought of as the "jack of all trades" cartridge and needle - providing good support for scratch and club DJ's alike, with a modest output. It displays good tracking ability, staying in the record groove where it should be and is built to be robust and long lasting. The DJ S takes care of your vinyl, preserving the quality of the record surface and is a very popular cartridge throughout the DJ world. The DJ S is rather unique in that it can accomodate two different styli, the DJS S (Spherical - favours back-cueing and scratching) and DJS E (Elliptical - favours a better sound quality) - this is the DJ S Spherical stylus.

Made in Denmark.



Specifications:

  • Output voltage at 1000Hz, 5cm/sec.: 6 mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 23 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-20,000 Hz
  • Frequency response: 20-18,000 Hz 3dB/-2dB
  • Tracking ability at 315 Hz at recommended tracking force: 80 μm
  • Compliance, dynamic lateral: 9 μm/m N
  • Stylus type: Spherical (Elliptical also available)
  • Stylus tip radius: R 18 μm
  • Tracking force range: 2.0-4.0 g (20-40 mN)
  • Tracking force recommended: 3.0 g (30 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF.
