Product Information

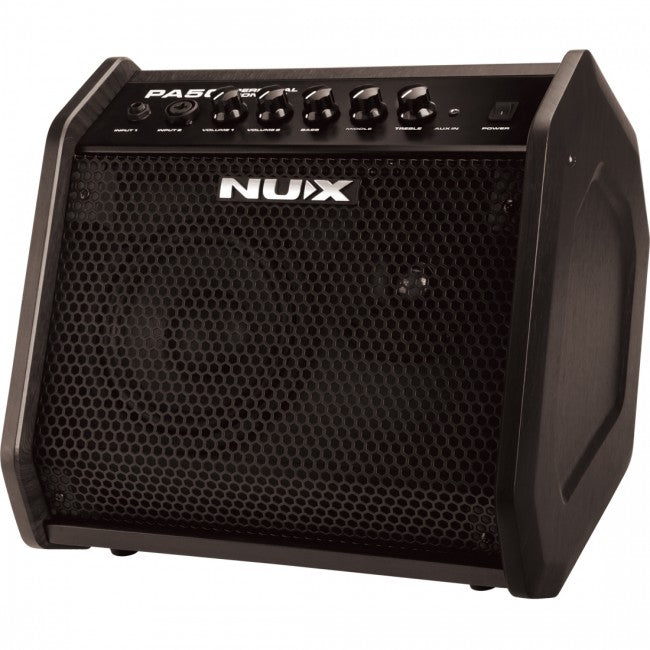

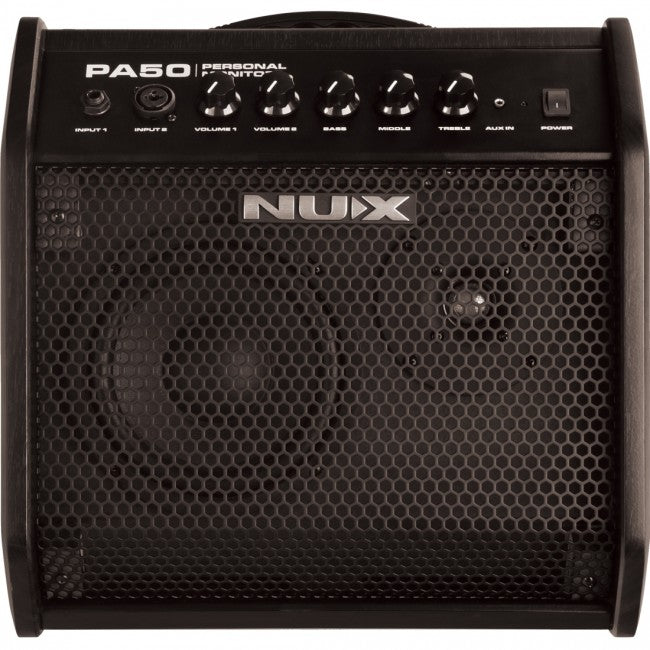

The NU-X PA-50 Personal Monitor Amplifier is a versatile 50-watt full-range powered monitor designed for electronic drums, keyboards, acoustic guitars, digital instruments, microphones and more. Combining a high-sensitivity 6.5" woofer with a 1" tweeter, the PA-50 delivers clear, balanced reproduction across a wide frequency range, making it an excellent compact monitoring solution for home practice, rehearsals, recording and small performances.
Two independent input channels provide plenty of flexibility for different instruments and setups. Channel 1 features a 1/4" unbalanced instrument input designed for electronic drums, acoustic guitars, keyboards and digital pianos, while Channel 2 uses a versatile XLR/1/4" combo input that can accommodate instruments, microphones and other audio equipment.
The PA-50 features a Full Range, Flat Response design, allowing it to accurately reproduce the sound of electronic instruments and processed guitar rigs. Channel 1 is voiced to enhance low and high frequencies for a dynamic instrument sound, while Channel 2 provides a flatter response that's ideal for use with amp modelling equipment, cabinet simulators and IR loaders.
Independent volume controls allow each channel to be balanced separately, while the onboard 3-band EQ provides Bass, Middle and Treble controls for fine-tuning the overall sound. An AUX input makes it easy to connect an external music source for backing tracks and practice, while the AUX output provides additional connectivity for expanded setups.
With 50 watts RMS of output power, compact dimensions and flexible connectivity, the NU-X PA-50 is particularly well suited as a personal electronic drum monitor while remaining versatile enough for keyboards, guitars, microphones and other applications.
Features
- 50-Watt RMS Output: Provides plenty of power for home practice, rehearsals, studio monitoring and small performance applications.
- Full-Range Speaker System: High-sensitivity 6.5" woofer and 1" tweeter provide clear reproduction across lows, mids and highs.
- Electronic Drum Ready: Full-range response makes the PA-50 well suited to reproducing kick, snare, tom and cymbal sounds from electronic drum kits.
- Dual Input Channels: Connect two instruments or audio sources simultaneously with independent volume controls.
- Instrument Input: Channel 1 features a 1/4" input designed for electronic drums, acoustic guitars, digital pianos, keyboards and other instruments.
- XLR/1/4" Combo Input: Channel 2 provides flexible connectivity for microphones, instruments and other audio equipment.
- Full Range, Flat Response: Designed for accurate reproduction of electronic instruments, modelling equipment and processed guitar sounds.
- 3-Band EQ: Bass, Middle and Treble controls allow convenient adjustment of the overall tonal response.
- AUX Input: Connect an external audio source for playing along with music and backing tracks.
- AUX Output: Provides additional connectivity for expanded monitoring and audio setups.
- IR Loader Compatible: Flat Channel 2 response makes it suitable for connecting cabinet simulators and IR loaders directly to the amplifier.
- Versatile Design: Suitable for electronic drums, keyboards, digital pianos, acoustic guitars, microphones and modelling guitar rigs.
Specifications
- Power Output: 50W RMS
- Channels: 2
- Channel 1 Input: 1/4" Unbalanced
- Channel 1 Input Impedance: 2.2MΩ
- Channel 2 Input: 1/4" / XLR Combo
- Channel 2 Input Impedance: 100kΩ
- Woofer: 6.5" High-Sensitivity Woofer
- Tweeter: 1" Tweeter
- EQ: 3-Band Bass, Middle and Treble
- AUX Input: 1/8"
- AUX Input Impedance: 6.6kΩ
- AUX Output: 1/4"
- Frequency Response: 50Hz - 20kHz (-3dB)
- Power Supply: AC100-120V / AC220-240V, 50/60Hz
- Power Consumption: ≤88W
- Dimensions: 361 x 364 x 325 mm
- Weight: 11.5 kg
- SKU: NXPA50
- UPC/EAN: 885947102969
