NXNSS4

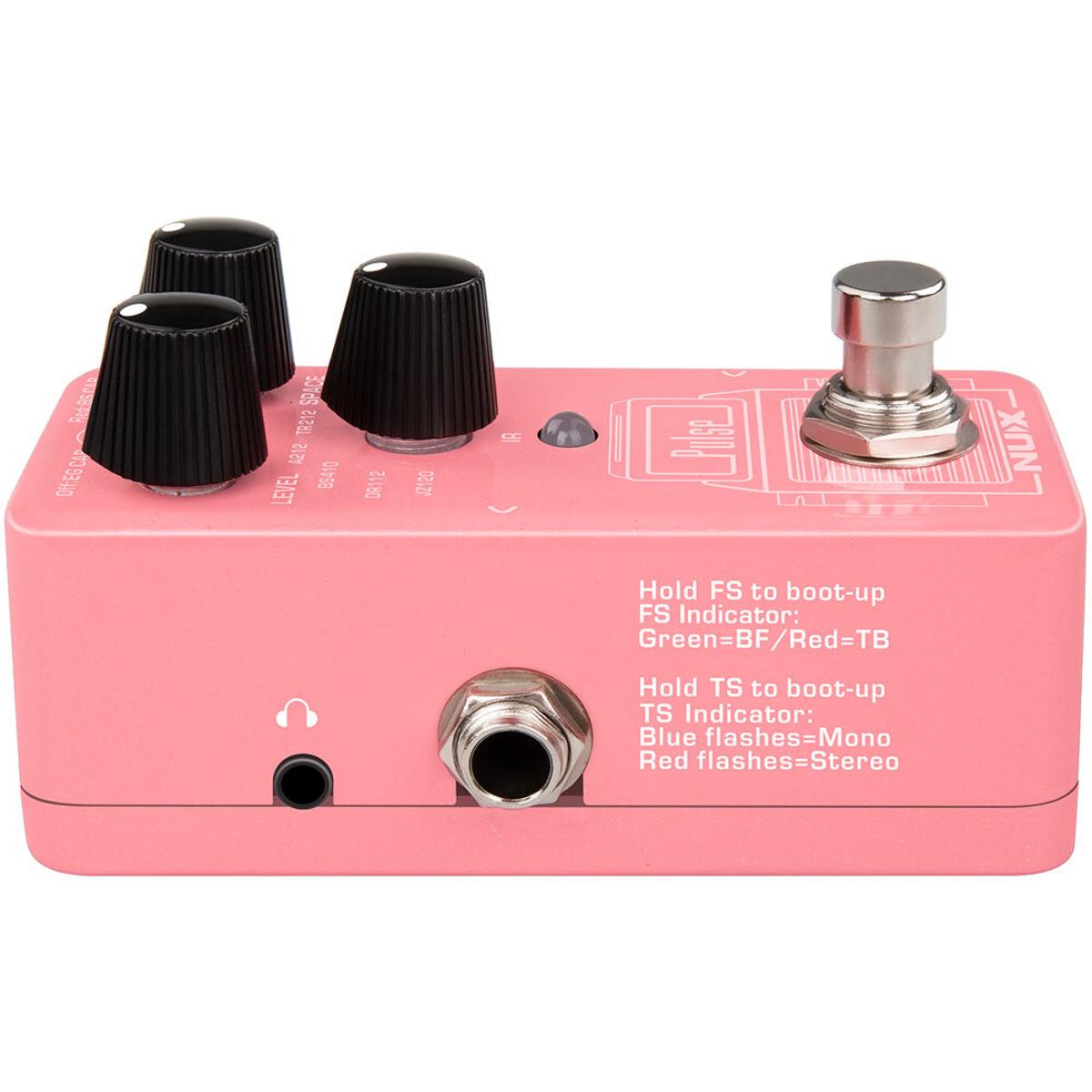

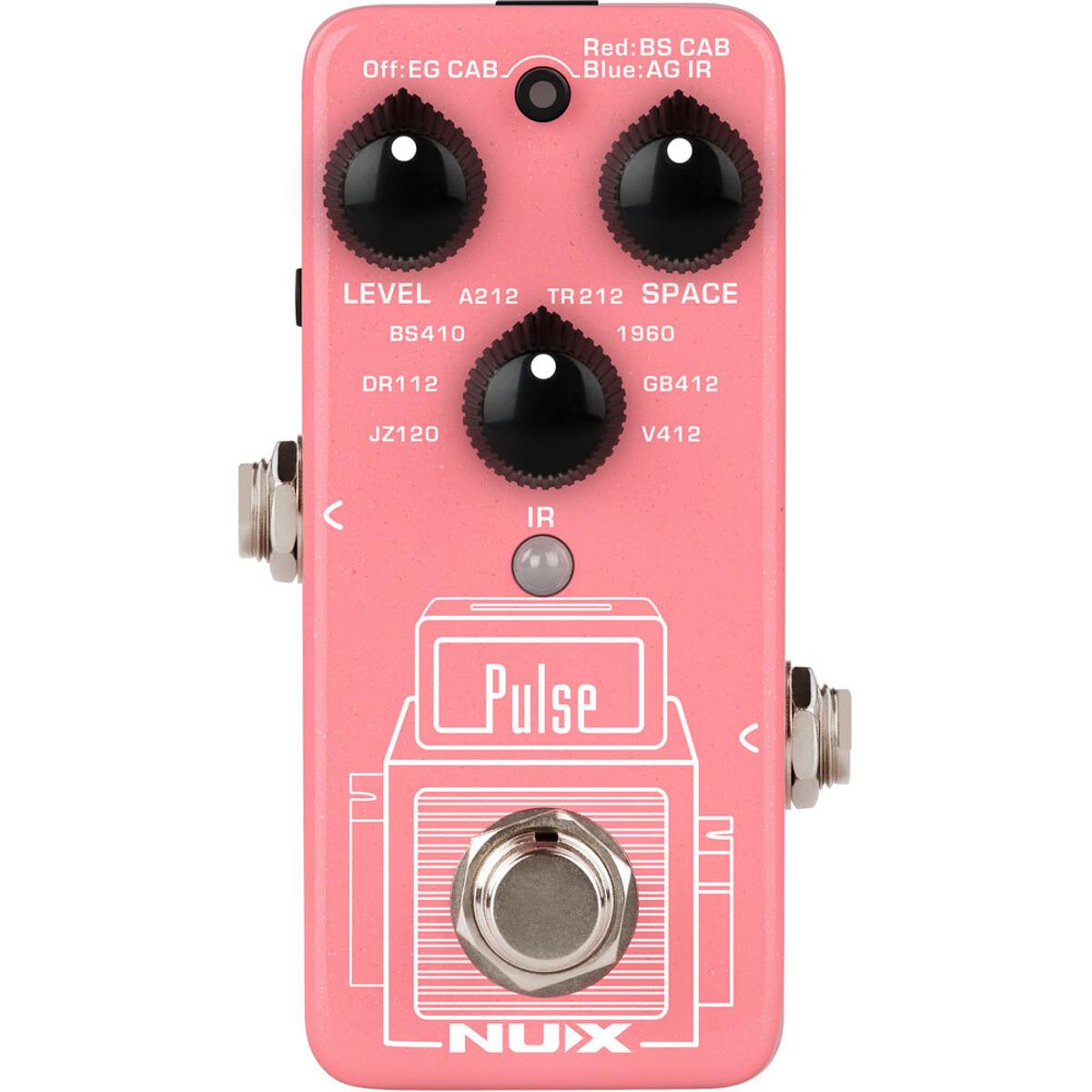

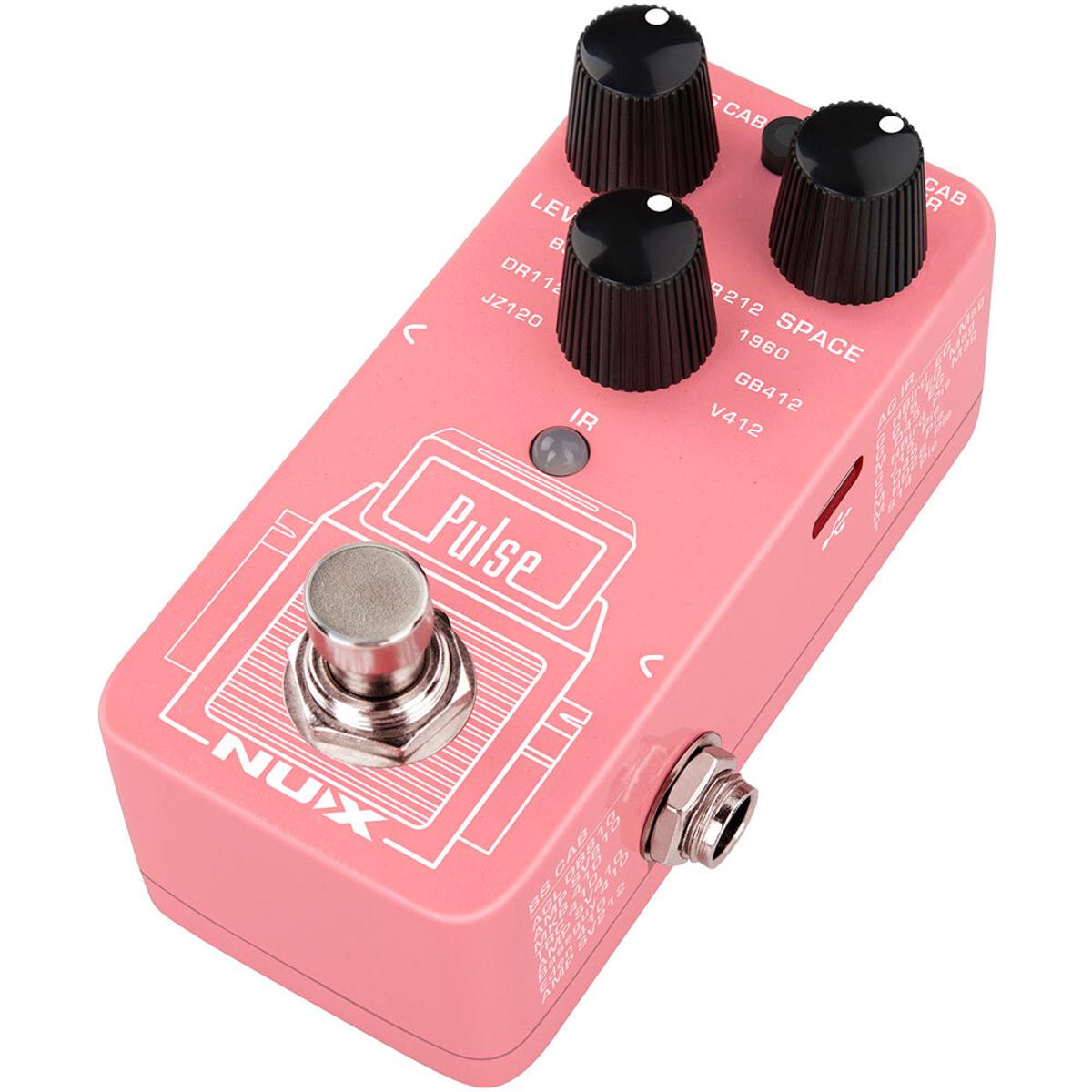

NU-X NXNSS4 Pulse Mini Core IR Loader Acoustic Guitar & Cab Simulator Effects Pedal

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information

Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8" phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW.

Features

  • WAV format supports automatically. (through Pulse Editor)
  • 3 default IR types in the mini enclosure. (Total = 24slots)
  • Electric Guitar Cab IR: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412
  • Bass Guitar Cab IR: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212
  • Acoustic Guitar IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie
  • 1024 samples real time calculation
  • True-bypass or Buffer-bypass
  • Supports Stereo
  • Low power consumption. (less than 100mA)
  • USB Audio Stream, Firmware Update
  • Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
  • Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
  • The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software

Specifications

  • Input Impedance: 1MΩ
  • Output Impedance: 10kΩ
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC (Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g

Warranty

1 Year Warranty
