Product Information

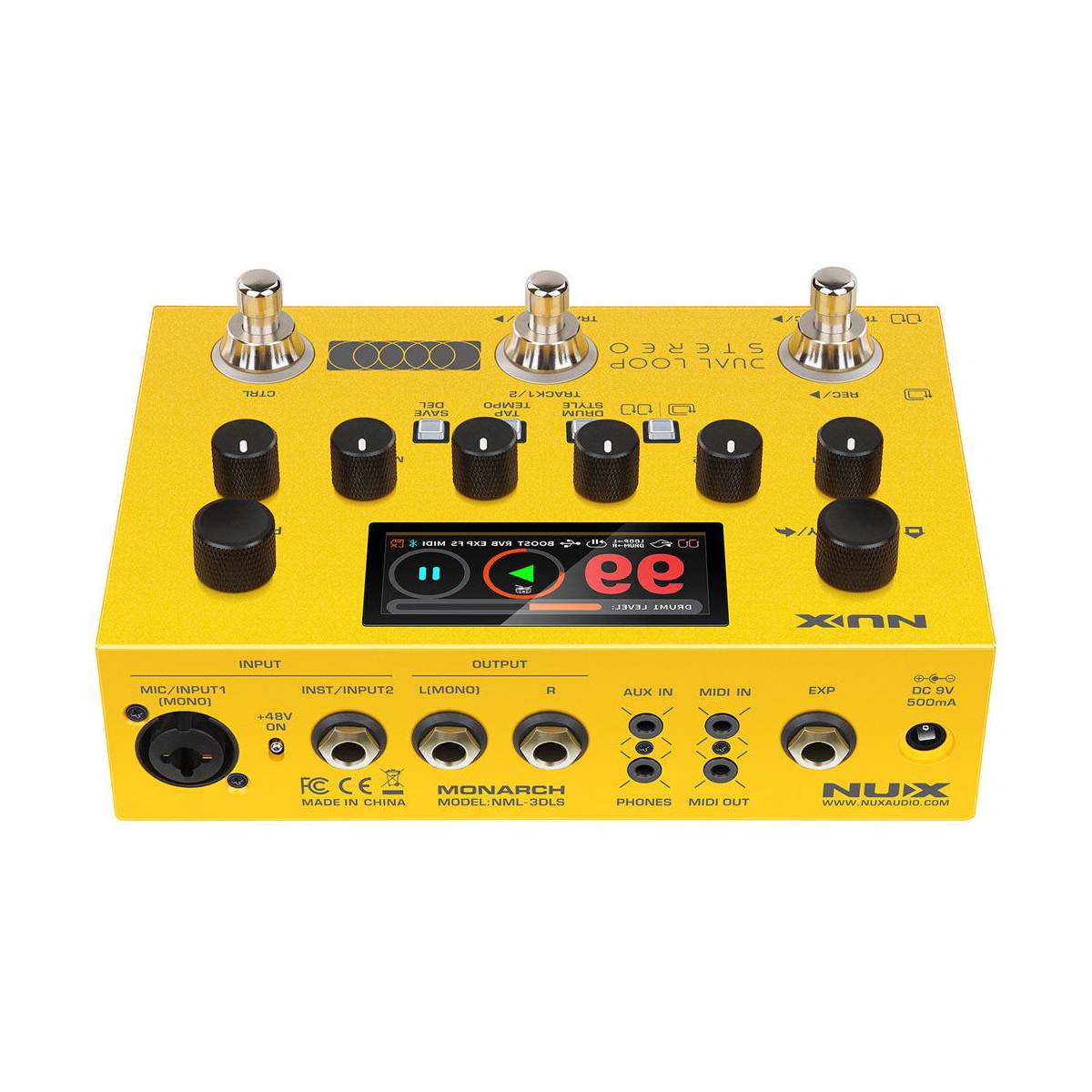

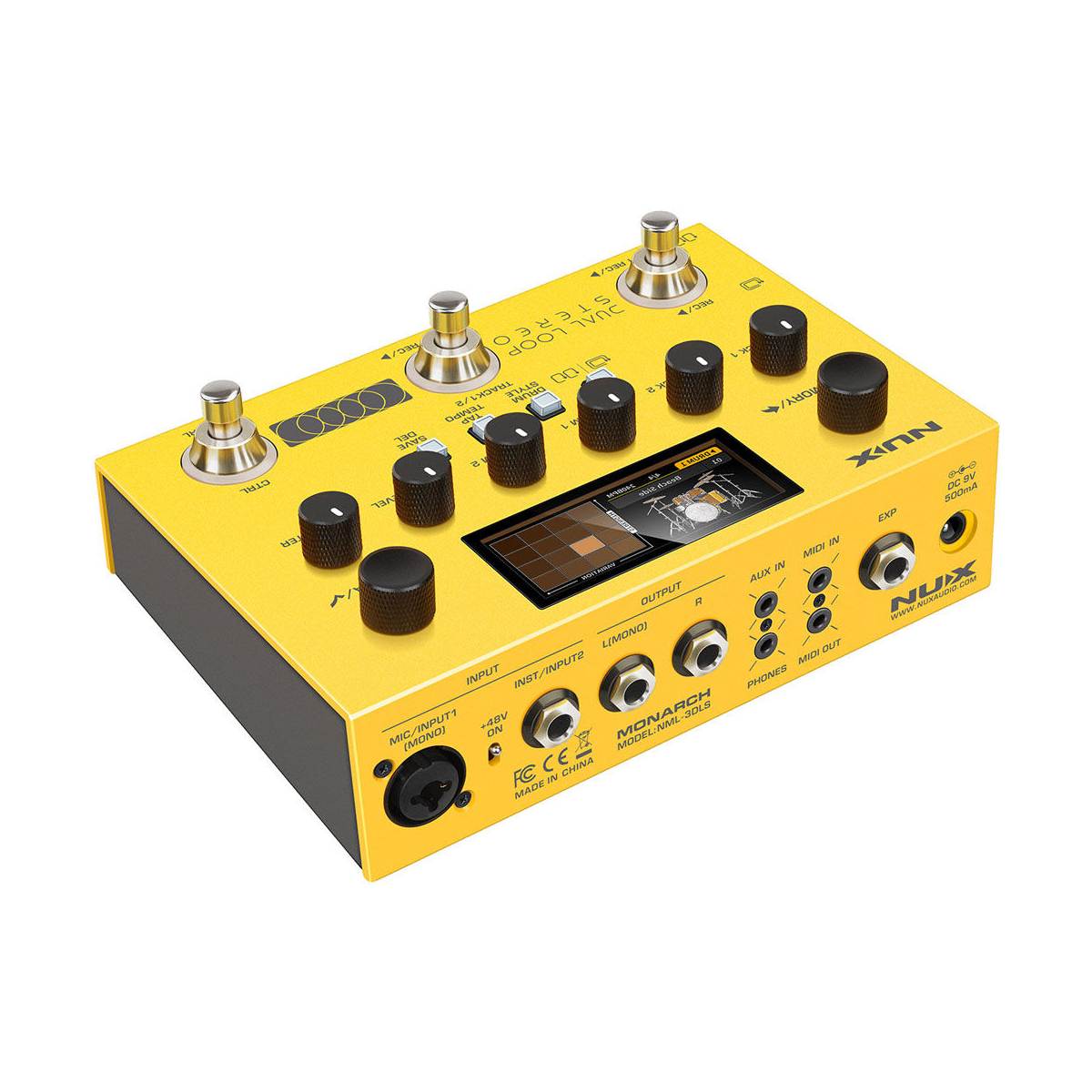

The NU-X Dual Loop Stereo is a powerful dual-track looper designed for guitarists, singer-songwriters and performing musicians who want greater control over looping, songwriting and live arrangements. Part of the NU-X Monarch Series, it combines two independent loop tracks, an advanced rhythm section, built-in effects and extensive connectivity in a versatile floor-based design.
Two independent loop tracks make it easy to create layered arrangements or build separate sections of a song, while three dedicated loop modes provide flexibility for different performance situations. A/B Split mode is ideal for creating two-part song structures, A+B Sync mode allows two instruments or voices to be layered and balanced together, and Gig mode provides two independent loops without the drum machine.
With 32-bit AD/DA conversion and 32-bit floating-point processing, the Dual Loop Stereo captures performances with excellent clarity even across multiple overdubs. It provides up to 90 minutes of stereo recording on a single track and approximately 26 hours of total stereo recording capacity across 99 phrase memories, providing plenty of room for practice sessions, songwriting and live sets.
The built-in rhythm section features 42 rhythm presets with an impressive 672 variations, giving players a flexible virtual drummer for practice and performance. Four onboard recording effects including Octave, Booster, Amp Simulation and Reverb further expand the creative possibilities, while the included NMP-2 expansion footswitch provides additional hands-free control.

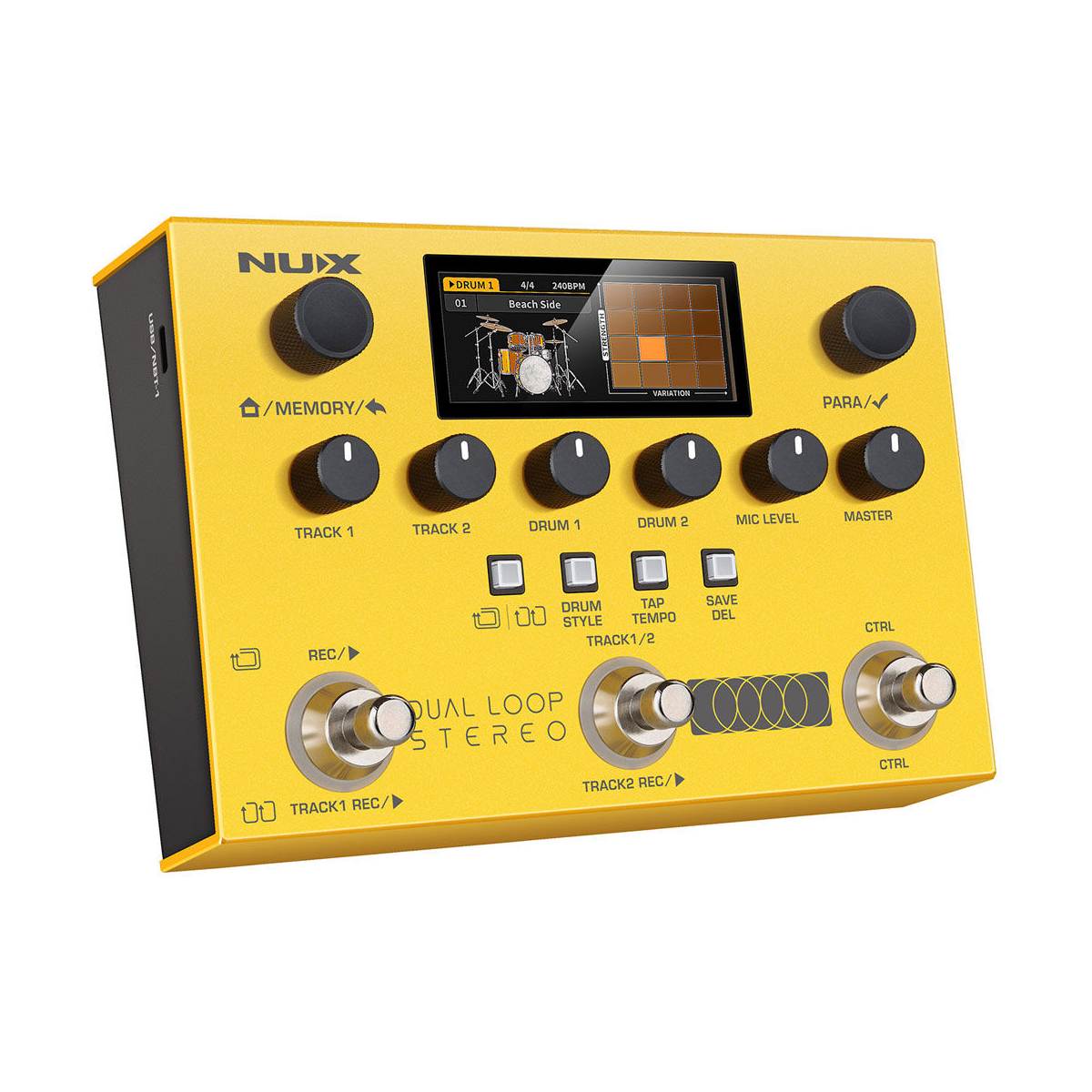

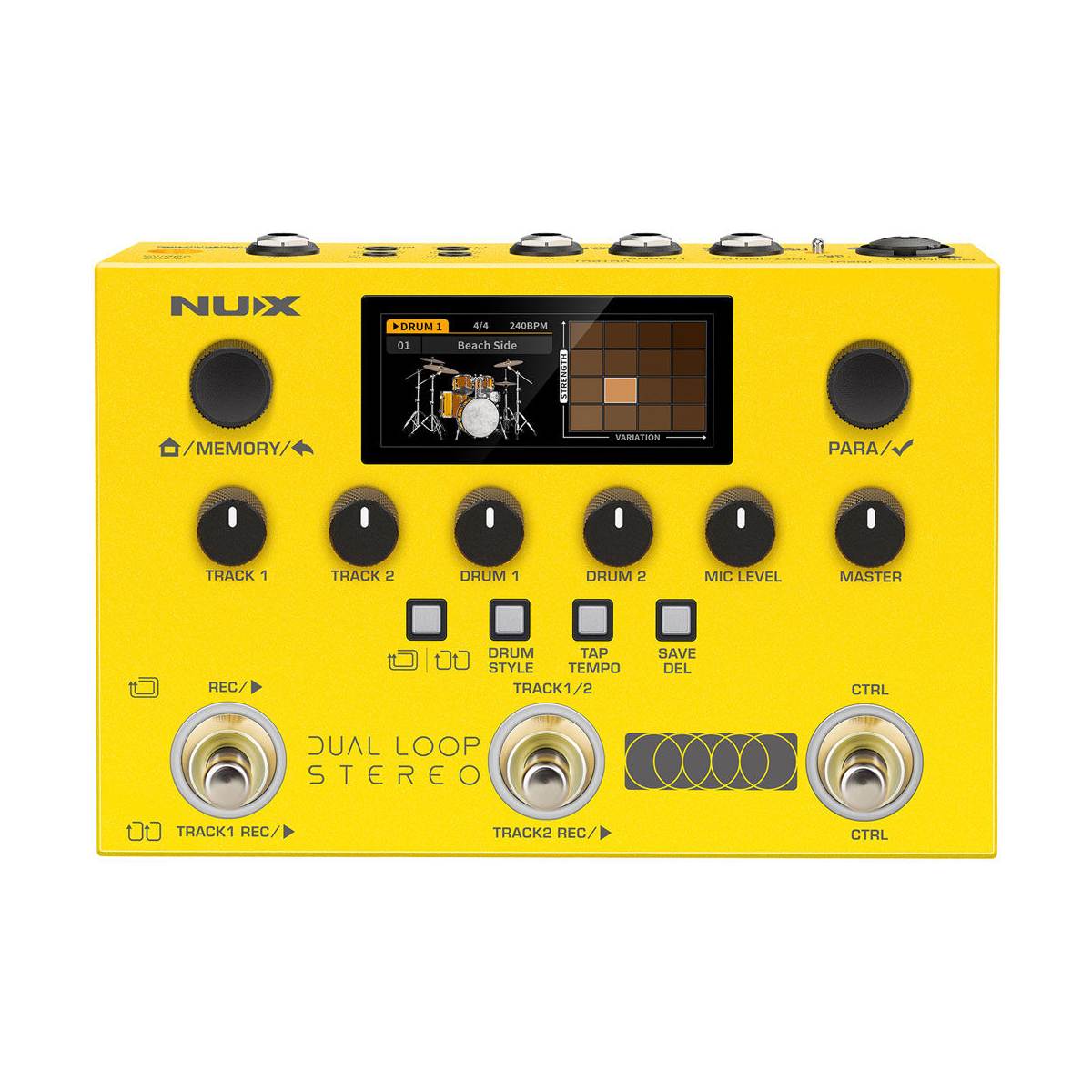

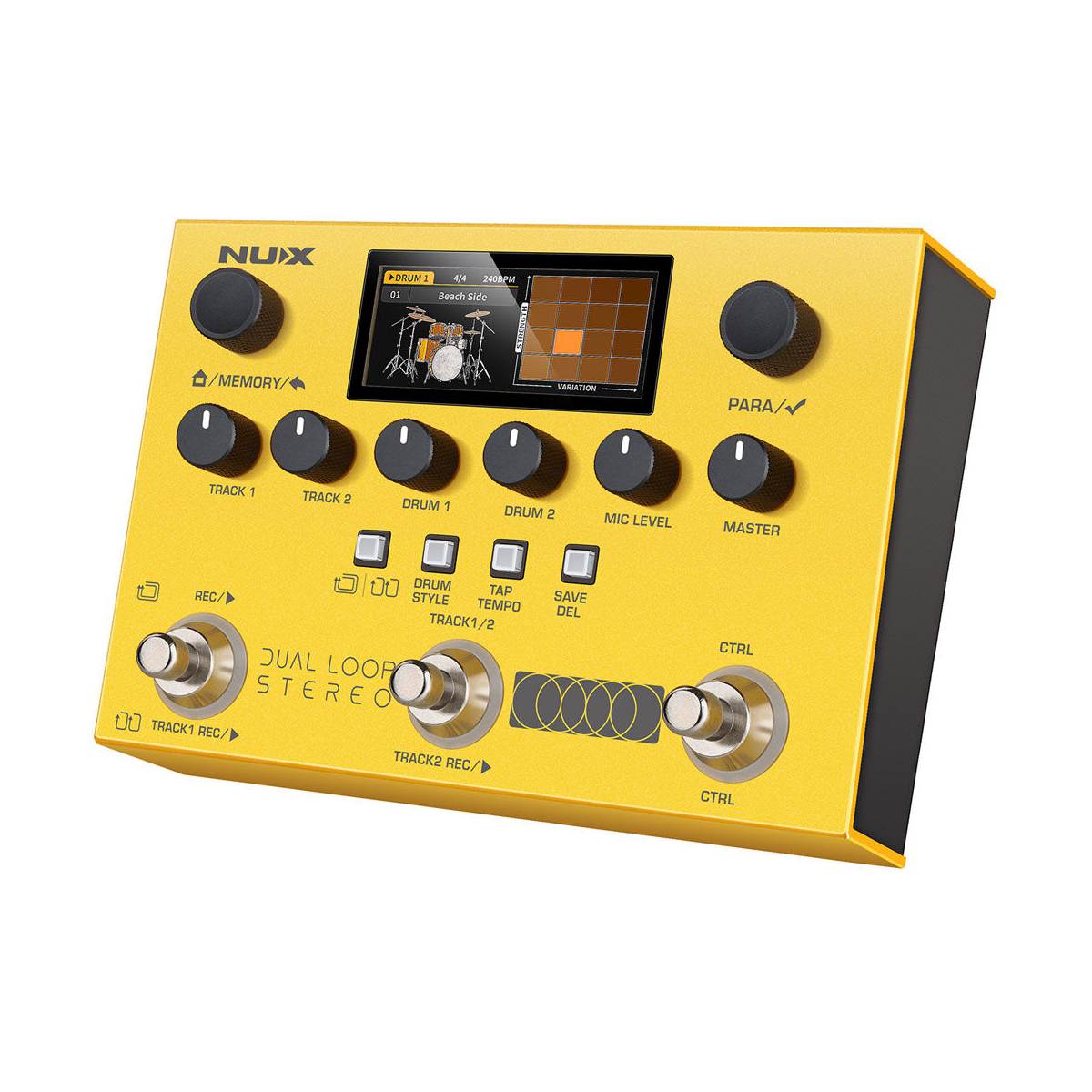

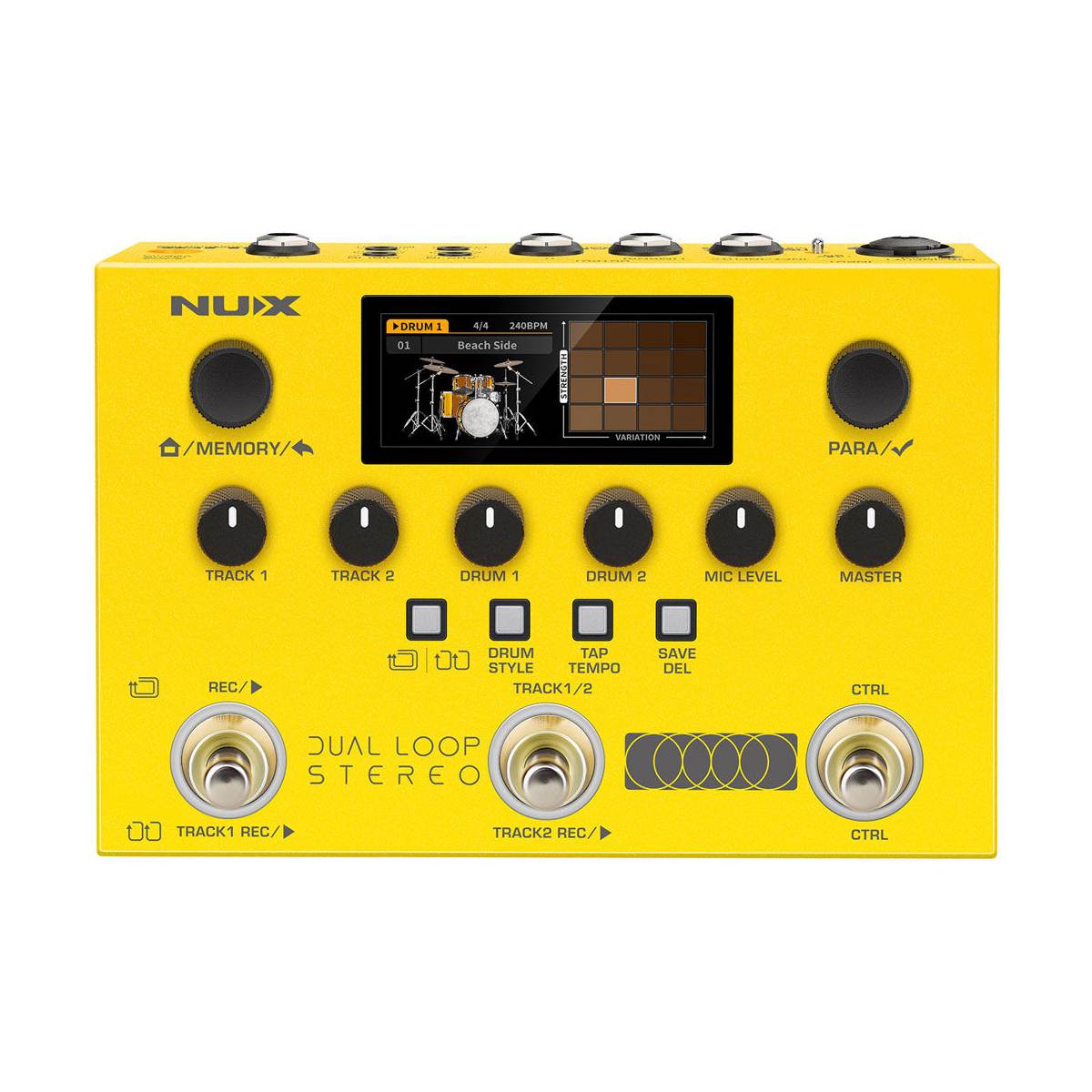

A high-definition 2.86" colour LCD makes navigation clear and intuitive, while six dedicated knobs provide immediate control over Track 1, Track 2, Drum 1, Drum 2, Mic Level and Master Volume. Extensive connectivity includes stereo instrument inputs and outputs, an XLR microphone input with 48V phantom power, AUX input, headphone output, MIDI In/Out, expression control and USB-C connectivity for audio streaming and loop file management.
Features
- Dual-Track Looper: Two independent loop tracks provide flexible options for layering instruments, creating song sections and building complete arrangements.
- Three Loop Modes: A/B Split, A+B Sync and Gig modes provide dedicated workflows for practice, songwriting and live performance.
- Massive Recording Capacity: Provides up to 90 minutes of stereo recording on a single track and approximately 26 hours of total recording time.
- 99 Phrase Memories: Store and recall loops across 99 onboard memory locations.
- Advanced Rhythm Section: Features 42 rhythm presets with 672 variations for practice, songwriting and performance.
- Built-In Effects: Includes Octave, Booster, Amp Simulation and Reverb effects for additional creative flexibility.
- 32-Bit Audio: 32-bit AD/DA conversion and 32-bit floating-point processing provide excellent clarity and dynamic range.
- High-Definition Colour Display: 2.86" LCD with 960 x 376 resolution provides clear visual feedback and intuitive operation.
- Microphone Input: Combination XLR and 1/4" input supports microphones and instruments with 48V phantom power available.
- Stereo Inputs & Outputs: Provides flexible routing for stereo instruments, pedalboards and amplification setups.
- MIDI In/Out: Extensive MIDI control allows external control of looping, tempo and other parameters.
- USB-C Connectivity: Supports USB audio streaming and importing or exporting WAV loop files.
- Headphone Output: Dedicated stereo headphone connection makes the pedal ideal for silent practice and monitoring.
- Expansion Control: Supports external footswitch and expression pedal control for expanded hands-free operation.
- NMP-2 Included: Supplied with the NU-X NMP-2 expansion footswitch to unlock additional performance control.
Specifications
- Looper: Dual-Track Looper
- Number of Tracks: 2
- Memory: 99 Phrase Memories
- Recording Time: Approx. 90 Minutes Per Track, Approx. 26 Hours Total
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32-Bit
- Processing: 32-Bit Floating Point
- Data Format: WAV, 44.1 kHz / 32-Bit Float / Stereo
- Rhythm: 42 Groups, 672 Patterns
- Effects: Octave, Booster, Amp Simulation, Reverb
- Display: 2.86" Colour LCD, 960 x 376 Pixels
- Maximum Mic Input Level: +6 dBu
- Maximum Input 1/2 Level: +8 dBu
- Maximum AUX Input Level: +8 dBu
- Mic Input Gain Range: 5.4 dB - 63 dB
- Mic Input Impedance: 2.4 kΩ
- Input 1/2 Impedance: 1 MΩ
- AUX Input Impedance: 1 MΩ
- Output Impedance: 1 kΩ
- Headphone Output Impedance: 3.3 Ω
- Bypass: Buffered Bypass

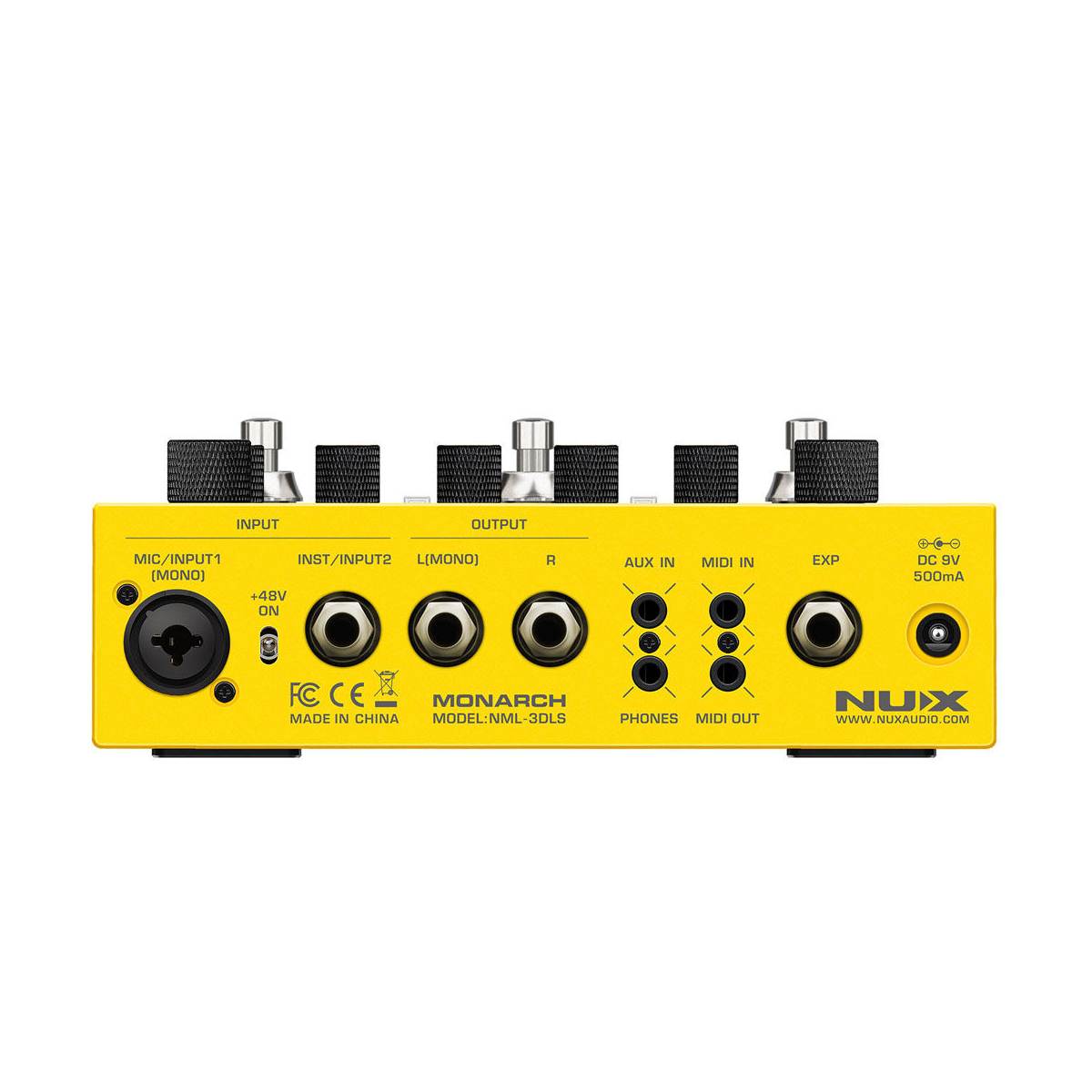

- Mic/Input 1: Combined XLR & 1/4" Jack, Balanced, 48V Phantom Power
- Instrument/Input 2: 1/4" Jack
- Outputs: 1/4" Left/Mono & Right
- AUX Input: 1/8" Stereo
- Headphone Output: 1/8" Stereo
- MIDI: 1/8" MIDI In & Out
- EXP: 1/4" TRS
- USB: USB-C
- Power Supply: ACD-006, 9V 500mA
- Current Draw: Less Than 170mA with Phantom Power Off, Less Than 270mA with Phantom Power On
- Dimensions: 183 x 130 x 65.3 mm
- Weight: 765 g
- Included: NU-X NMP-2 Expansion Footswitch & MIDI to 1/8" Cable
