Product Information:
A New Horizon for the Delay & Reverb
Experience!

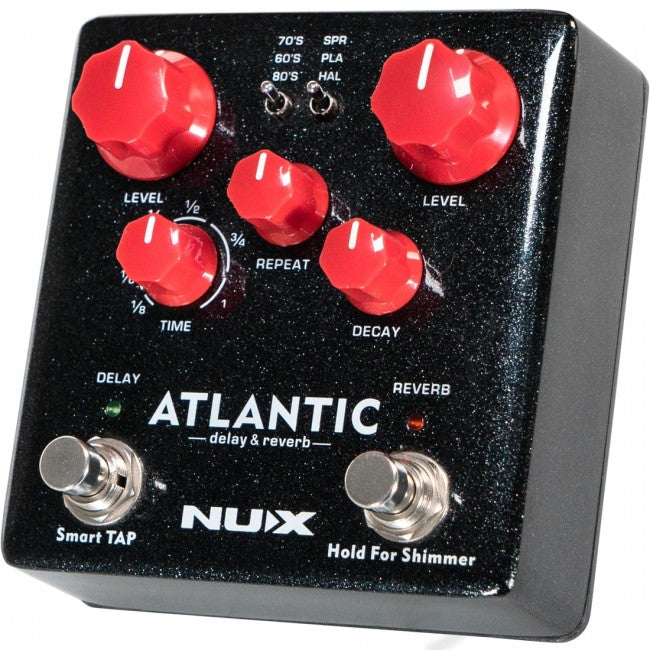

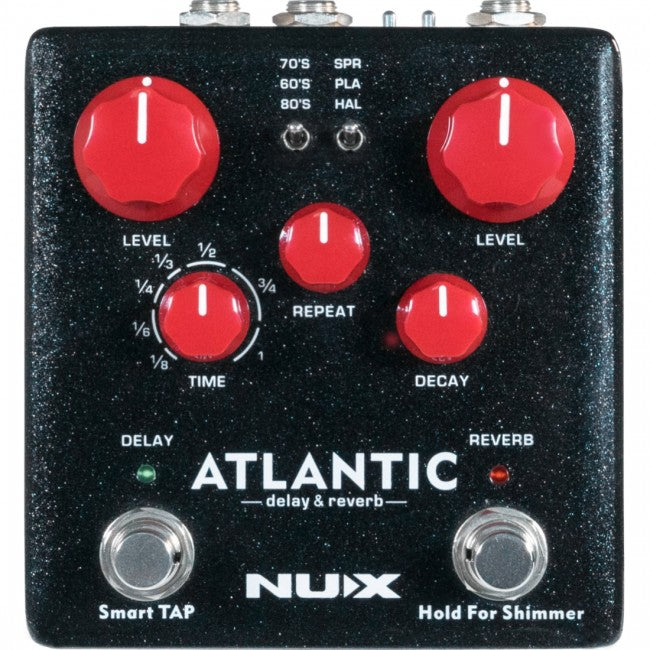

One of the best Delay and Reverb algorithms in a metal box. Special
select 3 classic Delays & 3 classic Reverbs . . . and we added a
bonus “Shimmer” effect which lets you create a dreamy waterfall
shimmer--especially handy for intros, interludes, and endings. And
now, because of NUX’s latest Core Image Technology, the new Verdugo
Series effect pedals offer pro-level sound enhancement.
NUX Atlantic Delay effects
70’s (40ms - 400ms): Retro-delay meets modern technology, without
losing the realistic BBD-effected repeats, so essential for
capturing the 70’s retro feel.
60’s (55ms - 550ms): A warm & dusty tape-echo machine effect, packed
with an array of analog-only goodies. Saturated colors that turn any
sound into vintage. Tweak the Repeat knob to the max and use the
Time knob to get an experience, just like the real Tape-Echo
Machine.
80’s (80ms - 800ms): A digital era invention, crystal clear repeats.
Digitally-copied clean repeats carry your signal without absolutely
zero color particles. This is the best option if you don’t want to
mix your favorite chorus with another colorization effect--or your
favorite modulation effect.
TAP TEMPO: Instantly synch-up your delays with the tempo you want to
accompany. Simply tap the tempo with your foot. TAP TEMPO Speed
range is 125 ms - 1500 ms for all delay types.
Before you set the TAP TEMPO, use the Time Knob and choose any
desired time signature to change the TAP division. When TAP TEMPO is
engaged, your repeats will create a delay pattern according to the
selected time signature.
NUX Atlantic Reverb effects
Spring Reverb: Creates a polyphonic atmosphere filter that catches
the sound reflections from deep down spring reverb tank. You can
adjust the tank size with the level knob and set the reflection
distance with the decay knob.
Plate Reverb & Shimmer: Straight and clean reflections inside a
flat-walled room. You can control the room-size with the Level knob
and then tweak the Delay bounce point with the Decay knob.
If you hold down the Reverb switch, straight reflections will be
heated and swirled throughout the inside of the room creating a
Shimmer effect.
Hall Reverb: The sound of a well-designed hall. Whether the hall
size is big or small, the reflections will be emitted by wall
furniture. You can adjust the interior hall-size, from a small
garage to a huge structure with the Level knob and increase or
decrease the number of objects on the walls with the Decay knob.
Less decay means more objects and faster reflection fading.
Inside Routing
NUX Atlantic Delay & Reverb pedal also has inside routing-control
between the effects so you can choose which effect comes first. On
Serial Mode, you can create a deep-reflection reverb with wet or dry
repeats, or you can split your guitar signal, and add both effects
in the parallel chain. Each effect will be mixed with separated dry
signals.

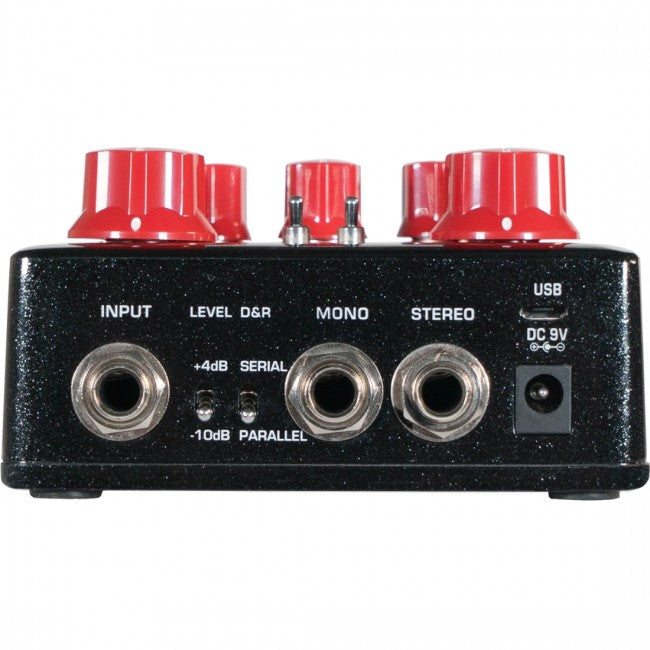

Input/Outputs
It has a 6.35 mm stereo input and 2 outputs for the ultimate delay
and reverb experience.
By plugging a TRS cable into the pedal's input, you can add the
Atlantic to any effect chain via Send/Return connection by using a
“Y” cable or “Insert” cable.
It has an Input Level toggle switch, +4 dB / -10 dB (high impedance
/ low impedance)
Specifications:
3 Delay Effects - 70’s Analog, 60’s Tape and
80’s Digital
Delay Level, Time and Repeat
TAP TEMPO w/ Tap Subdivision Options
3 Reverb Effects - Spring, Plate and Hall
Reverb Level and Decay
Plate Reverb with Shimmering Effect
TRS Input - Effect Loop Connection via Insert or “Y” cable
Input Level Switch (-10dB / +4dB)
Parallel or Serial Output and Inside Routing
Stereo Output
USB Port for firmware updates
