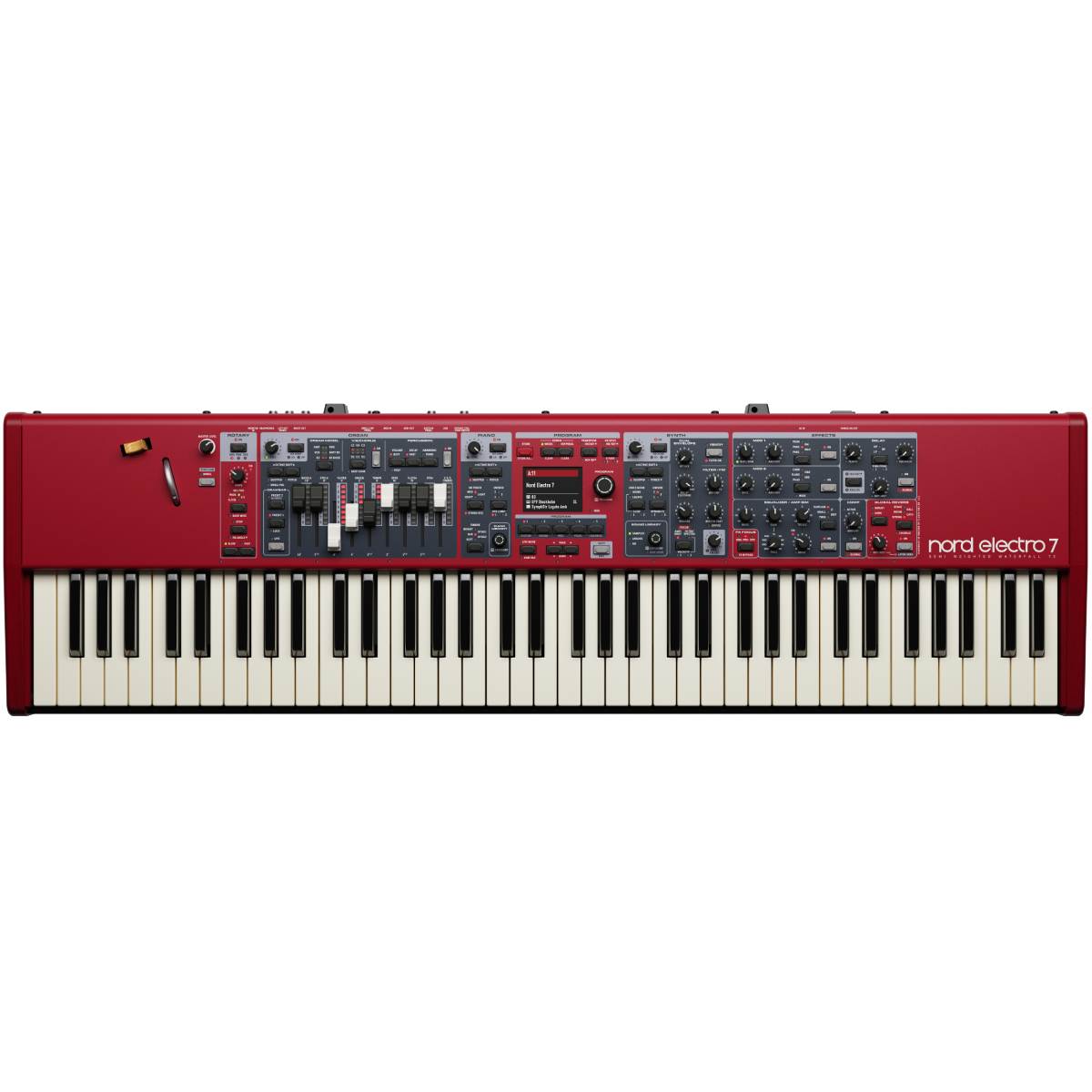

Nord Electro 7 73 Stage Keyboard 73-Note Semi-Weighted Waterfall Keybed

Specifications

General

• Series: Nord Electro 7
• Model: Electro 7 73
• Keyboard: 73-key (6 octaves, E-E) Semi Weighted Waterfall keyboard
• Display: Color display
• Sound Sections: Organ, Piano and Synth sound sections
• Pitch Stick: Yes
• Modulation Wheel: Yes
• Seamless Transitions: Yes
• Split Point Crossfades: Yes
• Programs: 20 banks with 25 programs - 500 locations
• Live Mode: 5 Live programs
• Selectable Split Point: 9 locations with LED indication
• Program Organize: Yes
• Global Transpose: +/- 6 semitones
• Global Fine-tune: +/- 50 Cents
• Program Transpose: +/- 6 semitones
• MIDI over USB: Yes
• External Keyboard Feature (Aux KB): Yes
• Expression Pedal Assign: Enables pedal control of Synth Filter and many effect parameters

Organ Section

• Organ Models: B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model
• Polyphony: Full polyphony
• B3 Percussion Controls: Poly option
• Vibrato/Chorus: B3 Deep mode
• Percussion: Adjustable level and decay
• Tonewheel Modes: 3
• Organ Manual Presets: 2 and Live Drawbars
• Physical Drawbars: With LED indicators
• Half-Moon Switch Mount: Yes
• Synth Vibrato Button: Yes
• Polyphony: 30+ voices

Rotary Speaker

• Rotary Speaker: Nord Organ 3 Rotary Speaker emulation
• Mic Positions: Close, Wide and XY
• Bass Wide: Stereo option
• Tube Drive: Dedicated control
• Fix Angle: User adjustable Stop position

Piano Section

• Library Compatibility: Nord Piano Library
• Features: Dynamic Compression, Unison, Timbre, String Resonance

Synth Section

• Synthesis: Samples, Analog waveforms and FM synthesis
• Features: Vibrato, Mono, Legato, Glide, Unison, Low-pass Filter with Resonance, FM Partial and FM Amount, Dual Envelope for Amp and Filter/FM
• Library Compatibility: Nord Sample Library

Effects

• Dedicated Effects: Organ, Piano and Synth
• FX Focus: With FX Bypass
• Expression Pedal: Assignable to most effect parameters
• Mod 1: Pan1 (Soft), Pan2 (Hard), Tremolo, Wah, Ring Modulator
• Mod 2: Phaser, Flanger, Chorus, Vibe, Ensemble
• Equalizer: Three band EQ with sweepable mid (+/-15 dB)
• Amp Models: Twin, Small, Suitcase, JC and Brit
• Drive: Yes
• Delay: Tap Tempo, Feedback, Dry/Wet, Filter Modes, Ping Pong, Analog Mode, Global Mode
• Compressor: Amount Control with Global option
• Reverb: Spring, Room, Stage, Hall and Cathedral with Chorale, Bright/Dark and Dry/Wet controls

Connections

• Audio Outputs: 2 x 1/4" (6.35 mm) unbalanced
• Monitor Input: 1 x 1/8" (3.5 mm) stereo
• Headphone Output: 1 x 1/4" (6.35 mm) stereo
• Expression Pedal Input: 1 x 1/4" (6.35 mm) TRS stereo
• Sustain Pedal: 1 x 1/4" (6.35 mm)
• Rotary Control / Foot Switch: 1 x 1/4" (6.35 mm)
• MIDI: In / Out (5-pin DIN)
• USB: Type-B (USB MIDI, Software Update and Sound Transfer)
• Power: IEC C14

Included Accessories

• User Manual
• Power Cord

Dimensions

• Dimensions (W x D x H): 1066 x 104 x 294 mm (42" x 4.1" x 11.6")
• Weight: 9.5 kg (20.9 lbs)
