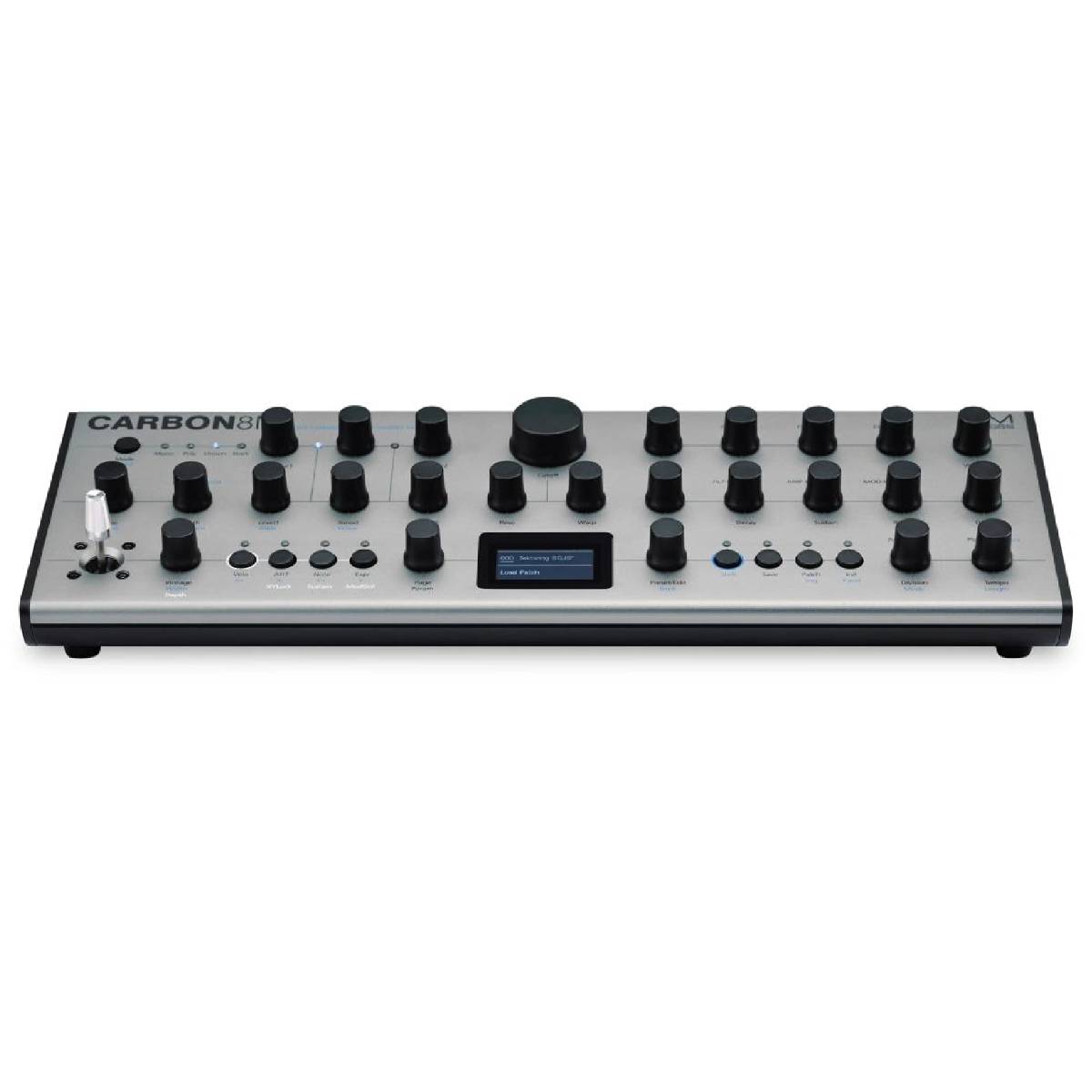

Modal Electronics CARBON8M Synthesiser Module 8-Voice Experimental Synth

Specifications

Polyphony

• True 8 voice polyphonic

MPE

• Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes

Oscillators

• Two independent high-resolution digital oscillators
• 56 complex Digital Core Waveforms per oscillator, incl. 18 Digital Algorithms and 38 sophisticated Wavetables
• Advanced XCore Modifiers, incl. Wave Shape, Wave Fold, Phase Distortion, and others
• Extended Oscillator Drift
• Vintage Parameter
• Digital Core Waveforms

Filter

• 34 resonant Filter types including morphable and static filters
• Cutoff Scaling with two distinctive modes
• Filter Types

Modulation

• Three dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously, including negative (reverse) versions for MOD and FILTER ENVs
• Three audio-rate LFOs with tempo sync (two poly, one global) with over 15 different shapes
• Eight assignable modulation slots and four additional fixed modulation routings for common assignments with 12 modulation sources and 55 modulation destinations

Sequencer and Arpeggiator

• Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFOs, sequencer and arpeggiator can be either clocked internally or externally)
• Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest functionality
• Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating

FX

• Three independent and user-configurable stereo FX engines for 26 Effects algorithms, incl. Drive, Chorus, Phaser, Flanger, Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb.

User Memory

• 500 patch memories, all fully editable and ships with 300 factory programs
• 100 sequencer presets that can be linked to any patch for quickly loading arrangements
• 100 FX presets
• 8 Quick Recall slots accessible from the panel for quickly loading your favourite patches

Controls and Performance

• 13 switched encoders, 13 encoders, 9 buttons
• 4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
• Multiple voice modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
• Glide/Portamento with both legato and staccato modes
• Chord Invert control to easily create chord inversions and variation

Inputs and Outputs

• 6.35 mm / 1/4″ TS dual-mono line outputs
• 6.35 mm / 1/4″ TRS headphone output
• 3.5 mm / 1/8″ TRS stereo audio input
• MIDI DIN In and Out
• 3.5 mm / 1/8″ TS Analogue clock sync In and Out
• Class-compliant MIDI over USB connection
• 6.35 mm / 1/4″ TRS expression pedal input
• 6.35 mm / 1/4″ TS sustain pedal input

Enclosure and Display

• Tabletop-style enclosure, brackets for 19″ 3U rackmount included (requires 1U free space above or right-angled connectors)
• 1.54-inch large OLED display for instant visual feedback at all times of playing/editing

Power

• Power: DC-9.0V – 1.5A centre-positive

Editor Software

• Free MODALapp software editor available for macOS, Windows, iOS and Android
• MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available

General

• Dimensions (L x W x H): 384 x 127 x 81 mm / 15.1″ x 5″ x 3.2″
• Weight: 2.1 kg / 4.6 lbs
