70/SV20C
Product Information:

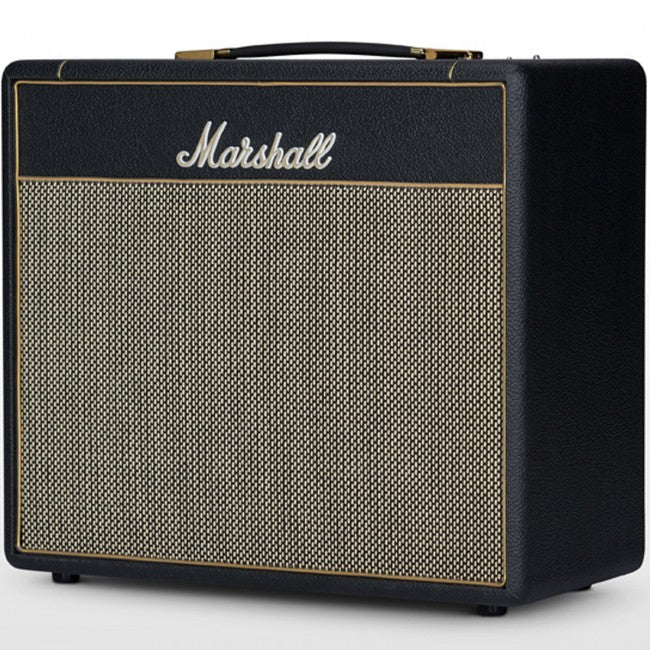

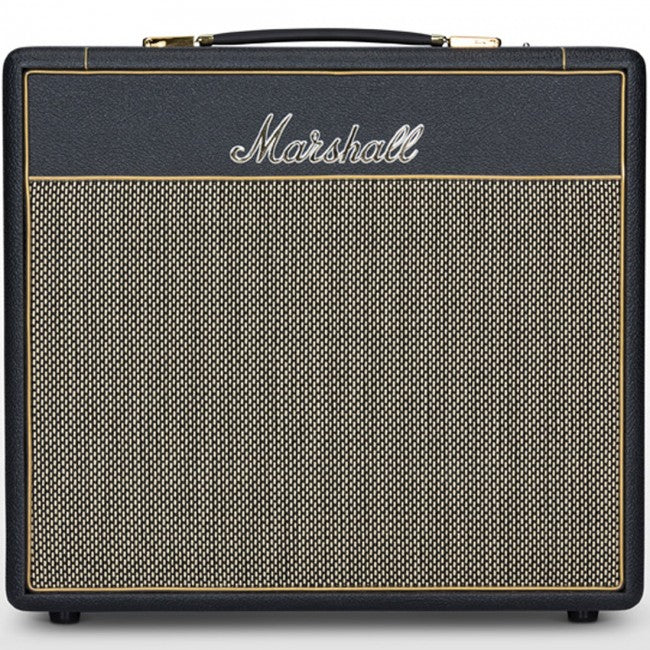

SV20C
The SV20C combines the raw power of the 1959SLP and authentic voice
of classic rock in a new portable style. The amp that first defined
rock ‘n’ roll in the 60s has been revised for the present day,
whilst remaining faithful to the original with its Plexi design and
all-valve tone. Still considered a classic by scores of legendary
guitarists, the SV20C lets you play like your heroes on stage, in
the studio and at home.
Specifications:
HANDCRAFTED IN BRITAIN
The SV20C is an all valve handbuilt amp designed and built in the UK, to
accurately recreate the classic Marshall tone.
CLASSIC SOUND CAPTURED
From saturated blues tones to biting leads for classic rock, this is
unmistakably a 1959SLP.
TAME THE UNTAMEABLE
Portable and adaptable, the Studio Vintage Combo is suitable for the home with
the option to switch between 20W and 5W at any time.
ICONIC STYLINGS
The amp that inspired generations of guitarists immaculately recreated for the
modern day.
GENERAL
Model
SV20C
Range
Studio
ELECTRONICS
Output wattage
20W (with power reduction option to 5W)
Outputs
2 x 1/4" jack speaker, selectable 16Ω / 8Ω / 4Ω load
Inputs
4 (2 x high, 2 x low) "Lead and Bass"

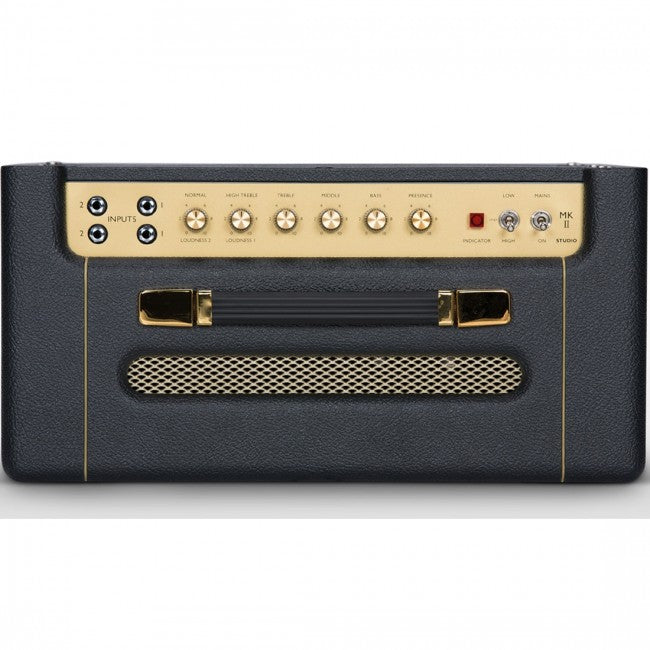

Controls
Low/High power mode selection switch, presence, bass, middle, treble, high
treble/loudness I, normal/loudness II
Effects
None
Effects loop
Yes, series, send/return
SPEAKERS
Speaker configuration
1x10"
Speaker model
Celestion V-type 10” (16Ω, 50W)
Unit impedance
16Ω
VALVES
Preamp valves
2 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
2 x EL34
ACCESSORIES
Cable
Detachable power cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
15.9kg / 35 lbs
Width
500mm / 19.7"
Height
460mm / 18.1"
Depth
245mm / 9.6"
