Product Information:

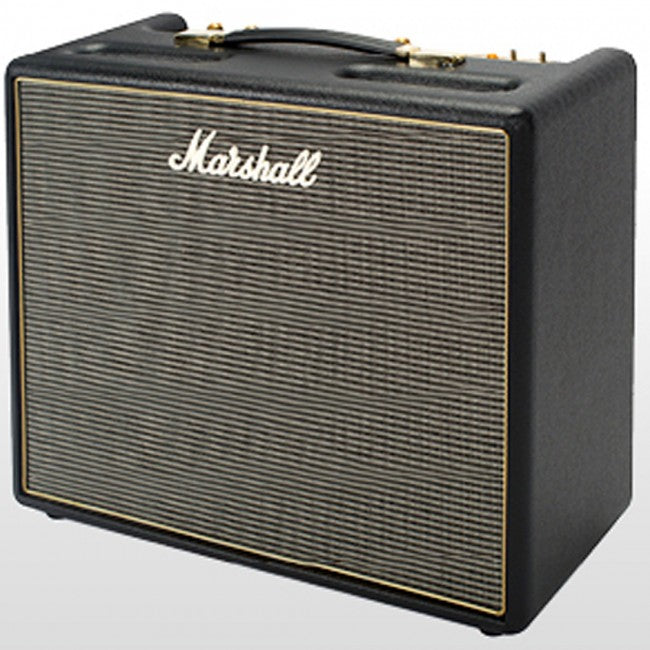

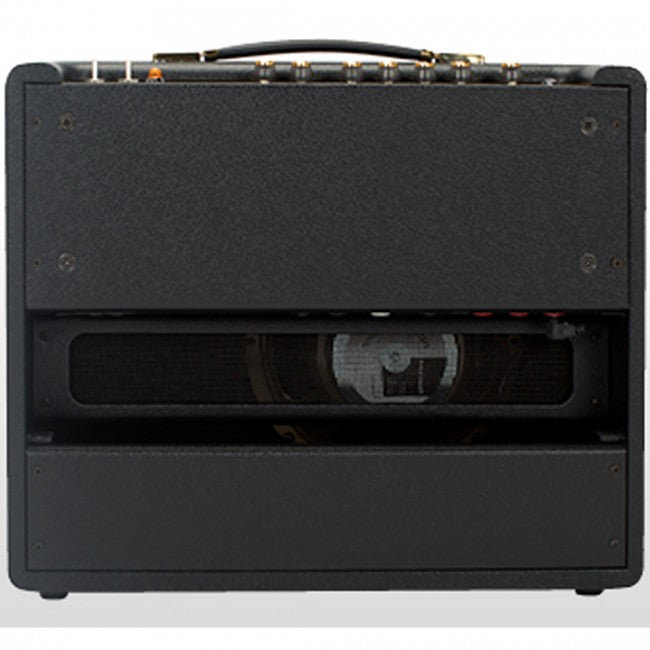

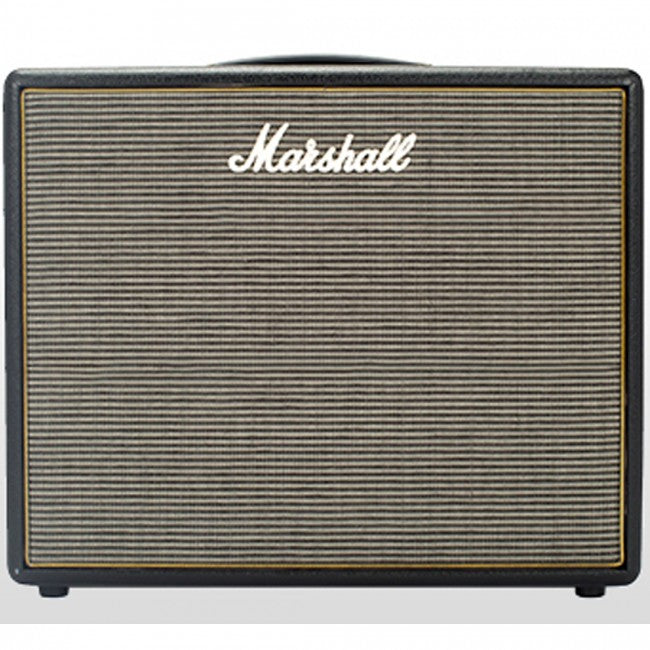

ORIGIN20C
This 20w combo is designed for those that like expression through
innovation. Using a Celestion V type speaker the Origin20CTM
provides a classic all-valve Marshall tone. A 2-way footswitch
allows you to control the gain boost and turn the FX loop on and
off. With classic styling and modern features this amp generates
rich, harmonic tones so that you can craft a sound to suit your
personality.
ADD A LITTLE BOOST
Using the footswitchable gain boost feature you can add that extra
level of gain to generate a more overdriven tone.
TILT YOUR SOUND
It may only have one channel but don’t underestimate it. By using
the tilt control you can blend the voice between the normal tone and
a high treble tone.
YOU HAVE THE POWER
Our new power reducing technology, PowerstemTM, allows you to have
high, medium or low power modes to suit your environment, from
playing small venues to playing in your bedroom.
CONTROL YOUR TONE
Using the presence control you can increase the high frequency and
increasing the master volume can give you that classic overdrive
sound.
Specifications:
GENERAL
Model: Origin20C
Range: Origin
Technology: Valve
Channels: 1
ELECTRONICS
Output wattage: 20w
Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out
(1/4" jack)
Inputs: 1 x 1/4" jack instrument input, footswitch
Controls: Gain, boost, tilt, bass, middle, treble, master, presence, power
scaling
Effects: None
Effects loop: Yes, Send/Return
SPEAKERS
Speaker configuration: 1x10"
Speaker model: Celestion V type (16Ω, 30W)
Unit impedance: 16Ω
VALVES
Pre amp valves: 3 x ECC83
Power amp valves: 2 x EL34
ACCESSORIES
Footswitch: PEDL-90016 included
Cable: Detachable power cable included
DIMENSIONS:
Weight (kg): 13.9
Width (mm): 520
Height (mm): 420
Depth (mm): 240
