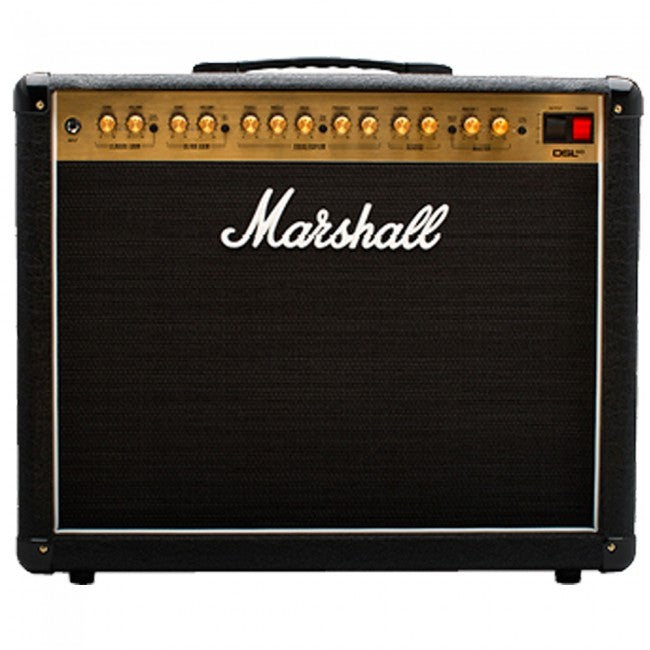

The DSL40TM has been designed with a 12”
G-12 v-type speaker for those who need
exceptional tone and flexibility. With rich
functionality including the ability to move
between two sounds within each gain channel,
players can experiment and release their
personality through sound.
CHOOSE YOUR TONE
Using the reverb, FX loop, tone shift
controls and two footswitchable gain
channels you can create a style that suits
you and another to release your alter ego.
STAND OUT ON STAGE
The DSL40 has two master volumes for those
loud solo moments.
VARY THE OUTPUT

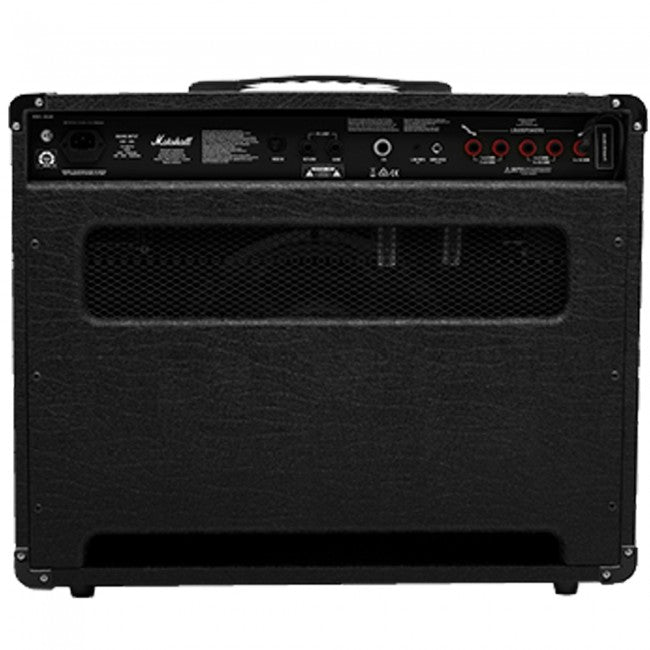

The DSL40 has five speaker outputs giving
you plenty of flexibility and the ability to
record, with a standby function for silent
recording as well. It can be taken from the
bedroom, to the studio and onto a gig.
PICK YOUR ENVIRONMENT
Power can be reduced from 40w to 20w without
affecting the quality meaning the DSL40 can
be used in multiple environments with
The amps features can be controlled using
any MIDI equipment, so for those technical
players you can play this amp and different
MIDI equipment at any one time.
2 (Split) "Ultra gain" and "classic gain"
40w (with power reduction option to 20w)
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), 1 x 3.5mm
jack emulated line out
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in MIDI in, footswitch
Classic gain channel (gain, volume, clean crunch switch), ultra gain channel
(gain, volume, OD1/OD2 switch), treble, middle, bass, tone shift switch,
presence, resonance, reverb (classic gain channel), reverb (ultra gain channel),
master select switch, master volume I, master volume II, loop on/off switch, low
power option (on rear)
Celestion V-Type speaker (16Ω, 80w)
Pre amp valves
3 x ECC83
Power amp valves
1 x ECC83, 2 x EL34
Detachable power cable included
