70/MHW-1974X

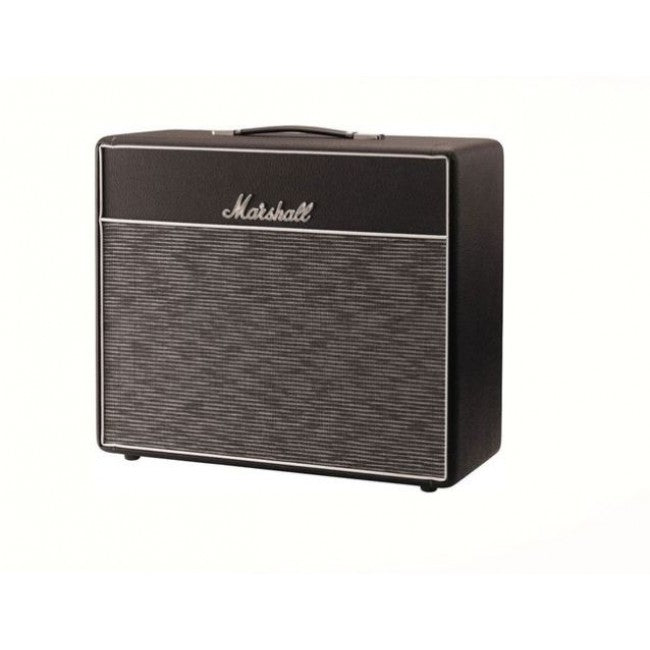

Marshall 1974X Handwired 18W 1X12 Combo Amp

IN STOCK

Pay With AfterPay Zip Mastercard Visa

Product Information

The Marshall 1974X Handwired is a faithful recreation of the legendary 18-watt combo originally produced between 1965 and 1968. Handwired in Marshall's UK factory using traditional turret board construction, this all-valve amplifier delivers the touch sensitivity, warm cleans and rich overdrive that made the original a favourite among players seeking authentic vintage British tone. Compact in size but full of character, the 1974X is ideal for studio recording, rehearsals and live performance where classic Marshall sound is required at more manageable volumes. :contentReference[oaicite:0]{index=0}

Equipped with a specially aged 12" Celestion Heritage G12M-20 Greenback speaker and a genuine valve-driven tremolo circuit, the 1974X captures the unmistakable response and harmonic richness of the original design. Two independent channels allow players to blend tonal voices, while the hand-soldered aluminium chassis and premium UK construction ensure exceptional reliability and authentic vintage performance. :contentReference[oaicite:1]{index=1}

Features

  • Faithful handwired reissue of the original 1965 Marshall Model 1974
  • 18-Watt all-valve combo amplifier
  • Handwired turret board construction built in the UK
  • 1 x 12" Celestion Heritage G12M-20 Greenback speaker
  • Two independent channels with blendable voices
  • Authentic valve-driven tremolo
  • Hand-soldered aluminium chassis
  • Four high/low sensitivity inputs
  • Selectable 16Ω, 8Ω and 4Ω speaker outputs
  • Includes Marshall footswitch for tremolo
  • Designed and engineered in the UK
  • Made in the UK

Specifications

General

  • Model: 1974X
  • Range: Handwired
  • Amplifier Type: Valve Combo
  • Technology: Valve
  • Channels: 2
  • Output Wattage: 18W
  • Country of Origin: Designed and engineered in UK. Made in UK.
  • Colour: Black

Electronics

  • Inputs: 4 x 1/4" Jack Instrument Inputs (High/Low Sensitivity)
  • Outputs: 2 x 1/4" Jack Speaker Outputs, Selectable 16Ω / 8Ω / 4Ω Load

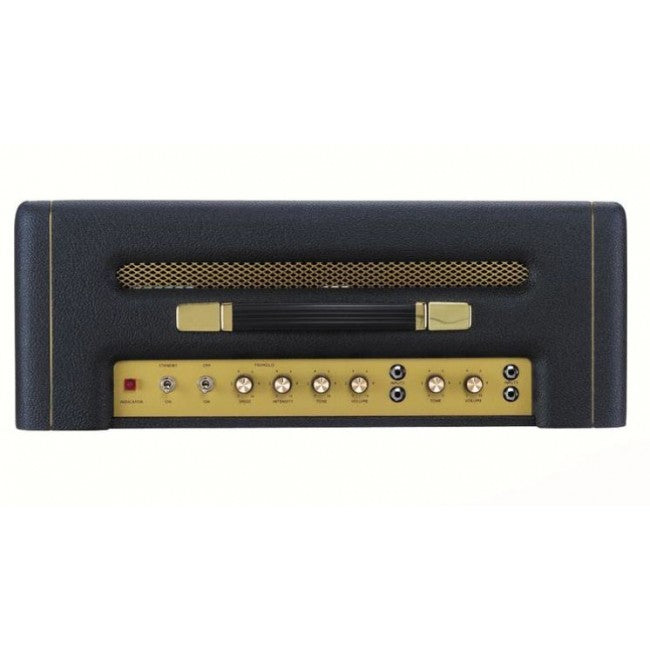

  • Controls: Channel 1 (Volume, Tone, Tremolo Speed, Tremolo Intensity), Channel 2 (Volume, Tone)
  • Effects: Valve Tremolo
  • Effects Loop: No

Speaker

  • Speaker Configuration: 1 x 12"

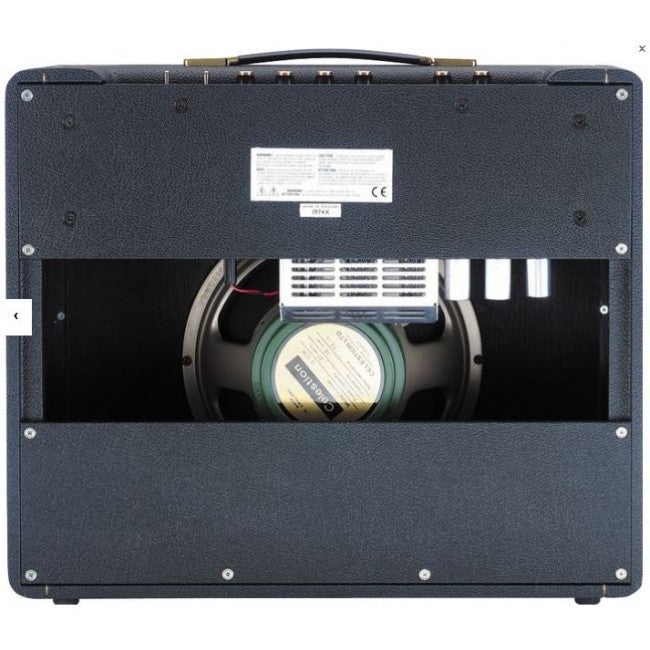

  • Speaker Model: Celestion Heritage G12M-20 Greenback (15Ω, 20W)
  • Unit Impedance: 15Ω

Valves

  • Preamp Valves: 2 x ECC83, 1 x ECC83 (Phase Splitter)
  • Power Amp Valves: 2 x EL84
  • Rectifier Valve: 1 x EZ81

Dimensions

  • Width: 610 mm
  • Height: 535 mm
  • Depth: 230 mm
  • Weight: 19 kg

Included Accessories

  • Footswitch: PEDL-10034
  • Power Cable: Detachable

Warranty

1 Year Warranty
