Korg

KO-SQ64

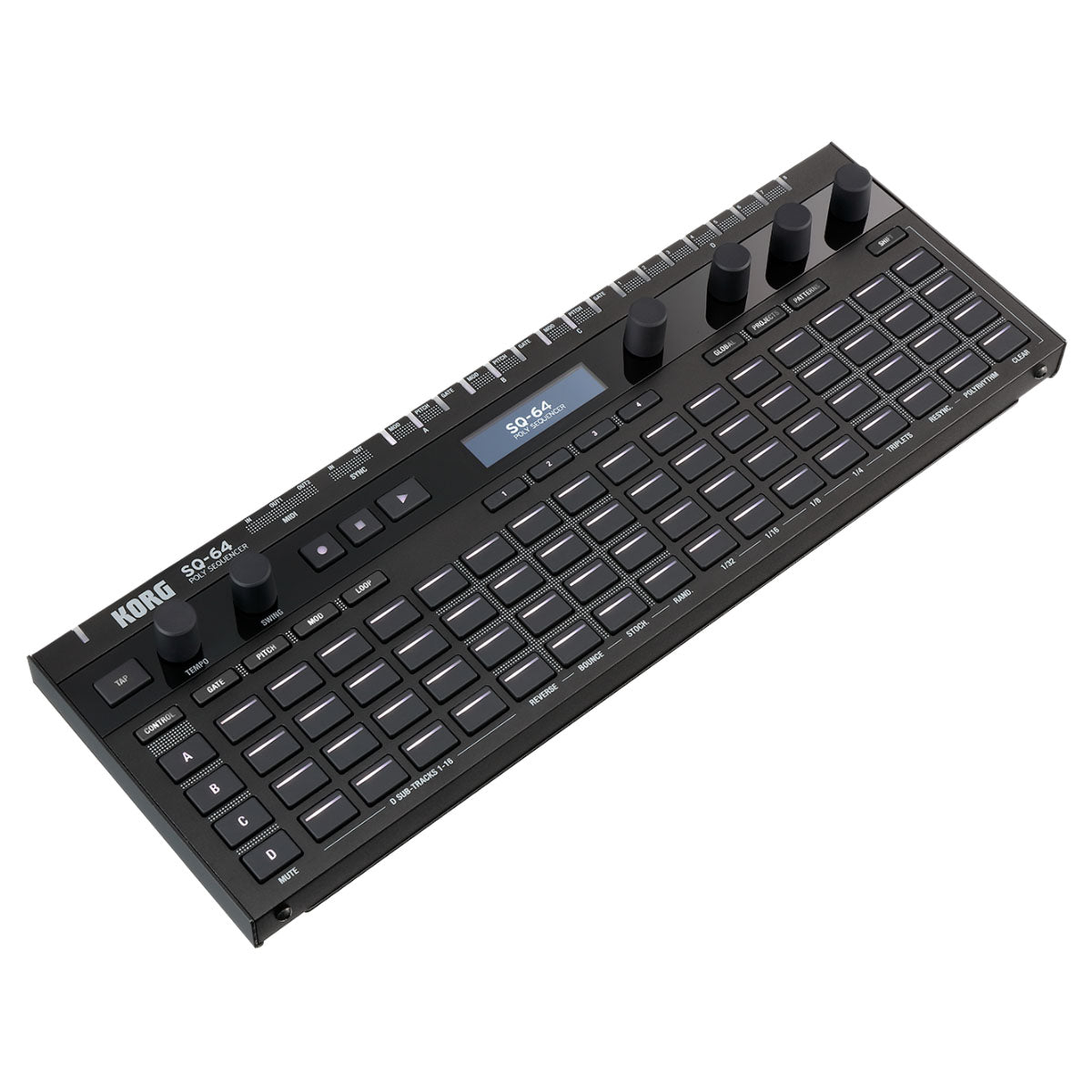

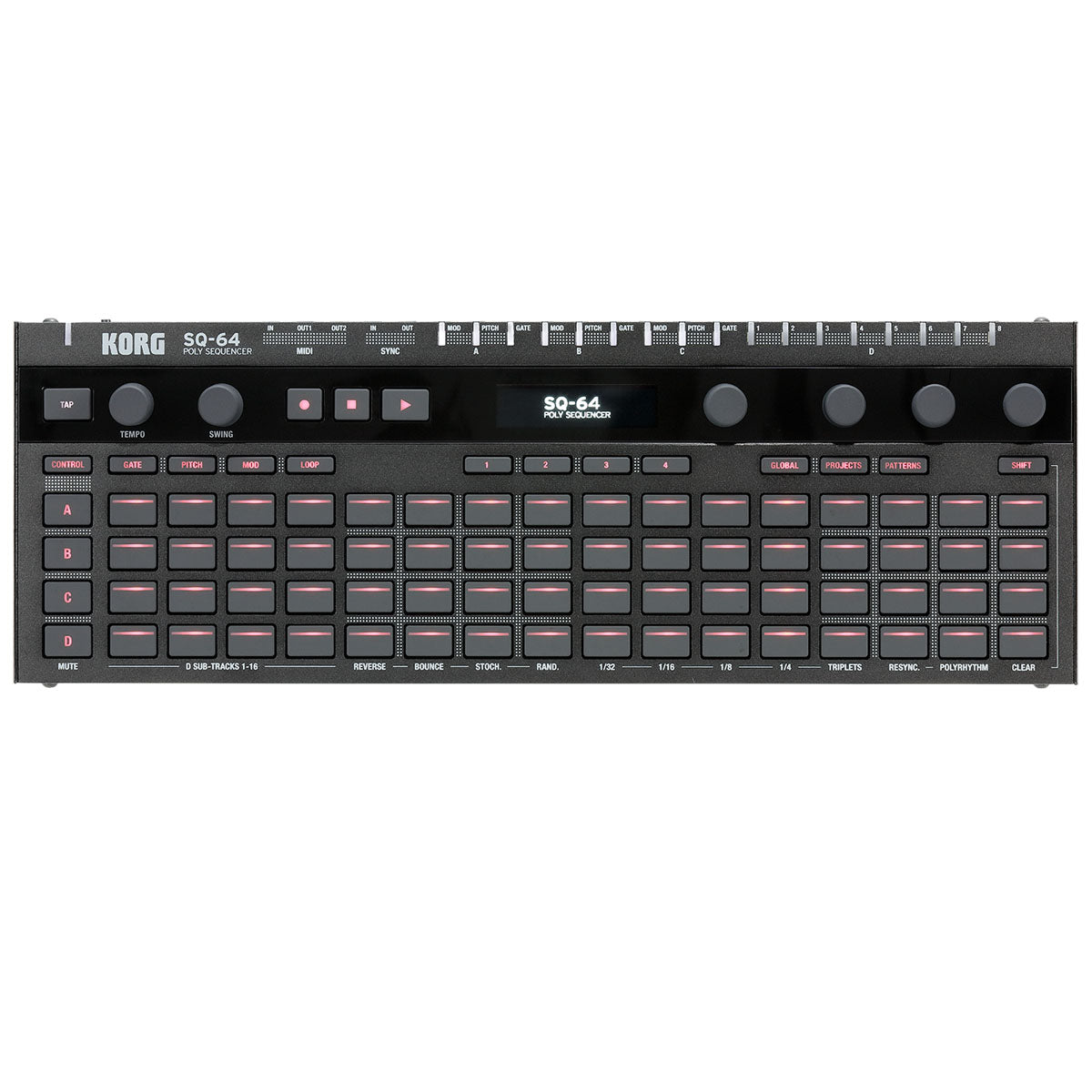

Korg SQ-64 Polyphonic Step Sequencer

Pay With AfterPay Zip

  • Product Information

    CREATE - PERFORM - CONTROL
    Step up to an unparalleled level of connectivity and control

    The SQ-64 is an incredibly powerful and compact Polyphonic Step Sequencer with amazing hands-on intuitive controls and deep editing options to give you all the flexibility and sequencing power needed for all your musical projects.

    With its 64 step pad Matrix, Crystal clear OLED display, sturdy and elegant aluminium body, a wealth of connections and a variety of modes and features, the SQ-64 will become the central piece of your music studio providing total and seamless control over all your instruments so you can focus on what matters most; your music!

    CONNECTIONS YOU SAID?


    Despite its compact size, the SQ-64 has unparalleled connectivity and will allow you to easily control, connect and make the most of all your analog and digital gear. MIDI IN (x1) and OUT (x2), micro USB type B, Sync IN & OUT, 3 Melody tracks each with MODULATION, PITCH and GATE outputs and a DRUM track with 8 individual trigger outputs for controlling analog synths, Eurorack, and drum machines.


    Each of the Melody tracks (x3) has 16 Patterns of up to 64 steps each, and the Drum track (x1) has 16 Sub-tracks also with up to 64 steps each, that can be played, chained and edited in a variety of ways.

    Melody tracks and patterns can be edited in several modes (GATE, PITCH and MODULATION) so you can alter the information sent by your sequencer on each of these steps in many interesting ways.

    The DRUM track outputs can be fine-tuned to match the polarity and voltage of your connected device(s).
    Its audio Sync In & Out connections will allow you to seamlessly control all your other Korg gear such as the volca synthesizer series, minilogue, monologue, minilogue xd, prologue and many others!

    ONE TO RULE THEM ALL

     Whether you are into Analog synths, Eurorack semi-modular synths, Digital drum machines, or do everything on your DAW with digital plugins, the SQ-64 will give you instant and precise hands-on control of each and all of these.

    REAL-TIME CONTROL

    The SQ-64 won’t just allow you to create incredible sequences; it packs several features and modes that will let you edit on the fly and play any of your gear real-time.

    The 64 pad Matrix can be also be used as a Keyboard, allowing for several layouts to be used for maximum flexibility (several scales can be assigned to any of these and a number of other parameters can be easily changed)

       - Keys: Your traditional piano layout.
       - Isomorphic: the notes are displayed symmetrically in rows, you can easily transpose the same chord pattern up and down without changing its shape
       - Octaves: one scale displayed in 3 different octaves on each row

    GO DEEP

    With its powerful built-in Arpeggiator you can easily bring to life and create interesting patterns out of any of your soft plugins, analog or digital synths, for immediate inspiration.

    Break free with 4 alternative sequence playback modes! Reverse, Bounce, Random, and Stochastic can be selected independently and on the fly to each track to add variety and intrigue.

    All your patterns can also be freely chained and looped, making this the ultimate device for machine live!

    SLEEK, RUGGED DESIGN

     Despite its wide array of features, controls and connections, the SQ-64 is just 18mm thick (38mm including the knobs and rubber legs) and is housed in a highly portable and elegant yet robust solid aluminum body that will provide years of reliable service.

    Powered through USB or external 9V DC adaptor, a choice of power options offer both versatility and flexibility.



    Specifications:

    Sequencer

    64 step sequencer with 3 melodic tracks with up to 8 note polyphony, and 16 monophonic rhythmic tracks
    Tempo
    BPM30.0 - 300.0

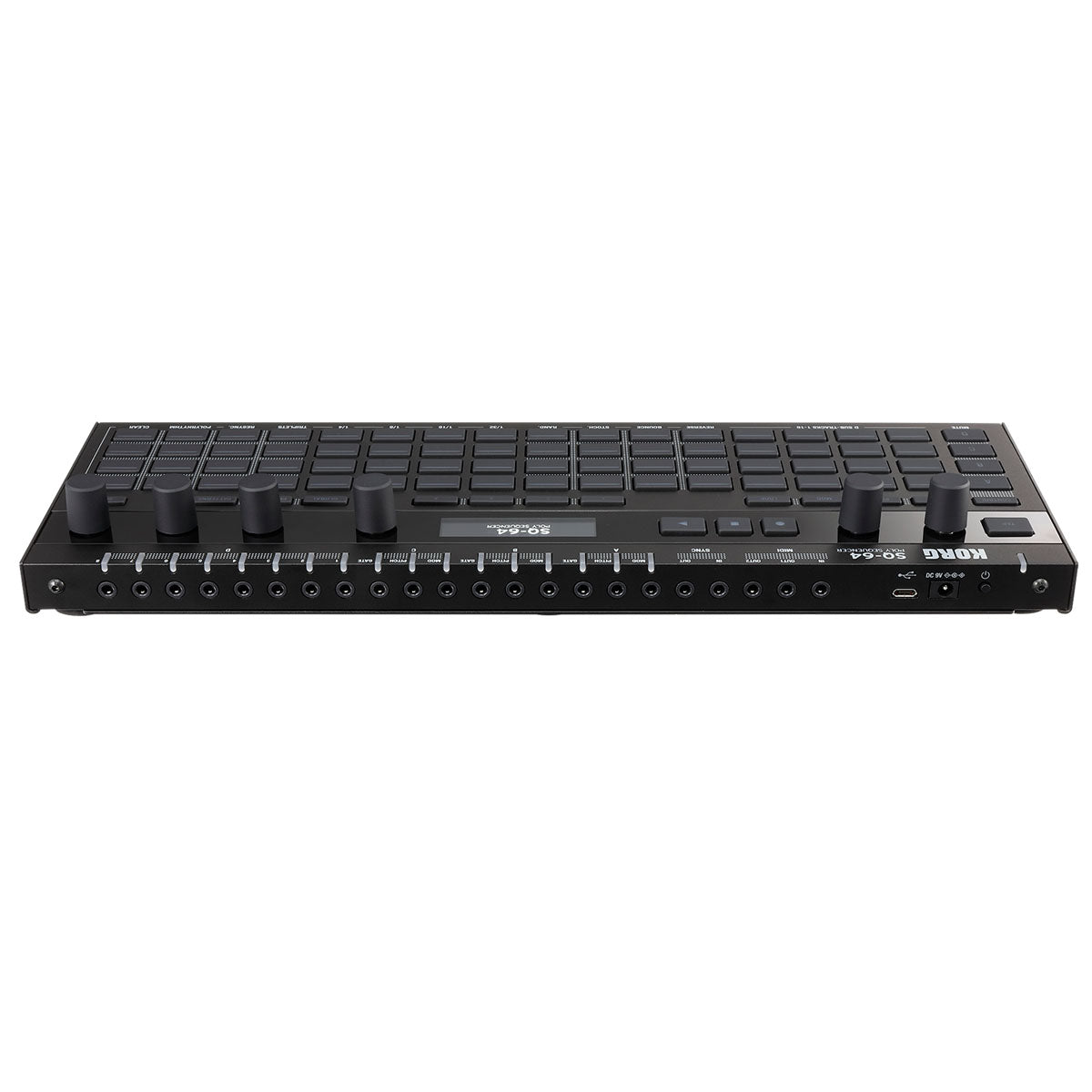

    Connections
    Inputs
    MIDI IN connector (φ3.5mm stereo mini-phone jack, use a type-A MIDI converter cable),
    SYNC IN jack (φ3.5mm monaural mini-phone jack, 20V maximum input level)
    Outputs
    MIDI OUT1, 2 connector (φ3.5mm stereo mini-phone jack, use a type-A MIDI converter cable)
    SYNC OUT jack (φ3.5mm monaural mini-phone jack, 10V maximum input level)
    CV GATE output A/B/C jack (φ3.5mm monaural mini-phone jack, 10V maximum output level)
    CV PITCH output A/B/C jack (φ3.5mm monaural mini-phone jack, 10V maximum output level)
    CV MOD output A/B/C jack (φ3.5mm monaural mini-phone jack, 10V maximum output level)
    TRIG output 1~8 jack (φ3.5mm monaural mini-phone jack, 10V maximum output level)
    Power
    USB bus power, or DC 9V AC Adapter ([- o +], separately sold)
    Dimensions
    (W x D x H): 368 Å~ 144 Å~ 74 mm / 14.49 Å~ 5.67 Å~ 2.91 inches
    Weight
    1.0 kg / 2.20 lbs
    Included items
    Owner’s Manual, USB cable
    Accessories (separately sold)
    KA350 AC Adaptor, Patch cables MS-CABLE-YL



  • Warranty

    1 Year (Extended to 3 Years via Registration) Warranty
  • Shipping & Delivery

    All orders over $50 will be automatically eligible for FREE Shipping Australia Wide, if you order is under $50 there will be a flat rate of $7.

    Belfield Music is well known for its top online customer service. We treat all online customers with the same excellent service we give to our in store customer. We will ensure that you receive all the support you need while your goods are in transit and ensure the goods arrive promptly. All of our shipments have tracking numbers available and we cover every single unit by our own shipping insurance.

    Online orders are normally processed within 1-3 business days. Once processed, your order should take between 1-8 business days to arrive depending on your location. Please note that your order may take up to 10 business days to arrive from the day you place your order.

    If it transpires that the product is out of stock due to a stock discrepancy and/or there will be a delay in shipment, we will contact you within 2 business days of placing your order and give you the option of waiting or cancelling your order. The products we advertise online should show if they are in stock or not. We do our best to keep the website stock count up to date, but there may be an occasional error.

    If you wish to utilize an Express Delivery Service to receive your item, please contact us for a shipping quote before you place your order at admin@belfieldmusic.com.au or by using the Chat icon on the bottom right of the page.

    Deliver is made during the hours from 8:00am till 5:30pm Monday to Friday. As such, please ensure you nominate an address which is capable of receiving goods during 8am and 5.30pm.  Given the restrictions on PO Box deliveries we cannot deliver larger sized items to a PO Box.

    If for any reason our selected carriers don't service your area we will contact you before processing your order if this applys to you.

    Returns Policy

    If you wish to return an item which is not damaged or faulty in any way and you have simply changed your mind or made the wrong decision, you must let us know within 7 days of receiving the item.  We will not agree to refund an item because you simply changed your mind or made the wrong decision if we have not been advised of your intention within 7 days of receiving your item. Once we have provided a return authority, it is the buyer’s responsibility to return the item, at their own costs within 30 days from original purchase. If the item is returned with any damage or alteration to its original packaging, we will refund the item subject to applying a minimum 15% restocking fee.  We will not refund the costs of the initial shipping charges.

    It is in Belfield Music best interests to keep our customers happy with their purchases. If you are not happy with your purchase, please talk to us first. We will always attempt to resolve any problems you may have as best we can. To contact us please email us at admin@belfieldmusic.com.au or by using the Chat icon on the bottom right of the page.
