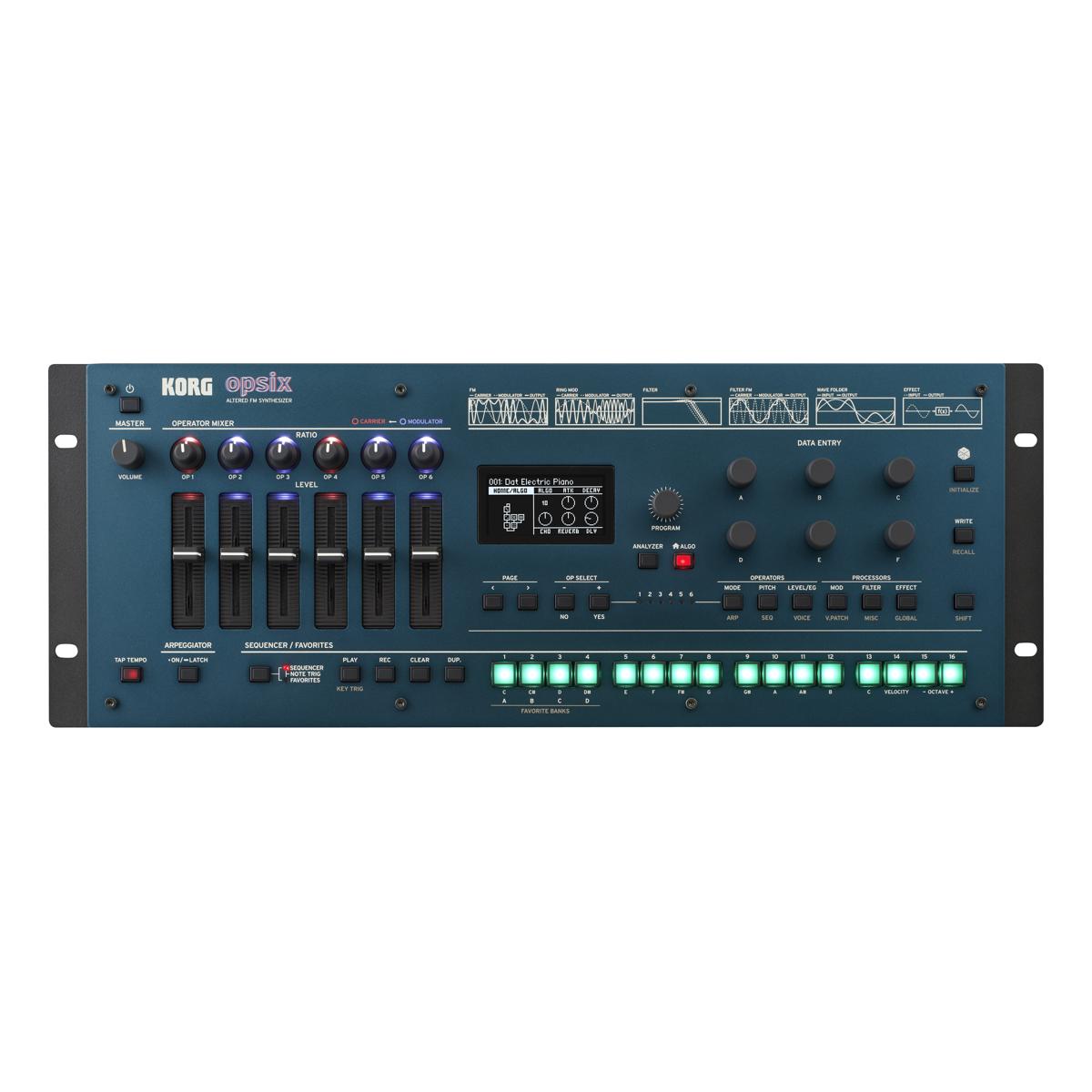

Korg opsix Altered FM Synthesiser Synth Module

Specifications

Keyboard

• Number of Keys: 37 keys (velocity and release-velocity sensitive)

Sound Generating System

• Type: Altered FM sound generator

Maximum Polyphony

80 voices (varies depending on the setting)

Structure

• 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
• Algorithm: 40 presets + user algorithm (unique to each program)
• Operator: 5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)
• Oscillator waveform: 21 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White)
• Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
• EG: ADSR
• LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
• V.Patch: 12 routings
• Effect: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
• Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step)
• Motion Sequencer: Up to 6 lanes
• Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)

Number of Programs

500 (250 preset programs and 250 user programs as the factory-set default)

FAVORITE: 64 (16 Slots × 4 Banks)

Controllers

• MODULATION wheel
• PITCH wheel
• RATIO OP 1–6 knobs
• LEVEL OP 1–6 sliders
• DATA ENTRY A–F knobs

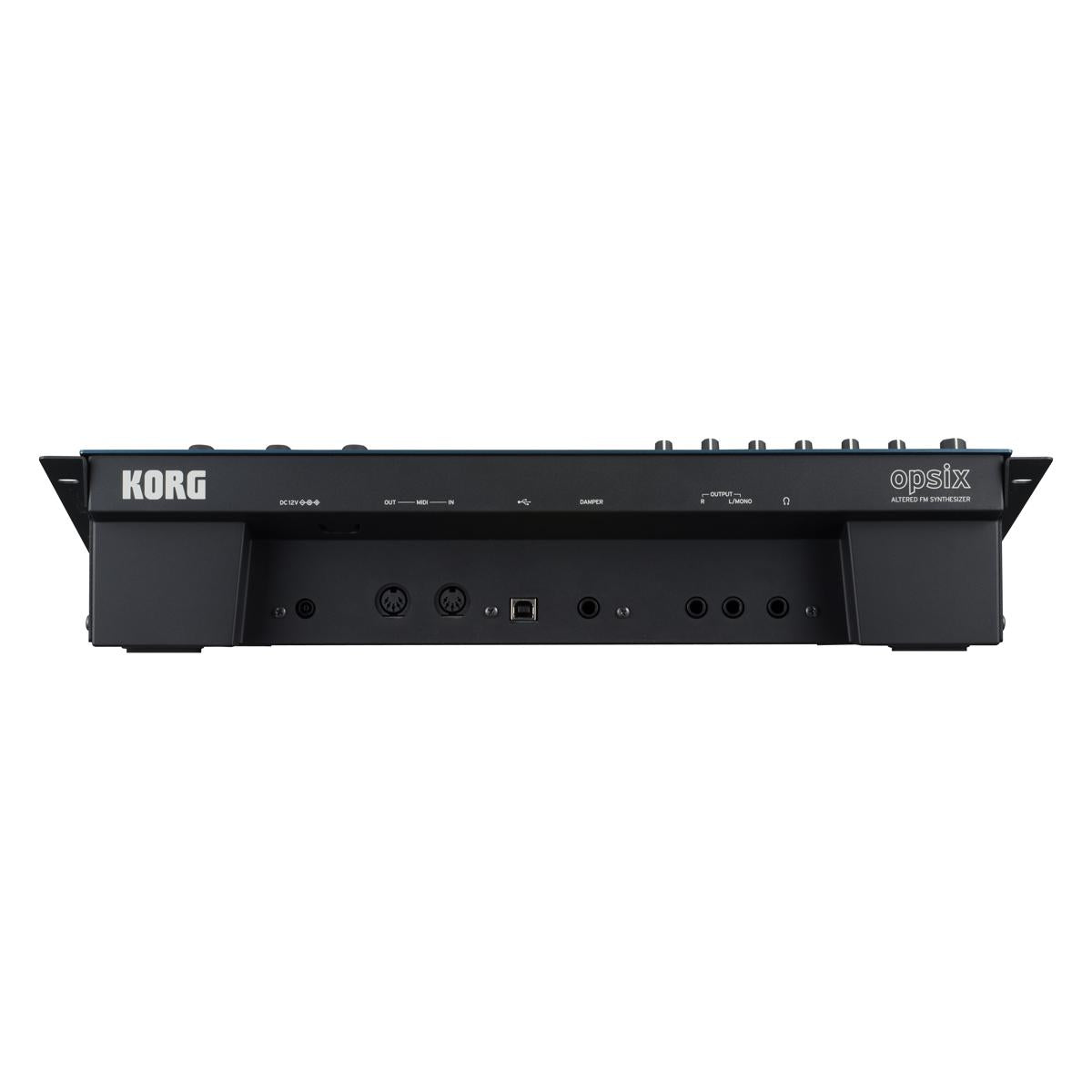

Inputs/Outputs

• Headphone (6.3 mm stereo phone jack)
• OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
• DAMPER (6.3 mm phone jack, half-damper not supported)
• MIDI IN and OUT connectors
• USB B port

Power Supply

AC adapter (DC12V)

Power Consumption

5 W

Dimensions

• 482 x 172 x 104 mm / 19.02 x 6.77 x 4.09 inch


Weight

1.7 kg

Included Items

AC adapter

Accessories (sold separately)

• DS-1H damper pedal
• PS-1 pedal switch
• PS-3 pedal switch

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
