Korg

KO-NUVIBE

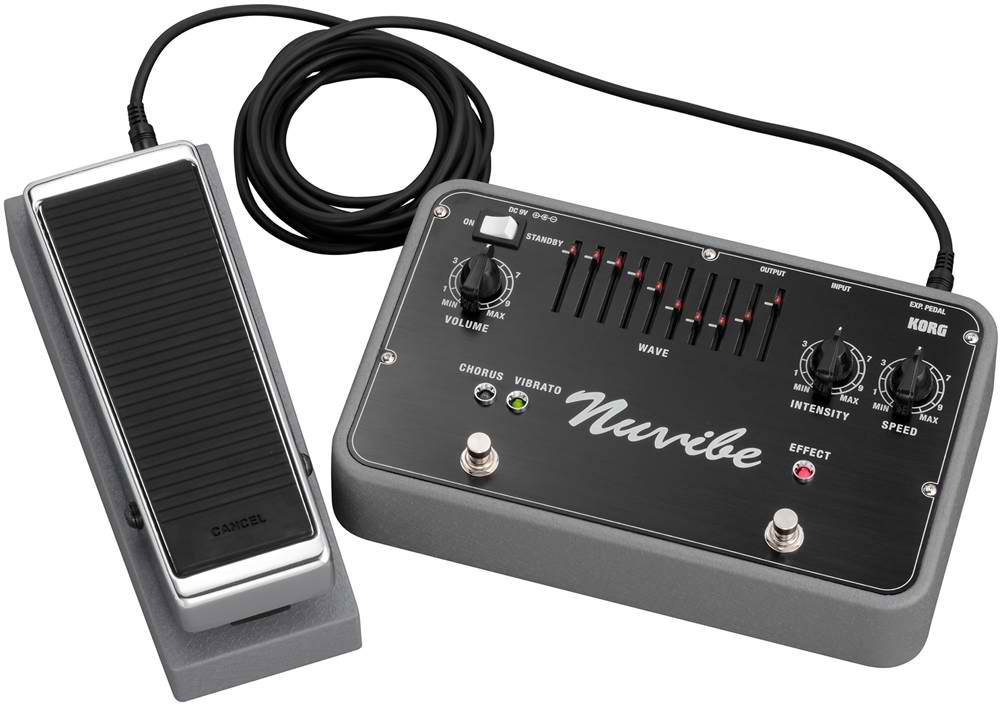

Korg NUVIBE Vibrato Chorus Effects Pedal

Pay With AfterPay Zip

  •

    Product Information:

    The legendary modulation effect unit, reborn under the supervision of the developer of the original model! Reappearing after more than half a century, it's the Nuvibe. Loved by guitarists for decades, it's a Japanese made modulation-type effect unit that made a blazing debut at the Woodstock festival; you already know the one we're talking about. The inimitable sound of this distinctive modulation effect has captivated numerous guitarists and audiences. Yet, because only a very small number of the original units exist, and because the circuit itself was not accurately understood and its components were difficult to obtain, it was rare to have the opportunity to try out the unit that produced these famous sounds. Such factors elevated the original to a semi-divine status. Numerous clone models were produced by major manufacturers and boutique shops alike, but all of these remain facsimiles that are pale imitations of the original model. Now, this legendary classic has been reborn under the ideal circumstances of the original engineer's supervision. Starting with original circuits that simulate hard-to-obtain parts, the distinctive modulation sound has been perfectly reproduced. Not content with a simple reproduction, new WAVE sliders have been added, allowing original waveforms to be generated. This highly sought after pedal with a long history of allure is now unveiled in its new incarnation: the Nuvibe

    Resurrected under the supervision of the developer of the original model! New features for today’s musicians have been added. Discrete design using 79 transistors. The CdS photoresistor that lies at the heart of the sound is simulated by an original circuit using transistors. The WAVE sliders allow users to create their own LFO waveforms New buffer circuit designed by the developer of the original model Battery operation is also supported (six AA batteries allow up to four hours of operation) True bypass design that was not provided on the original model Dedicated expression pedal is included, allowing the modulation effect to be controlled Unlatch switch bypasses the internal circuitry when the effect is off



    Specifications:

    Input Impedance
    47KΩ
    Output Impedance
    20kΩ
    Connectors
    Inputs:
    6.3 mm Monaural phone jack
    Outputs:
    6.3 mm Monaural phone jack / Unbalanced
    Expression Pedal:
    6.3 mm Stereo phone jack
    Power
    AA batteries x 6, AC adapter (DC9V)
    Battery Life
    Approximately 4 hours (When using alkaline batteries)
    Current Consumption
    200 mA (Typical)
    Dimensions
    (W) x (D) x (H)
    Nuvibe console: 260 × 170× 67 mm / 10.24 x 6.69 x 2.64 inches
    Dedicated Expression Pedal: 94 × 246 × 81 mm / 3.70 x 9.69 x 3.19 inches
    Weight
    Nuvibe console: 1.5 kg / 3.31 lbs
    Dedicated Expression Pedal: 1.1kg / 2.43 lbs
    Accessories
    Stereo Cable, six AA batteries (for verifying operation)
    Options
    AC Adapter(DC 9V)

  • Warranty

    1 Year (Extended to 3 Years via Registration) Warranty
