Product Information:
An evolved next-generation analog
synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new
generation of musicians new to analog synthesis. That dream was
realized in the development of the minilogue, which instantly made
the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of
controlling an electronic musical instrument offered by the original
minilogue, the minilogue xd newly adds a digital multi-engine,
effects, a powered-up sequencer, and micro tuning functionality,
further expanding the possibilities for sound design and performance
potential.
minilogue xd is a fitting addition to the original groundbreaking
minilogue.
Analog synthesizer circuit that shatters expectations for its class
Four-voice polyphonic analog synthesis. The analog synthesizer
circuit of the minilogue, whose genuine analog sound had a huge
impact on the synth world, has been further developed for the
minilogue xd.
Voice structure of minilogue xd is 2VCO + MULTI ENGINE, 1VCF, 2EG,
1VCA, and 1LFO. In addition to the distinctive circuits found in the
series, such as wave shaping to shape the overtones of the
oscillator and a sync/ring switch, there's also cross modulation, a
sharp two-pole filter, and a drive switch that adds thickness and
drives signal into minilogue xd’s filter. Every parameter has been
tuned in detail based on what musicians want out of their synth. The
sounds range from the warm pads typical of analog to fat basses and
crisp lead sounds, covering every situation.
Of course, programs that you create can also be saved in the unit.
Out of the box, minilogue xd comes loaded with 200 presets, and a
total of 500 programs can be saved.
Equipped with a digital multi-engine
The additional sound design possibilities of digital sound are
delivered by the multi-engine that's provided as a third oscillator
in addition to the two analog VCOs. This engine, which is equipped
with three different types of sound generator (noise, VPM, and user
slot) lets you take advantage of a sonic character that's different
than analog, and use it at the same time as the analog engine,
infinitely expanding the potential of hybrid sound design.
Noise generator
The noise generator provides four types of noise that are
indispensable for percussive sounds or for sound effects. You can
use the digital filter to directly change the color of the noise.
VPM oscillator
minilogue xd’s multi-engine features a VPM (Variable Phase
Modulation)/FM oscillator with a two-operator structure. It can
produce sharp, metallic sounds with complex overtones beyond the
possibilities offered by analog systems. With 16 types of oscillator
and a SHAPE knob control, you'll be able to create complex sounds
intuitively.
User oscillators
User oscillators allow you to load your own oscillator programs that
you created or obtained via the internet. There are 16 user slots,
as well as one type of morphing wavetable oscillator provided as a
preset.
High-quality digital effects
minilogue xd’s high-quality digital effects use 32-bit floating
point DSP processing, adding a finishing touch to its deep sound
design platform. The three types (modulation effects, reverb, and
delay) can be used simultaneously, letting you choose from a wide
range of variations including chorus, ensemble, warm tape delay, and
a diverse variety of reverb. The user effect slots allow you to load
your own effect programs that you've created.
User customization brings out infinite potential
The minilogue xd features a customizable open environment. The unit
comes with 16 user oscillator slots and 16 user effect slots that
you can customize. Oscillators and user programs that you've created
with the SDK (Software Development Kit) can be loaded into the
minilogue xd via the dedicated librarian software.
What sounds might arise from the fusion of the expanded digital
oscillators with analog synthesis? Create original programs, share
code, and participate in the user community. You can start with
sample code provided by KORG.
Polyphonic step sequencer controlled by 16 buttons
The step sequencer provides 16 steps, and supports both realtime
recording and step recording. You can use the 16 step buttons to
select a step directly, allowing quick editing to replace the pitch
of a step or to mute it, or even improvisatory performances. Motion
sequence lets you record the movements of up to four knobs, adding
time-varying change to the sound, and you can record not only smooth
changes in value but also values that change precisely at each step.
You can use this to design the sound differently at each step; for
example, you might create a drum pattern or sound effect from just a
single program. This allows countless ideas to be unleashed.

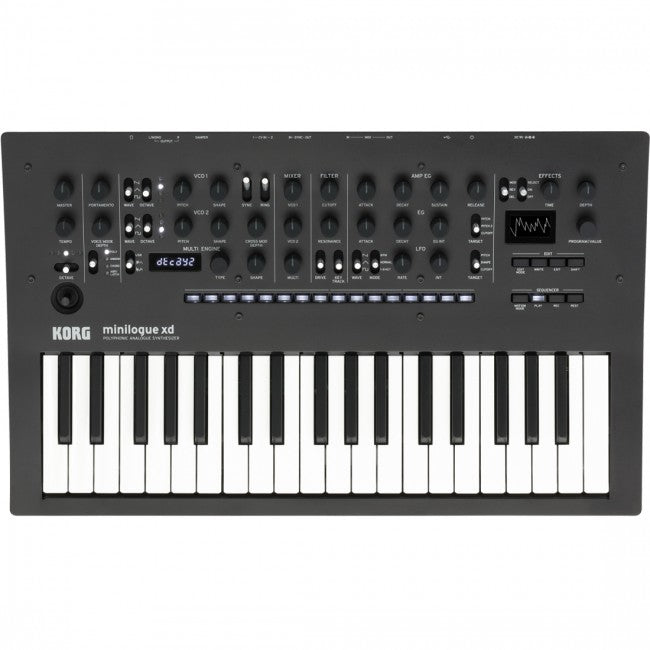

A thoughtfully designed interface
Joystick
Controls pitch bend and modulation depth, etc. A desired parameter
can also be assigned to the up/down axis.
Voice mode
The four voice modes were selected for the minilogue xd.
- POLY: The minilogue xd operates as a four-voice polyphonic synth.
- UNISON: The unit operates as a monophonic synth, with the four
voices working in unison.
- CHORD: Chords are produced using one to four voices.
- ARP / LATCH: (ARP) Provides an arpeggiator with up to four voices
that can also be used while the sequencer is running / (LATCH)
Switches latch on or off.
A voice mode depth knob is also provided, which applies a
corresponding effect for each mode.
- POLY: Turning the knob toward the right switches to DUO mode and
deepens the detune.
- UNISON: Turning the knob toward the right deepens the detune.
- CHORD: Selects mono or chord type.
- ARP / LATCH: (ARP) Selects the arpeggiator type.
Micro tuning
The minilogue xd is equipped with the micro tuning function featured
on the monologue, allowing you to individually adjust the pitch of
each key. Built in are 23 preset tunings that include some created
by Aphex Twin and Dorian Concept, and users can also create and
store six user scales and six user octaves. Start by trying out the
preset tunings of famous musicians, and then advance to creating
your own original tunings.
Oscilloscope and motion view display
The organic EL display is now larger, and also provides oscilloscope
functionality for you to view sound as the electrical signal's
waveform. This makes parameter changes visible in real time, giving
you visual feedback that helps you understand how the synthesizer
works. The display can also show motion view for visualizing the
movement of a stored motion sequence.

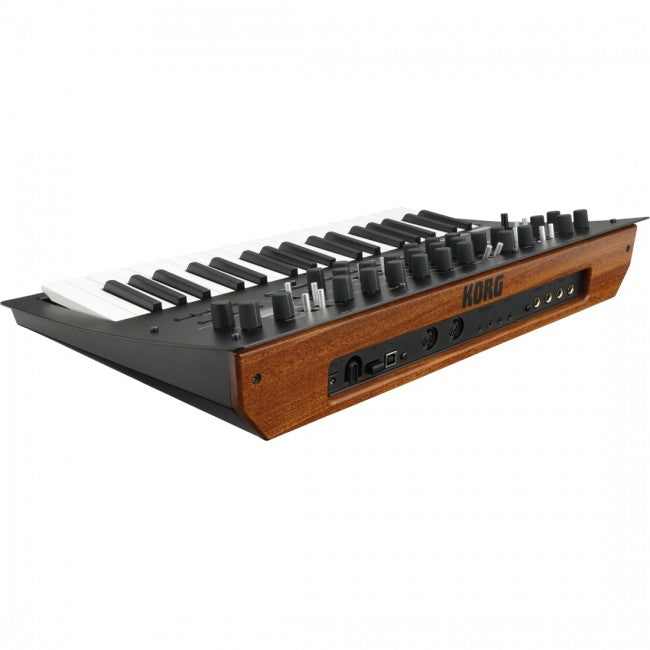

A full complement of input and output jacks
Output is now stereo
A stereo effect unit is provided at the final stage, and the output
jacks are now also stereo. Spatial-type effects such as delay,
reverb, and chorus will add an even more convincing touch to your
thick analog synth sounds and sparkling digital synth sounds.
Damper pedal jack
A damper jack has been added in response to requests from artists
and users.
Two CV IN jacks
Two CV IN jacks are provided, with voltage levels of -5V–+5V. In
addition to CV/Gate, these can also input modulation signals,
allowing you to use external devices to control parameters in the
same way as moving the joystick up or down.
Specifications:
Keyboard
37-keys (Slim-key, velocity sensitive)
Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony
4 voices
Programs
500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.
Voice Mode
4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each
mode.
Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Main Synthesis
Parameters VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE NOISE/VPM/USER, TYPE、SHAPE
MIXER VCO1, VCO2, MULTI
VCF CUTOFF, RESONANCE, DRIVE, KEYTRACK
AMP EG ATTACK, DECAY, SUSTAIN, RELEASE
EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
LFO WAVE (SAW, TRIANGLE, SQUARE), MODE(BPM, NORMAL, 1-SHOT), RATE, INT, TARGET
(PITCH, SHAPE, CUTOFF)
Main effect Parameters
EFFECT TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
MULTI ENGINE
Noise Generator 4 types
VPM oscillator 16 types
User oscillator 16 slots
MOD EFFECTS
CHORUS 8 types
ENSEMBLE 3 types
PHASER 8 types
FLANGER 8 types
USER 8 types
DELAY
DELAY 12 types
USER 8 slots
REVERB
REVERB 10 types
USER 8 slots
Controls
Joy stick that can modify different parameters for each program, PORTAMENTO knob
Display
Main Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE section 7 segments x 6 digit LED display

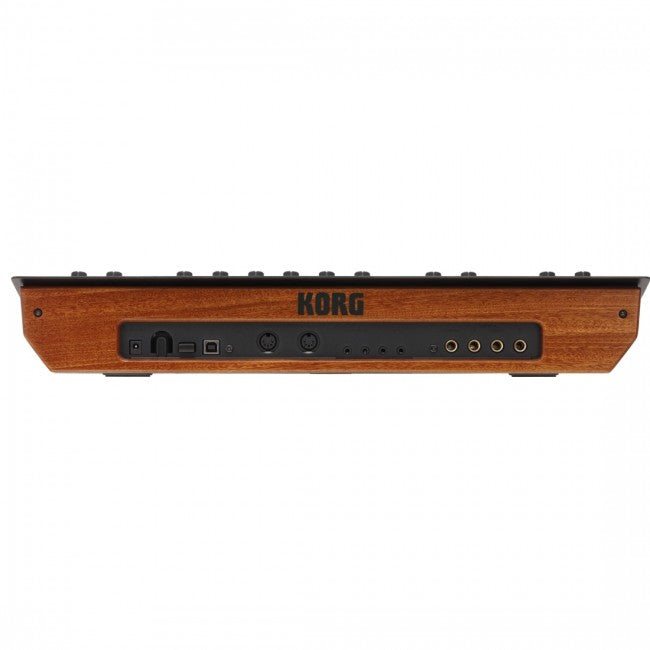

Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V –
+5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
DAMPER jack (half damper is not supported)
Power Supply
AC adapter (DC9 V)
Power Consumption
8 W
Dimensions (W x D x H)
500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
Weight
2.8 kg / 6.17 lbs.
Included Items
C adapter
Accessories (sold separetely)
SC-MINILOGUE Soft shall case
SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
SQ-CABLE-6 Sync cable
DS-1H Damper pedal
PS-1 Pedal switch
PS-3 Pedal switch
