KO-DSDAC100M

Korg DS-DAC-100m Mobile Digital Audio Converter

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip



Product Information:

By using DS-DAC 100m or DS-DAC 100 (which includes both RCA and balanced XLR outputs) with KORG’s AudioGate 3, the latest version of AudioGate audio playback and audio format conversion software, users can play back their existing audio from CDs, downloads or other sources, as high-quality DSD audio on their computer or laptop, resulting in audio playback that sounds better than before.

KORG's audio solution is now complete: AudioGate - The Complete Path to Audio Purity.


Korg Audio Gate 3 with DS-DAC 100 / 100m - High Definition Audio Playback System


Main Features
• AudioGate 3 and the DS-DAC interfaces provide the simplest and yet most comprehensive high-quality playback system available
• Realtime DSD conversion delivers optimum sound
• AudioGate 3 features a completely refreshed user interface for greatly improved usability
• Native DSD playback of 2.8224 MHz or 5.6448 MHz DSD files
• AudioGate 3 supports playback for a comprehensive range of audio formats such as 24 bit (192/96kHz), 16bit WAV, FLAC, MP3 and more
• Pro-quality hardware design that builds on the achievements of the MR series DSD recorders
• Stable, dedicated Win/Mac drivers developed specifically for AudioGate 3 and the DS-DAC series


Beautiful sound and beautiful design - DS-DAC-100
If we're talking about beautiful sound, we also want the appearance to be beautiful. Leave behind the bustle of everyday life, and spend a holiday afternoon deeply immersed in the music you love. Audio equipment lacking a professional aesthetic is not going to transport the listener to a world that's distant from reality. The DS-DAC100 is housed in an elegant and curvaceous body, with a simple front panel with a volume knob, LED indicators, and a headphone jack. The influence of vibration is minimized by a bottom panel with gleaming metal spiked feet (as found on other high-end audio equipment). In response to numerous requests from audio aficionados and studio engineers, we've provided XLR connectors for balanced outputs as well as RCA outputs.

Korg DS-DAC 100 - 1-Bit USB Digital Analog Converter

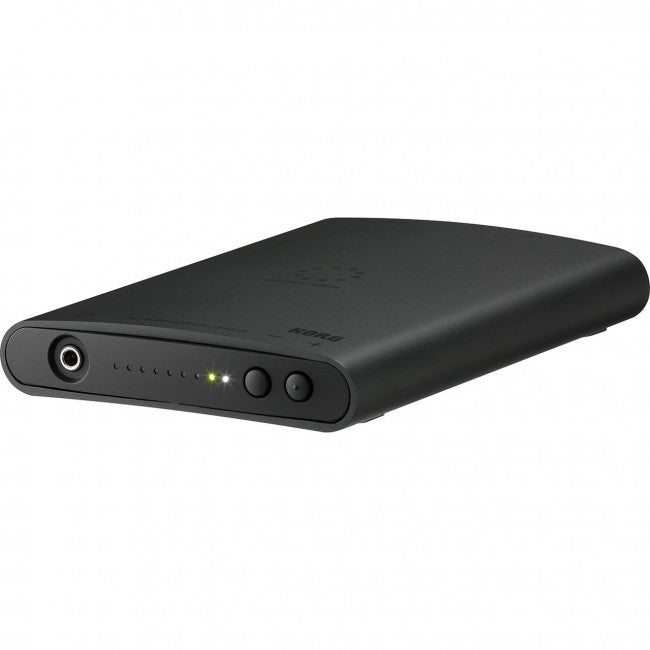

Compact design - DS-DAC-100M
Approximately the same size as a portable hard disk, the DS-DAC100m packs essentially the same circuitry as the upper-level model DS-DAC-100, providing a compact version of this high-quality audio playback system featuring the same great sound as the DS-DAC100.



• New user interface.
• The size of the player screen can be adjusted. Full-screen display is also supported(Mac OS X 10.7 or later).
• "Album," "Artist," and "Genre" have been added to the play list. Sorting is supported.
• iTunes songs can be imported.
• Improved visualization with cover art and waveform display. In addition, your choice of background can be easily selected from several provided images.
• Support for editing "album artist," "track number," and "disc number" depending on the audio format.
• Master volume has been added
• Playback volume adjustment function has been added
• High-quality/Low-load has been added for file conversion


Specifications:

Audio Interface
Number of Channels: 2
Input Format (USB): DSD: 8224MHz/5.6448MHz, 1bit
PCM: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz, 16bit/24bit
Host Interface: USB2.0 (High Speed)
Audio Driver: ASIO (DSD playback is supported by the DSD option of ASIO 2.1 and later), WDM, Core Audio

Main Standards
Frequency Response: 10Hz - 20 kHz ±1dB (fs=44.1kHz/48kHz)
10Hz - 40 kHz ±1dB
S/N: 105dB (TYP.) 20Hz - 20kHz, IHF-A
THD+N: 0.005% (TYP.) 20Hz - 20kHz

Line Out L/R
Connector: φ3.5 mm stereo mini phone jack
Load Impedence: More than 10kΩ
Nominal Level: -6dBV
Maximum Level: +6dBV (0dBFS 0dB-SACD)

Phones
Connector: φ3.5mm stereo mini phone jack
Load Impedence: More than 16Ω
Maximum Level: 85mW + 85mW @32Ω

General
DA Converter: Cirrus Logic CS4398
USB Connector: Type mini B
Indicators: Power indicator x 1(LED), Sampling frequency/Headphone volume indicator x 8 (LED)
Power Supply: USB bus power (5V, Max: 500mA)
Power Consumption: Max: 2.5W
Dimensions: 92 (W) x 129 (D) x 20 (H) mm / 3.62 (W) x 5.08 (D) x 0.79 (H) inches (including protrusions)
Weight: 175g / 0.39lbs.
Included Accessories: USB cable


Operating requirements for DS-DAC-100/100m

Windows
OS: Microsoft Windows XP Home Edition/Professional Edition Service Pack 3 (32bit), Microsoft Windows Vista Service Pack 2 (32bit, 64bit), Microsoft Windows 7 (32bit, 64bit), Microsoft Windows 8.1 (32bit, 64bit)
CPU: Intel Pentium III 1GHz or more (Core 2 Duo 2.66GHz or more is recommended)
RAM: 256MB or more (1GB or more is recommended)

Macintosh
OS: Mac OS X 10.6 or later
CPU: Intel processor (Core 2 Duo 2.4GHz or more is recommended)
RAM: 1GB or more

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
