JBL-BRX325SP
JBL BRX325SP Modular Portable Line Array Subwoofer w/ 6-Channel Amplifier
$8,099.00
Pay With
Product Information

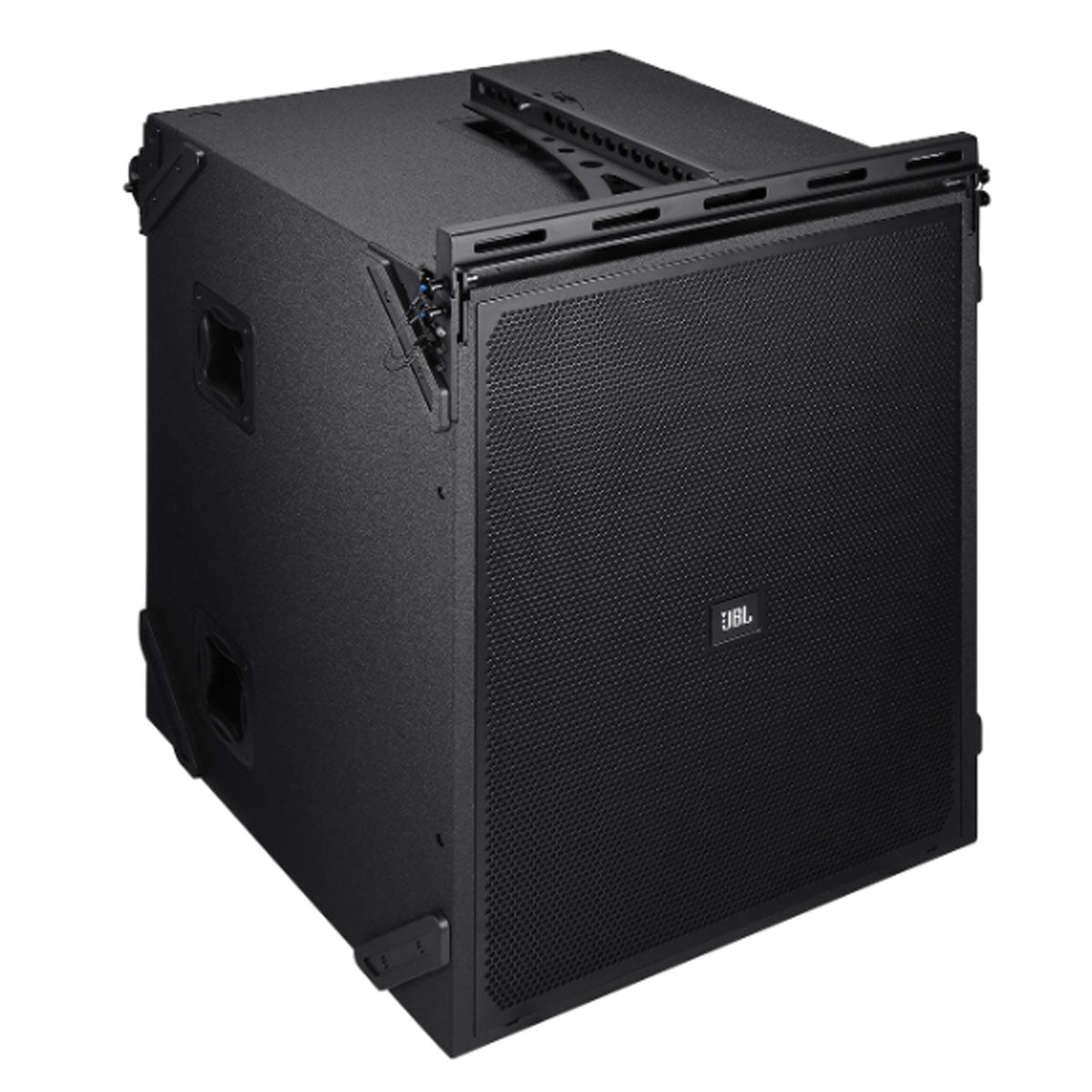

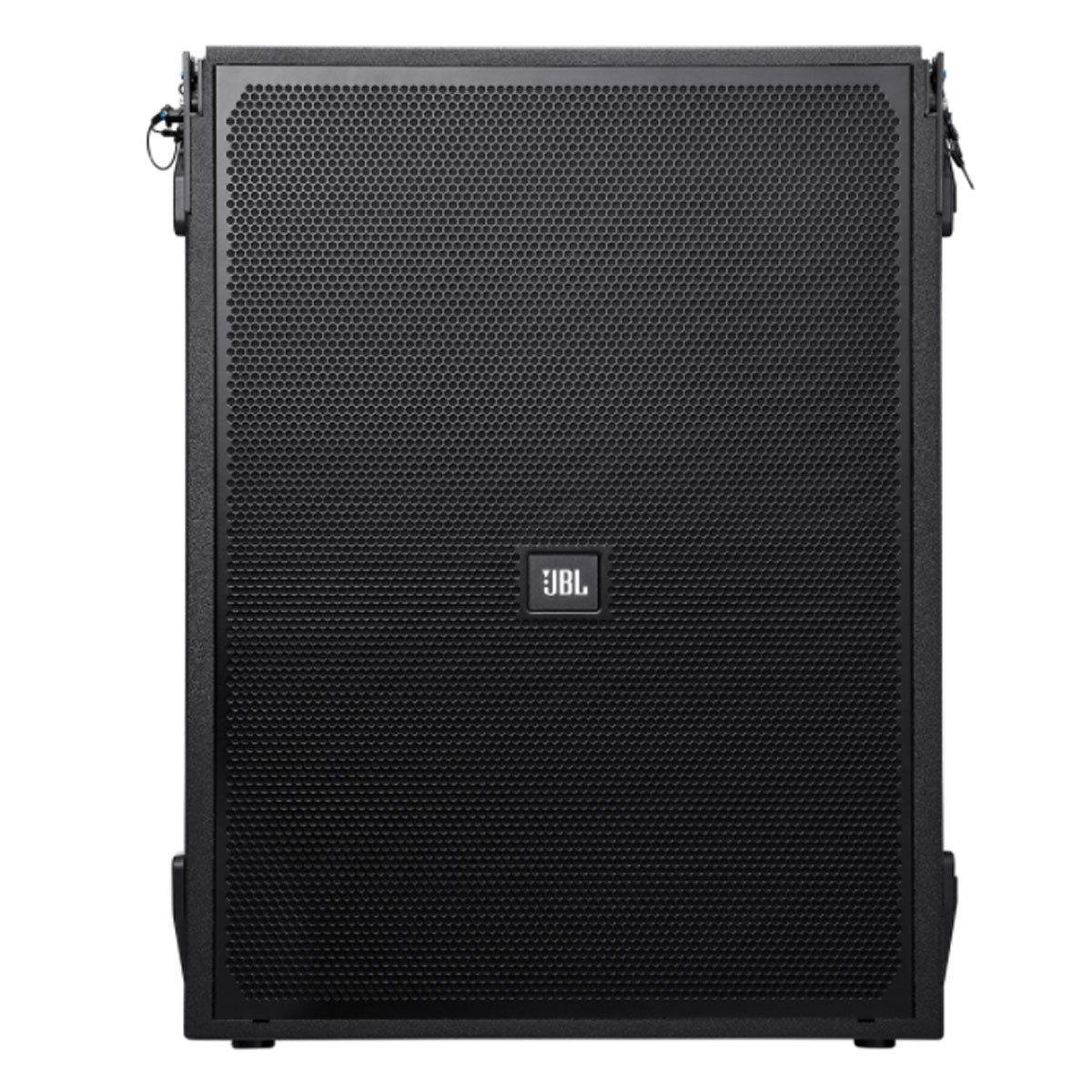

JBL BRX325SP Dual 15″ Line Array Subwoofer with Amp and DSP
JBL BRX325SP 15″ Line Array Subwoofer draws from JBL’s legendary touring technologies to deliver wide coverage and class-leading SPLs. What’s more, it reproduces every sonic detail with superior depth and clarity.
The BRX300 Series is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of sound reinforcement scenarios.

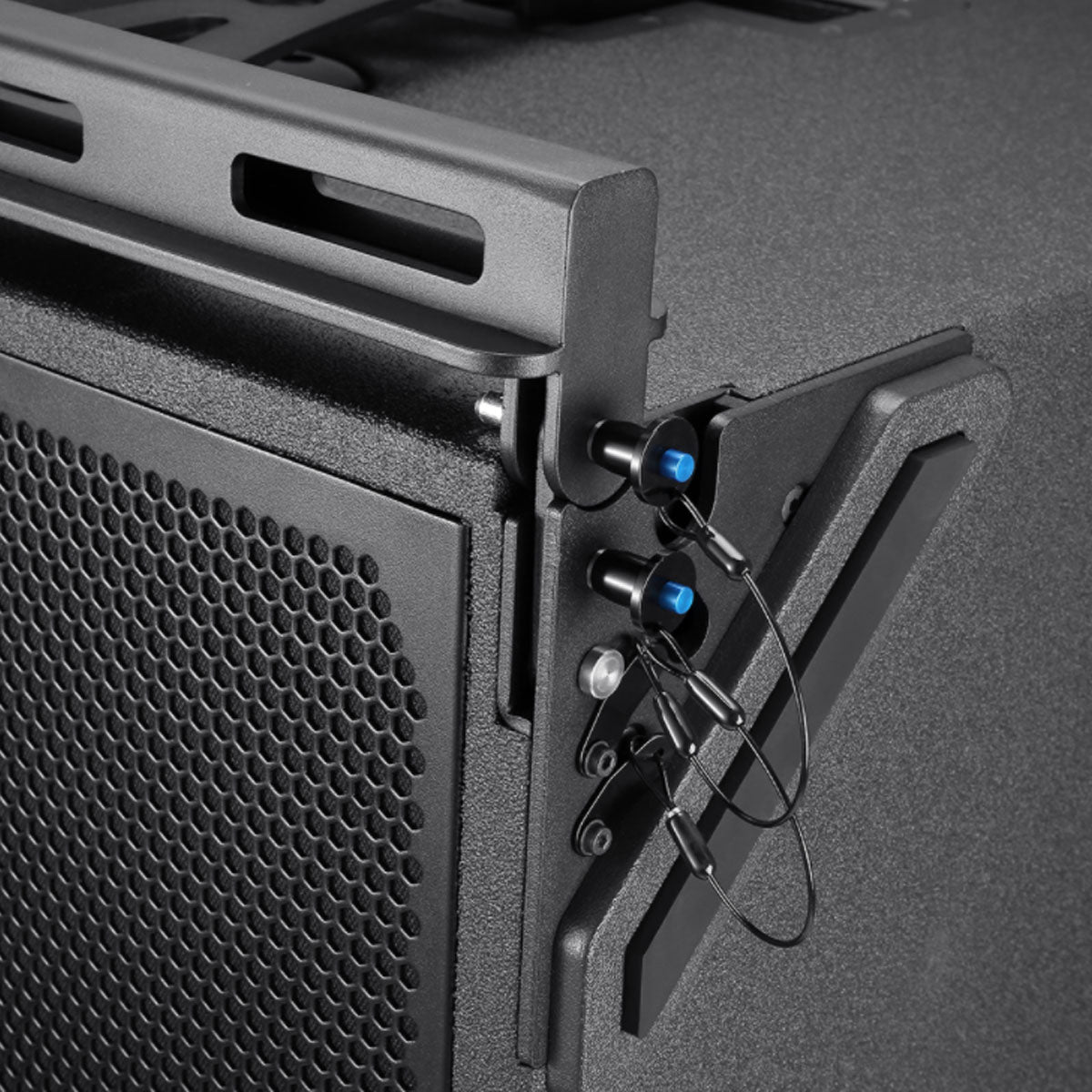

What’s more, the modular BRX300 Series makes the power of line array technology accessible to customers who are not trained audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use.
Furthermore, for decades, the world’s top entertainment venues and touring productions have relied on the superior power and clarity of JBL Professional line array technology; now it’s easier than ever to bring that legendary sonic performance to small and mid-size productions.
Legendary JBL Tour Sound
The BRX325SP Powered Subwoofer draws from JBL’s legendary touring technologies to deliver class-leading SPLs while reproducing every sonic detail with superior depth and clarity,
thanks to proprietary drivers that are engineered for maximum performance matched with the BRX325SP’s built-in amplifier.
Power That Packs A Punch
You don’t need to sacrifice power for size: the BRX325SP Powered Subwoofer delivers 136 dB SPL and offers six channels of built-in amplification—the highest channel count in its class—effortlessly powering up to four BRX308-LA Line Array Elements.
Take The Guesswork Out of System Setup With BRX325SP
The BRX300 Series delivers performance you can count on, right out of the box. The BRX325SP’s sophisticated internal processing handles crossover management, EQ, limiting, correction filters,
phase processing and driver protection, so you can focus less on system calibration and more on your mix.
Overall Versatile, Variable Coverage
Finally, the BRX300 Series can scale to accommodate any small or midsize application. Configure your systems in the following ways:
- One subwoofer and two tops, stacked or pole mounted
- One subwoofer and four tops, stacked
- Two ground-stacked subwoofers with eight tops flown
- One flown subwoofer with four adjacent tops flown
Specifications
- Dual 15-inch woofers
- Frequency range: 32 Hz–250 Hz (-10 dB)
- 136 dB maximum SPL
- Built-in DSP includes crossover management, EQ, limiting, correction filters, phase-corrected processing and driver-protection circuitry
- Integrated 1,000 watt-per-channel, 6-channel amplifier offers the most channels in its class
- Powers up to four BRX308-LA Line Array Elements

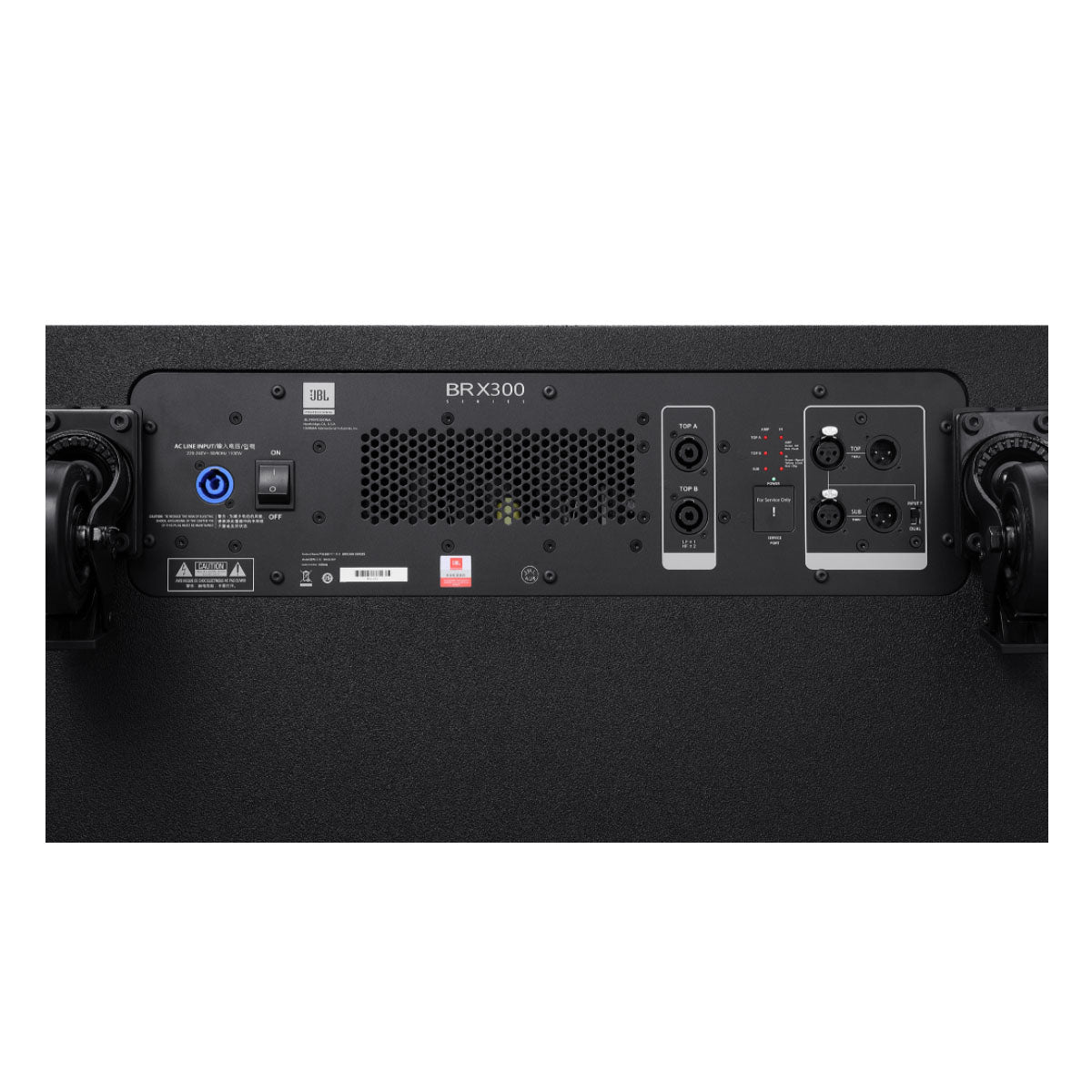

- Input: two balanced XLR-F wired in parallel to XLR-M for THRU outputs
- Output: two 4-pole NL4 connectors for powering up to four tops
- Power input: 20A powerCON/230 VAC only
- Dual inputs with Input Y mode allow a single input for the subwoofer and tops or dedicated inputs for more advanced uses

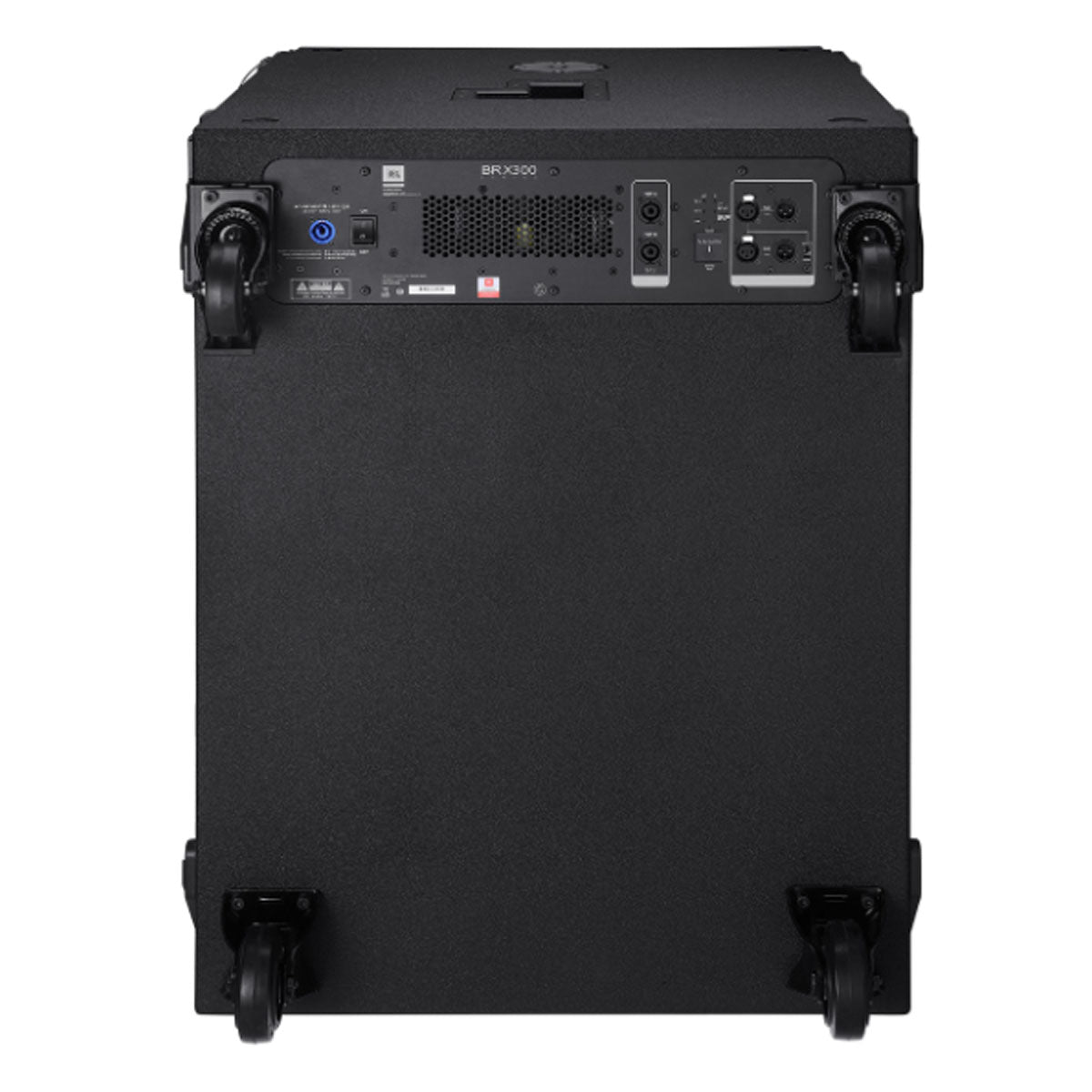

- Casters provide ease of transport
- Dimensions: 680 x 890 x 693 mm (26.7 x 35 x 27.3 inches) without caster wheels
- Weight: 86 kg (190 pounds)
- Power cable options for China, India and APAC regions
System Type: Modular, portable line array subwoofer
Frequency Range (-10 dB): 32 Hz–250 Hz
Amp Input Modes: Dual, Input Y
Input: Two balanced XLR-F wired in parallel to XLR-M for THRU outputs
Output: Two 4-pole NL4 connectors for powering up to four tops
Crossover: Internal DSP incl. FIR processing
System Power: 6 channels @ 1000 watts each
Max Peak SPL (2 PI): 136 dB
Transducers: 2 x 15”
Compliance: CE
Material: Plywood
Colour/Finish: Matte black, Duraflex
Power Input: 20A powerCON/230 VAC only
Weight: 86 kg (190 lb)
Dimensions (D x W x H): 693 x 680 x 890 mm
(27.3 x 26.7 x 35 in)
(excludes caster wheels)
