Product Information

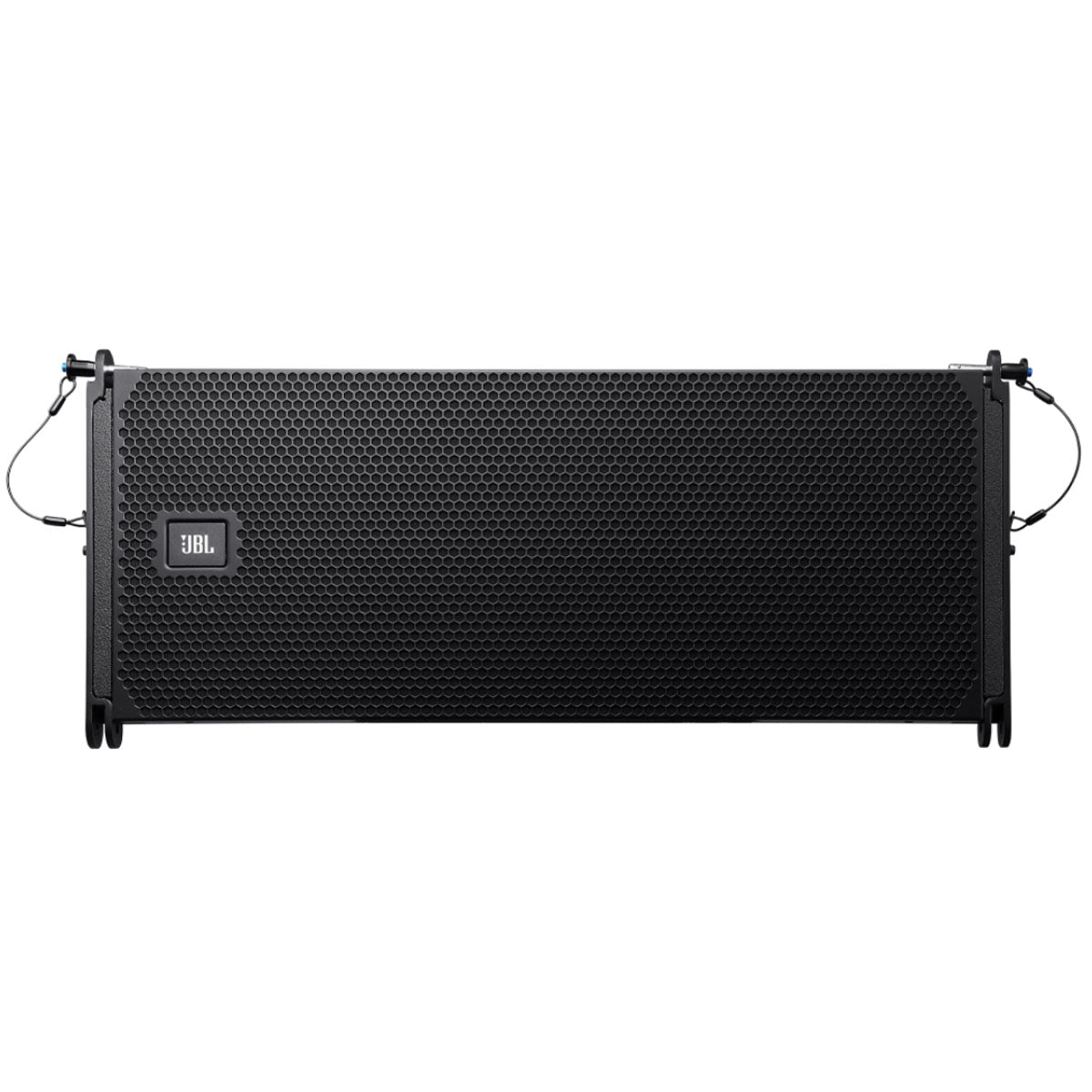

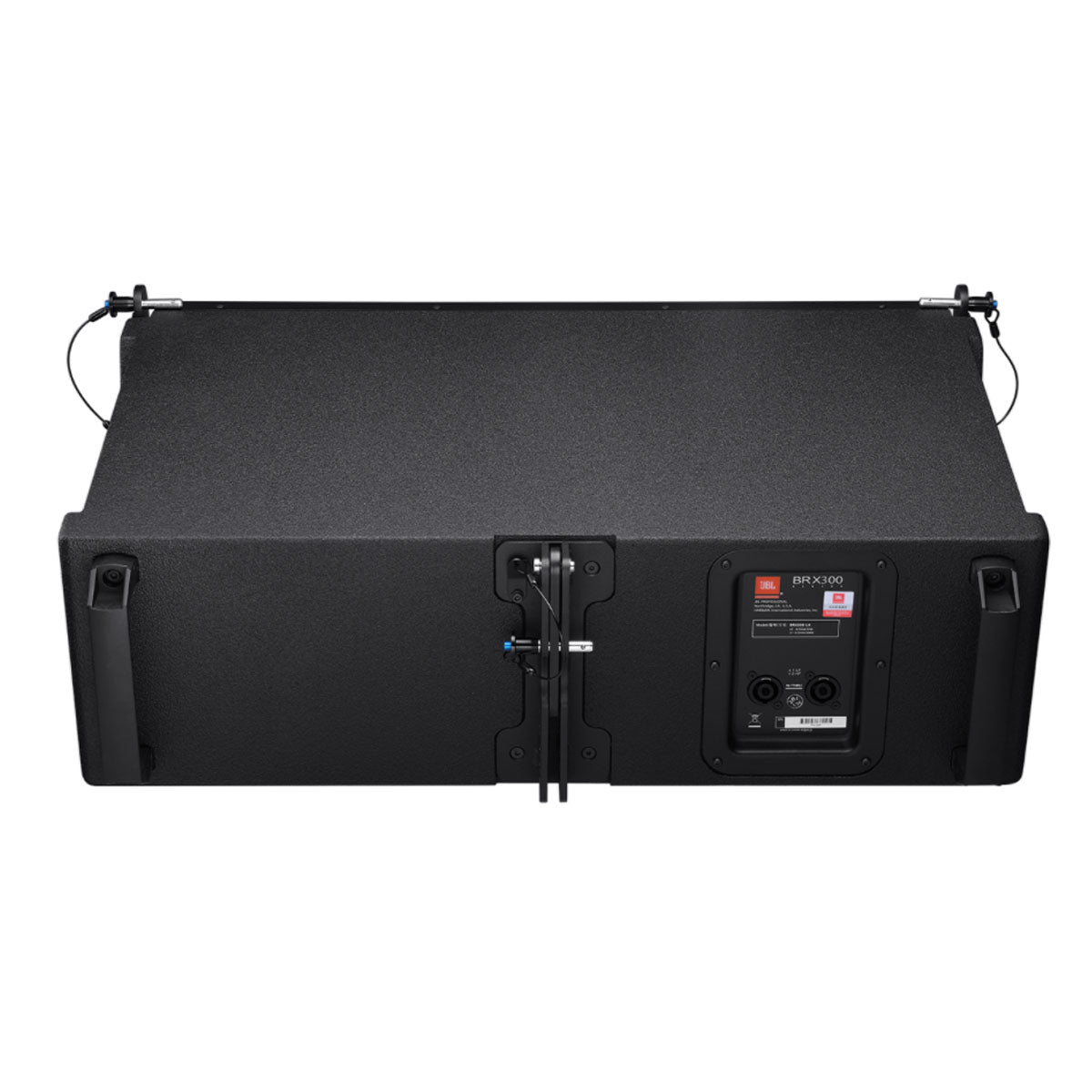

JBL BRX308-LA Dual 8″ Line Array Element Speaker
The JBL BRX308-LA Line Array Element draws from JBL’s legendary touring technologies to deliver wide coverage and class-leading SPLs. What’s more, it reproduces every sonic detail with superior depth and clarity. This is thanks to proprietary drivers that are engineered for maximum performance matched with the BRX325SP Powered Subwoofer’s built-in amplifier.
Throw That Goes The Distance
Line array technology delivers seamless front-to-back coverage for a consistent sonic experience anywhere in the audience. BRX308-LA Line Array Elements provide ultra-wide 110° horizontal dispersion and 12° vertical dispersion. This allows you to array multiple boxes to optimize coverage.
Take The Guesswork Out of System Setup With BRX308-LA
The BRX300 Series delivers the performance you can count on, right out of the box. Paired with the BRX325SP Powered Subwoofer, its sophisticated internal processing handles crossover management, EQ, limiting, correction filters, phase processing and driver protection for up to four BRX308-LA elements, so you can focus less on system calibration and more on your mix.
What’s more, this BRX308-LA is a versatile line array for bands, DJs, rental firms, houses of worship and anyone who needs a compact, portable system that provides superior fidelity, high output and consistent coverage in a range of sound reinforcement scenarios.
The modular BRX308-LA makes the power of line array technology accessible to customers who are not audio engineers, thanks to its plug-and-play simplicity, built-in corrective signal processing, smart transport system and hassle-free rigging hardware. Deploy in minutes and enjoy optimal sound out of the box with components engineered for fidelity and ease of use.
For decades, the world’s top entertainment venues and touring productions have relied on the superior power and clarity of JBL Professional line array technology; now it’s easier than ever to bring that legendary sonic performance to small and mid-size productions with the BRX308-LA.
Overall Versatile, Variable Coverage
Finally, the BRX300 Series can scale to accommodate any small or midsize application. Configure your systems in the following ways:
- One subwoofer and two tops, stacked or pole mounted
- One subwoofer and four tops, stacked

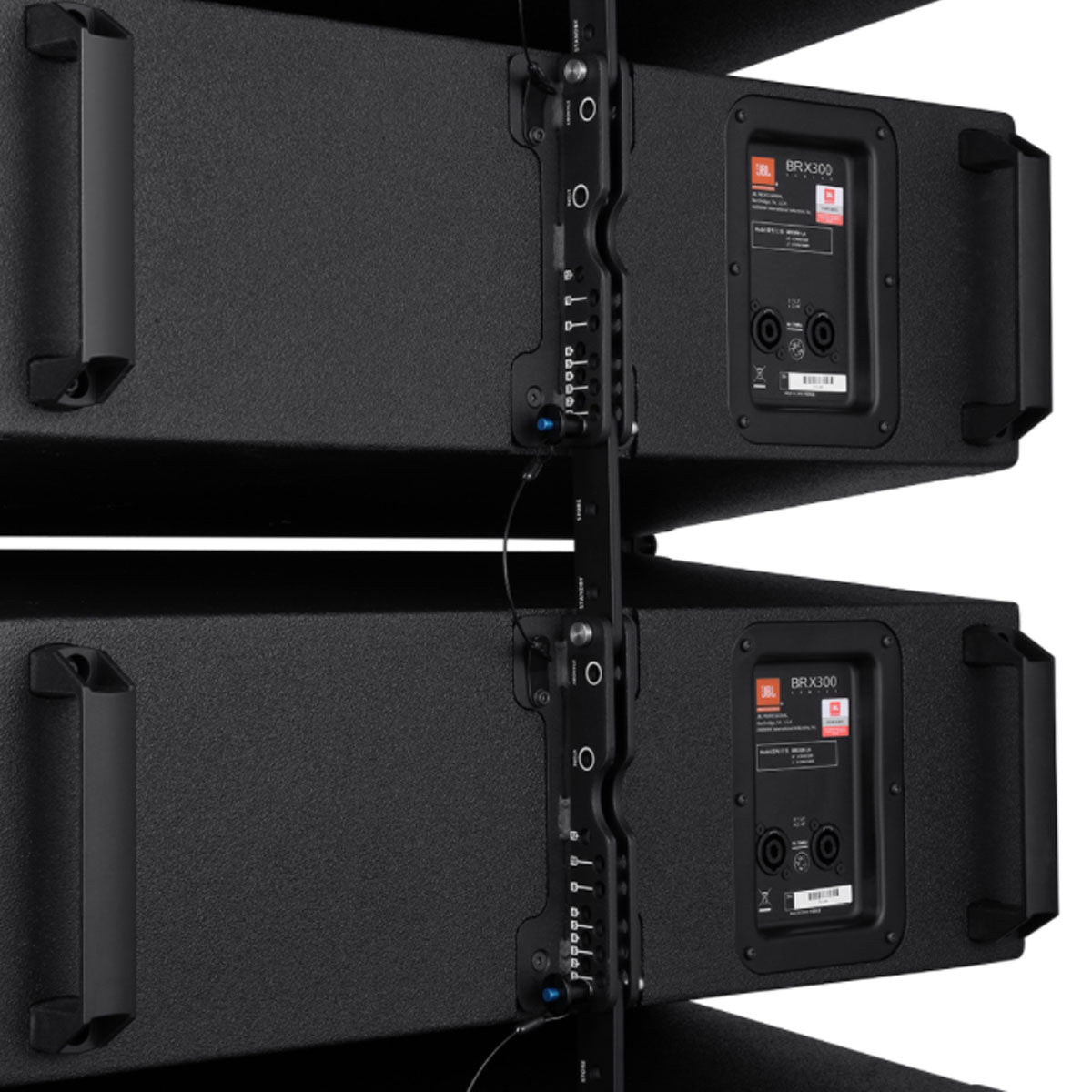

- Two ground-stacked subwoofers with eight tops flown
- One flown subwoofer with four adjacent tops flown
Specifications
- Dual 8-inch LF drivers and 3-inch titanium compression driver
- Frequency range: 80 Hz–20 kHz (-10 dB)
- 110° horizontal x 12° (variable) vertical dispersion
- 136 dB maximum SPL
- Variable interbox angles

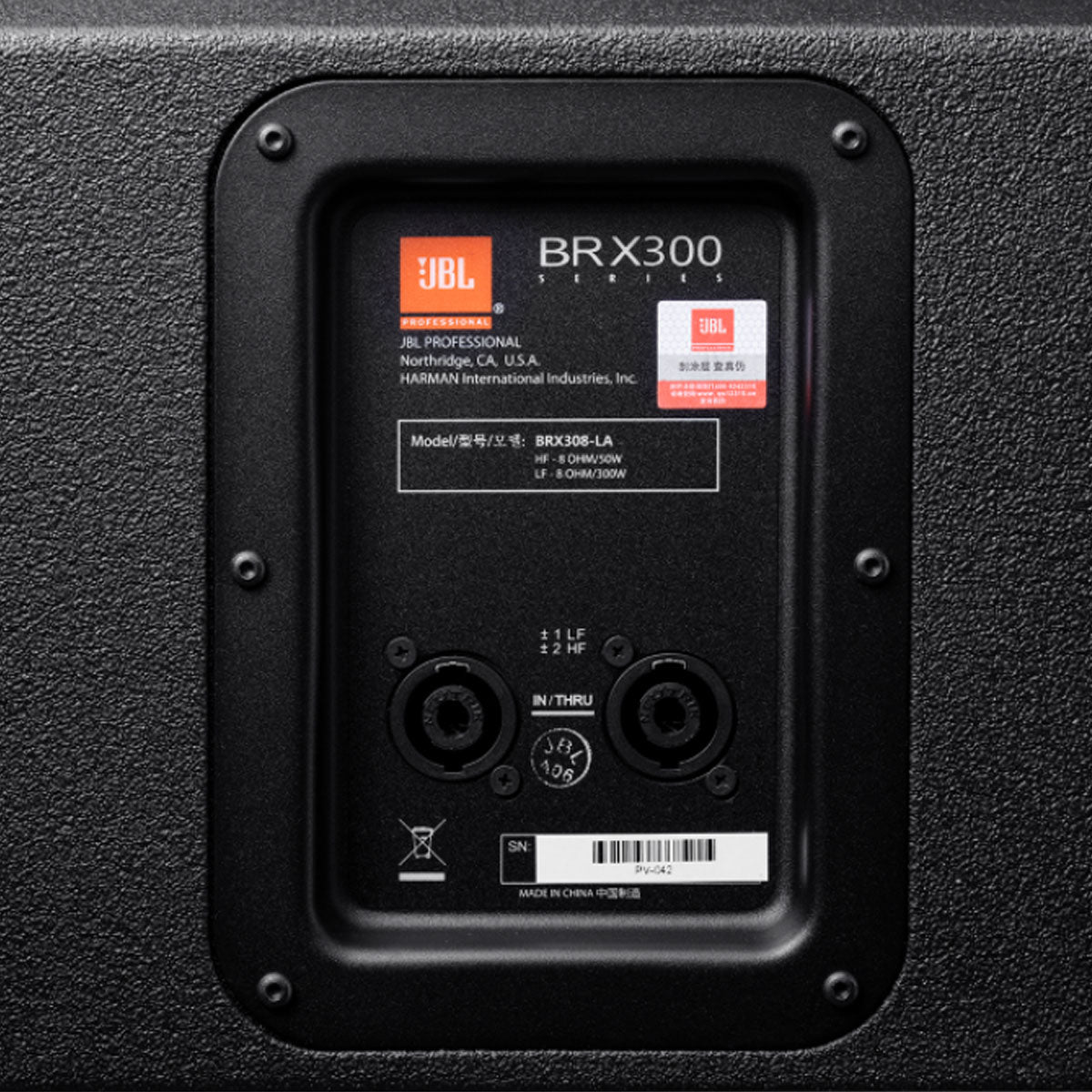

- I/O: two 4-pole NL4 connectors wired in parallel for IN/THRU use
- Dimensions (W x H x D): 662 x 299 x 376 mm (26 x 11.8 x 14.8 inches)
- Weight: 20.5 kg (45.2 pounds)
System Type: Modular, portable line array
Frequency Range (-10 dB): 80 Hz–20 kHz
Max Peak SPL (2 PI): 136 dB
Nominal Directivity (H x V): 110° x 12° (variable)
Transducers: LF: 2 x 8”
HF: 1 x 3” titanium compression
Compliance: CE
Material: Plywood
Colour/Finish: Matte black, Duraflex
Connectors: Two 4-pole NL4 connectors wired in parallel for IN/THRU use
Weight: 20.5 kg (45.2 lb)
Dimensions (D x W x H): 376 x 662 x 299 mm (14.8 x 26 x 11.8 in)
