Ibanez

6043254

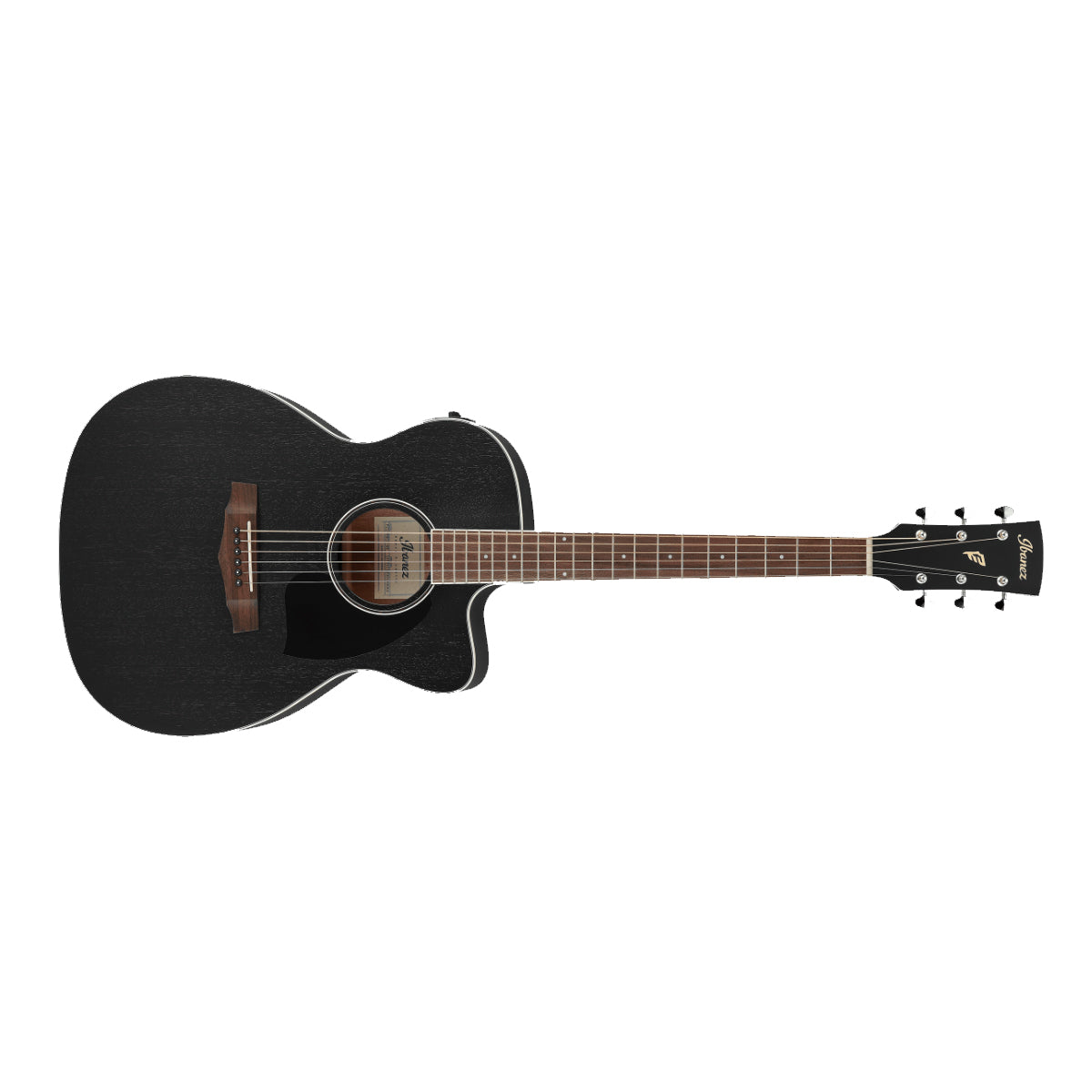

Ibanez PC14MHCE Acoustic Guitar Grand Concert Weathered Black w/ Pickup & Cutaway - PC14MHCEWK

Product Information

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.


Specifications

    • body shape
    • Cutaway Grand Concert body
    • top
    • Okoume top
    • back & sides
    • Okoume back & Okoume sides
    • neck
    • PCNyatoh neck
    • fretboard
    • Laurel fretboard
    • bridge
    • Laurel
    • inlay
    • White dot inlay
    • soundhole rosette
    • Tortoiseshell
    • tuning machine
    • Chrome Open Gear tuners
    • nut material
    • Plastic
    • number of frets
    • 20
    • saddle material
    • Plastic
    • bridge pins
    • Ibanez Advantage™
    • strings
    • Ibanez IACS6C
    • string gauge
    • .012/.016/.024/.032/.042/.053
    • string space
    • 11mm
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • pickup
    • Ibanez Undersaddle
    • preamp
    • Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
    • 1/4" output
  • NECK DIMENSIONS

      • Scale :
      • 634mm
      • a : Width
      • 42mm at NUT
      • b : Width
      • 54mm at 14F
      • c : Thickness
      • 21mm at 1F
      • d : Thickness
      • 22.5mm at 7F
      • Radius :
      • 240mmR

    BODY DIMENSIONS

      • a : Length
      • 19 1/4"
      • b : Width
      • 15 1/4"
      • c : Max Depth
      • 4 1/4"
