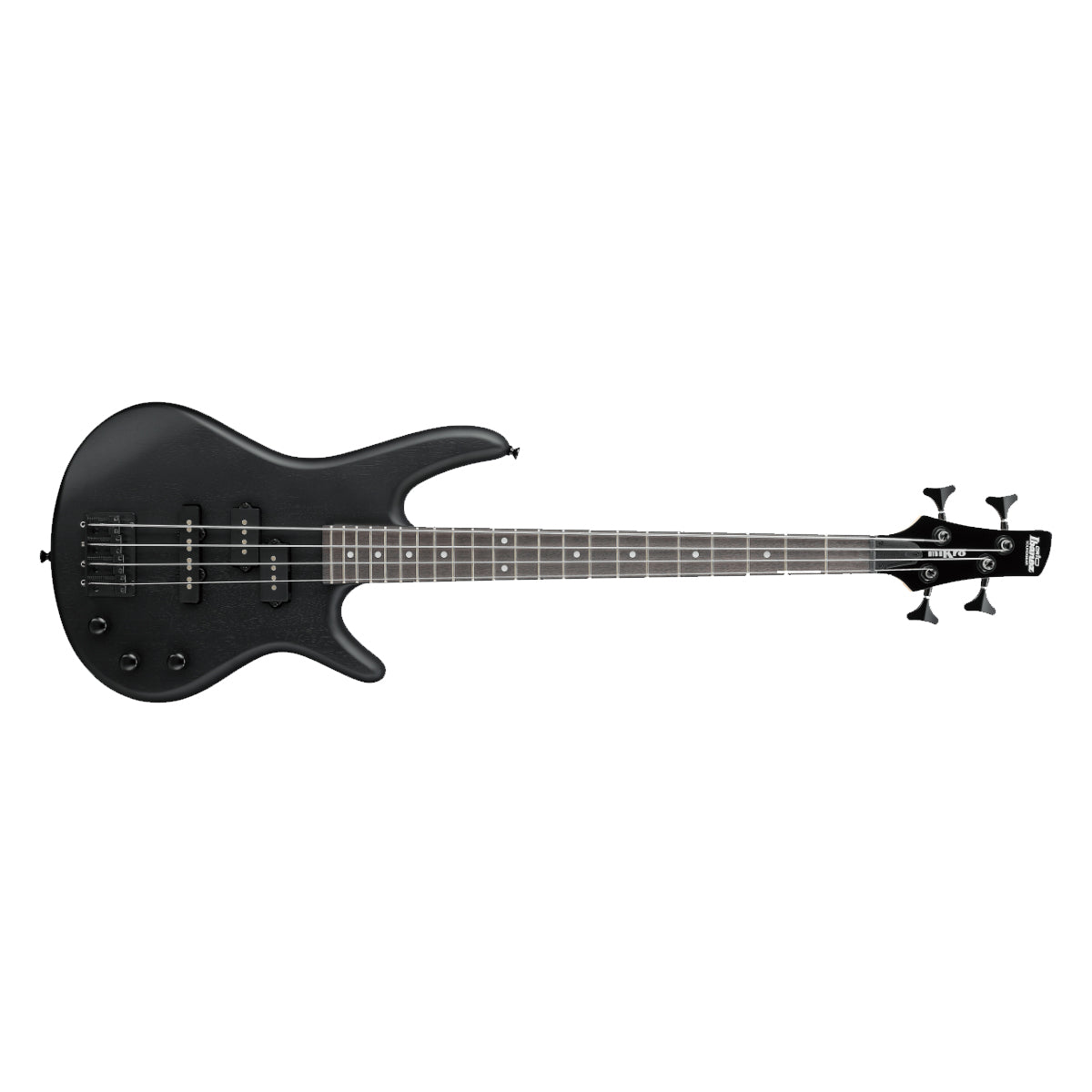

Product Information

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

B10 bridge

The B10 bridge allows fully adjustable intonation and solid tuning stability.

• • neck type
  • GSRM4Maple neck

  • top/back/body
  • Okoume body

  • fretboard
  • Bound Purpleheart fretboardWhite dot inlay

  • fret
  • Medium frets

  • number of frets
  • 22

  • bridge
  • B10 bridge

  • string space
  • 19mm

  • neck pickup
  • Dynamix P neck pickupPassive

  • bridge pickup
  • Dynamix J bridge pickupPassive

  • factory tuning
  • 1G,2D,3A,4E

  • string gauge
  • .045/.065/.085/.105

  • hardware color
  • Black

• NECK DIMENSIONS

  • • Scale :
    • 726mm/28.6"
    • a : Width
    • 38mm at NUT
    • b : Width
    • 58.5mm at 22F
    • c : Thickness
    • 21mm at 1F
    • d : Thickness
    • 22mm at 12F
    • Radius :
    • 350mmR
