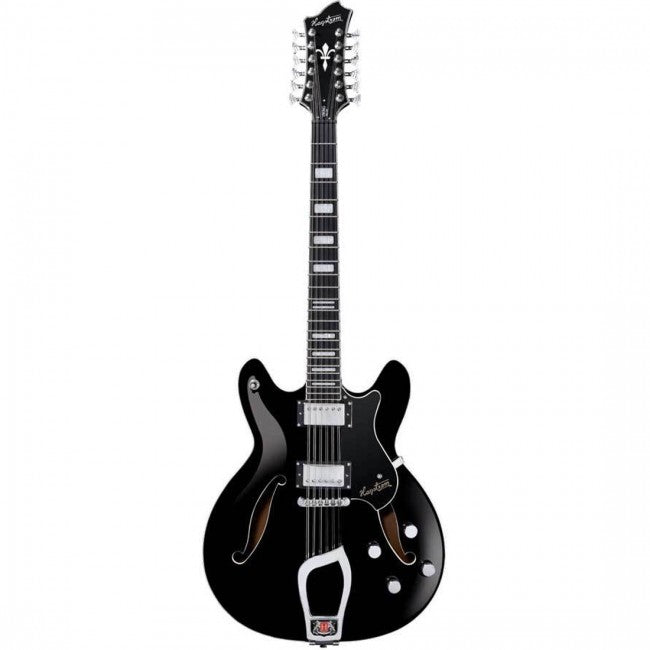

The hardness of maple enhances tonal brilliance, so it was natural for us to develop Hagstrom’s 12-string Viking Deluxe.
Maple used throughout the body and neck results in a brilliant voice for this guitar. Standard equipment on Hagstrom is our H-Expander truss rod and Resinator fretboard. Both of these features also enhance acoustics by emphasizing the octave strings, balancing them with the naturally fuller standard strings, resulting in a lush, chorale-like acoustic platform upon which we build our Hagstrom pickup magic. The magic comes from our H-50 humbucking pickups, designed and voiced specifically for this 12-string model. Gorgeous vintage-sounding clean tones can heat up nastily when overdriven, taking this 12-string into new sonic territory.
More than 200 pounds of pressure are exerted on the neck of a 12-string guitar, a problem for traditional guitar designs. However, Hagstrom’s unique H-Expander truss rod, inspired by designs used in jet aircraft manufactured in Sweden by Saab, handles this with no problem, and even allows for an incredibly thin neck for playing comfort with no compromise in stability. Your neck will stay straight for years to come with Hagstrom’s Viking Deluxe 12-string.
VIKING DELUXE 12 STRING STANDARDS:
All Hagstrom electric guitars and basses include our patented H-Expander truss rod. Providing tension at both ends and running the entire length of the neck, the rigid yet light-weight alloy truss rod allows for a very low action and thin neck, two factors that were instrumental in earning Hagstrom its reputation as the world’s fastest playing guitar. The H-Expander truss rod not only provides ultimate neck stability, but it also contributes to Hagstrom’s unique tone. Longer sustain and a round attack are some of the sonic characteristics the H-Expander adds to the tonal essence of Hagstrom.
The classic Viking trapeze stringholder/-tailpiece design, is a work of art in itself.
Right underneath the top part, where the two beautifully swept beams meet, it features a string claw for easy access and super comfortable string changes. Adorned with the legendary Hagstrom crest it truly is elegance defined.
Hagstrom uses a variety of different neck joints throughout our range. Our set-neck recipe is the classic and time-tested Mortise and Tenon joint, a design that most efficiently transfers string energy from neck to body, and can often only be found on more expensive custom-built guitars. A team of experienced and dedicated craftsmen hand carves every neck joint, insuring perfect execution of this traditional technique preferred by luthiers for generations.
Resinator wood is a wood composite material that is both more uniform in density and more stable than any standard wood product. These characteristics eliminate dead spots or "wolf tones" sometimes associated with conventional wood fingerboards. Resinator wood has an articulate sound similar to high quality ebony, but without any of the problems associated with ebony. It provides a stable and clear tone, and also adds higher overtones and harmonics which uniquely detail each note. Like our H-Expander truss rod, Resinator wood is a major contributor to the distinctive "Hagstrom tone".
Hagstrom Machine Heads
Hagstrom models use 18:1 or 15:1 gear ratio machine heads based on our own designs to insure accurate tuning. Viking and HB series basses feature machine heads with a 17:1 gear ratio.
Brand Hagstrom Guitars
Type Semi-Hollow Electric Guitars
Type 12 String Electric Guitars
Series Hagstrom Viking Deluxe Series
Finish Black Gloss
Body Wood Ply Flamed Maple
Body Top Contoured
Neck Wood Canadian Hard Maple
Construction Set Neck
Truss Rod H-Expander
Fretboard Resinator Wood, Radius of 15"
Frets 22 Medium Jumbo
Inlays Pearl Block
Scale Length 24.75" (628 mm)
Nut GraphTech Black Tusq XL, Nut Width is 45 mm
Machine Heads Diecast Hagstrom Design 18:1 Gear Ratio
Bridge Long Travel Tune-O-Matic with Hagstrom Stop Tailpiece
Pickups 2 x Hagstrom H-50
Pickup Selector 3-Way Toggle Switch
Controls 2 x Volume / 2 x Tone
Unique Features 12 String, Strings:D'Addario EXL 150 (010/.010, .013./013, .017/.008, .026w/.012p, .036w/.018p, .046w/.026w)

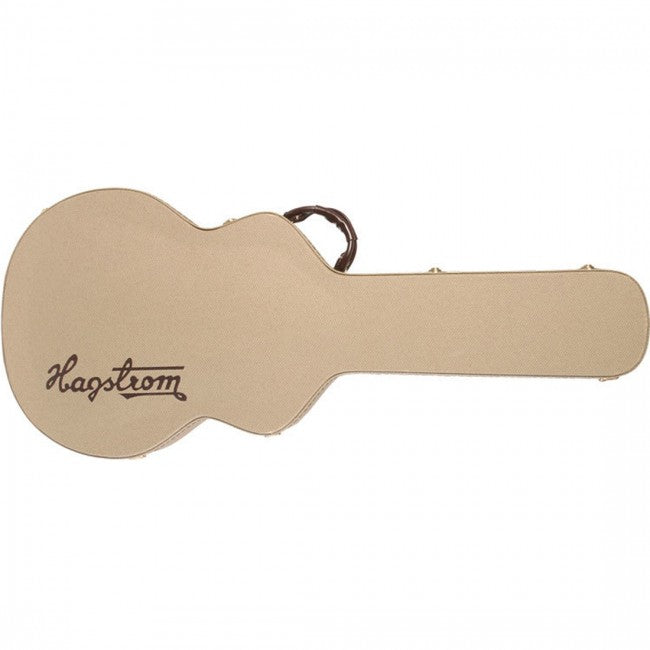

Comes with Hagstrom Hardshell Case in Tan Tolex with Hagstrom Logo
