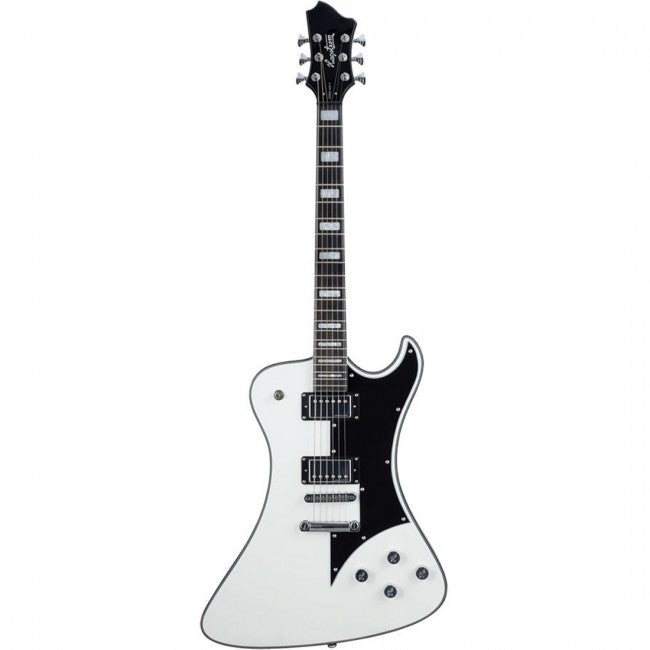

The Hagstrom Fantomen is a collaboration between the design team at Hagstrom the Swedish band Ghost, Fantomen (Swedish for “The Phantom”) transports Hagstrom’s legendary playability and technical excellence into a new, edgier realm.
We started with an elegantly asymmetrical solid-mahogany body to which we have joined a mahogany neck using our classic mortise-and-tenon neck joint system. Of course, since it’s a Hagstrom, the Fantomen uses our H-Expander® truss rod and Resinator® fingerboard, providing the ultimate in playing surface stability and optimal tonal enhancement. Together these components create an incredibly stable, resonant and responsive sonic foundation.
Sharp attack and more sustain
With a relatively thin 1.25" (3.5cm) body, the Fantomen is beautifully balanced and surprisingly lightweight. A 25.5” (648mm) scale provides a slightly sharper attack and more sustain than classic 24.75” scale guitars. A neck joint design that provides total, unrestricted access to all 22 frets will meet the needs of even the most virtuosic player.
Immense expressive range
Our goal was to equip the Fantomen with electronics that would allow for a varied tonal palette ranging from classic, vintage colors to screaming metallic brilliance. We worked with Swedish pickup guru Johan Lundgren, designer of pickups used by artists such as Meshuggah’s Martin Hagström (no relation!). Lundgren recommended two different humbucker designs: No. 2 in the neck position and No. 5 in the bridge position. The result covers an immense expressive range; from smooth, warm tones to the kind of attack and intense dynamic output that would satisfy the demands of even the most extreme musical styles. Each pickup can be split to single-coil mode by means of push/pull switches incorporated into the tone controls for even more sonic flexibility. This guitar speaks with many distinct voices.
On stage with Ghost
You can find the Fantomen on stage with Ghost. You don’t have to be a Nameless Ghoul to play it, and you can be sure the guitar available at your Hagstrom dealer is identical in every way to those on stage with Ghost!
All Hagstrom electric guitars and basses include our patented H-Expander truss rod. Providing tension at both ends and running the entire length of the neck, the rigid yet light-weight alloy truss rod allows for a very low action and thin neck, two factors that were instrumental in earning Hagstrom its reputation as the world’s fastest playing guitar. The H-Expander truss rod not only provides ultimate neck stability, but it also contributes to Hagstrom’s unique tone. Longer sustain and a round attack are some of the sonic characteristics the H-Expander adds to the tonal essence of Hagstrom.
We worked with Swedish pickup guru Johan Lundgren, designer of pickups used by artists such as Meshuggah’s Martin Hagström (no relation!). His pickups cover an immense expressive range; from smooth, warm tones to the kind of attack and intense dynamic output that would satisfy the demands of even the most extreme musical styles.
Hagstrom uses a variety of different neck joints throughout our range. Our set-neck recipe is the classic and time-tested Mortise and Tenon joint, a design that most efficiently transfers string energy from neck to body, and can often only be found on more expensive custom-built guitars.
Resinator wood is a wood composite material that is both more uniform in density and more stable than any standard wood product. These characteristics eliminate dead spots or "wolf tones" sometimes associated with conventional wood fingerboards. Resinator wood has an articulate sound similar to high quality ebony, but without any of the problems associated with ebony.
Hagstrom Machine Heads
Hagstrom models use 18:1 or 15:1 gear ratio machine heads based on our own designs to insure accurate tuning. Viking and HB series basses feature machine heads with a 17:1 gear ratio.
Brand Hagstrom Guitars
Type Solid Body Electric Guitars
Series Hagstrom Fantomen Series
Finish White Gloss
Body Style Single Cutaway - Asymettrical Design
Body Wood Mahogany
Neck Wood Mahogany
Construction Set Neck
Truss Rod H-Expander
Fretboard Resinator Wood, Radius of 15"
Frets 22 Medium Jumbo
Inlays Hagstrom Pearl Block
Scale Length 25.5" (648 mm)
Nut GraphTech Black Tusq XL, Nut Width is 43mm
Machine Heads Diecast Hagstrom Design 18:1 Gear Ratio
Bridge Hagstrom Long Travel Tune-O-Matic Roller Bridge
Pickup Neck Lundgren Design AlNiCo-2 No. 2 Humbucker
Pickup Bridge Lundgren Design AlNiCo-5 No. 5 Humbucker
Pickup Selector 3-Way Toggle Switch
Controls 2 x Volume Control with R/C Circuit, 2 x Tone Control with Push-Pull Coil Split
Unique Features Strings:D'Addario EXP 110 (10-46)

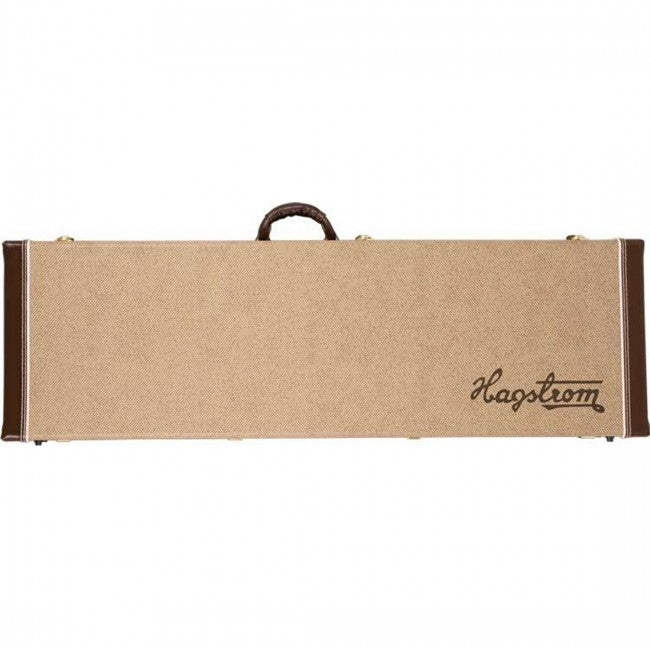

Comes with Hagstrom Hardshell Case in Tan Tolex with Hagstrom Logo
