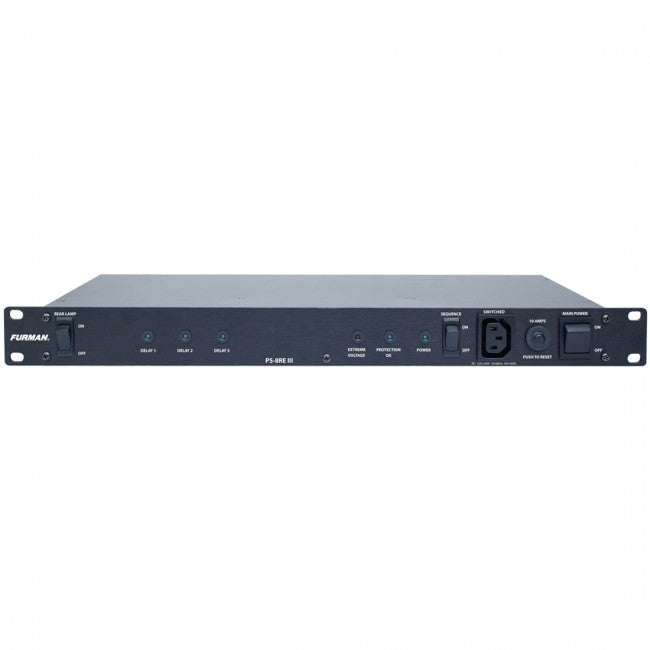

Furman PS-8RE Series III Power Conditioner / Sequencer - PS-8REIII

Product Information:

The most widely recognized and trusted name in AC power conditioning is proud to introduce the PS-8RE III power conditioner / sequencer, featuring Furman's revolutionary SMP technology. Furman's Series Multi-Stage Protection (SMP) circuit also features our exclusive Linear Filter Technology (LiFT) with Extreme Voltage Shutdown (EVS) and a high current TVZ-MOV. Together, these technologies comprise what is, without question, the world's most advanced and comprehensive transient voltage surge suppressor

SMP (Series Multi-Stage Protection)
Furman’s SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman’s SMP, damaging transient voltages are safely absorbed, clamped and dissipated - no sacrificed parts, no service calls, no down time.

Unique to Furman’s SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of - USA/CIDA’s A-1-1 test. While other designs offer clamping voltages that are well above 300VAC peak (far beyond long accepted professional standards), Furman’s SMP clamps at 376VAC peak, 266 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman’s SMP technology.

LiFT (Linear Filtering Technology)
Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman’s SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.

E.V.S. (Extreme Voltage Shutdown)
Furman’s trusted overvoltage circuitry protects against all too frequent accidental connections to high voltages by shutting off the incoming power until the overvoltage condition is corrected.

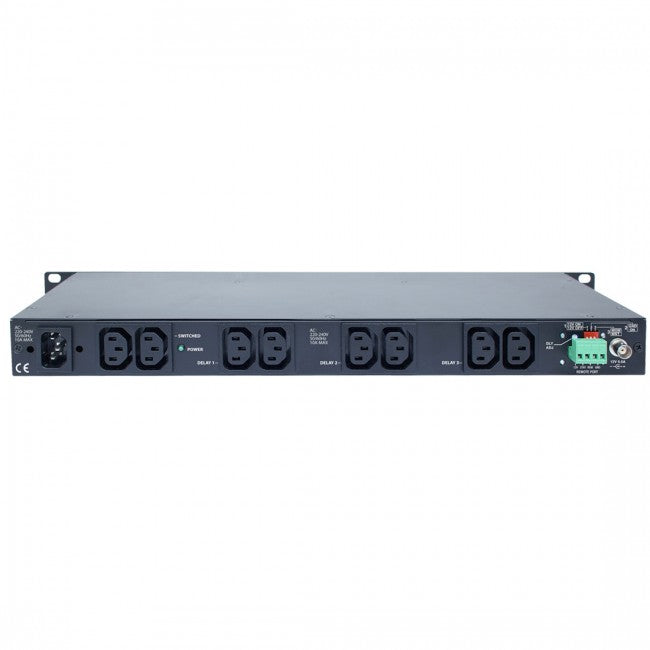

Rear Panel BNC Connector
For rear panel illumination, a BNC connector is provided for connection of any standard gooseneck lamp, such as the Furman GN-LED or GN-I (sold seperately).

Sequencing
The PS-8RE III Power Conditioner/Sequencers is capable of powering up a rack full of equipment in a 3-step delayed sequence. The sequence is reversed for power-down. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided for each delay step. One or more Furman PS-8RE III’s may be installed in remote locations and operated via low-voltage wiring.

Specifications:

Series Multi-Stage Protection (SMP) for virtually maintenance free protection from surges and spikes. No sacrificed parts, no service calls, no downtime!
Furman's unequaled Linear Filtering Technology (LiFT) rids systems of AC line noise for consistent audio/video clarity
Automatic Extreme Voltage Shutdown (E.V.S.) powers down equipment during a prolonged extreme over-voltage
Six sequenced rear panel outlets (in 3 groups), two switched rear panel outlets, and one front panel switched outlet
Momentary and Maintained sequencing via rear panel terminal block or front panel switch
10 amp rating with circuit breaker
BNC connector on the rear panel allows connection of any standard gooseneck lamp
New Features in the PS-8RE III

All settings and configuration available on rear panel
External delay and remote interface configuration: No need to remove the top cover to adjust potentiometers or jumpers
Lower profile depth: shorter depth chassis provides more flexibility with rack placement and cable management
Improved "Start On/Off Sequence" rocker switch: tactile black switch replaces push-button
Non-illuminated power on/off switch: matte black switch for discreet aesthetics

Current rating: 10 amps
Operating Voltage: 220 - 240 VAC @ 50 - 60 Hz (Thermal Breaker)
Over Voltage Shutdown: EVS, 275 ±5VAC VAC
Spike Protection Modes: Line to neutral, zero ground leakage
Spike Clamping Voltage 376 VAC peak @ 6,000 Volts/3,000 Amps
Response time: 1 nanosecond
Maximum surge current: 6,500 amps
Noise attenuation: LiFT, Noise Attenuation: 10dB @ 10KHz, 40dB @ 100KHz, 50dB @ 500KH
Dimensions: 44.33mm H x 482.6mm W x 165.1mm D
Weight: 3.03 kg.
Power consumption: 10 watts (no load)
Safety Agency Listings: TUV
