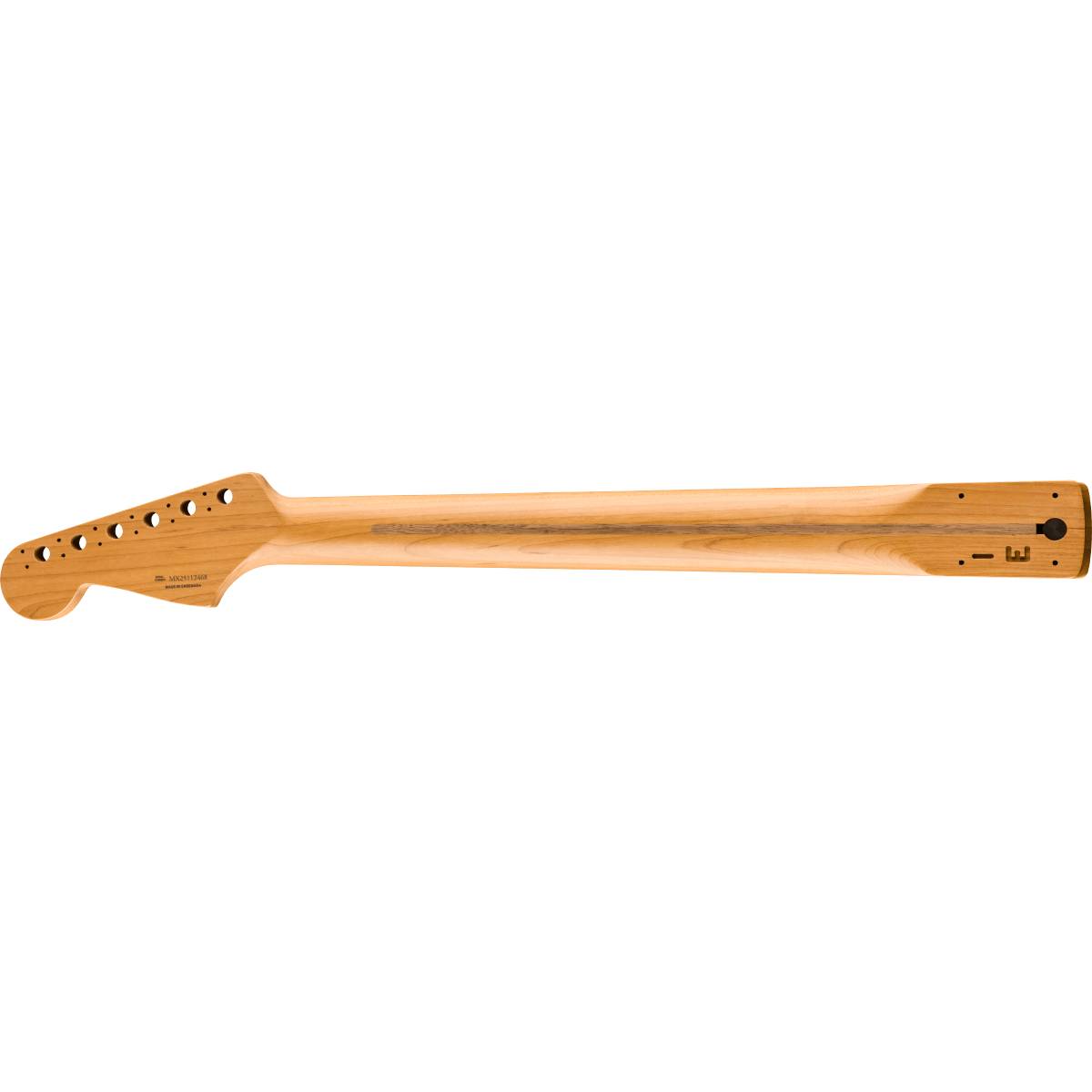

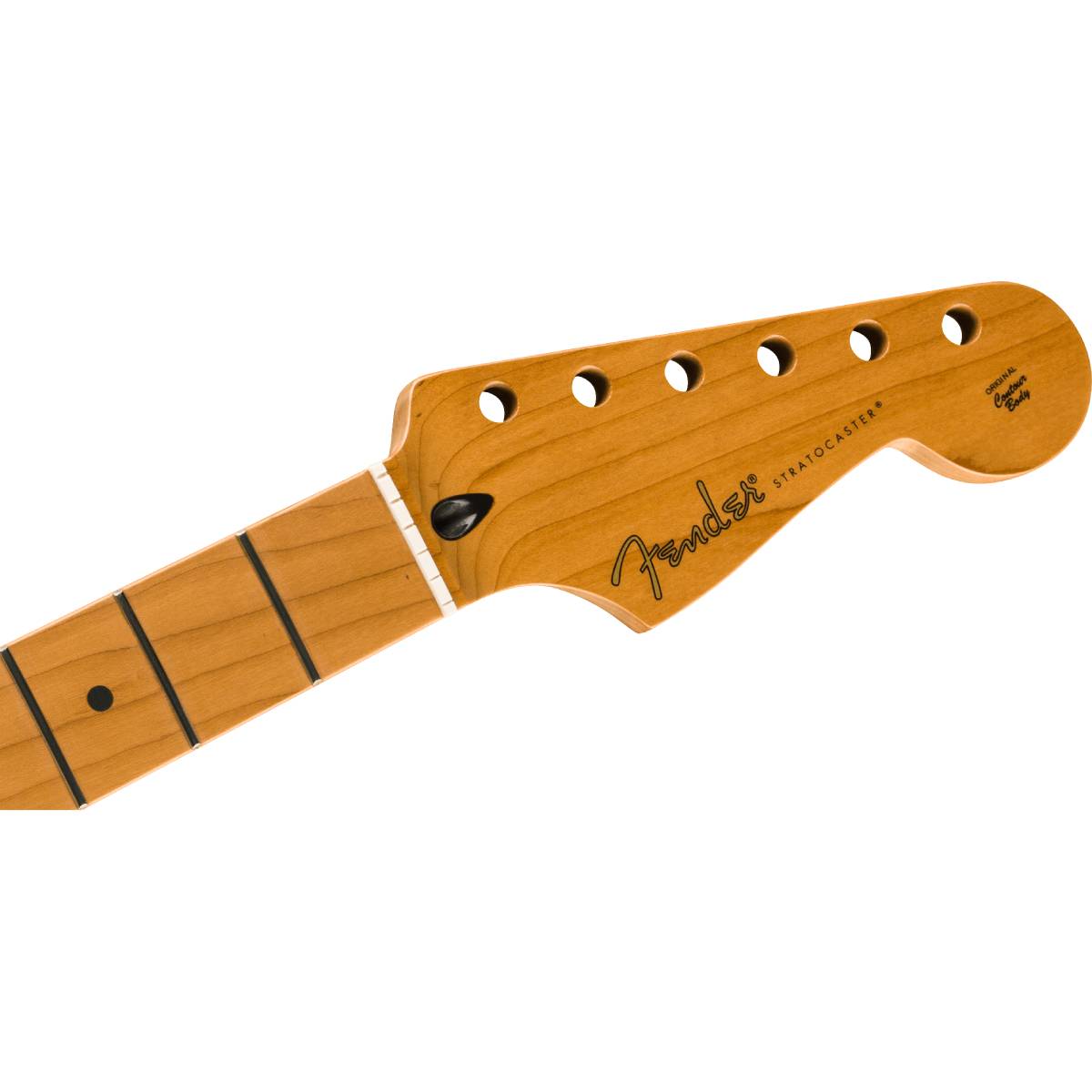

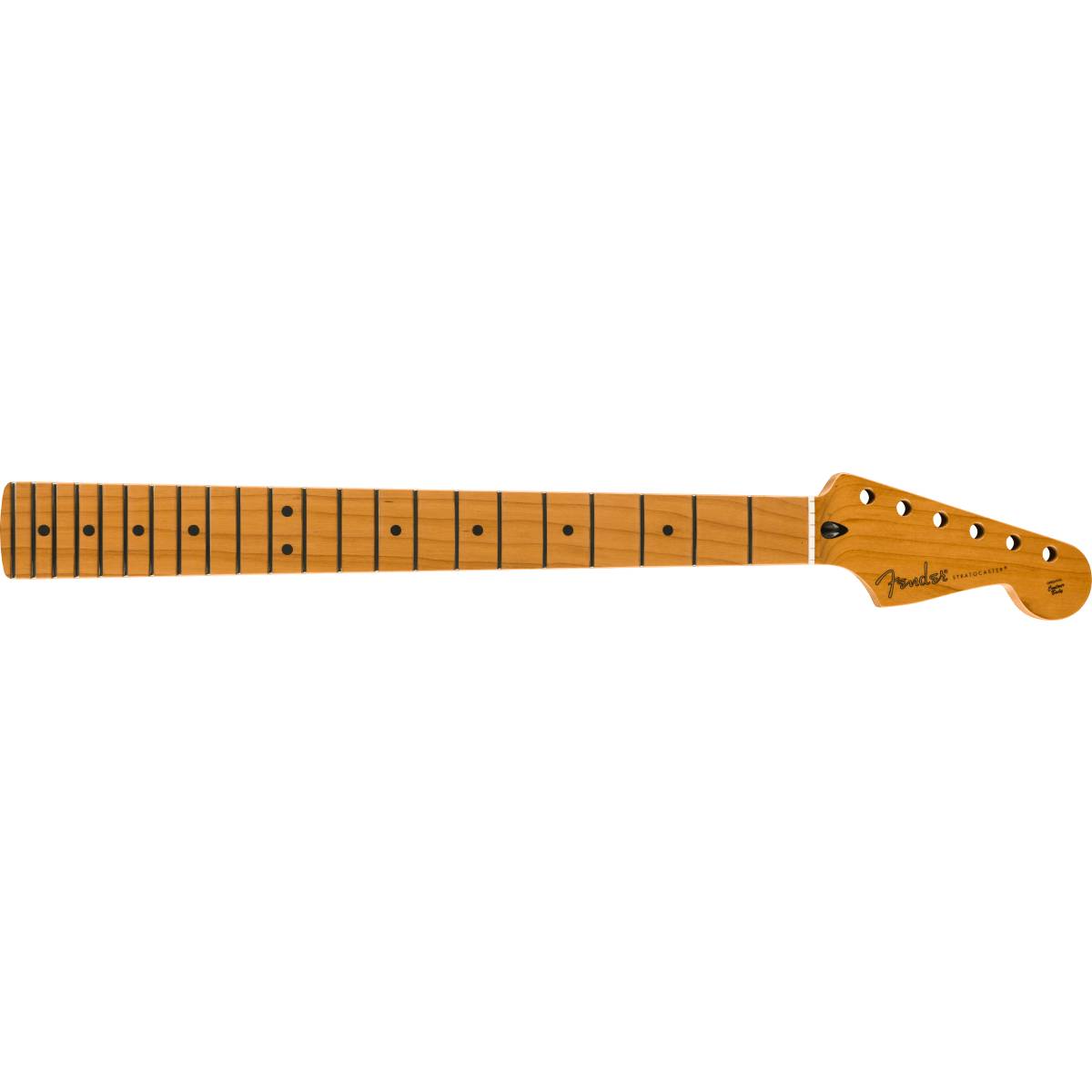

Fender Satin Roasted Maple Fat Stratocaster Neck, 22 Medium Jumbo Frets, 9.5inch, Maple, U Shape - 0990462920
Pay With
Product Information
The story of Fender's modular design began in 1946, and guitarists have been writing their own chapters ever since. Our pioneering bolt-on neck construction wasn't just about making guitars easier to service—it was about giving players the power to shape their sound. Today, every genuine Fender replacement neck carries that legacy forward, offering endless possibilities for customization, restoration, and reinvention.
Crafted at our Ensenada, Mexico facility, this genuine Fender® Stratocaster® neck features an oversized “U”-shaped profile that's perfect for players seeking substantial feel and presence. At .990" at both the 1st and 12th frets, this is the largest neck profile in the Fender replacement neck lineup – built for those who demand maximum real estate.
Experience the undeniable appeal of roasted maple – naturally resistant to humidity changes while delivering enhanced sustain and a distinctive tonal character that adds depth to your instrument's voice. The rich, dark aesthetic is just the beginning, complemented by a satin urethane finish and rolled fingerboard edges that provide supreme comfort and a broken-in feel.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.
Features
- The Fender Fat Roasted Maple Stratocaster® guitar neck delivers an oversized “U”-shaped profile that's perfect for players seeking substantial feel and presence
- Resistant to humidity shifts and featuring a gorgeous, dark look, roasted necks have more sustain and add a unique note to the instrument's voice
- Chunky and rounded, with high shoulders, deep U-shaped necks are good for players with large hands, and players more comfortable with their thumb on the back or side of the neck and hand-rolled edges offer a naturally comfortable, played-in feel
- A 9.5"-radius maple or rosewood fingerboard and 22 medium jumbo frets facilitate fluid leads and choke free bends
- The silky-smooth satin urethane back finish provides faster movement up and down the neck
- Made of melamine, this 1.650" width synthetic bone nut offers great resonance and sustain and is pre-slotted to ensure proper string spacing
Specifications
General
- Series: Fat Satin
- Orientation: Right-Hand
- Color: Natural
- Country Of Origin: Mexico
Neck
- Neck Material: Maple with Walnut Stripe
- Neck Finish: Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
- Neck Shape: Large "U"
- Neck Thickness: 1st Fret - .990” (25.14 mm), 12th Fret - .990” (25.14 mm)
- Neck Mounting: 4-Bolt
- Fingerboard Radius: 9.5" (241 mm)
- Fingerboard Material: Roasted Maple
- Position Inlays: Black Dot
- Side Dots: Black
- Number of Frets: 22
- Truss Rod: Single Action, Head Adjust
- Truss Rod Nut: 3/16" Hex Adjustment
- String Nut: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Nut Material: Synthetic Bone
- Fret Size: Medium Jumbo
- Scale Length: 25.5" (648 mm)
Hardware
- Tuner Mounting Config: Dual Guide Pin
Measurements
- Shipping Dimensions: 3.30x7.00x30.00 IN
- Shipping Weight: 3.00 LB
- Shipping Length: 30.00 IN
- Shipping Height: 3.30 IN
- Shipping Width: 7.00 IN
