EVE-MIXLINK

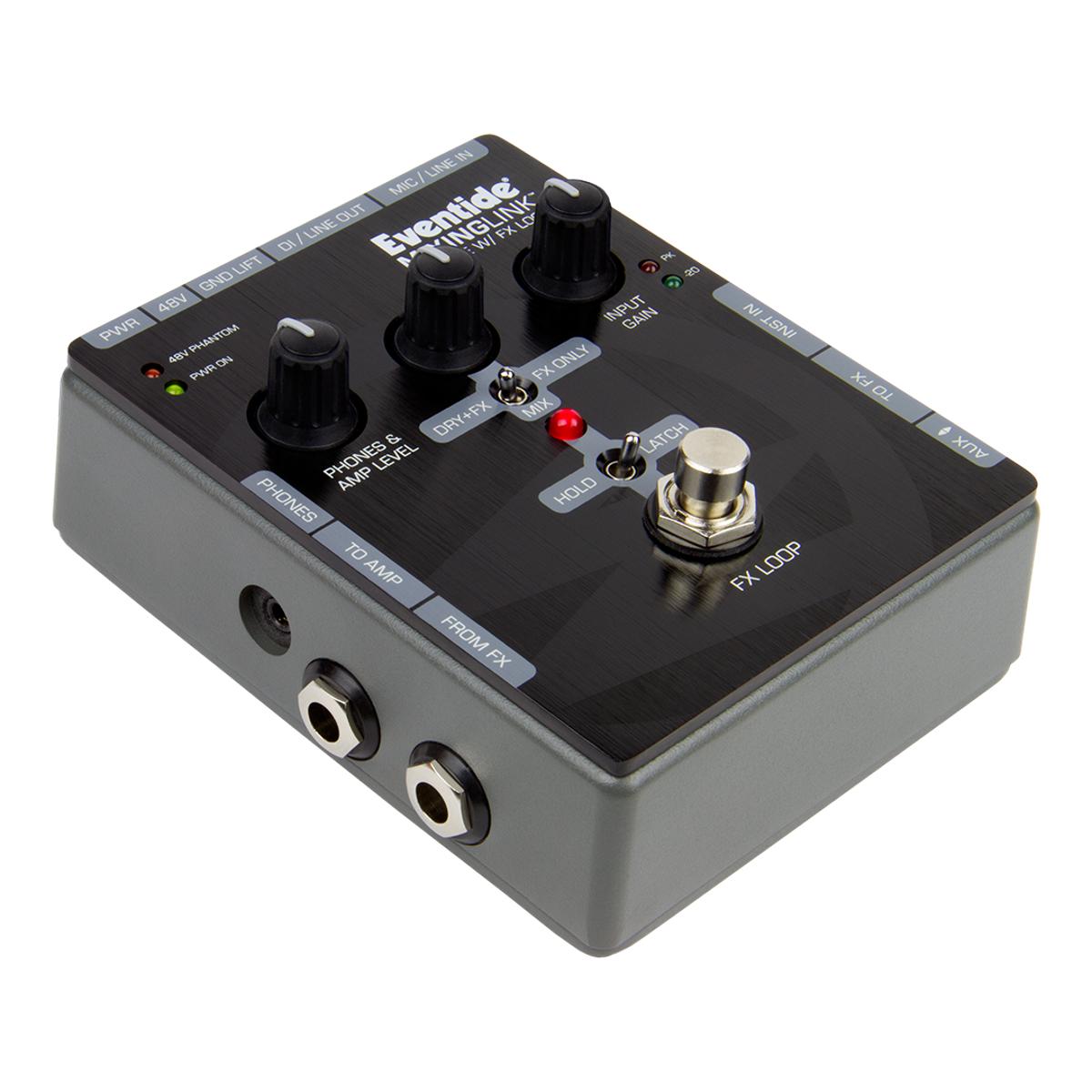

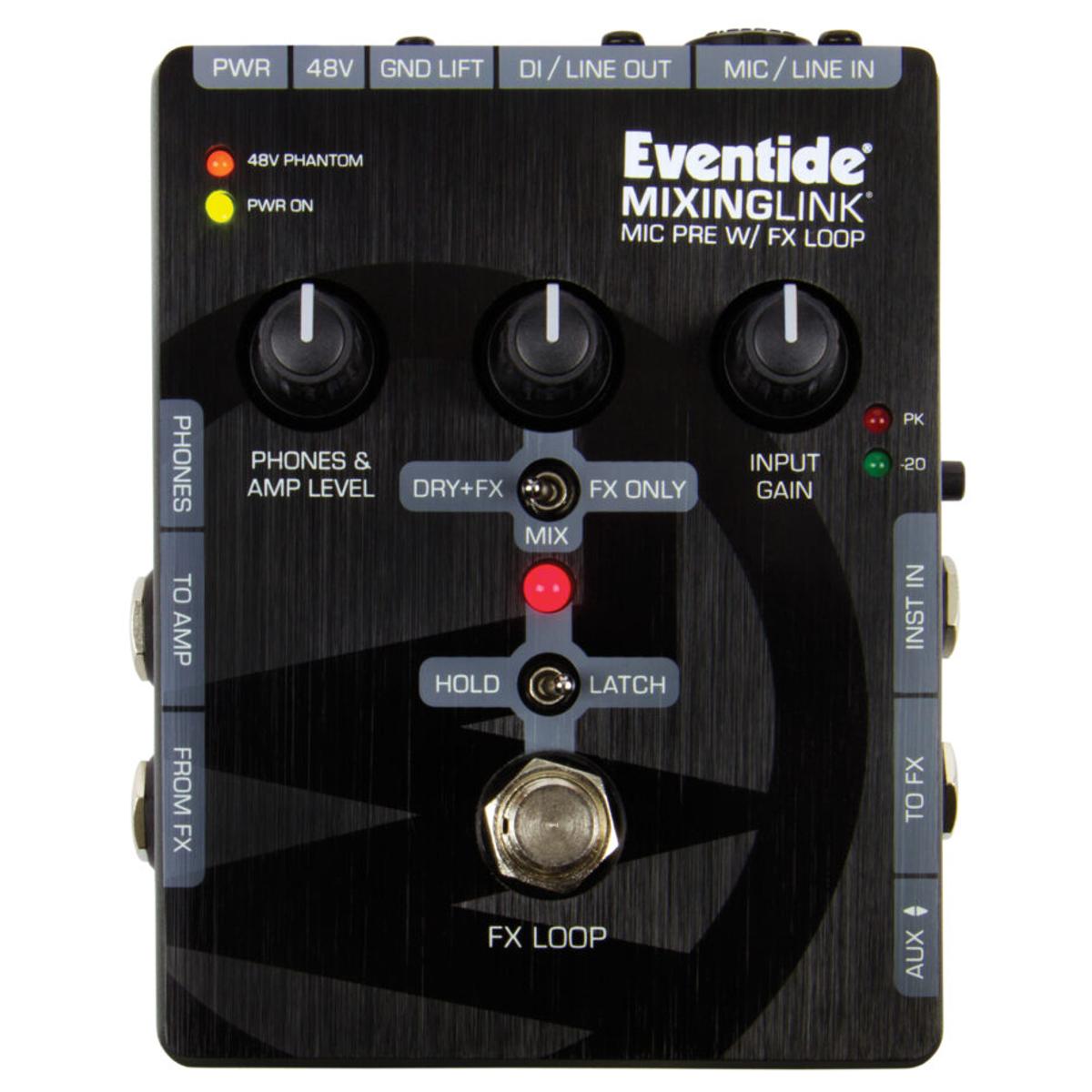

Eventide MixingLink Mic Pre w/ Effects Loop Effects Pedal

Pay With AfterPay Zip

Product Information

A stompbox-size audio toolkit for on-stage, in the studio, and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power, and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting, and combining, complete re-amp setup, impedance, and gain matching, mixing and more.

Features

  • Latching or momentary footswitch control of FX loop for performance effects
  • Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
  • Aux I/O connection supporting stereo input and send
  • Guitar amp output and headphone monitor output with separate master volume control
  • International universal power supply included
  • Operates on 9V battery (no phantom power when operating on a battery)
  • 48V phantom power for condenser mics

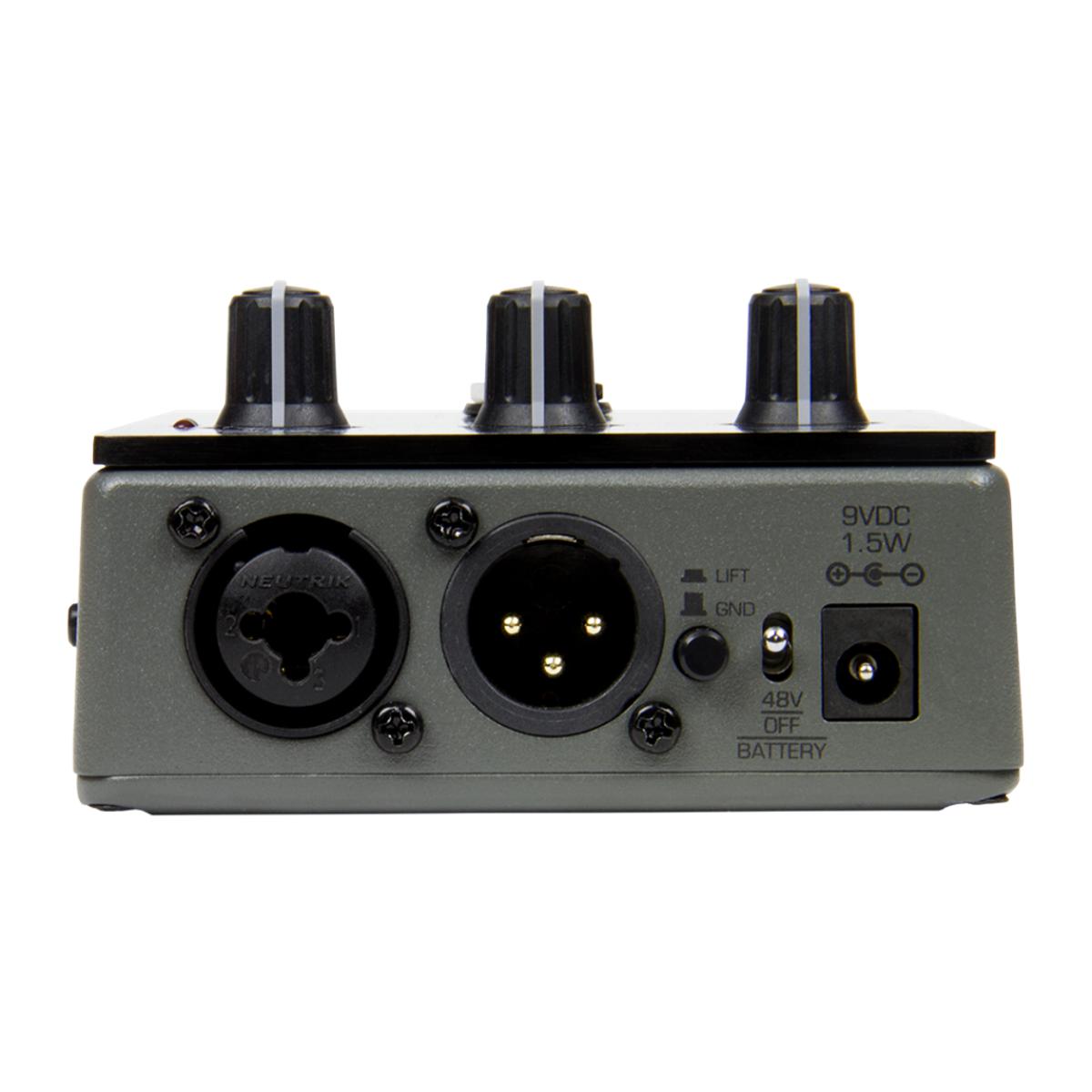

  • Balanced XLR output which supports DI and line levels
  • Instrument and balanced line level inputs
  • Versatilemixcontrol supports 3 modes
    • 100% Dry w/FX blended in
    • Mic/FX balance control
    • 100% FX (no Dry)

Specifications

  • Input: ¼ inch mono phone jack
  • Output: ¼ inch mono phone jack
  • Expression Pedal / Aux Switch / MIDI: ¼ inch mono phone jack
  • Mini USB: Use 2.0 cables only

    Analog Output

    MAX Output Levels, Output Impedance:

    • TO FX: +10dBu, 400Ω
    • TO AMP: +10dBu, 250Ω
    • PHONES: 150mW per channel, min Load = 8 Ohms
    • DI/LINE OUT: (DI) -10dBu, (LINE) +18dBu, 200Ω
    • AUX OUT: 18mV, 200Ω (mobile mic level)

      Warranty

      1 Year Warranty
