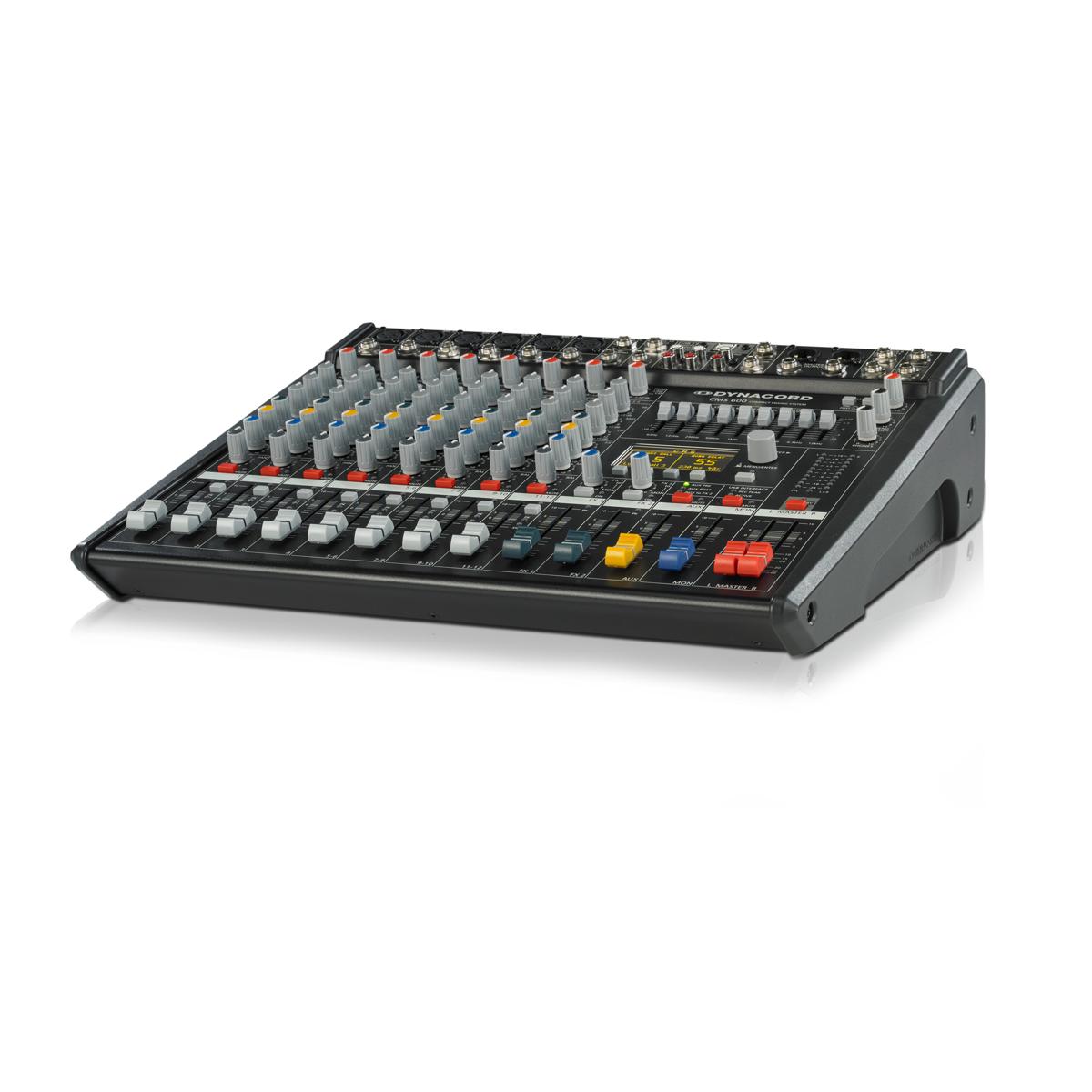

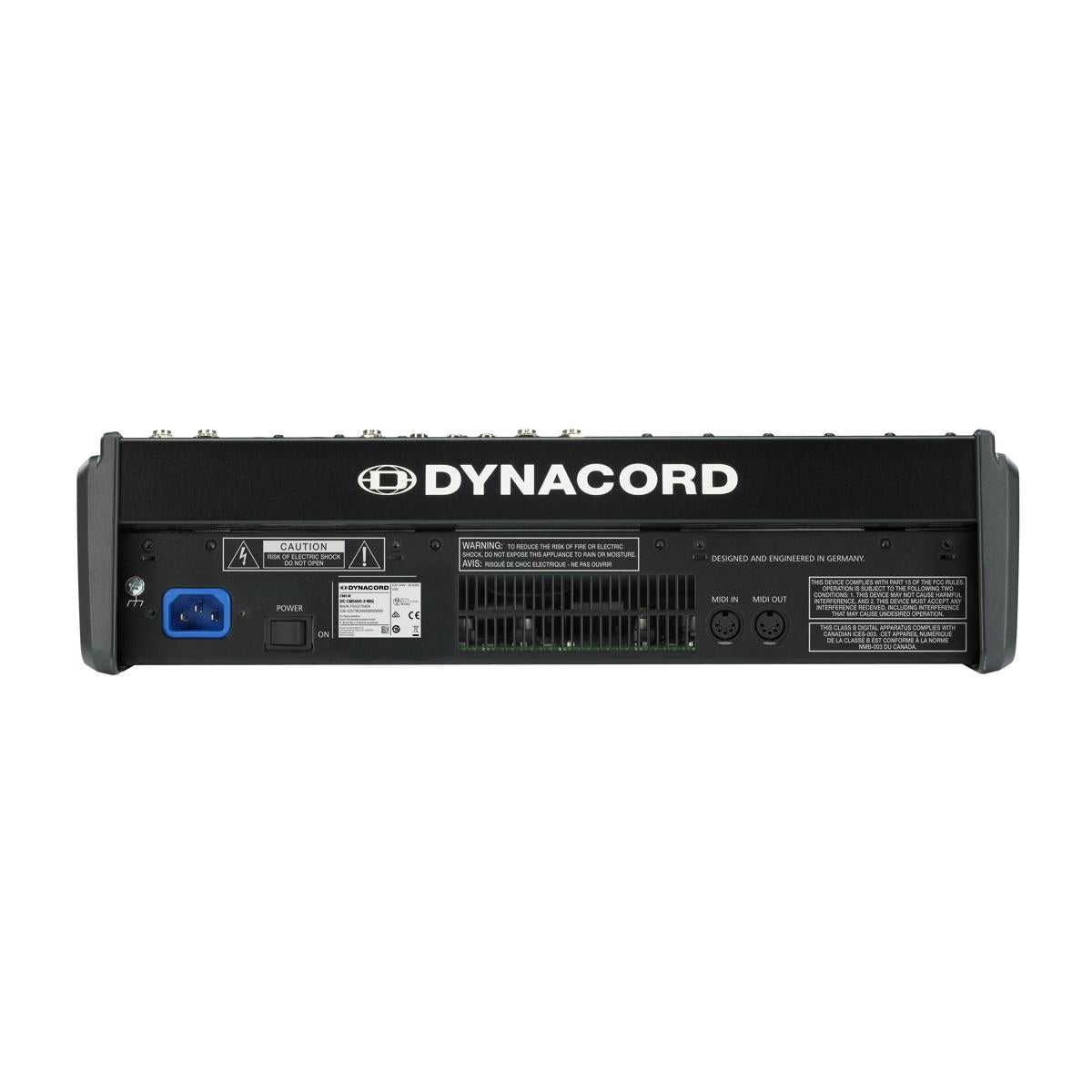

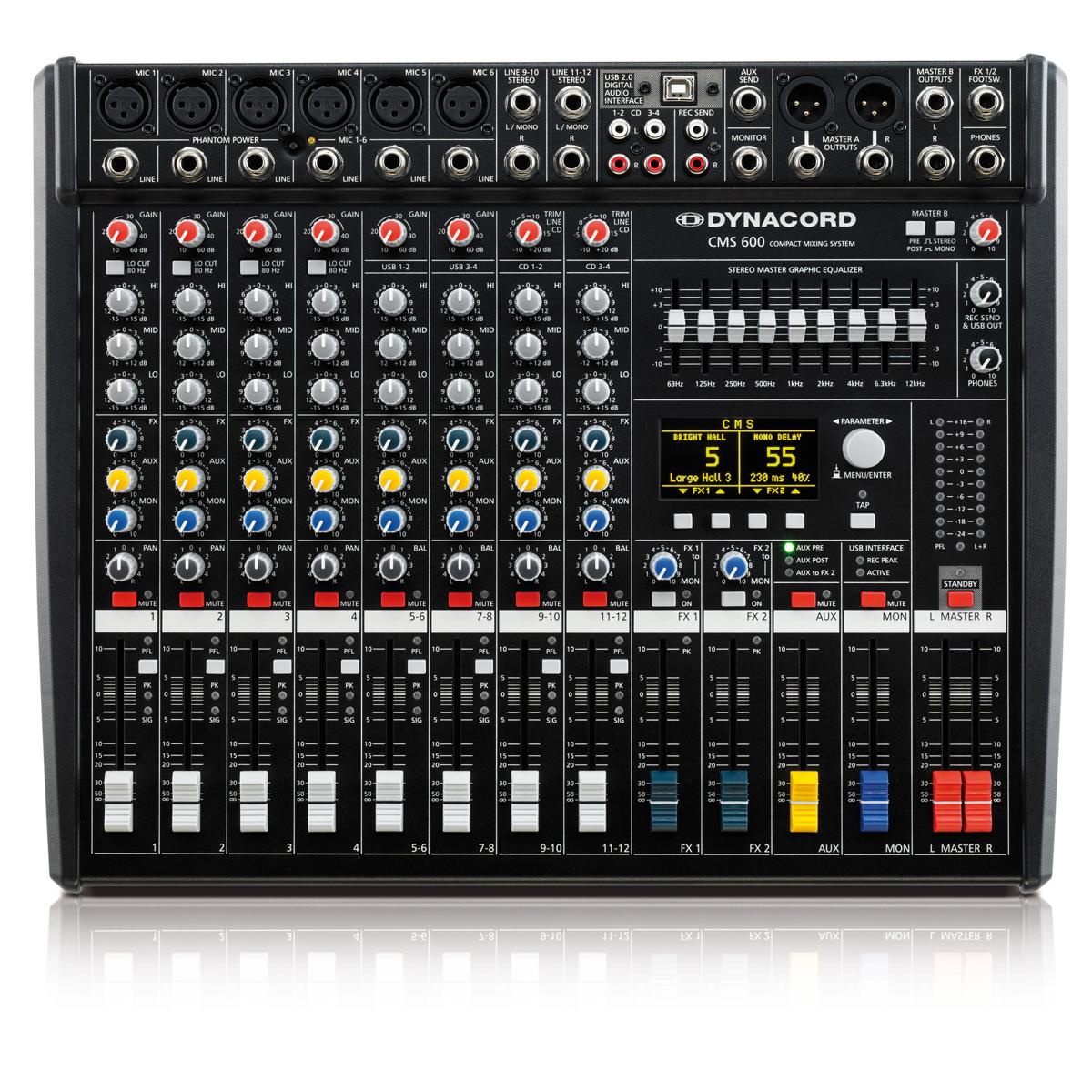

Dynacord CMS 600-3 8-channel Compact Mixer

Specifications

• Channels: 4 + 2 + 2
• MIC/Line-Mono: 4
• MIC/Line-Mono / USB-Stereo (Super Channel): 2
• Line L-R / CD-IN-Stereo: 2
• Auxiliarys (AUX, MON): Pre/Post switchable, Pre
• MIC GAIN (LINE -20 dB): +10 to +60 dB
• TRIM LINE/CD (Stereo): -10 to +20 dB
• THD, at 1 kHz, MBW = 80 kHz, MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
• Frequency Response, -3 dB, ref. 1 kHz, Any input to any Mixer output: 15 Hz to 70 kHz
• Crosstalk, 1 kHz, Channel to Channel: < -80 dB
• Mute & Standby switch attenuation: > 100 dB
• Fader & FX/AUX/MON-Send attenuation: > 85 dB
• CMRR, MIC input, 1 kHz: > 80 dB
• Input Sensitivity, all level controls in max. position:
  • MIC: -74 dBu (155 µV)
  • LINE (Mono): -54 dBu (1.55 mV)
  • LINE (Stereo): -34 dBu (15.5 mV)
  • CD (Stereo): -34 dBu (15.5 mV)
• Maximum Level, mixing desk:
  • MIC inputs: +12 dBu
  • Mono Line inputs: +31 dBu
  • Stereo Line inputs: +30 dBu
  • All other inputs: +22 dBu
  • All other outputs: +22 dBu
• Input Impedances:
  • MIC: 2 ㏀
  • CD In: 10 ㏀
  • All other inputs: > 15 ㏀
• Output Impedances:
  • Phones: 47 Ω
  • All other outputs: 75 Ω (unbalanced), 150 Ω (balanced)
• Equivalent Input Noise, MIC input, A-weighted, 150 ohms: -130 dBu
• Noise, Channel inputs to Master A L/R outputs, A-weighted:
  • Master fader down: -100 dBu
  • Master fader 0 dB, Channel fader down: -92 dBu
  • Master fader 0 dB, Channel fader 0 dB, Channel gain unity: -82 dBu
• Equalization:
  • LO Shelving: ±15 dB / 60 Hz
  • MID Peaking: ±12 dB / 2.4 kHz
  • HI Shelving: ±15 dB / 12 kHz
  • Master EQ 9-band (63, 125, 250, 500, 1k, 2k, 4k, 6.3k, 12kHz): ±10 dB / Q = 1.5 to 2.5
• Filter:
  • LO-CUT, mono inputs: f = 80 Hz, 18 dB/oct.
  • VOICE FILTER, mono inputs: switchable
• Display: 128 x 64 pixels, OLED
• Effects:
  • Type: Dual stereo 24/48-bit multi effects processors
  • Effects presets: 100 Factory + 20 User, Tap-Delay
• Remote control: Footswitch, MIDI
• Digital Audio Interface:
  • Channels: 4 In / 4 Out
  • AD/DA Conversion: 24-bit
  • Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
  • PC Interface: USB2.0, Female Type B
  • Supported OS: See documentation
  • MIDI Interface: 5-pin DIN connector, In / Out
• Protection:
  • Mixer Outputs (Relay controlled): AUX, MON, MASTER A L/R
  • Switching Mode Power Supply (µC controlled): Mains Over/Undervoltage
• Phantom Power, switchable: 48 V DC
• Power Requirements (SMPS with auto range mains input): 100 V to 240 V AC, 50 Hz to 60 Hz
• Power Consumption, at 1/8 maximum output power, 4 Ω: 35 W
• Safety Class: I
• Ambient Temperature Limits: +5 °C to +40 °C (40 °F to 105 °F)
• Dimensions (W x H x D), mm: 416.9 x 108.6 x 347.8 Rack-mount (7.5 HE): 483.0 x 99.1 x 332.6
• Weight:
  • Net Weight: 5.8 kg
  • Shipping Weight: 7.8 kg
• Warranty: 36 months
• Optional Accessories:
  • RMK-600-3 (Rack Mount Kit for CMS 600-3): F01U214881 (DC-RMK-CMS-3)
  • FS 11 (Footswitch with LED): F01U100598 (DC-FS11)
  • Carrying Bag for CMS 600-3: F01U259015 (DC-BAG-600CMS)
