Product Information

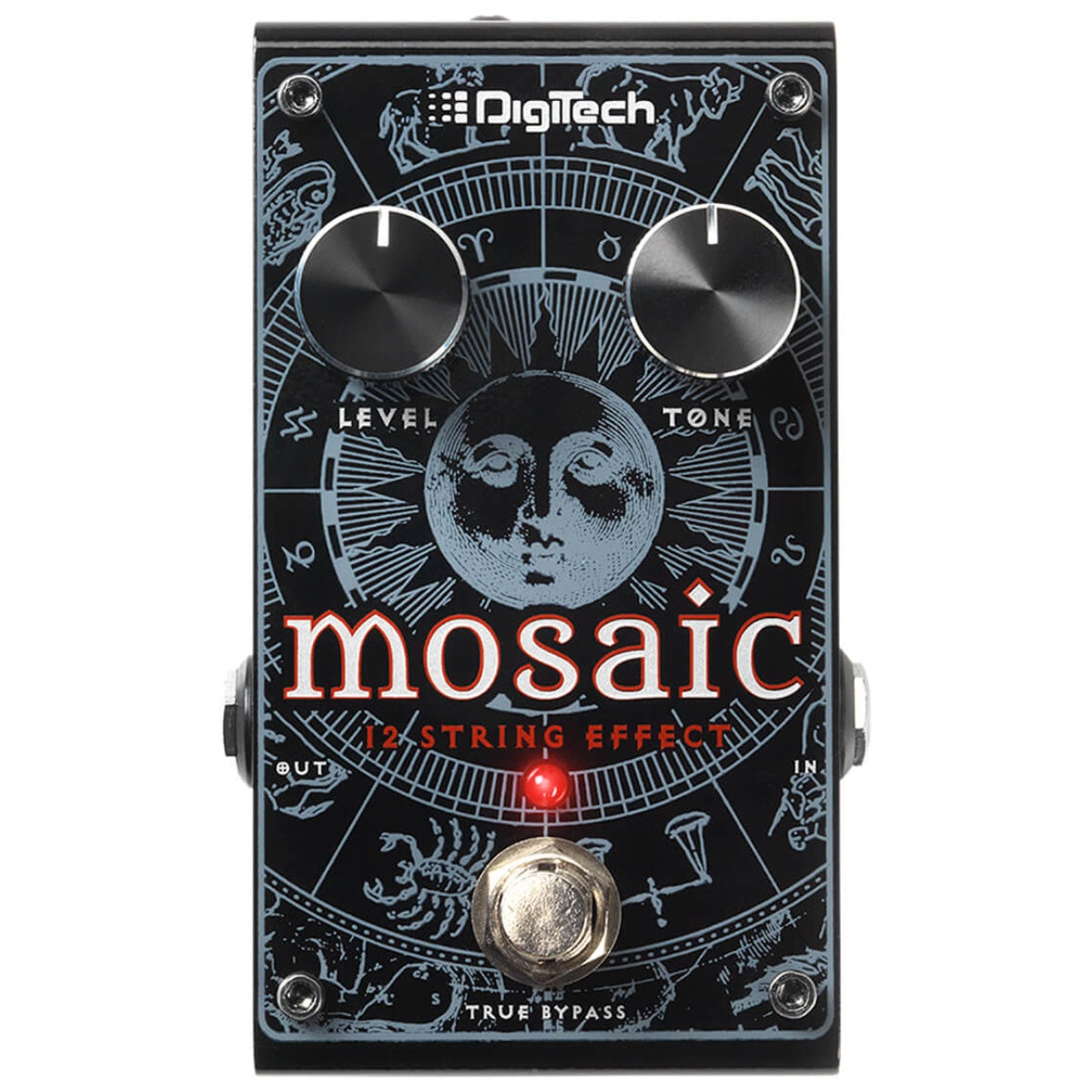

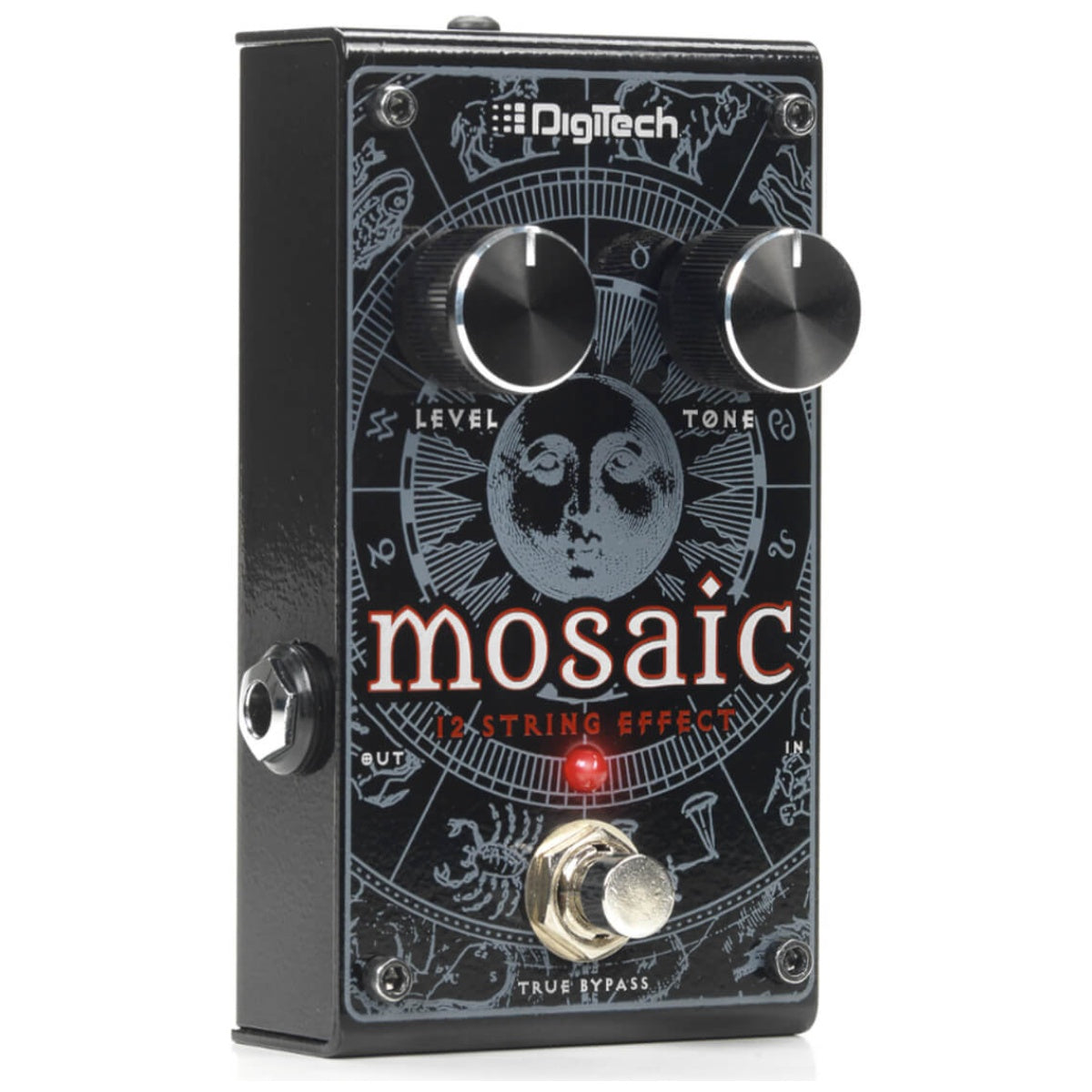

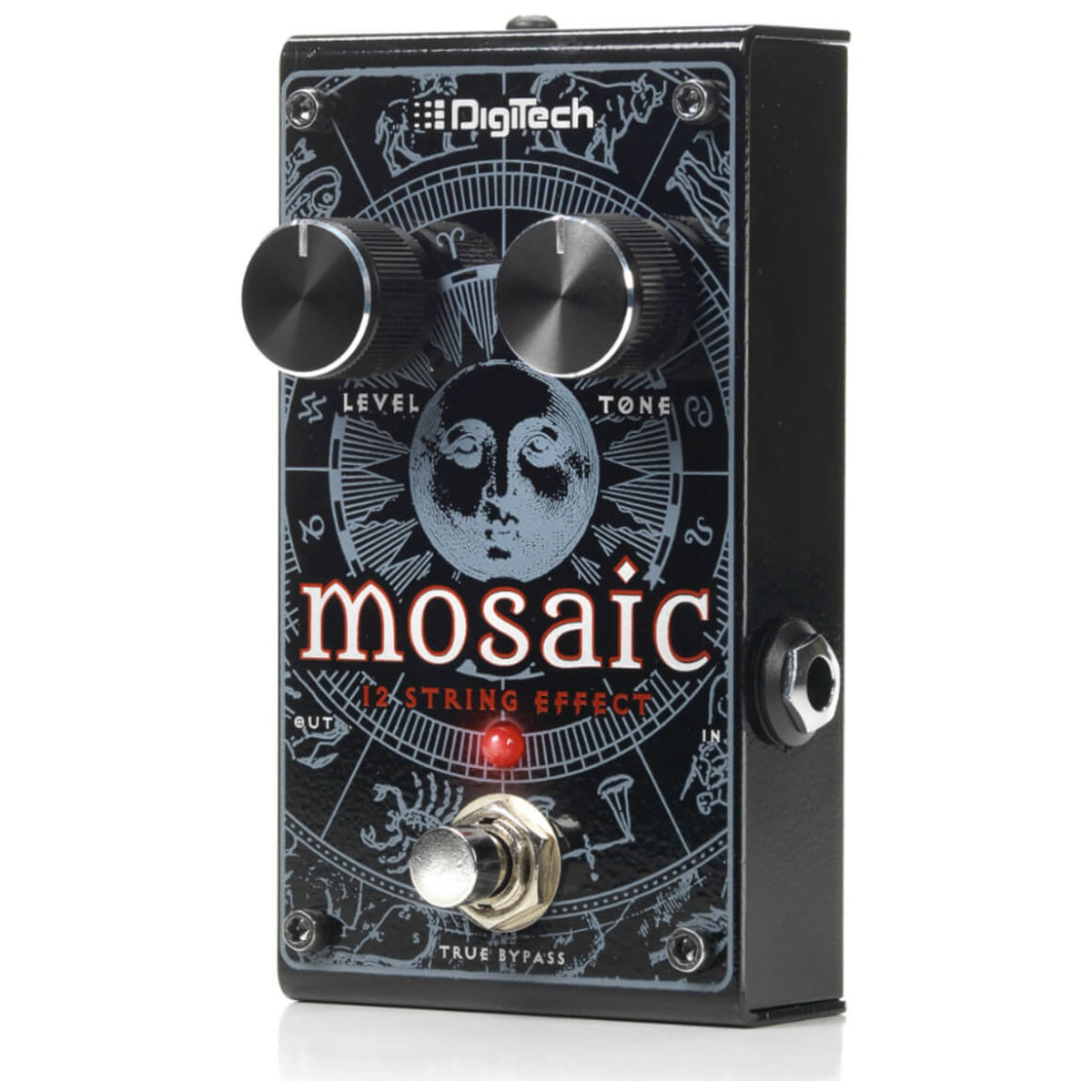

The DigiTech Mosaic is a polyphonic 12-string effect pedal designed to transform the sound of a standard 6-string electric or amplified acoustic guitar into the rich, shimmering character of a 12-string instrument. Using advanced polyphonic processing, the Mosaic adds octave voices to the lower strings and doubled voices to the higher strings, creating an instantly recognisable 12-string-style sound.
Whether you're playing full chordal strums, arpeggios, or individual notes, the Mosaic delivers a balanced low-end response with crisp octave shimmer for a sound that remains lush, articulate, and musical. Its polyphonic tracking allows complex chords and melodic passages to retain clarity while adding the additional harmonic movement associated with a traditional 12-string guitar.
Two simple controls make it easy to tailor the effect to your playing style. The Level control determines how much of the 12-string effect is blended with your original guitar signal, while the Tone control adjusts the amount of high-frequency enhancement applied to the effect. Lower Level settings can add subtle thickness to chords, while higher settings create a more pronounced 12-string character for arpeggios and melodic playing.
The Mosaic features true bypass circuitry, preserving your original guitar signal when the effect is switched off. Its compact and rugged construction makes it easy to integrate into an existing pedalboard, with standard 1/4-inch unbalanced input and output connections.
With 24-bit A/D/A conversion and a 44.1 kHz sample rate, the Mosaic provides detailed digital processing while maintaining a straightforward stompbox workflow. It is suitable for both electric and amplified acoustic guitars and can be used for everything from subtle tonal enhancement to full, shimmering 12-string textures.
Features
- Polyphonic 12-string effect for electric and amplified acoustic guitars
- Transforms a standard 6-string guitar into a rich 12-string-style sound
- Adds octave voices to lower strings and doubled voices to higher strings
- Polyphonic processing handles individual notes, arpeggios, and full chordal strums
- Balanced low-frequency response with crisp octave shimmer
- Level control adjusts the intensity of the 12-string effect
- Tone control adjusts high-frequency enhancement and overall brightness
- True bypass circuitry preserves your original tone when the effect is disengaged
- 24-bit A/D/A conversion
- 44.1 kHz sample rate
- Compact pedalboard-friendly design
- Rugged construction for stage and studio use
- Standard 1/4" unbalanced input and output connections
- Suitable for electric and amplified acoustic guitars
- Designed to be placed early in the effects chain for optimum pitch-tracking performance
- Powered by a 9V DC external adapter
Specifications
- Brand: DigiTech
- Model: Mosaic
- Product Type: Polyphonic 12-String Effect Pedal
- Effect Type: Polyphonic 12-String Guitar Effect
- Sample Rate: 44.1 kHz
- A/D/A Conversion: 24-Bit
- Frequency Response: 20 Hz – 11 kHz (Effect Enabled)
- Signal-to-Noise Ratio: > -105 dB A-Weighted, Reference = Maximum Level, 22 kHz Bandwidth
- THD: 0.004% @ 1 kHz, Reference = 1 dBu with Unity Gain
- Controls: Level, Tone
- Footswitch: Effect On / Off
- True Bypass: Yes
- Input: 1 x 1/4" Unbalanced TS
- Maximum Input Level: +5 dBu
- Input Impedance: 1 MΩ with Effect Enabled
- Output: 1 x 1/4" Unbalanced TS
- Maximum Output Level: +10 dBu
- Output Impedance: 1 kΩ with Effect Enabled

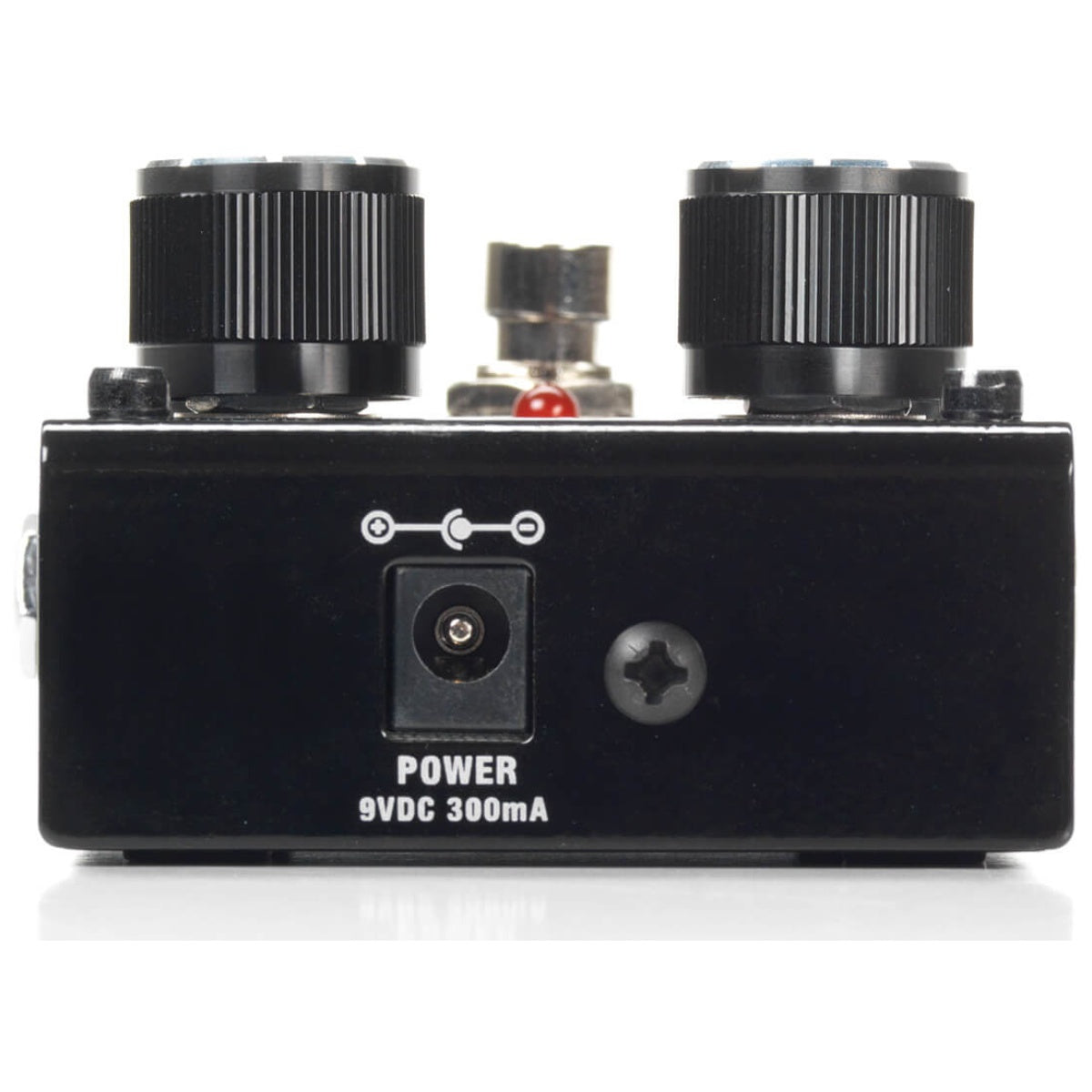

- Power Requirements: 9V DC External Adapter
- Power Consumption: 2.3 Watts, Less Than 250 mA @ 9V DC
- Recommended Power Adapter: DigiTech PS0913DC Series
- Dimensions (L x W x H): 12 x 7.3 x 4.4 cm
- Weight: 0.163 kg
