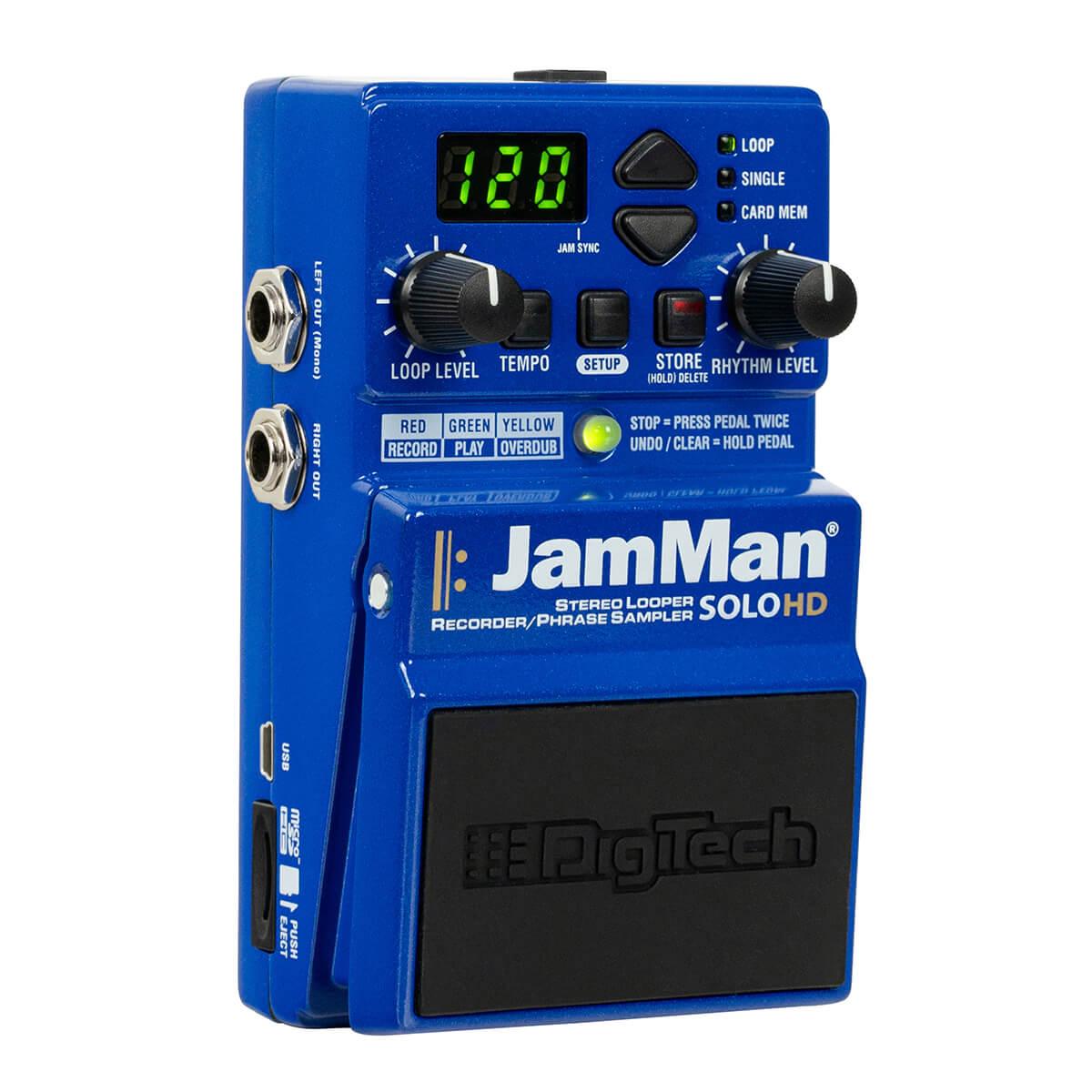

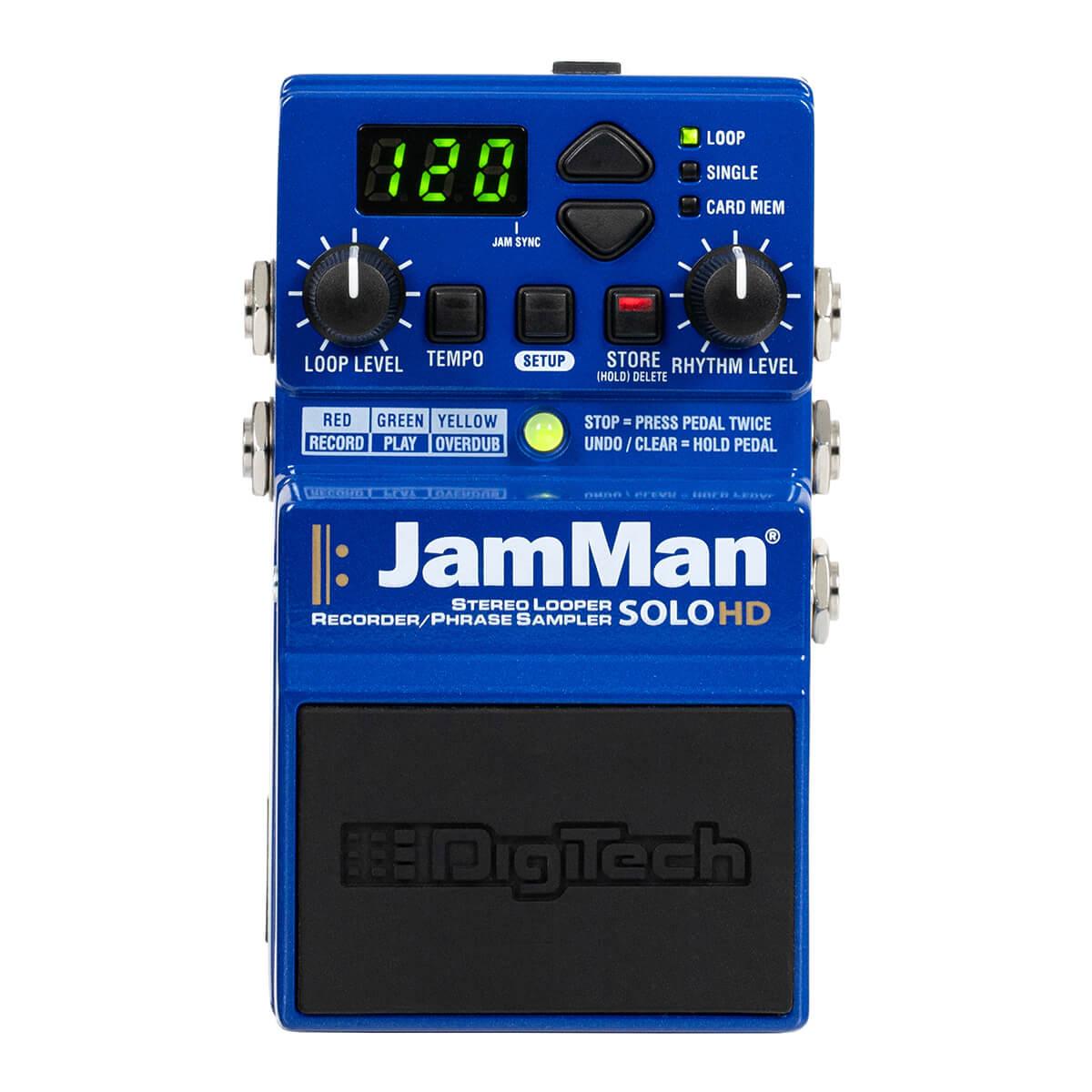

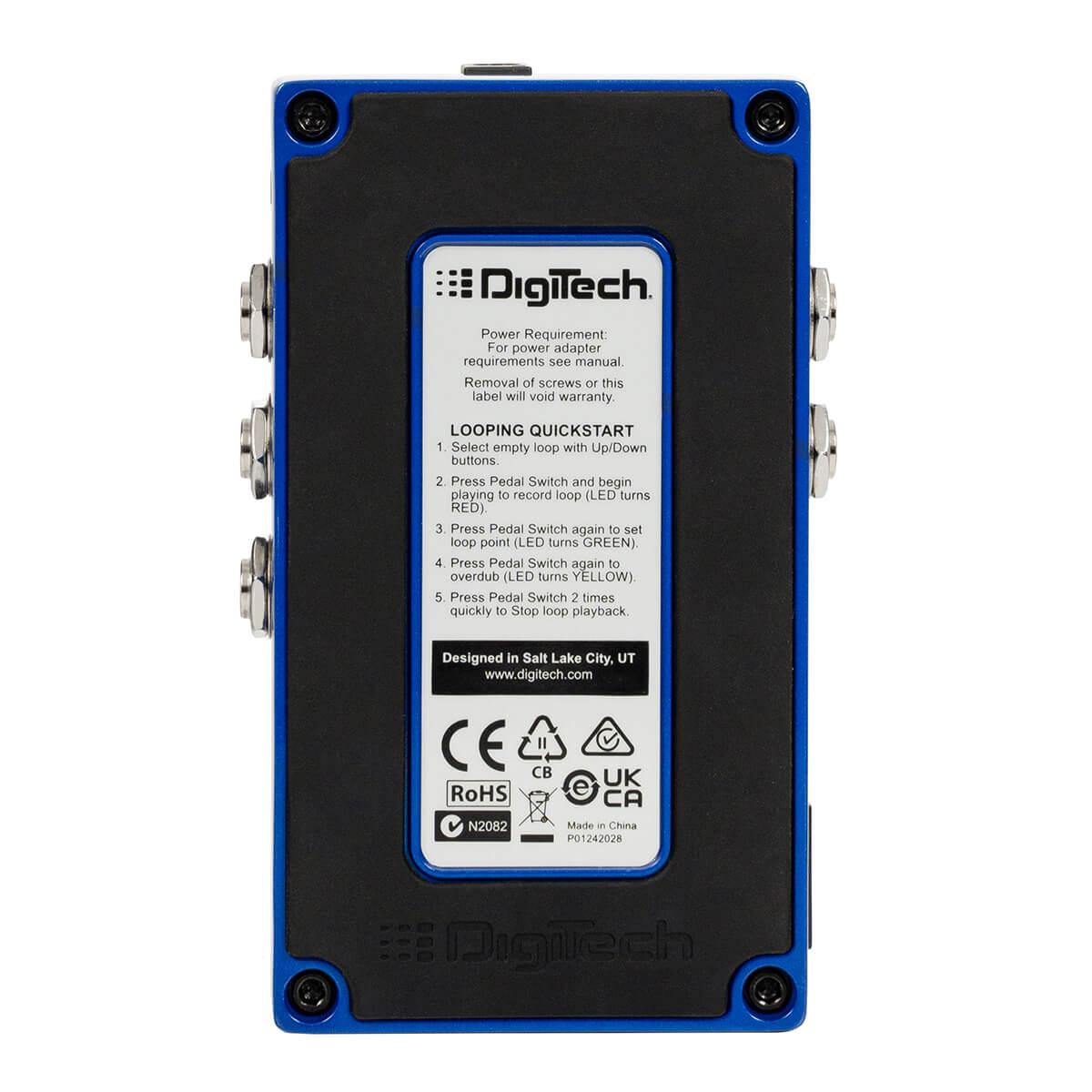

Digitech JamMan Solo HD Stereo Looper Recorder / Phrase Sampler Compact Effects Pedal

Specifications

Digital

• A/D/A Conversion: 24-bit
• Sampling Frequency: 44.1 kHz
• Loop File Format: 44.1 kHz, 16-bit (stereo), uncompressed WAV file
• USB: 2.0 High Speed (USB 1.1 compatible)
• Connector Type: 5-Pin Mini B
• Max. Individual Loop Time: 10 minutes (stereo)
• Internal Memory Capacity: Over 35 minutes total loop time (up to 200 loops total)
• External Memory Type: MicroSD/SDHC up to 32GB (optional)
• External Memory Capacity: Over 32 hours (10.6MB/minute) of recording time, when using 16GB or larger MicroSDHC card (up to 200 loops total)

Left(Mono)/Right Inputs

• Connector Type: 1/4” Unbalanced (Tip-Sleeve)
• Input Impedance: 500 kΩ Mono/1 MΩ Stereo
• Unity Gain Input to Output: Loop Level knob set to 12 o’clock position
• Max Input Level at Unity: +4 dBu DFS
• Left and Right Audio Paths: Each channel maintains analog dry path

Aux Input

• Connector Type: 1/8” (3.5mm) Stereo (Tip-Ring-Sleeve)
• Input Impedance: 1 MΩ
• Maximum Input Level: +4 dBu DFS
• Aux In Audio Path: Maintains analog dry path

Footswitch Input

• Connector Type: 1/4” Stereo (Tip-Ring-Sleeve), compatible with optional DigiTech® FS3X 3-button footswitch

Left(Mono)/Right Outputs

• Connector Type: 1/4” Unbalanced (Tip-Sleeve)/Balanced (Tip-Ring-Sleeve)
• Output Impedance: 100 Ω Unbalanced/ 200 Ω Balanced
• Maximum Output Level: +4 dBu DFS
• Playback Unity Gain: Loop Level knob set to 12 o’clock position

JAMSYNC Input/Output

• Connector Type: 1/8” (3.5mm) (Tip-Ring-Sleeve)

Performance

• Frequency Response: +0/-3 dB 20 Hz - 20 kHz

Power Requirements

• Consumption: < 9 Watts
• Current Draw: < 350 mA
• Power Adapter:
  • Model: PS0920DC-01 (US, EU, UK, AU Plugs)
  • Input: 100-240 VAC, 50/60Hz
  • Output: 9 VDC 2.0 A
