Product Information:
The ZonePRO 1261m offers fixed I/O,
pre-configured architecture, configurable insert processing and
optional duplication of audio channels to another ZonePRO device via
a link bus.
The 1261m features a total of 12 inputs and six outputs. Inputs
include six balanced mic/line switchable terminal block inputs, four
mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for
up to two digital channels. Hardware-controlled
microphone gain allows adjustment of microphone gain per channel.
The 1261m device has a pre-configured architecture with input
processing, a central matrix and output processing. Two input insert
positions and one output insert position allow channel-specific
insert processing to be configured. AutoWarmth®, a psychoacoustic
function that maintains full frequency bandwidth even when the
signal level has dropped, is permanently available on each output
zone.
A link bus allows duplication of the first six audio channels to
another ZonePRO device in applications where additional output zones
are required.

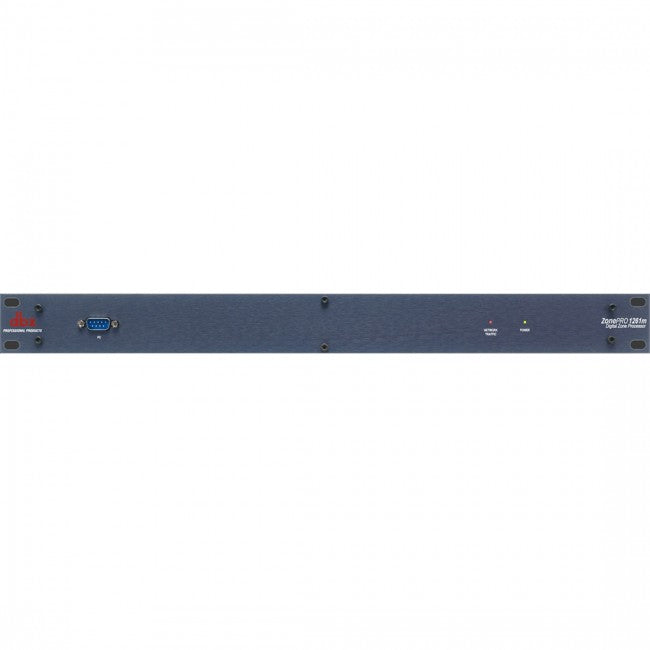

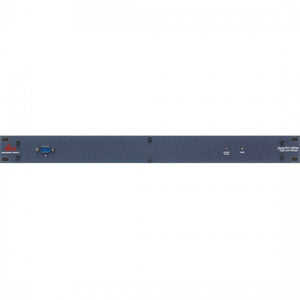

The front panel of the 1261m features a power status LED, a network
traffic LED, and an RS-232 control port.
Additional system control is offered in the form of optional Zone
Controllers. This collection of hardware wall-controllers represents
a series of simple, elegant user interfaces for functions such as
volume, source and preset control.
All ZonePRO devices can be controlled by third party control systems
via RS-232 or Ethernet as applicable (see table for further
information).
ZonePRO Designer—the configuration, control and monitoring software
for the ZonePRO family of devices—offers control of the ZonePRO
1261m via Ethernet or RS-232. The Configuration Wizard within
ZonePRO Designer guides users through the step-bystep configuration
process of the 1261m.
Specifications:
12 Inputs / 6 Outputs
6 Balanced Mic/Line Inputs
4 Unbalanced, Mono-Summed RCA Input Pairs
S/PDIF Input
Microphone Gain per Channel
Pre-Configured Architecture
Two Configurable Input Insert Positions
One Configurable Output Insert Position
AutoWarmth® per Output Zone
Link Bus
Optional ZC Controllers
Ethernet Control
Serial Control
Third Party Control
Wizard-Driven Configuration
