Powerful. Reliable. Affordable.
The XLI Series of power amplifiers from Crown® represents a new era
in affordable, quality power amplification. All four models in the
series are powerful, rugged and reliable. They are suited for
musicians, DJs, and entertainers as well as houses of worship,
discos, and pubs.
The four models in the series are the XLi800, XLi1500, XLi2500 and
XLi3500. They are identical except for output power.
Features include RCA and XLR inputs, user selectable input
sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs,
stereo/parallel/bridge-mono mode, power/fault/signal presence/clip
indicators, forced-air cooling; and protection against shorts,
no-load, on/off thumps and radio-frequency interference.
With over six decades of experience designing and building
rock-solid products, Crown is the standard in amplifier technology.
So check out the affordable Crown XLI Series. They are a powerful
argument for quality and value!
User selectable input sensitivity - 0.775V and 1.4V

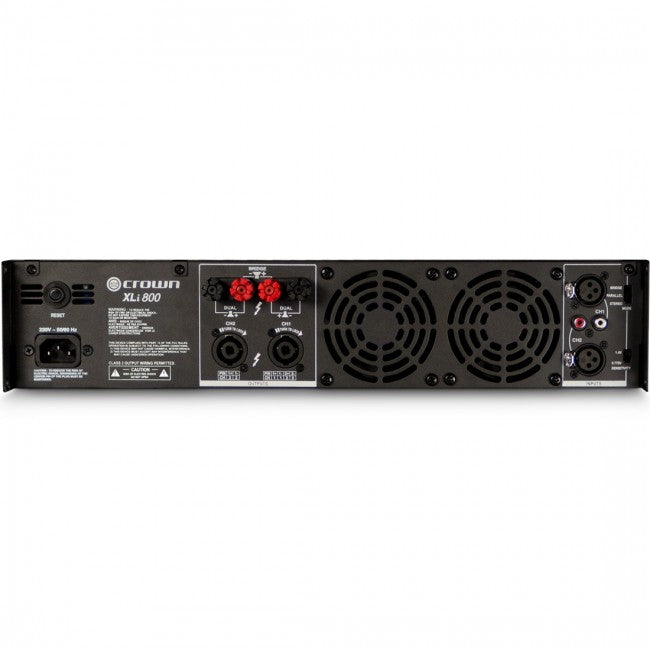

Electronically balanced RCA & XLR inputs; binding post and Speakon ® outputs
Efficient forced-air cooling prevents excessive thermal buildup

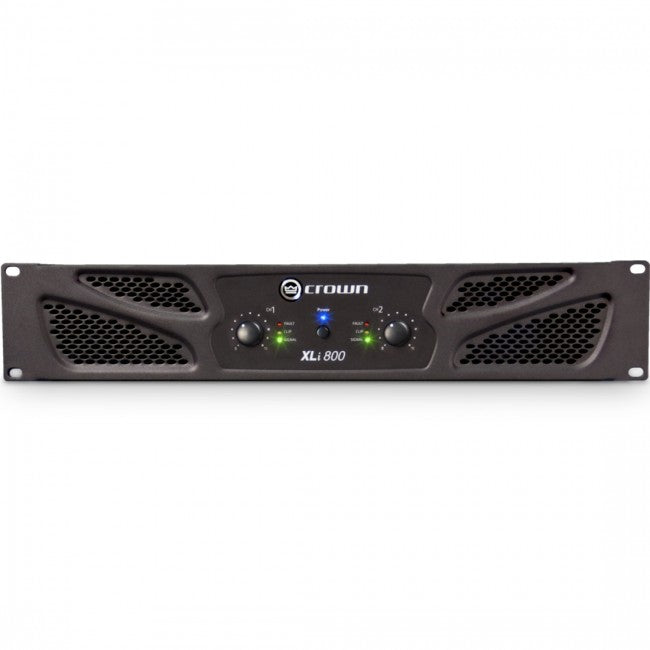

Two level controls, power switch, power LED, and six LEDs which indicate signal
presence, clip and fault for each channel
Protection against shorts, no-load, on/off thumps and radio-frequency
Frequency Response 20 Hz - 20 kHz, +0/-1 dB (at 1 watt)
THD <0.5%, 20 Hz - 20 kHz
Intermodulation Distortion =/ <0.35% (60 Hz and 7 kHz at 4:1 from full rated
ouput to -30 dB)
Slew Rate >10V/us
Voltage Gain 29 dB
Damping Factor (8 ohms, 10 Hz to 400 Hz) >200
Signal To Noise Ratio (A-weighted) >100 dB
Crosstalk (below rated power) 20 Hz to 1 kHz -75 dB, -59 dB
Input Sensitivity (for full rated power at 8 ohms) 0.775V or 1.4V
Input Impedance (nominal balanced, unbalanced) 20kΩ, 10kΩ
AC Line Voltage and Frequency Configurations Available (+10%) 120V~60 Hz;
220V~50/60 Hz; 230-240V~50/60 Hz
Dimensions 19" x 3.5" x 12.4" (48.3cm x 8.9cm x 31.5cm)
Weight 25.1lbs (11.4kg)
IEC Power Connector 15A
