Celestion

28/G12H75-CREAMBACK-8

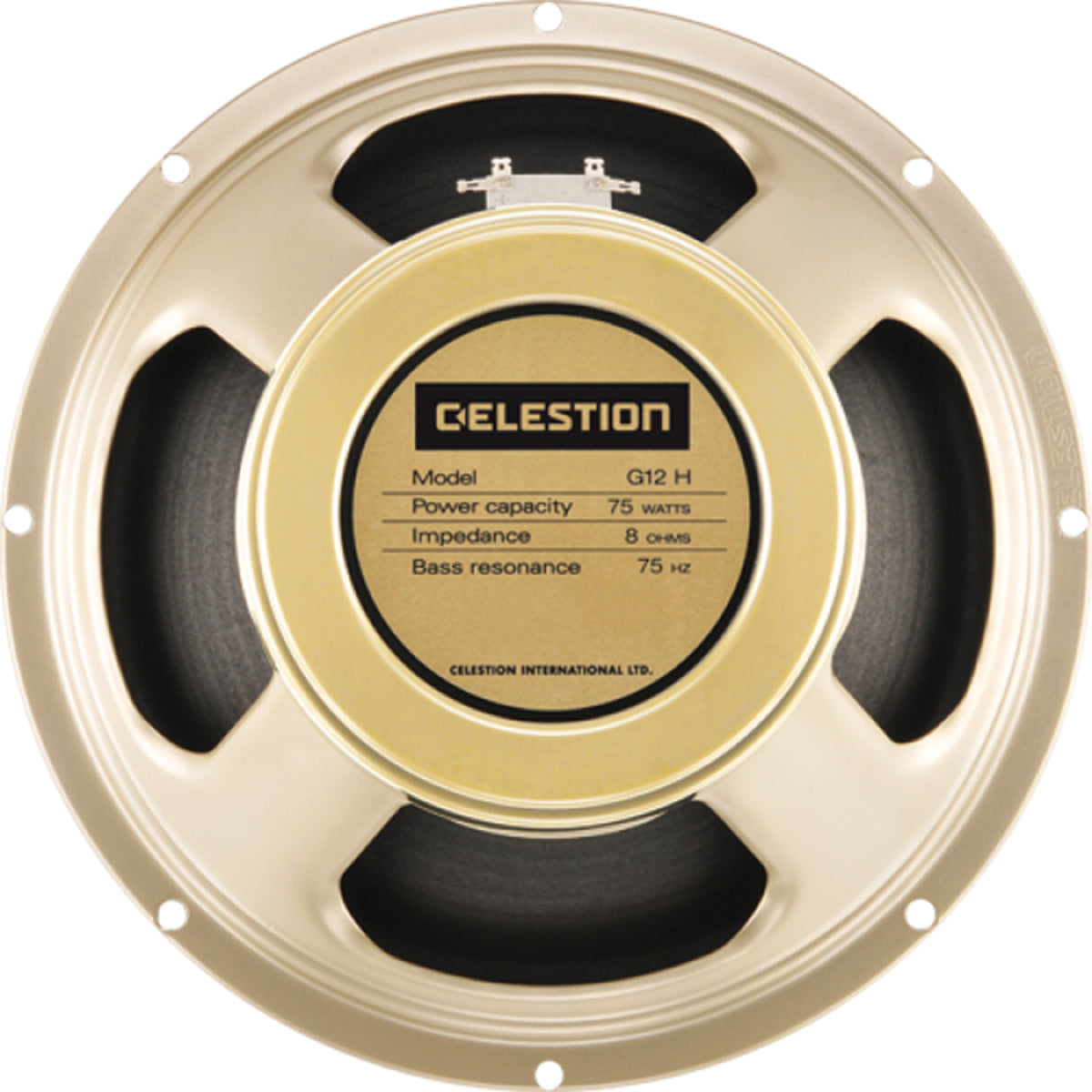

Celestion T5890 Classic Series G12H 75 Creamback Guitar Speaker 12 Inch 75W 8OHM

New Page 3

Product Information:

Back in the late 60s, the G12H was created by fixing an 'H' type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an 'H' magnet to the G12M-65 Creamback, create a speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone, with a tighter low end than the G12M-65 Creamback and a punchier, more dynamic high end. The H magnet brings additional focus, body and girth to the Creamback tone. It thickens single notes, resulting in a highly articulate, vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4x12 cab!

Specifications:

Nominal diameter
12", 305mm
Power rating
75W
Nominal impedance
Available 8Ω or 16Ω
Sensitivity
100dB
Chassis type
Pressed steel
Voice coil diameter
1.75", 44.5mm
Magnet type
Ceramic
Magnet weight
50oz, 1.42kg
Frequency range
70-5000Hz
Resonance frequency, Fs
75Hz
DC resistance, Re
6.37Ω and 12.5Ω
Voice coil former material
Round copper
Mounting Information
Cut-out diameter
11.1", 283mm
Diameter
12.2", 309mm
Magnet structure diameter
6.6", 168mm
Mounting slot dimensions
0.31", 7.9mm Ø
Mounting slot PCD
11.7", 297mm
Number of mounting slots
8
Overall depth
5.4", 138mm
