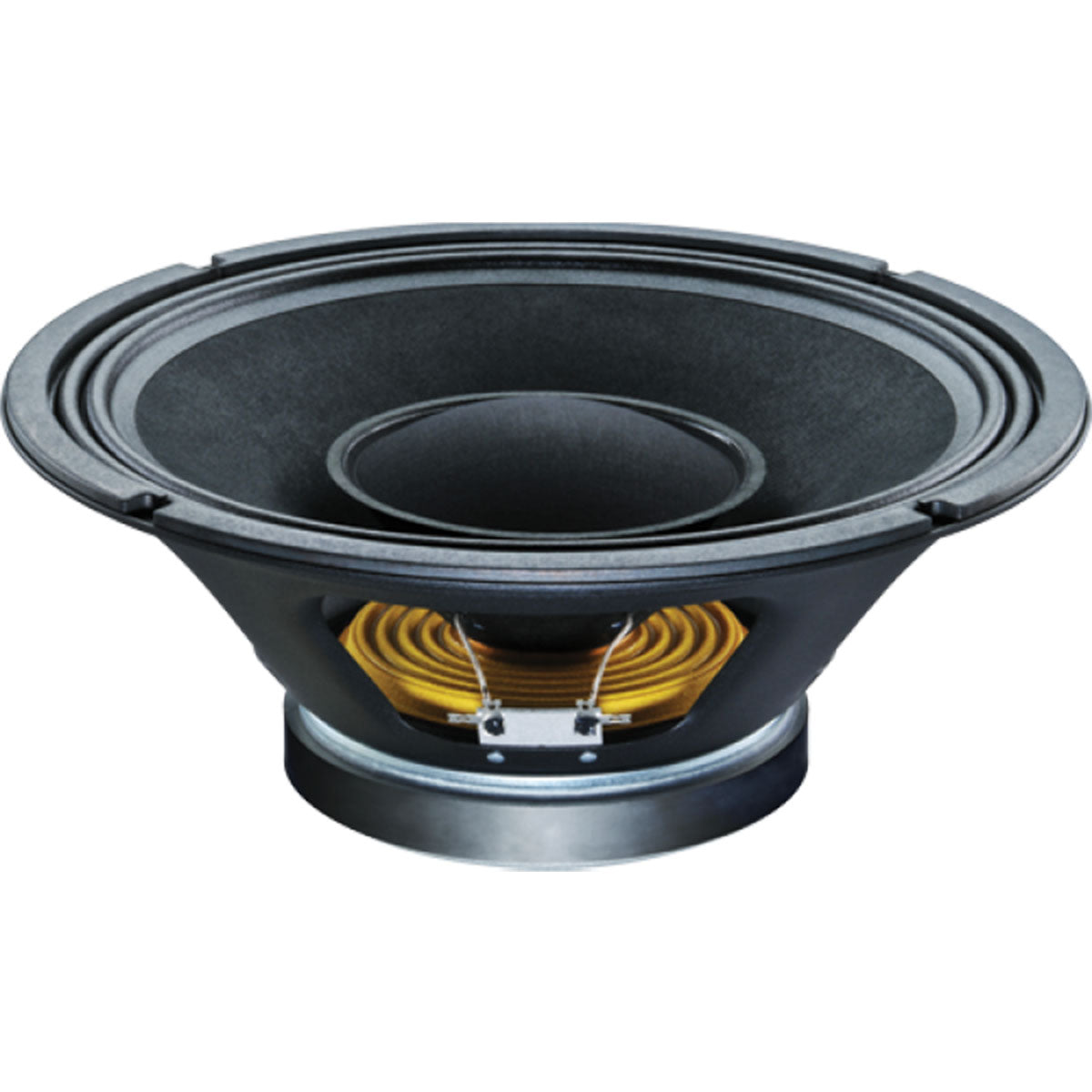

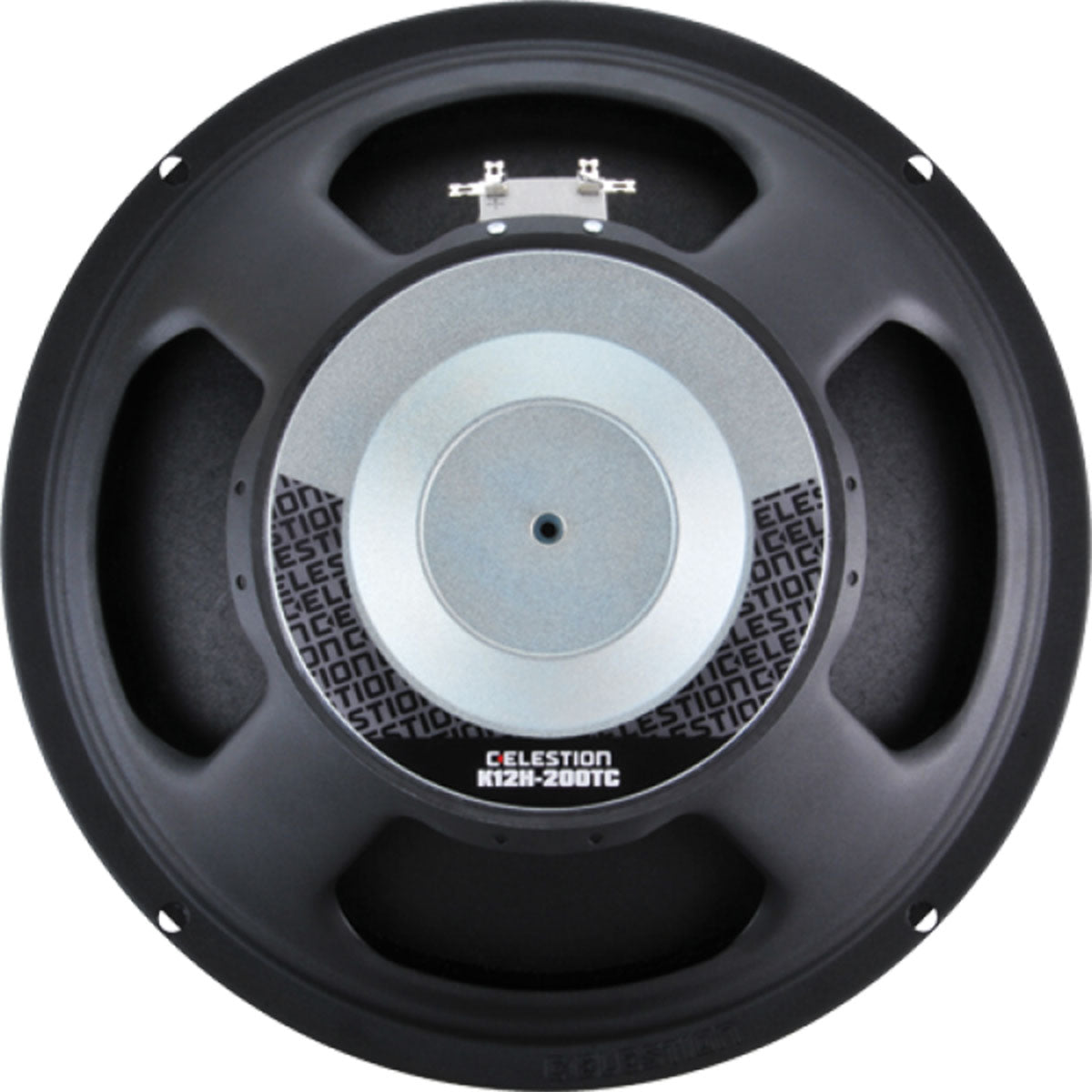

Celestion T5870 K12H 200TC Steel Chassis Driver Coaxial Speaker 12 Inch + 2 Inch 200W 8OHM

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information:
12" twin cone drive unit with extended high frequency response
2" high temperature copper voice coil for increased reliability and 200Wrms (AES standard) power handling
Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality
Secondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarity
High efficiency magnet structure design delivers improved sensitivity
Double roll surround for greater excursion control and smooth frequency response


  • Nominal diameter305mm/12in
  • Power rating1200Wrms
  • Nominal impedance8Ω
  • Sensitivity298dB
  • Frequency range50-10,000Hz
  • Voice coil diameter50mm/2in
  • Chassis typePressed steel
  • Magnet typeFerrite
  • Magnet weight1.41kg/50oz
  • Coil materialRound copper
  • Former materialPolyimide
  • Cone materialKevlar loaded paper
  • Surround materialCloth-sealed
  • SuspensionSingle
  • Xmax32mm/0.08in
  • Gap depth8mm/0.31in
  • Voice coil winding width12mm/0.47in
  • Small Signal Parameters
  • D0.26m/0.24in
  • Fs60.0Hz
  • Mms46.514g/1.64oz
  • Mmd39.592g/1.39oz
  • Qms4.585
  • Qes0.583
  • Qts0.481
  • Re5.61Ω
  • Vas60.3lt/2.13ft3
  • BI13.535 Tm
  • Cms0.151mm/N
  • Rms3.826 kg/s
  • Le (at 1kHz)0.683 mH
  • Mounting Information
  • Diameter309mm/12.2in
  • Overall depth130.25mm/5.14in
  • Cut-out diameter283mm/11.14in
  • Mounting slot dimensionsø7.9mm/0.31in
  • Number of mounting slots4
  • Mounting PCD range297mm/11.69in
  • Unit weight3.9kg/8.6lb
  • Packed Dimensions & Weight
  • Single pack size W x D x H333mm x 322mm x 145mm
  • /13.1in x 12.7in x 5.7in


1 Year Warranty
