Celestion

28/CDX1-1010

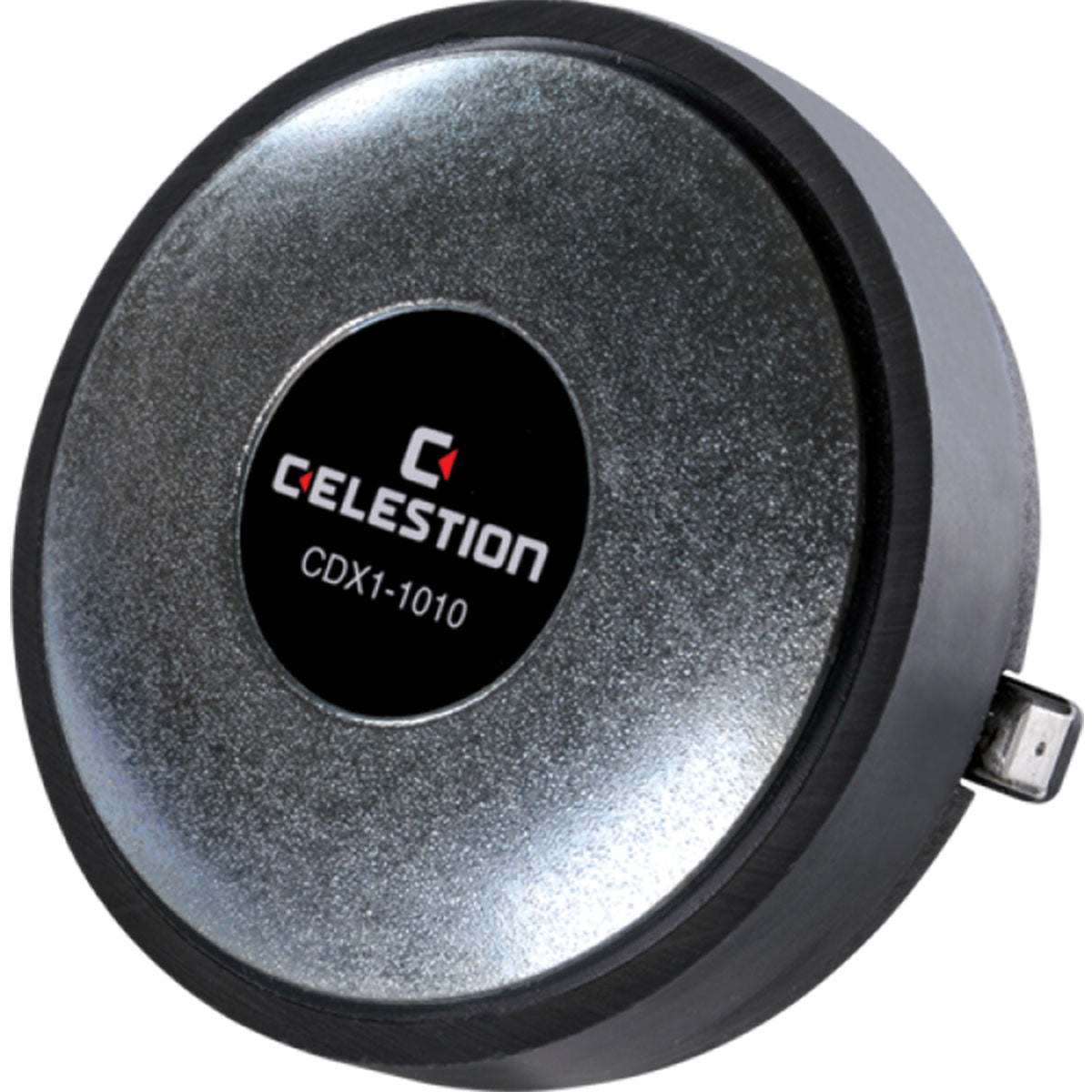

Celestion T5829 CDX1 1010 Ferrite Magnet Compression Driver 1 Inch 20W HF 8OHM

New Page 3

Product Information:

Very lightweight, low-profile ferrite magnet compression driver
15Wrms (AES standard) power handling and 107dB sensitivity, 1500-20,000Hz frequency range
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
Ideal for entry-level two-way and three-way sound reinforcement cabinets
CDX1-1020 variant supplied with partial phase plug assembly (for applications where outer phase plug and horn form single moulding as part of front baffle)


Specifications:

Power rating1
15Wrms
Nominal impedance

Frequency range
1500-20,000Hz
Sensitivity2
107dB
Recommended min. crossover (12dB/oct)
2200Hz
Voice coil diameter
25mm/1.0in
Voice coil material
Copper clad aluminium
Magnet type
Ferrite
Diaphragm material
PETP film
Surround material
PETP film
Mounting Information
Overall width
90mm/3.54in
Overall depth
52.8mm/2.08in
Fitting
Screw (35mm/1.38in diameter)
Throat exit
25mm/1.0in
Unit weight
0.83kg/1.8lb
Packed Dimensions & Weight
Multi pack (16) size W x D x H
480mm x 480mm x 75mm
/18.9in x 18.9in x 2.95in
Multi pack (16) weight
15kg/33lb
