Celestion

28/CDX1-1445-16

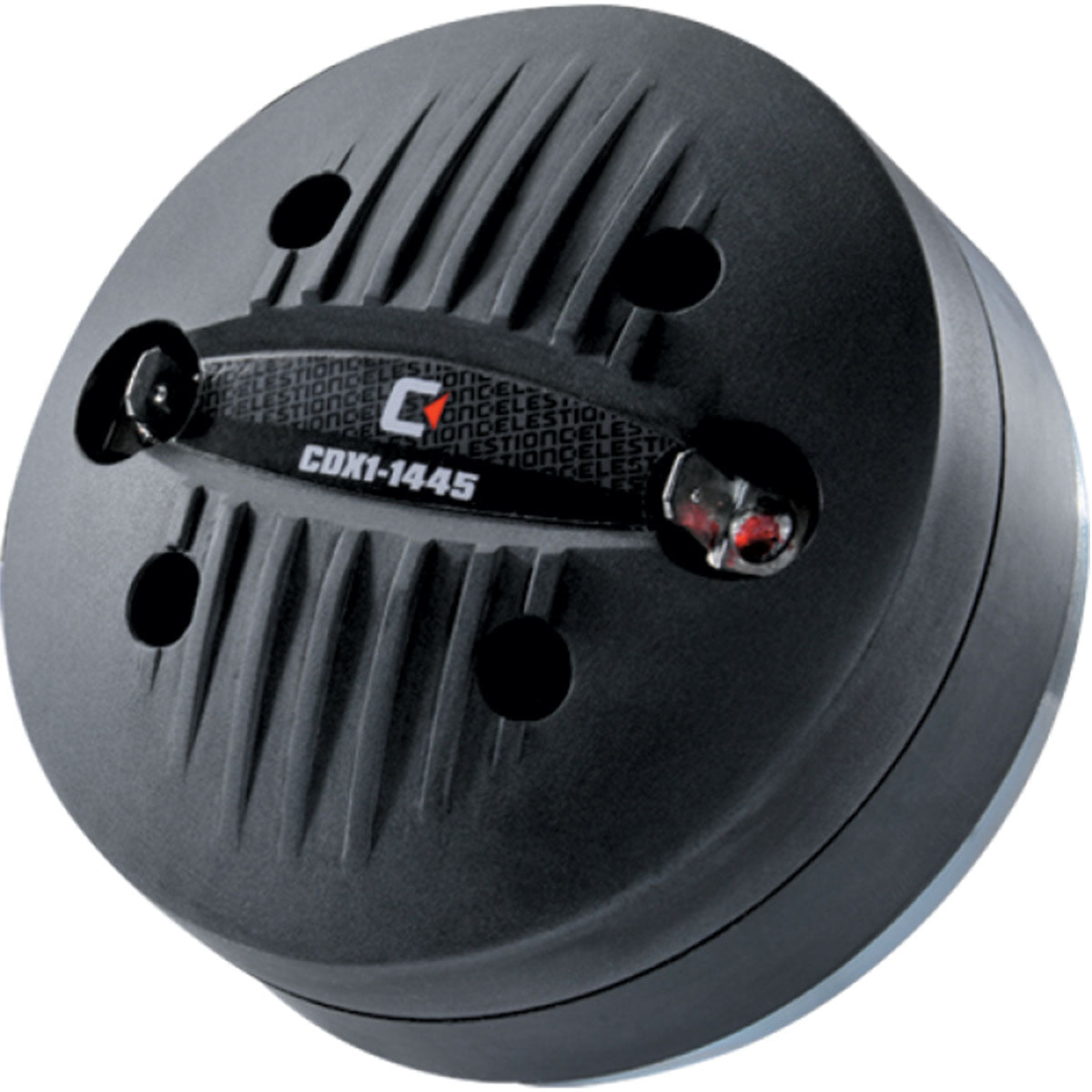

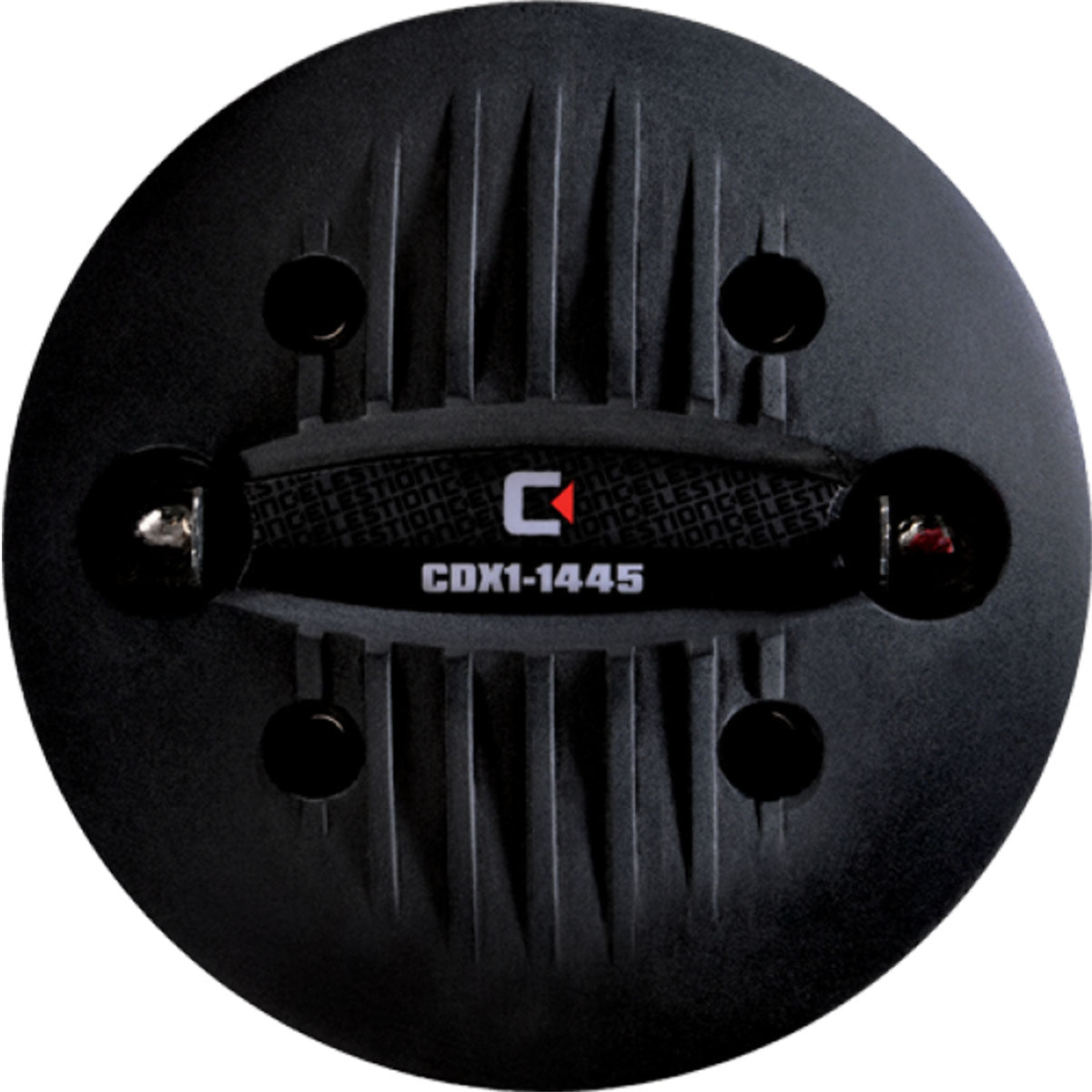

Celestion T5823 CDX1 1445 Ferrite Magnet Compression Driver 1 Inch 20W HF 16OHM

IN STOCK

Pay With AfterPay Zip

  • New Page 3

    Product Information:

    1" exit lightweight and compact ferrite magnet compression driver with
    1.4" copper clad aluminium voice coil
    20Wrms power handling (AES standard) and 106dB sensitivity
    One piece PETP diaphragm and surround
    Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
    Suitable for 2-way and 3-way systems

    Specifications:

    Power rating120Wrms
    Nominal impedance8/16Ω
    Frequency range1500-20,000Hz
    Sensitivity2106dB
    Recommended min. crossover (12dB/oct)2200Hz
    Voice coil diameter35mm/1.4in
    Voice coil materialCopper clad aluminium
    Magnet typeFerrite
    Diaphragm materialPETP film
    Surround materialPETP film
    Mounting Information
    Overall width90mm/3.54in
    Overall depth52mm/2.05in
    FittingFlange (4 x M6 holes on 76mm/3in PCD)
    Throat exit25mm/1in
    Unit weight1kg/2.2lb
    Packed Dimensions & Weight
    Multi pack (8) size W x D x H500mm x 485mm x 110mm
    /19.7in x 19.1in x 4.3in
    Multi pack (8) weight8.8kg/19.4lb
