Celestion

28/CDX14-2420

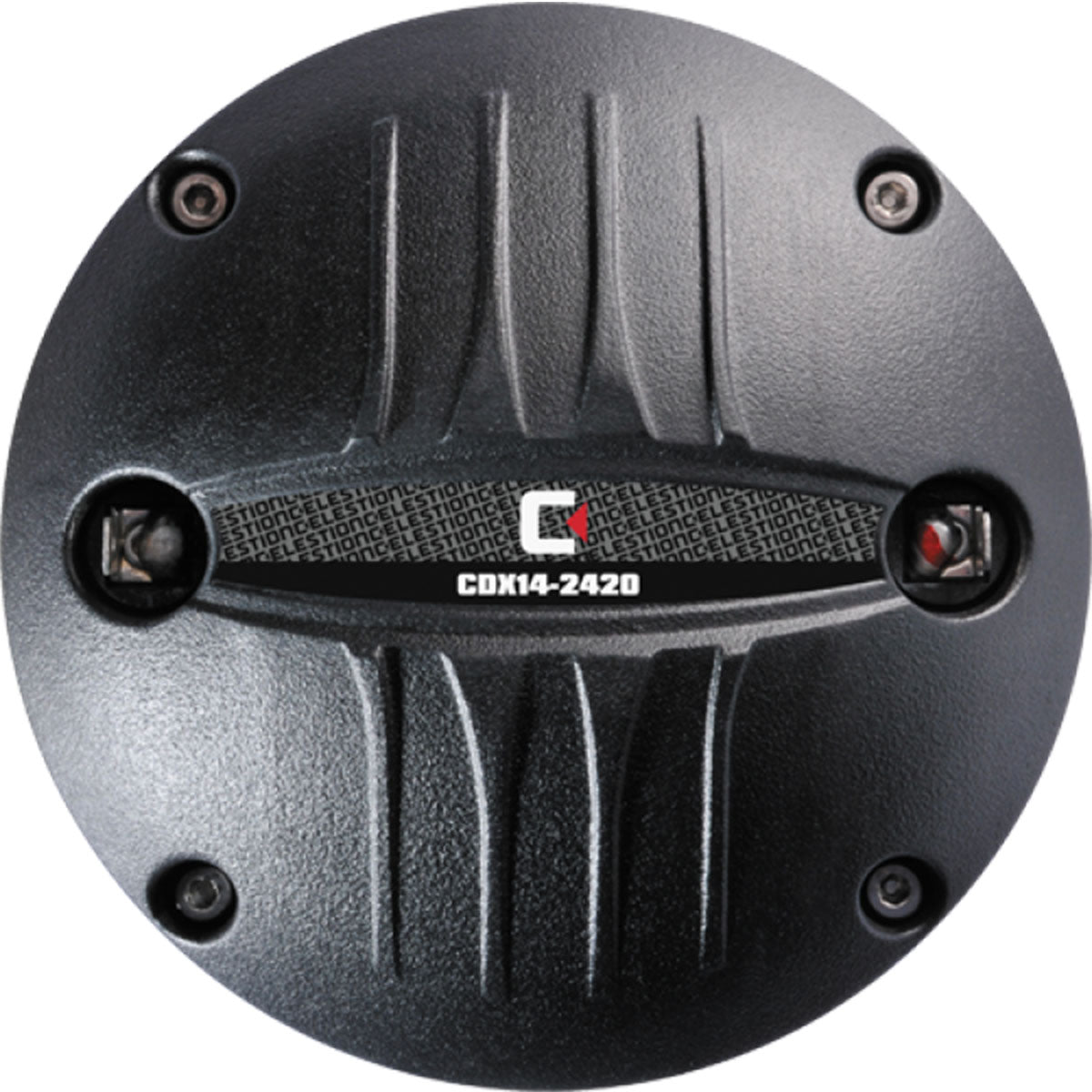

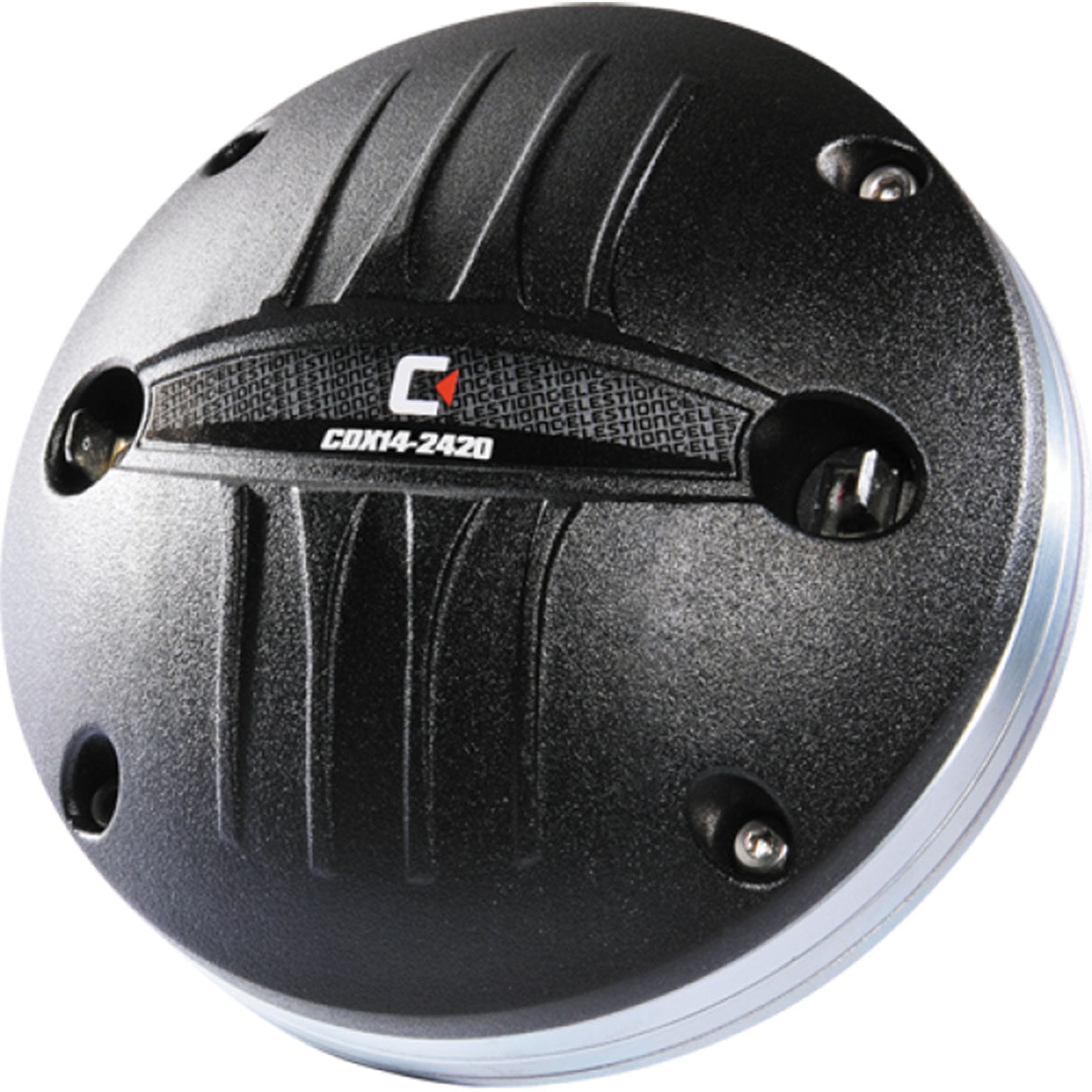

Celestion T5779 CDX14 2420 Neodymium Magnet Compression Driver 1.4 Inch 75W HF 8OHM

Pay With AfterPay Zip

  • New Page 3

    Product Information:

    1.4" exit, neodymium magnet, 60mm (2.4") voice coil compression driver provides 70Wrms (AES standard) power handling and 106.5dB sensitivity
    Patented phase plug design method suppresses cavity resonances at higher frequencies
    Titanium diaphragm, deep drawn to increase stiffness and reduce distortion
    Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
    Rolled polyimide surround improves stiffness control, further lowering distortion
    Curved coherent wavefront, optimised for horn loading

    Specifications:

    Power rating170Wrms
    Nominal impedance16Ω
    Frequency range800-20,000Hz
    Sensitivity2106.5dB
    Recommended min. crossover (12dB/oct)1200Hz
    Voice coil diameter60mm/2.4in
    Voice coil materialEdgewound copper clad aluminium
    Magnet typeNeodymium
    Diaphragm materialTitanium
    Surround materialPolyimide
    Mounting Information
    Overall width116mm/4.6in
    Overall depth56mm/2.2in
    FittingFlange (4 x M6 holes on 102mm/4in PCD)
    Throat exit35.6mm/1.4in
    Unit weight1.5kg/3.3lb
