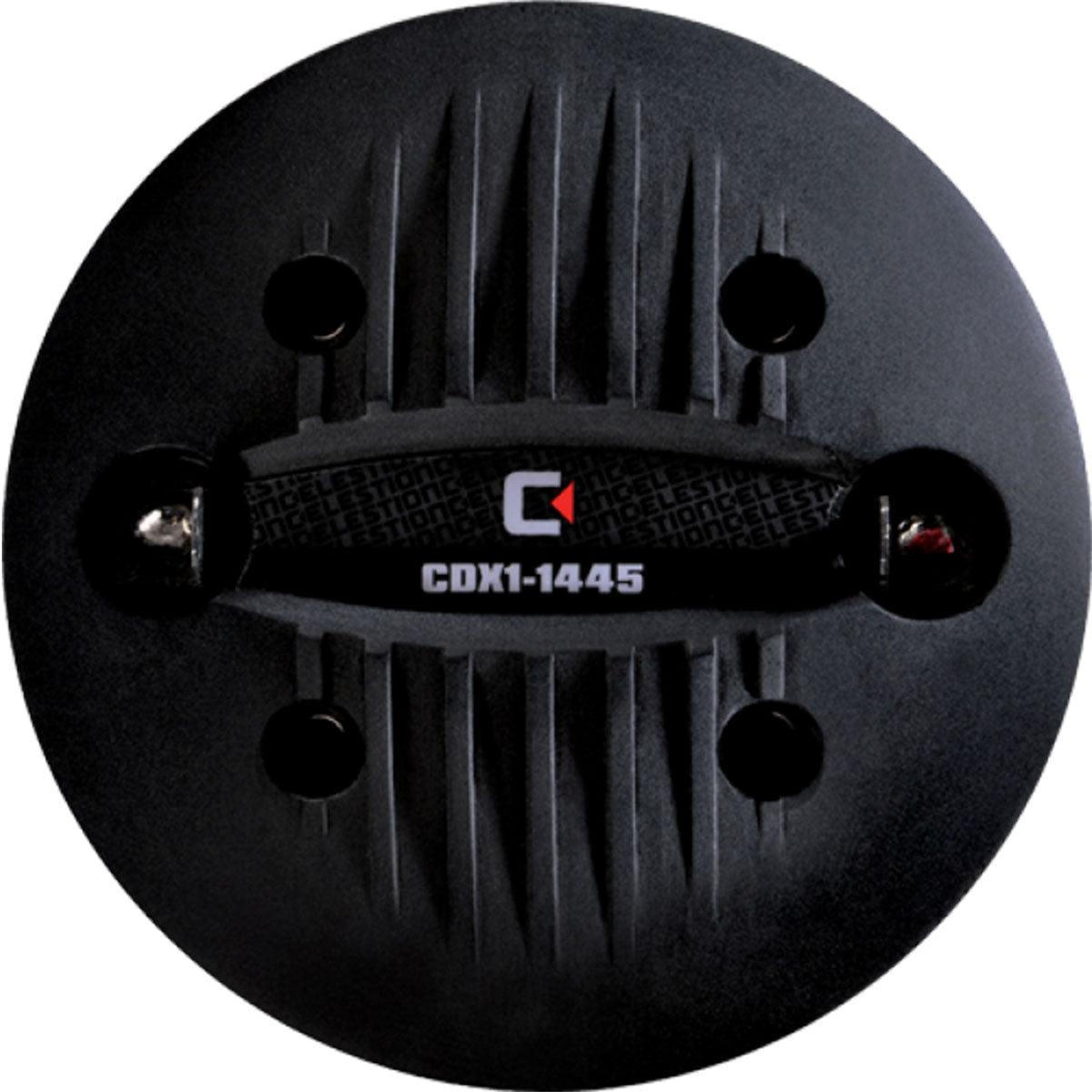

Celestion T5762 CDX1 1445 Ferrite Magnet Compression Driver 1 Inch 20W HF 8OHM

New Page 3

Product Information:

1" exit lightweight and compact ferrite magnet compression driver with
1.4" copper clad aluminium voice coil
20Wrms power handling (AES standard) and 106dB sensitivity
One piece PETP diaphragm and surround
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
Suitable for 2-way and 3-way systems


Power rating120Wrms
Nominal impedance8/16Ω
Frequency range1500-20,000Hz
Recommended min. crossover (12dB/oct)2200Hz
Voice coil diameter35mm/1.4in
Voice coil materialCopper clad aluminium
Magnet typeFerrite
Diaphragm materialPETP film
Surround materialPETP film
Mounting Information
Overall width90mm/3.54in
Overall depth52mm/2.05in
FittingFlange (4 x M6 holes on 76mm/3in PCD)
Throat exit25mm/1in
Unit weight1kg/2.2lb
Packed Dimensions & Weight
Multi pack (8) size W x D x H500mm x 485mm x 110mm
/19.7in x 19.1in x 4.3in
Multi pack (8) weight8.8kg/19.4lb
