Celestion

28/CDX1-1720

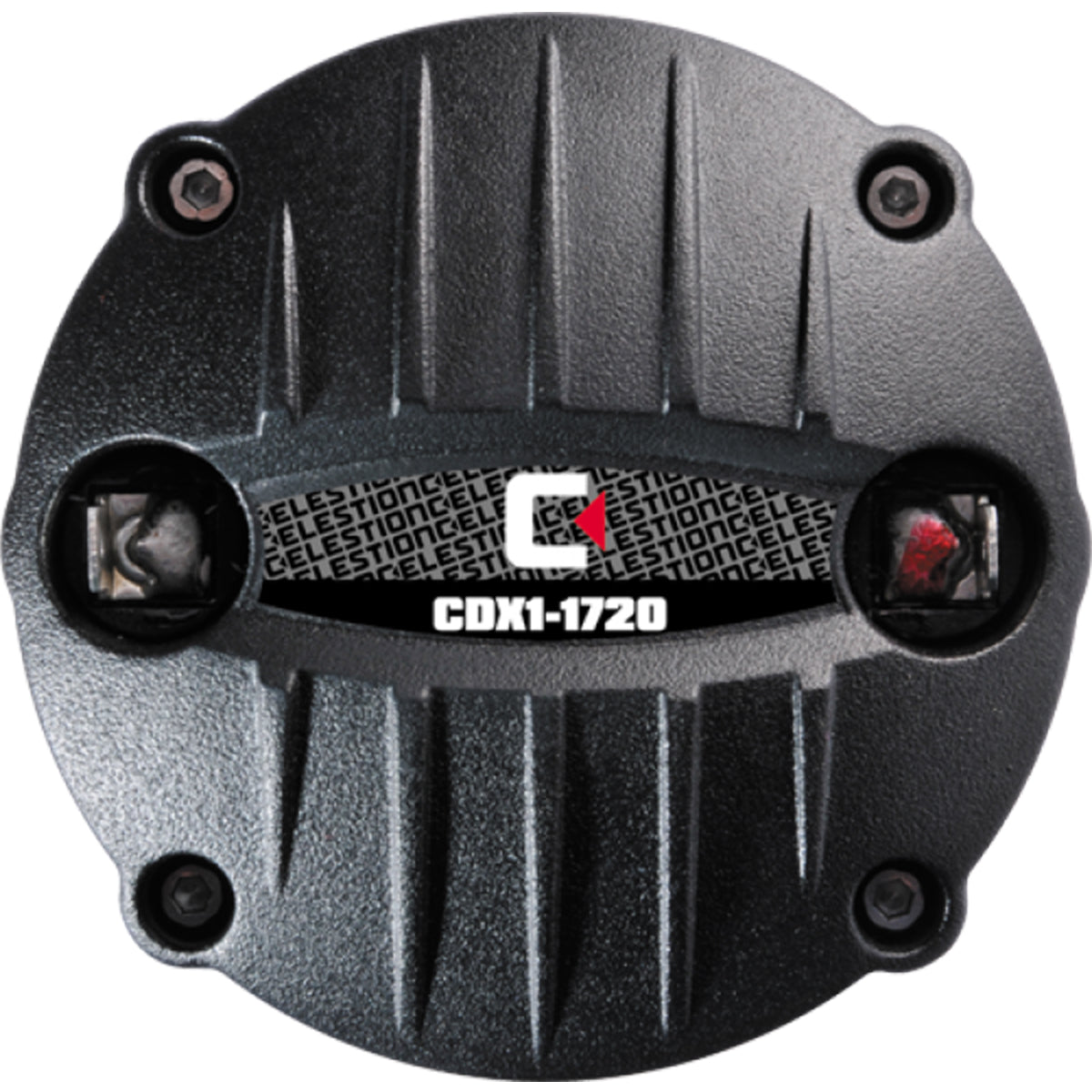

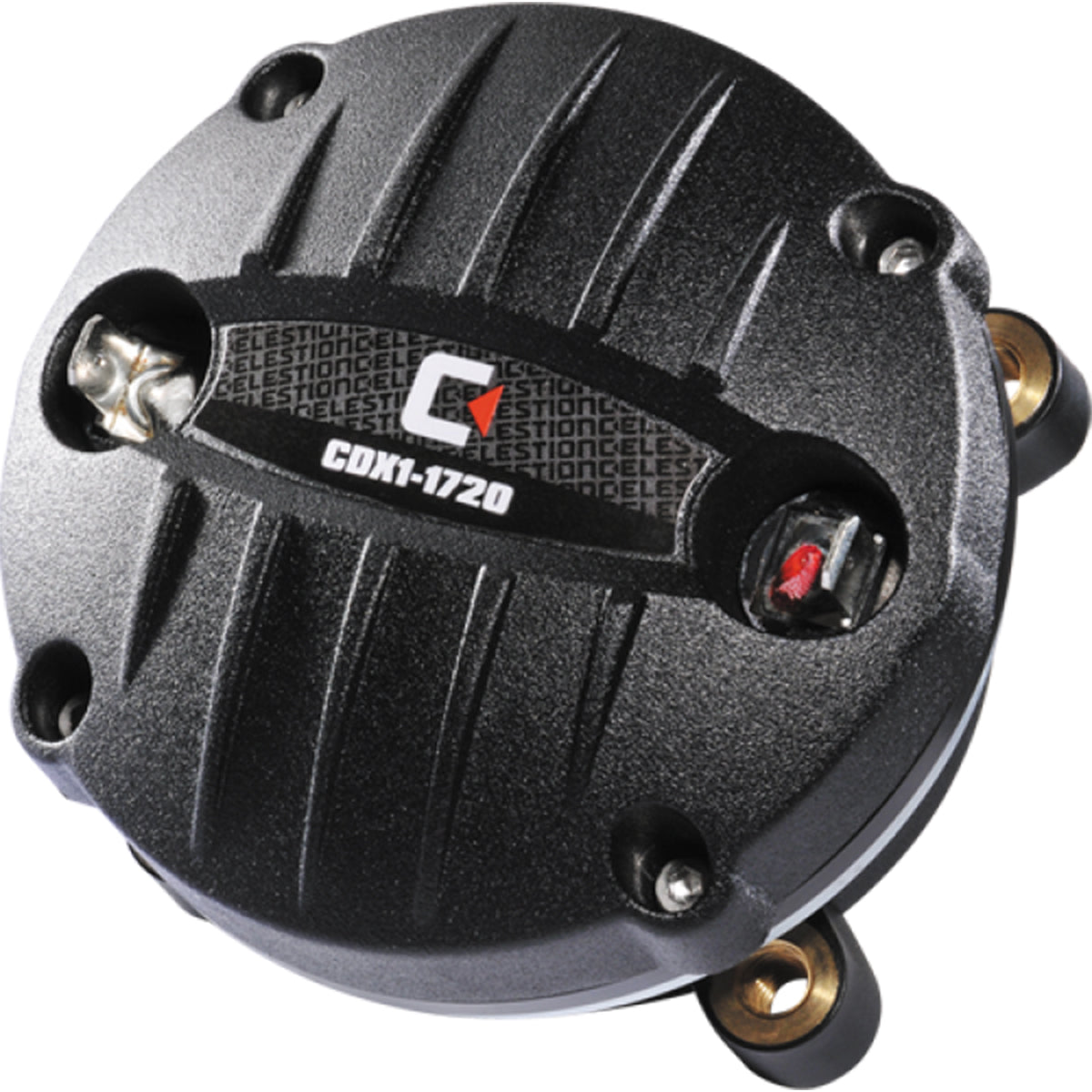

Celestion T5713 CDX1 1720 Neodymium Magnet Compression Driver 1 Inch 50W HF 8OHM

Product Information:

1" exit, lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm
50Wrms (AES standard) power handling and 107dB sensitivity
Rolled polyimide surround improves stiffness control, further lowering distortion
Lower resonance enabling lower crossover frequency
Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs
Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
Curved coherent wavefront, optimised for horn loading

Specifications:

Power rating150Wrms
Nominal impedance8Ω
Frequency range800-20,000Hz
Sensitivity2107dB
Recommended min. crossover (12dB/oct)1500Hz
Voice coil diameter44mm/1.75in
Voice coil materialEdgewound copper clad aluminium
Magnet typeNeodymium
Diaphragm materialTitanium
Surround materialPolyimide
Mounting Information
Overall depth55mm/2.2in
FittingFlange (4 x M6 holes on 76mm/3in PCD)
Throat exit25.4mm/1in
Maximum width88.5mm/3.48in
Minimum width82.0mm/3.23in
Unit weight0.65kg/1.4lb
Packed Dimensions & Weight
Single pack size W x D x H90mm x 90mm x 60mm
/3.5in x 3.5in x 2.4in
Single pack weight0.75kg/1.65lb
Multi pack (16) size W x D x H500mm x 485mm x 110mm
/19.7in x 19.1in x 4.3in
Multi pack (16) weight11.2kg/24.9lb
