Celestion

28/CDX1-1746

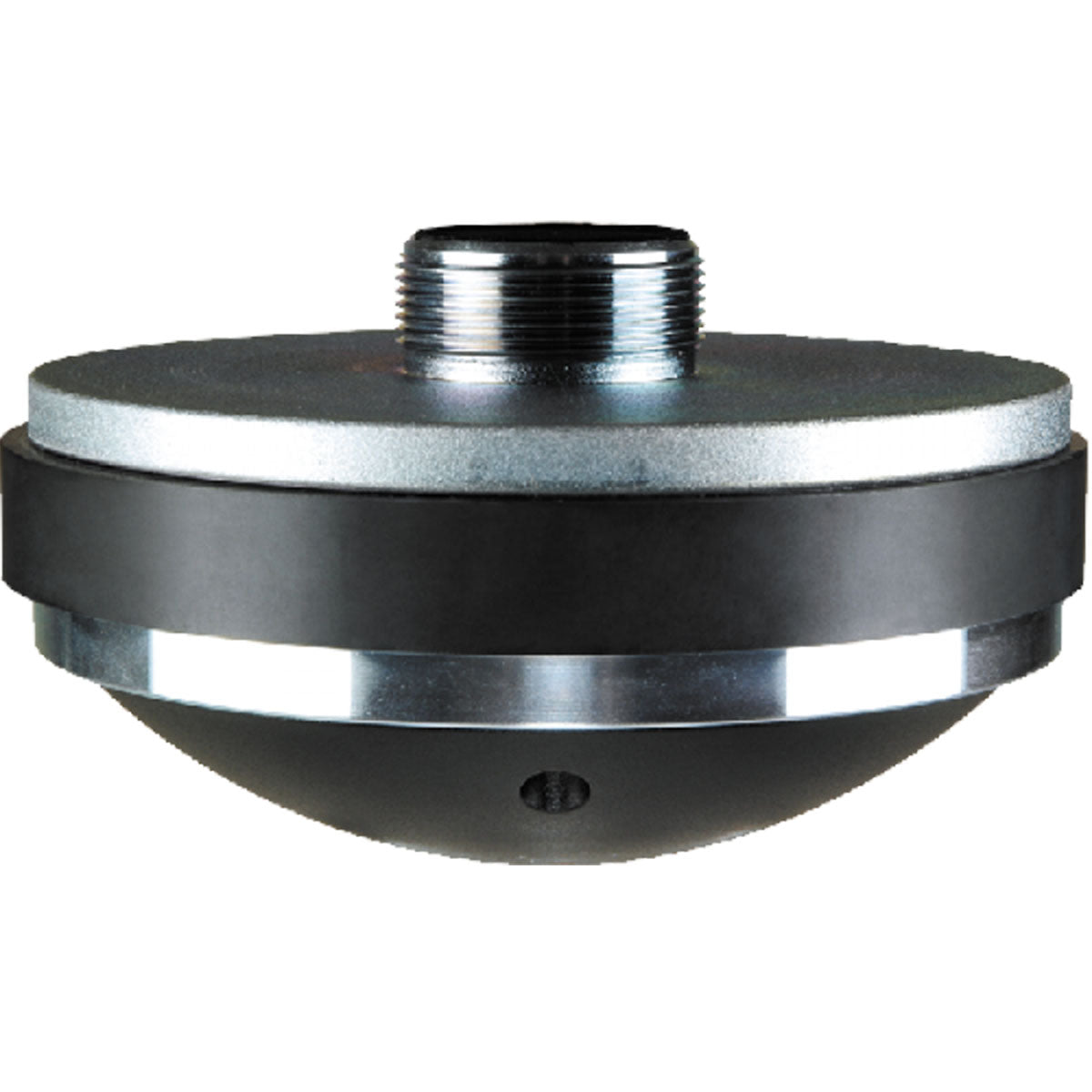

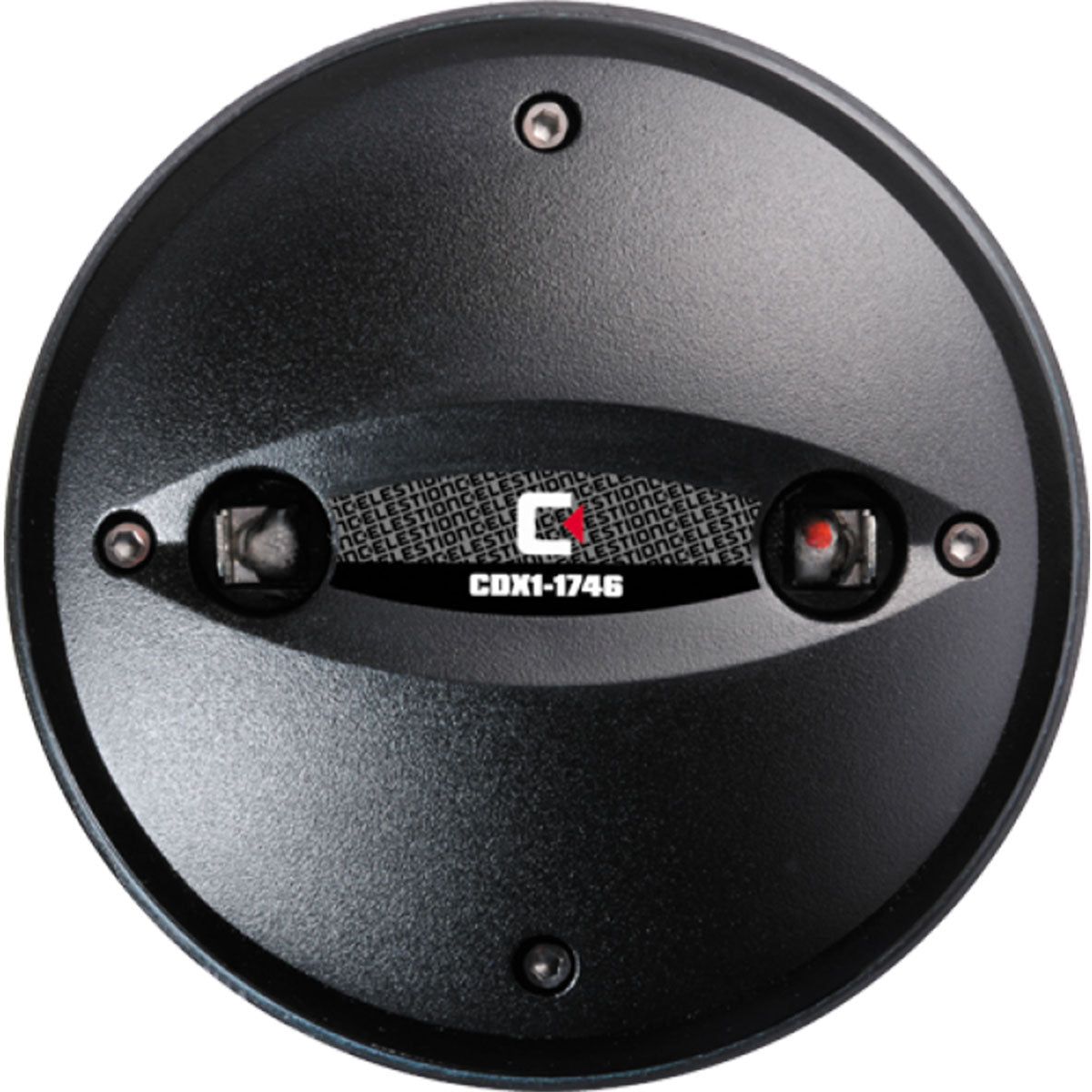

Celestion T5487 CDX1 1746 Ferrite Magnet Compression Driver 1 Inch 75W HF 8OHM

Pay With AfterPay Zip

  • New Page 3

    Product Information:

    1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
    40Wrms power handling (AES standard) and 110dB sensitivity
    Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
    One piece PETP diaphragm and surround
    Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design

    Specifications:

    Power rating140Wrms
    Nominal impedance8Ω
    Frequency range1200-20,000Hz
    Sensitivity2110dB
    Recommended min. crossover (12dB/oct)2200Hz
    Voice coil diameter44mm/1.75in
    Voice coil materialEdgewound copper clad aluminium
    Magnet typeFerrite
    Diaphragm materialPETP film
    Surround materialPETP film
    Mounting Information
    Overall width120mm/4.7in
    Overall depth56mm/2.2in
    FittingScrew (35mm, 1.38in dia)
    Throat exit25.4mm/1in
    Unit weight2.3kg/5.1lb
    Packed Dimensions & Weight
    Single pack size W x D x H140mm x 170mm x 70mm
    /5.5in x 6.7in x 2.8in
    Single pack weight3kg/6.6lb
    Multi pack (6) size W x D x H430mm x 370mm x 90mm
    /16.9in x 14.6in x 3.5in
    Multi pack (6) weight14kg/31lb
