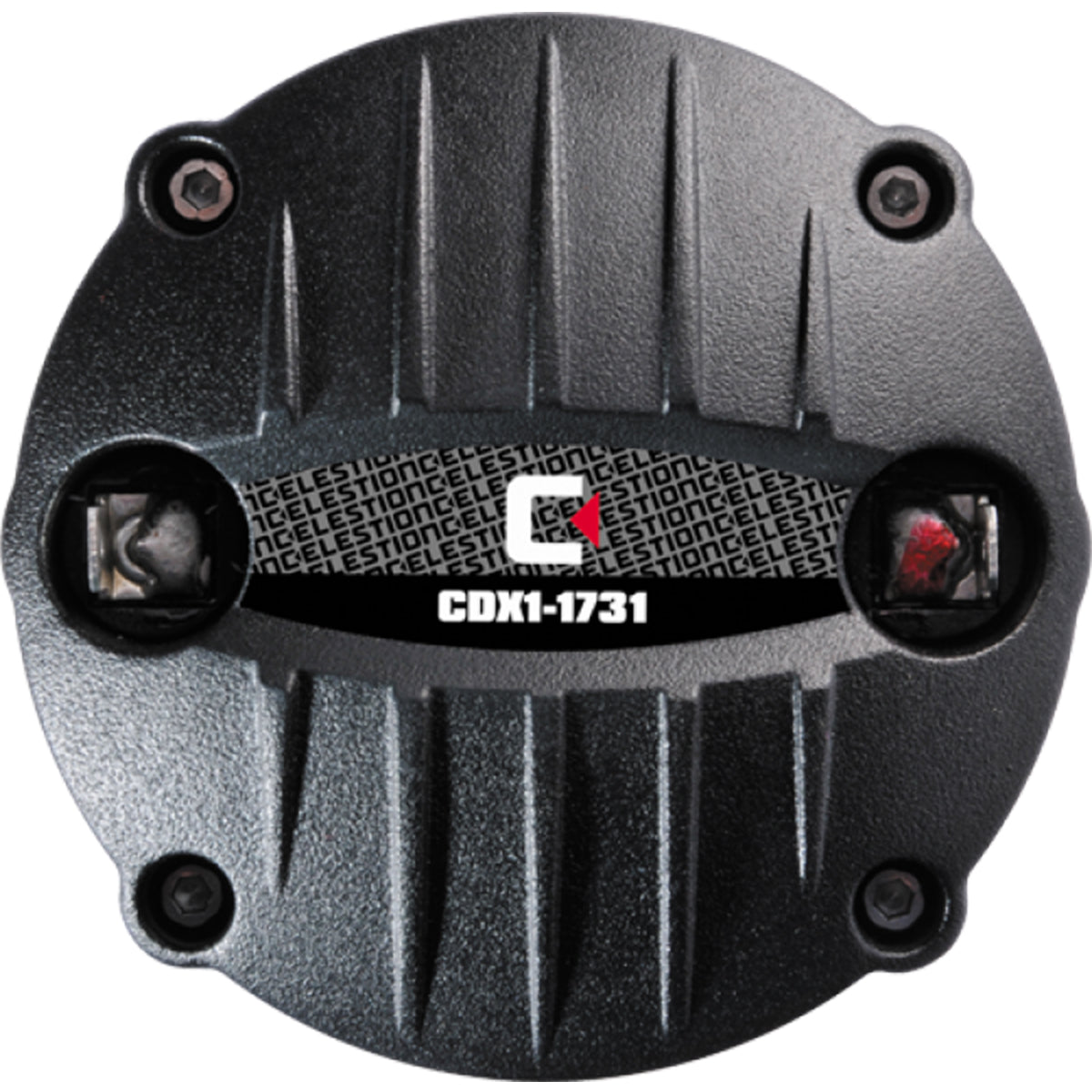

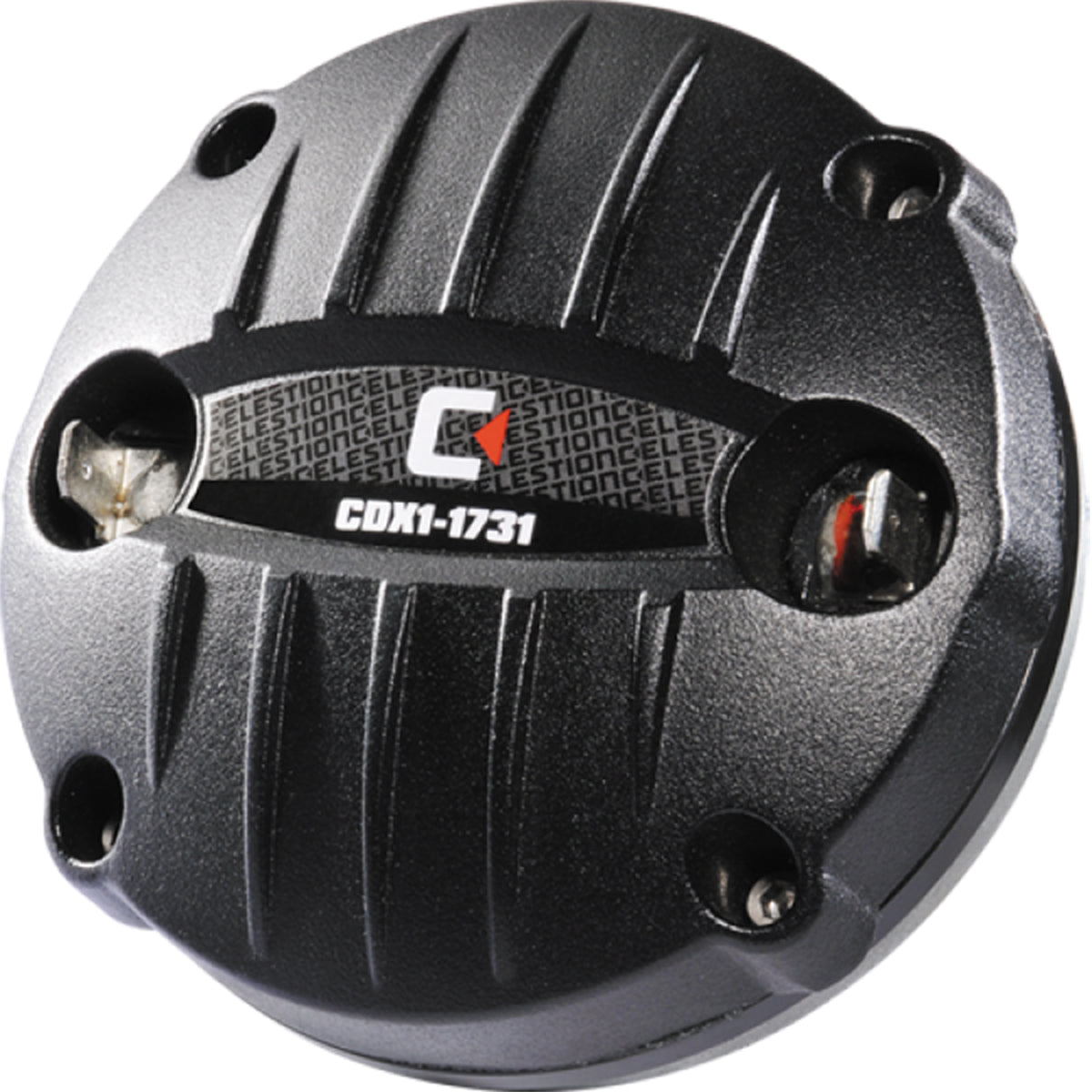

Celestion T5486 CDX1 1731 Neodymium Magnet Compression Driver 1 Inch 75W HF 8OHM

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information:

1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
40Wrms (AES standard) power handling and 110dB sensitivity
Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
One piece PETP film diaphragm and surround
Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver


  • Power rating140Wrms
  • Nominal impedance8Ω
  • Frequency range1200-20,000Hz
  • Sensitivity2110dB
  • Recommended min. crossover (12dB/oct)2200Hz
  • Voice coil diameter44mm/1.75in
  • Voice coil materialEdgewound copper clad aluminium
  • Magnet typeNeodymium
  • Diaphragm materialPETP film
  • Surround materialPETP film
  • Mounting Information
  • Overall depth57mm/2.3in
  • FittingScrew (35mm, 1.38in dia)
  • Throat exit25.4mm/1in
  • Maximum width88.5mm/3.48in
  • Minimum width82.0mm/3.23in
  • Unit weight0.65kg/1.4lb
  • Packed Dimensions & Weight
  • Single pack size W x D x H90mm x 90mm x 60mm
  • /3.5in x 3.5in x 2.4in
  • Single pack weight 0.75kg/1.7lb
  • Multi pack (16) size W x D x H500mm x 485mm x 110mm
  • /19.7in x 19.1in x 4.3in
  • Multi pack (16) weight11.2kg/24.6lb


1 Year Warranty
