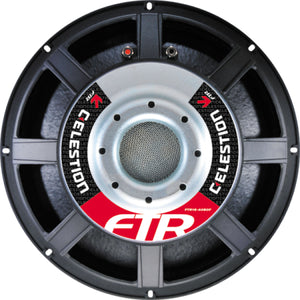

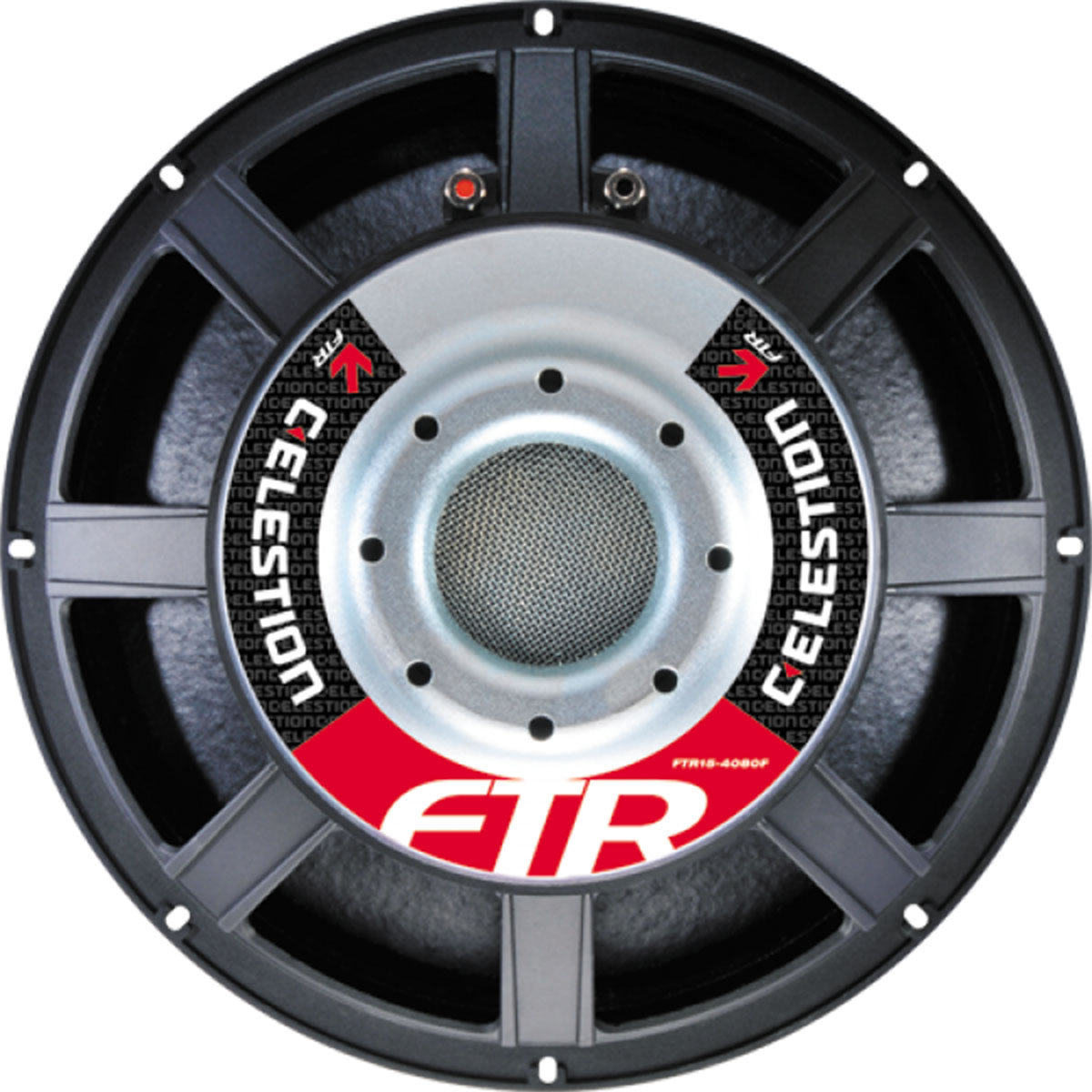

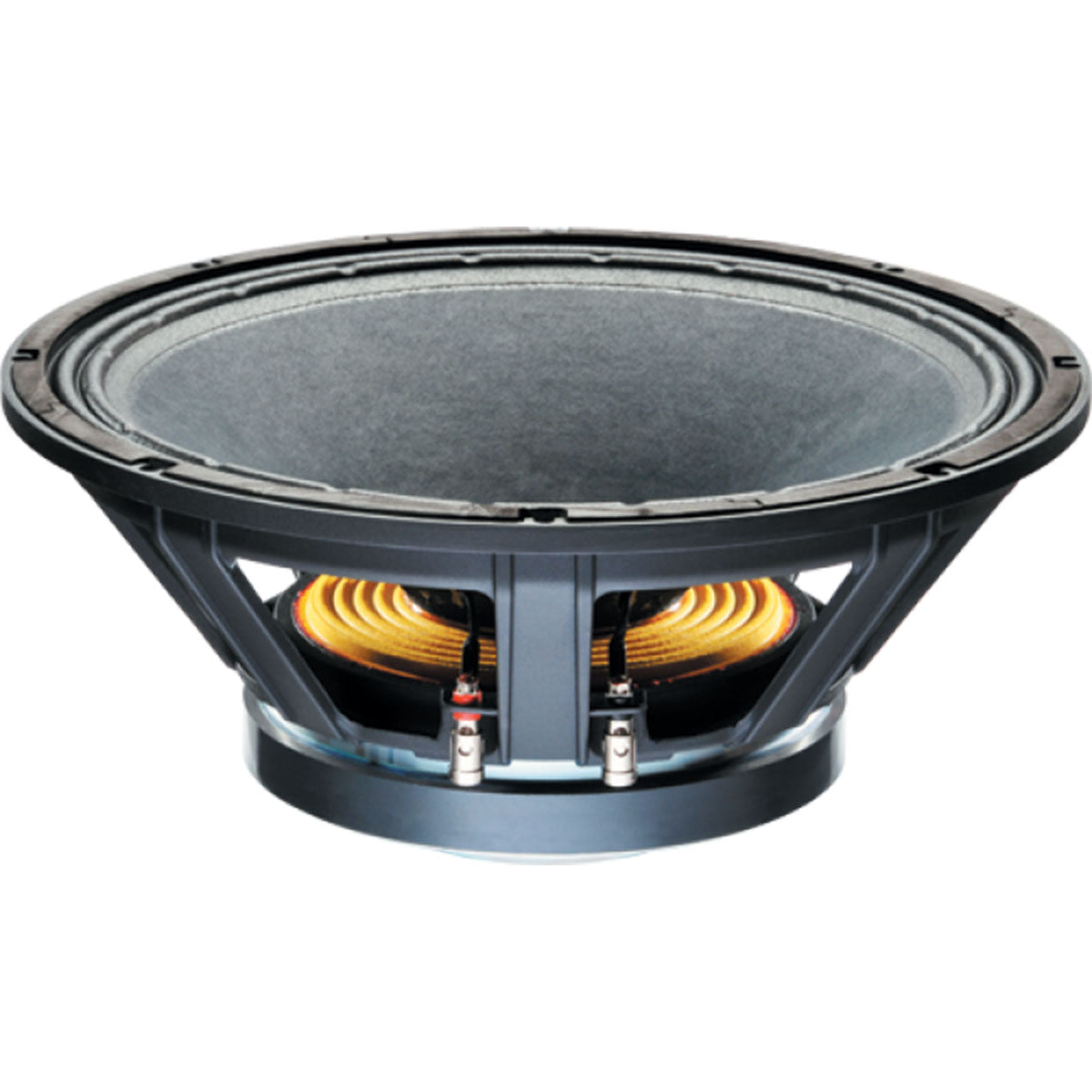

28/FTR15-4080F
General Specifications
Nominal diameter
381mm/15in
Power rating1
600Wrms
Nominal impedance
8Ω
Sensitivity2
97dB
Frequency range
35-3000Hz
Voice coil diameter
100mm/4in
Chassis type
Cast Aluminium
Magnet type
Ferrite
Magnet weight
3.1kg/110oz
Coil material
Round copper
Former material
Glass fibre
Cone material
Glass loaded paper with weather-resistant
impregnation
Surround material
Cloth-sealed
Suspension
Single
Xmax3
6mm/0.24in
Gap depth
10mm/0.39in
Voice coil winding width
22mm/0.87in
Small Signal Parameters
D
0.33m/12.99in
Fs
35Hz
Mms
117.83g/4.16oz
Mmd
103.68g/3.66oz
Qms
3.68
Qes
0.26
Qts
0.24
Re
5.62Ω
Vas
182.8lt/6.45ft3
BI
23.69Tm
Cms
0.18mm/N
Rms
7.019kg/s
Le (at 1kHz)
1.48mH
Mounting Information
Diameter
385mm/15.16in
Overall depth
170mm/6.69in
Cut-out diameter
351mm/13.82in
Mounting slot dimensions
10mm x 7mm/0.39in x 0.27in
Number of mounting slots
8
Mounting PCD range
365-375mm/14.37-14.76in
Unit weight
9.4kg/20.7lb
Packed Dimensions & Weight
Single pack size W x D x H
435mm x 435mm x 200mm
/17.1in x 17.1in x 7.9in
Single pack weight
10.7kg/23.6lb
Multipack (36) size W x D x H
1200mmx1000mmx980mm
/47.2in x 39.4in x 38.6in
Multipack (36) weight
386kg/851lb
