Celestion

28/TF1525E-4

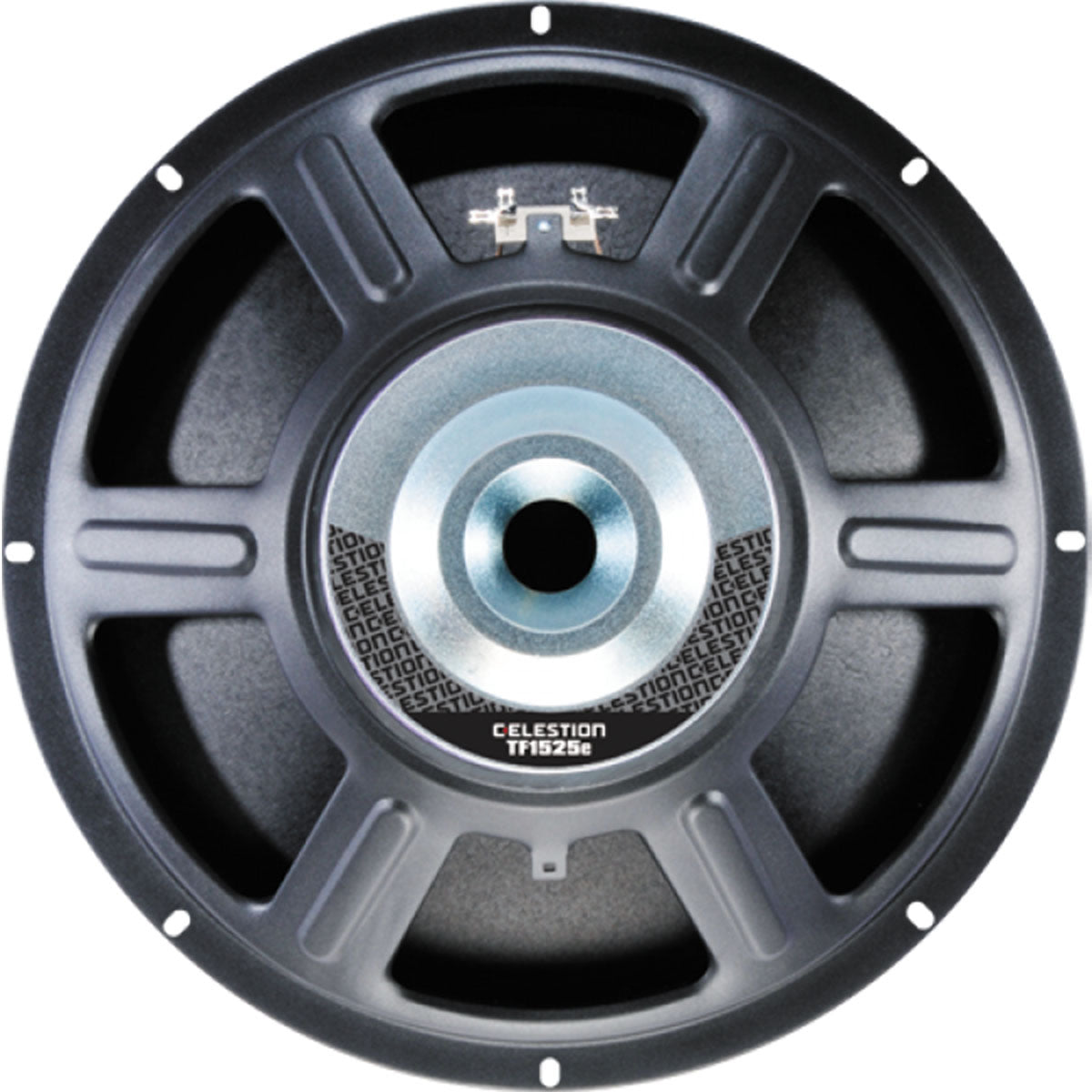

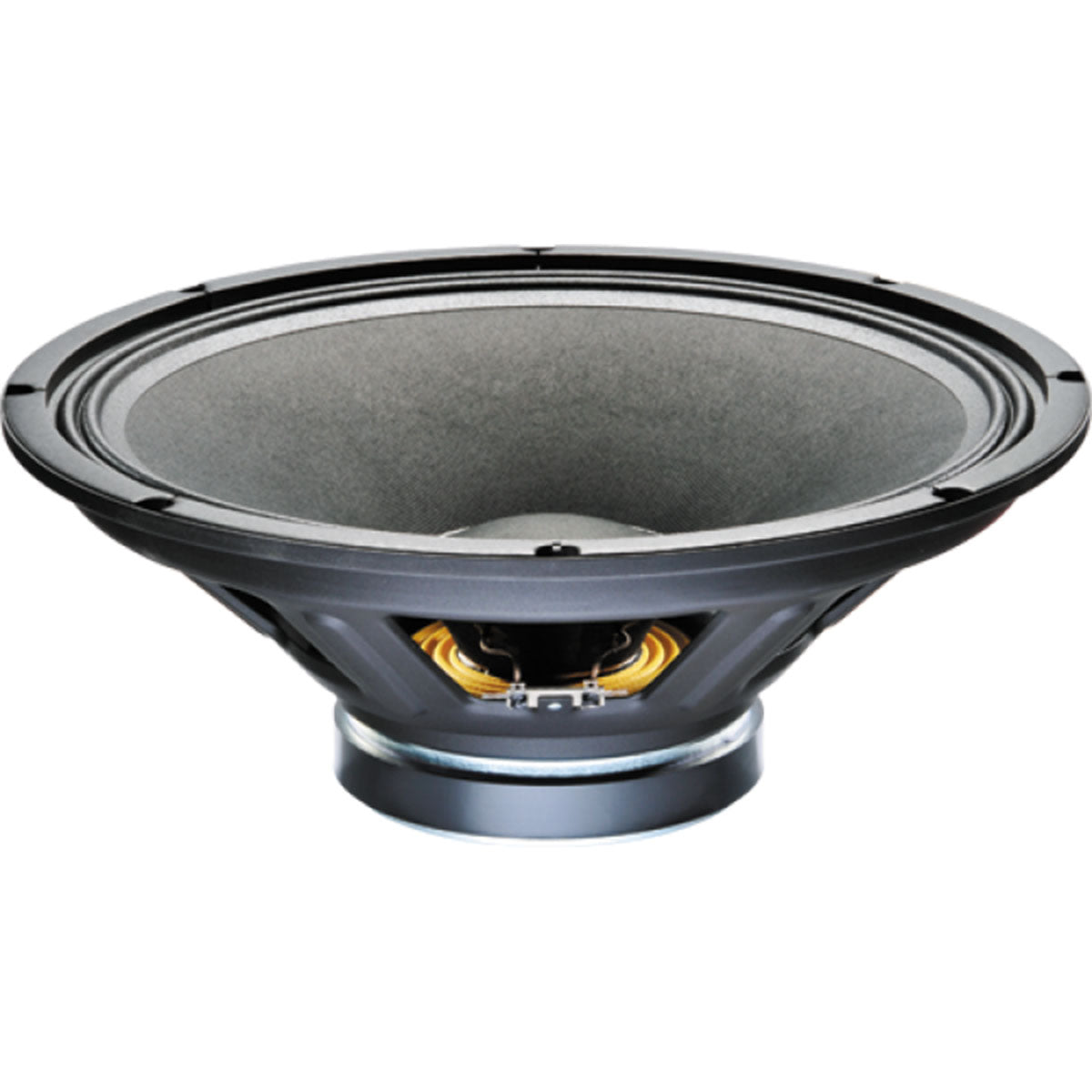

Celestion T5368 TF1525E Ferrite Magnet Steel Chassis Driver Speaker 15 Inch 300W 4OHM

IN STOCK

Pay With AfterPay Zip

  • New Page 3

    Product Information:

    15" driver provides extended low frequency range
    2.5" edgewound voice coil enables 97dB efficiency and 300Wrms (AES standard) power handling
    Vented magnet assembly for enhanced cooling
    Kevlar-loaded cone with sealed surround and damping for reduced distortion
    Suitable for use in 2-way and 3-way systems

    Specifications:

    General Specifications
    Nominal diameter
    381mm/15in
    Power rating1
    300Wrms
    Nominal impedance

    Sensitivity2
    97dB
    Frequency range
    45-3500Hz
    Voice coil diameter
    64mm/2.5in
    Chassis type
    Pressed steel
    Magnet type
    Ferrite
    Magnet weight
    1.4kg/50oz
    Coil material
    Edgewound copper
    Former material
    Glass fibre
    Cone material
    Kevlar loaded paper
    Surround material
    Cloth-sealed
    Suspension
    Single
    Xmax3
    3.5mm/0.14in
    Gap depth
    8mm/0.31in
    Voice coil winding width
    14.5mm/0.57in
    Small Signal Parameters
    D
    0.33m/12.99in
    Fs
    49.8Hz
    Mms
    82.41g/2.91oz
    Mmd
    68.26g/2.41oz
    Qms
    7.12
    Qes
    0.53
    Qts
    0.50
    Re
    6.48Ω
    Vas
    128.19lt/4.53ft3
    BI
    17.69Tm
    Cms
    0.12mm/N
    Rms
    3.62kg/s
    Le (at 1kHz)
    1.32mH
    Mounting Information
    Diameter
    385mm/15.16in
    Overall depth
    163mm/6.42in
    Cut-out diameter
    352mm/13.86in
    Mounting slot dimensions
    9.2mm x 6.2mm/0.36in x 0.24in
    Number of mounting slots
    8
    Mounting PCD range
    369mm/14.56in
    Unit weight
    4.8kg/10.6lb
    Packed Dimensions & Weight
    Single pack size W x D x H
    410mm x 410mm x 180mm
    /16.1in x 16.1in x 7.1in
    Single pack weight
    5.5kg/12.1lb
    Multipack (45) size W x D x H
    1200mmx1000mmx980mm
    /47.2in x 39.4in x 38.6in
    Multi pack (45) weight
    248kg/547lb
