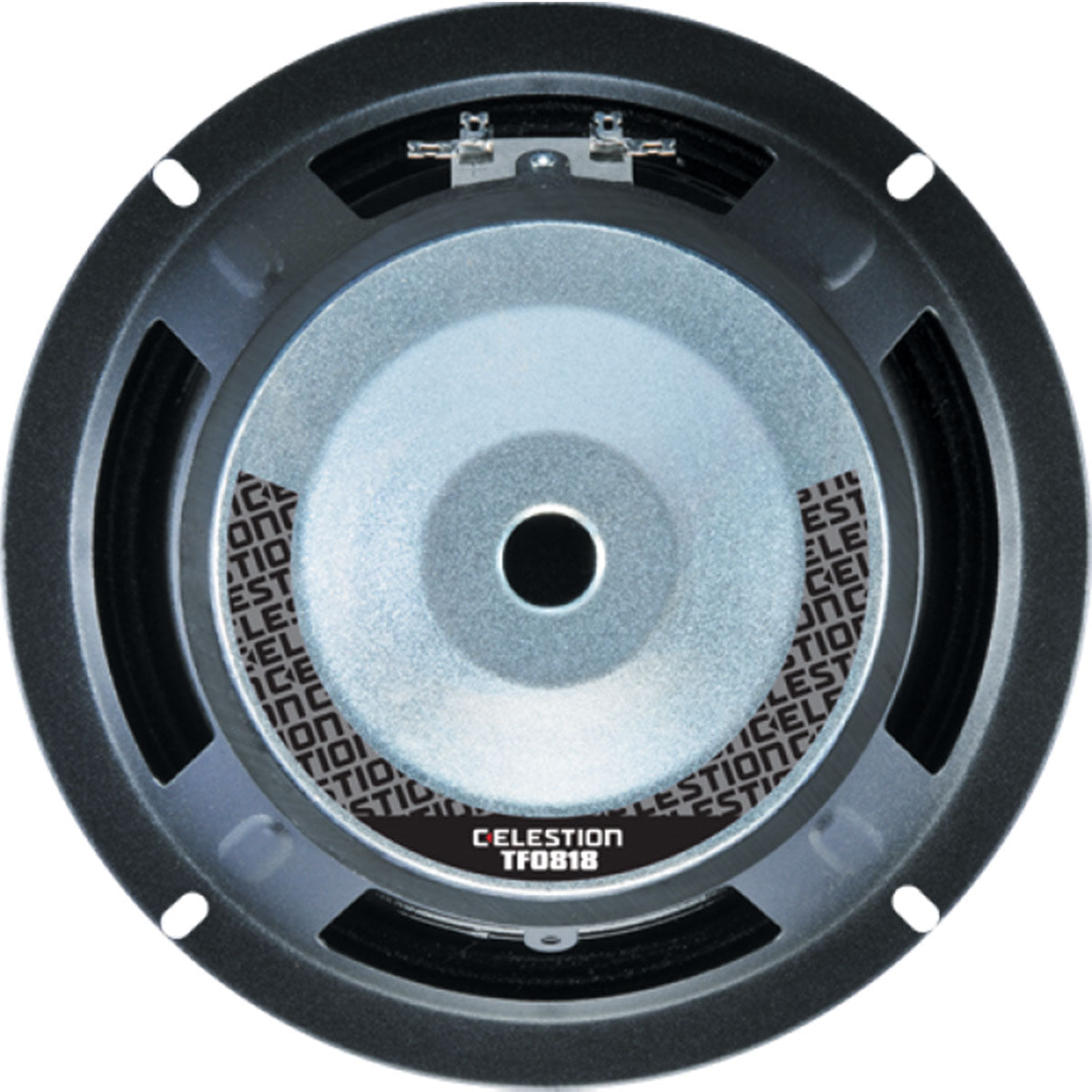

Celestion T5332 TF0818 Ferrite Magnet Steel Chassis Driver Speaker 8 Inch 100W 8OHM

New Page 3

Product Information:

8" driver providing 94dB sensitivity and 100Wrms (AES standard) power handling
1.75" high temperature copper voice coil wound on polyimide former for increased reliability
Achieves optimal performance in compact enclosures
Exceptional performance through bass and mid-range
Ideal for 2-way systems

Specifications:

Nominal diameter
203mm/8in
Power rating1
100Wrms
Nominal impedance

Sensitivity2
94dB
Frequency range
70-6000Hz
Voice coil diameter
45mm/1.75in
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.88kg/31oz
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax3
3.5mm/0.14in
Gap depth
6mm/0.24in
Voice coil winding width
13mm/0.51in
Small Signal Parameters
D
0.17m/6.69in
Fs
95Hz
Mms
17.53g/0.62oz
Mmd
15.60g/0.55oz
Qms
3.83
Qes
0.50
Qts
0.44
Re
6.40Ω
Vas
12.6lt/0.44ft3
BI
11.36Tm
Cms
0.17mm/N
Rms
2.62kg/s
Le (at 1kHz)
0.75mH
Mounting Information
Diameter
208mm/8.19in
Overall depth
99mm/3.54in
Cut-out diameter
183mm/7.20in
Mounting slot dimensions
9.5mm x 5.5mm/0.37in x 0.22in
Number of mounting slots
4
Mounting PCD range
195-199mm/7.68-7.83in
Unit weight
2.3kg/5.1lb
Packed Dimensions & Weight
Single pack size W x D x H
230mm x 230mm x 110mm
/9.1in x 9.1in x 4.3in
Single pack weight
3kg/6.6lb
Multipack (140) size W x D x H
1070mmx850mmx860mm
/42.1in x 33.5in x 33.9in
Multipack (140) weight
435kg/959lb
