Celestion

28/TF1525

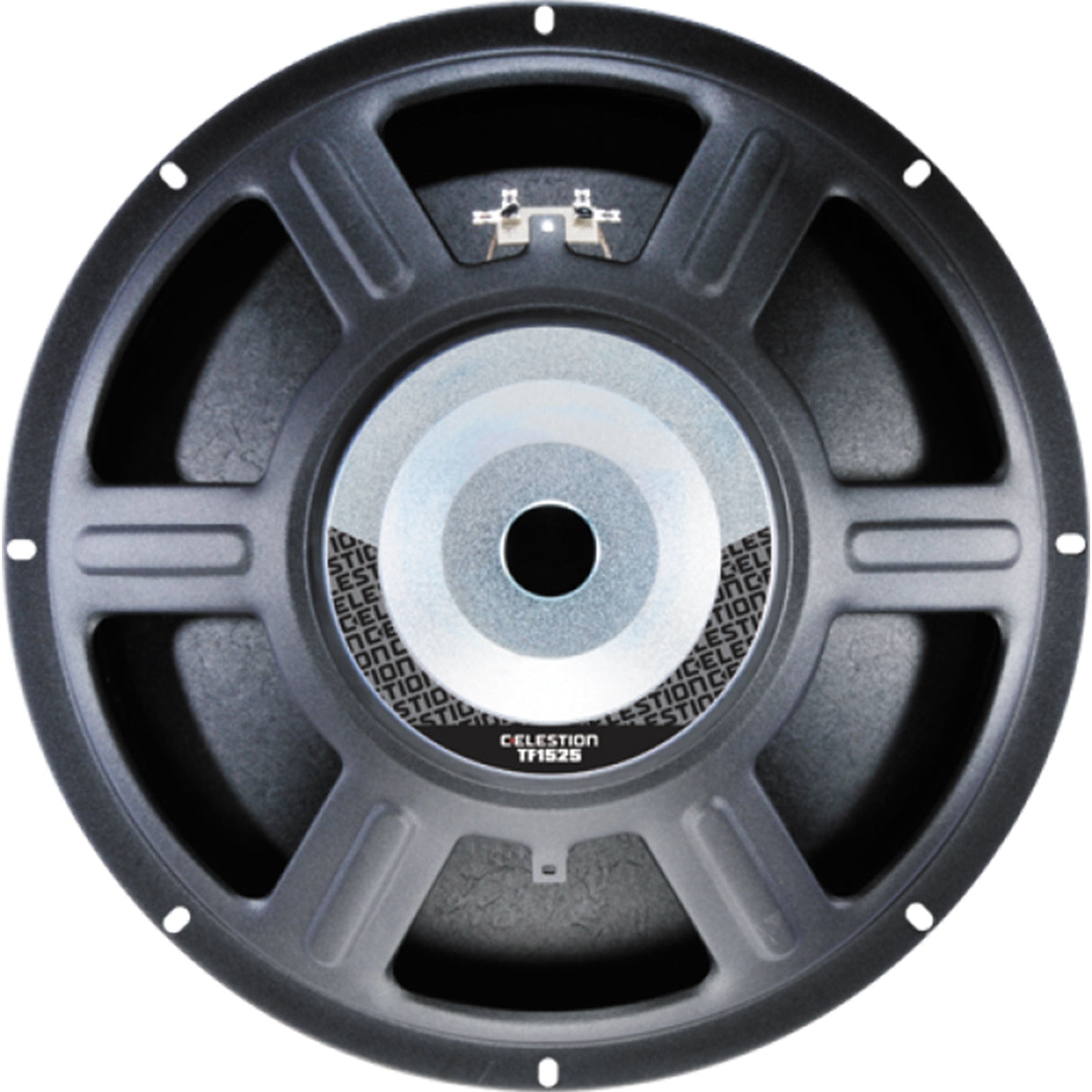

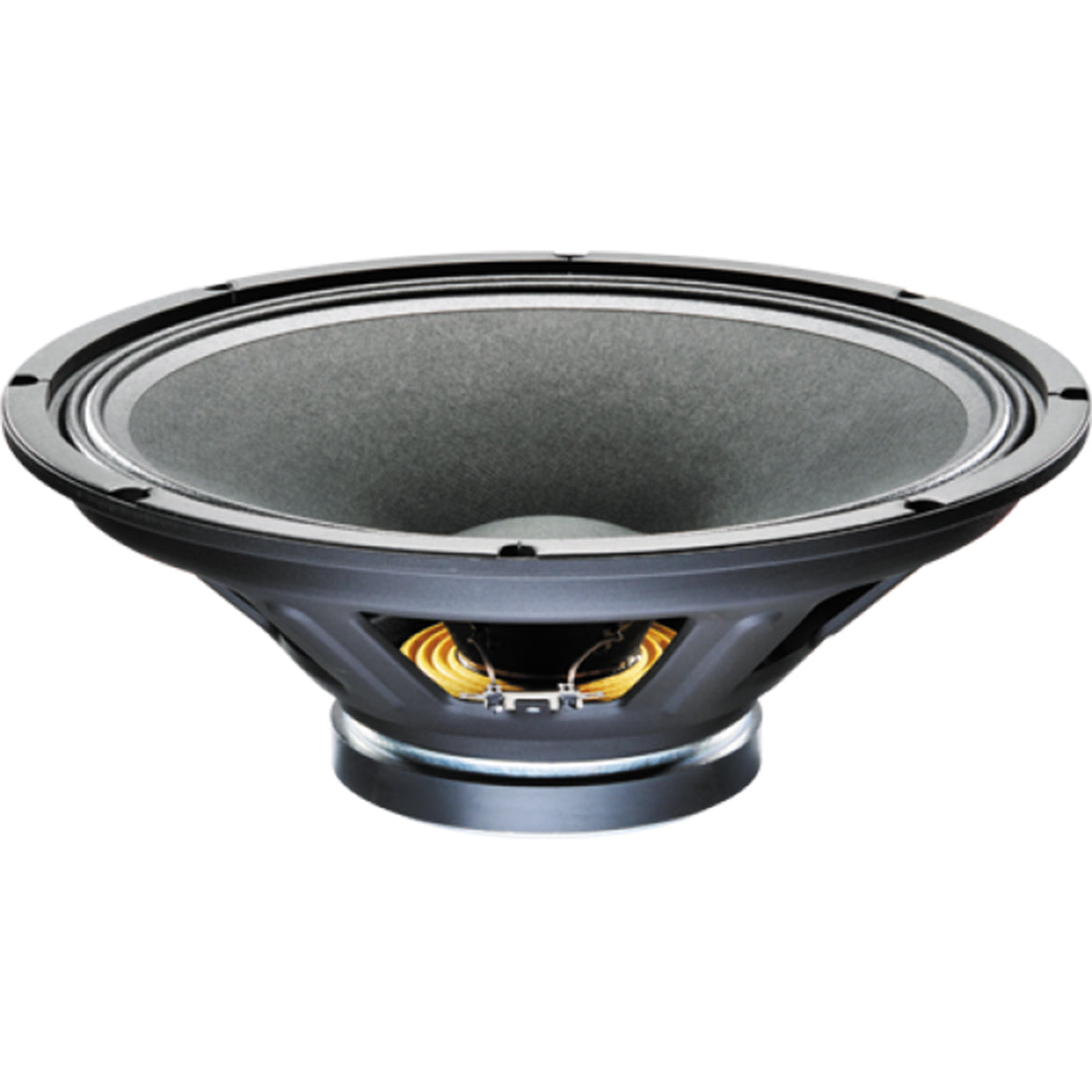

Celestion T5327 TF1525 Ferrite Magnet Steel Chassis Driver Speaker 15 Inch 250W 8OHM

Pay With AfterPay Zip

  • New Page 3

    Product Information:

    15" bass and mid-range driver providing 98dB sensitivity and 250Wrms (AES standard) power handling
    2.5" high temperature copper voice coil wound on polyimide for increased reliability
    Ideal for 2-way and 3-way systems
    Kevlar-loaded cone with sealed surround and damping for reduced distortion
    Rigid chassis design for maximum energy transfer
    Vented magnet assembly for enhanced cooling

    Specifications:

    General Specifications
    Nominal diameter
    381mm/15in
    Power rating1
    250Wrms
    Nominal impedance

    Sensitivity2
    98dB
    Frequency range
    40-3000Hz
    Voice coil diameter
    64mm/2.5in
    Chassis type
    Pressed steel
    Magnet type
    Ferrite
    Magnet weight
    1.2kg/42oz
    Coil material
    Round copper
    Former material
    Polyimide
    Cone material
    Kevlar loaded paper
    Surround material
    Cloth-sealed
    Suspension
    Single
    Xmax3
    2.5mm/0.1in
    Gap depth
    8mm/0.31in
    Voice coil winding width
    13mm/0.51in
    Small Signal Parameters
    D
    0.33m/12.99in
    Fs
    47Hz
    Mms
    78.2g/2.76oz
    Mmd
    64.1g/2.26oz
    Qms
    5.9
    Qes
    0.66
    Qts
    0.59
    Re
    5.21Ω
    Vas
    152.5lt/5.38ft3
    BI
    13.5Tm
    Cms
    0.149mm/N
    Rms
    3.94kg/s
    Le (at 1kHz)
    0.82mH
    Mounting Information
    Diameter
    385mm/15.16in
    Overall depth
    153mm/6.02in
    Cut-out diameter
    351mm/13.82in
    Mounting slot dimensions
    9.2mm x 6.2mm/0.36in x 0.24in
    Number of mounting slots
    8
    Mounting PCD range
    369mm/14.56in
    Unit weight
    5.2kg/11.5lb
    Packed Dimensions & Weight
    Single pack size W x D x H
    410mm x 410mm x 180mm
    /16.1in x 16.1in x 7.1in
    Single pack weight
    5kg/11.0lb
    Multipack (45) size W x D x H
    1200mmx1000mmx980mm
    /47.2in x 39.4in x 38.6in
    Multi pack (45) weight
    225kg/496lb
