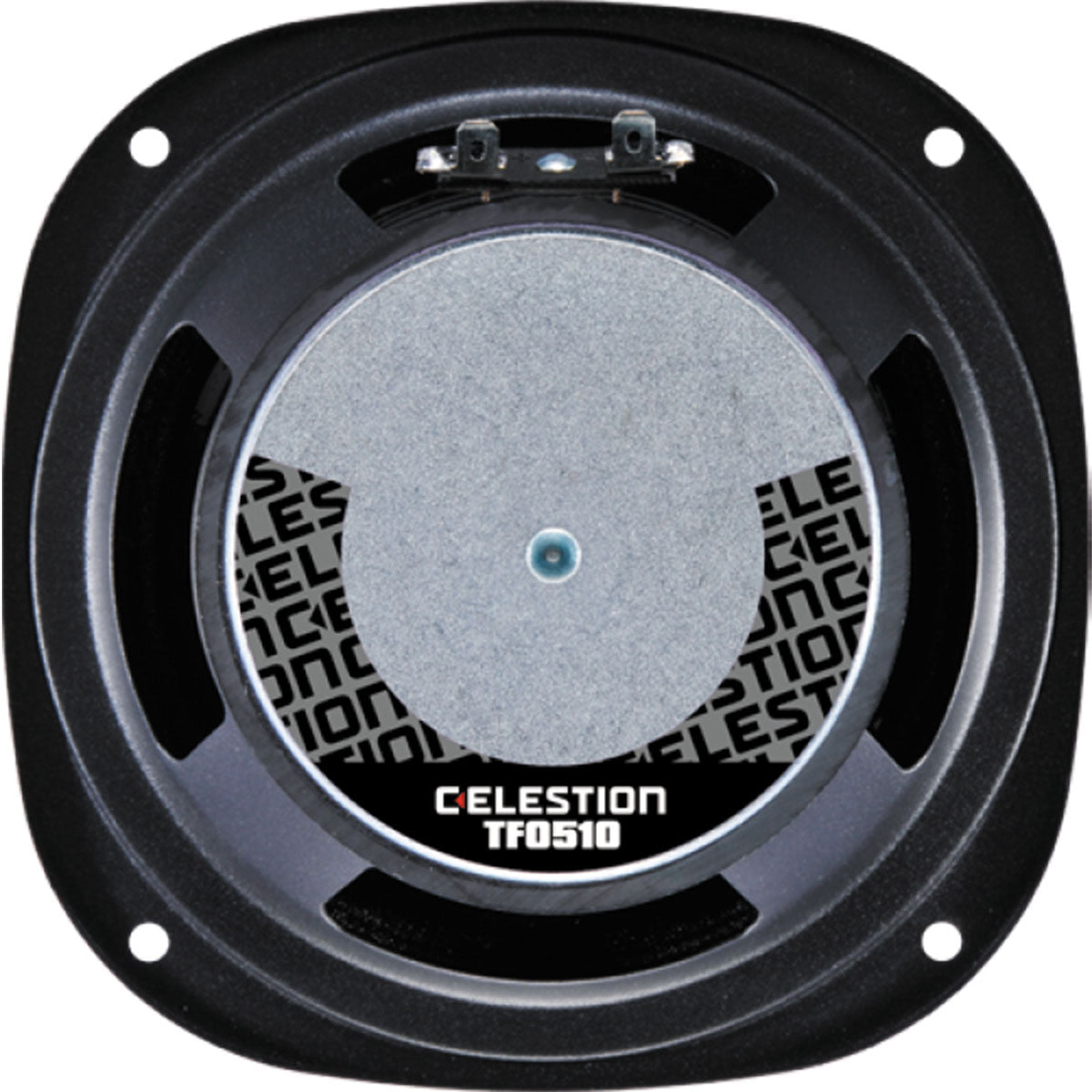

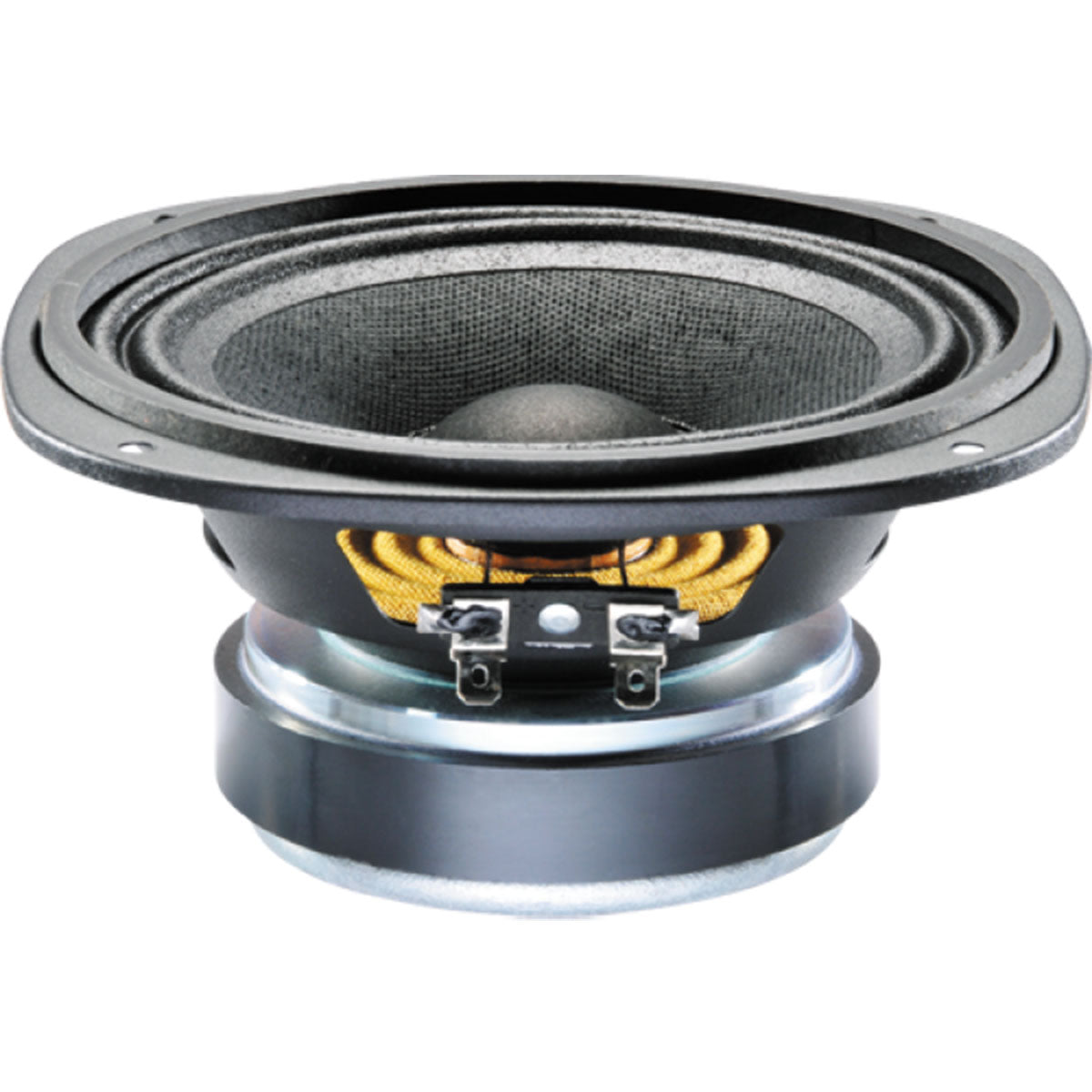

Celestion T5306 TF0510 Ferrite Magnet Steel Chassis Driver Speaker 5 Inch 30W 8OHM

New Page 3

Product Information:

Multi-purpose 5" drive unit delivering clear bass and mid frequencies
Provides 91dB sensitivity and 30Wrms (AES standard) power handling
1" high temperature copper voice coil wound on polyimide former for increased reliability
Impressive extended frequency range
Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems


Specifications:

General Specifications
Nominal diameter
127mm/5in
Power rating1
30Wrms
Nominal impedance

Sensitivity2
91dB
Frequency range
130-8000Hz
Voice coil diameter
25mm/1in
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.37kg/13oz
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax3
1.1mm/0.04in
Gap depth
5mm/0.20in
Voice coil winding width
7.3mm/0.29in
Small Signal Parameters
D
0.10m/3.94in
Fs
106Hz
Mms
5.7g/0.201oz
Mmd
5.3g/0.187oz
Qms
2.40
Qes
0.58
Qts
0.46
Re
6.43Ω
Vas
4.2lt/0.15ft3
BI
6.5Tm
Cms
0.40mm/N
Rms
1.60kg/s
Le (at 1kHz)
0.38mH
Mounting Information
Diameter
136 x 151mm/5.35 x 5.94in
Overall depth
68mm/2.68in
Cut-out diameter
117mm/4.61in
Mounting slot dimensions
Ø 4.5mm/0.18in
Number of mounting slots
4
Mounting PCD range
140mm/5.51in
Unit weight
1.0kg/2.2lb
Packed Dimensions & Weight
Single pack size W x D x H
170mm x 180mm x 70mm
/6.7in x 7.1in x 2.8in
Single pack weight
1.5kg/3.3lb
Multipack (12) size W x D x H
320mmx550mmx190mm
/12.6in x 21.7in x 7.5in
Multi pack (12) weight
13kg/29lb
