Boss

WL30XLR

Boss WL-30XLR Microphone Wireless System WL30XLR

IN STOCK

Pay With AfterPay Zip

  • Product Information

    A Plug-and-Play Wireless Mic Experience

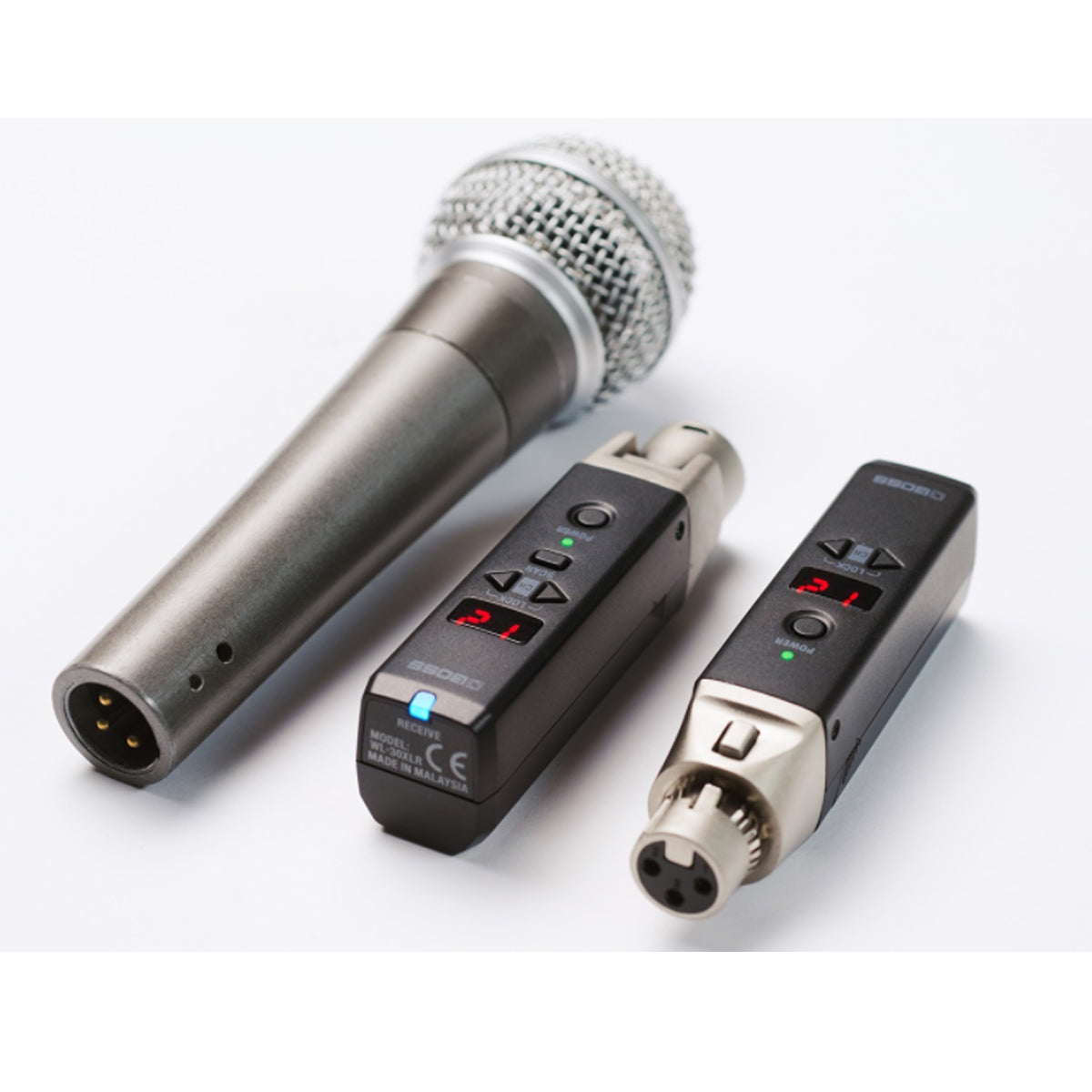

    The WL-30XLR brings the freedom of BOSS’s leading wireless technology to your favorite XLR dynamic mic. Set up is quick and streamlined, eliminating the connection hassles found with other systems. Performance is rock solid, with 14-channel scanning and long transmission range. And common AA alkaline batteries provide long-lasting operation, plus fast change-out to keep the show rolling. From singers, speakers, and beatboxers to DJs, MCs, and beyond, the WL-30XLR makes it easy for everyone to embrace premium wireless microphone sound.

    Standard Features

    • Plug-and-play wireless system for a standard dynamic XLR microphone
    • Premium audio performance with lightning-fast BOSS wireless technology
    • Fast, two-step visual process for hassle-free set up
    • Up to 11 hours of runtime with regular AA alkaline batteries
    • Transmission range: 230 feet/70 meters (line-of-sight propagation)*
    • Rock-solid wireless performance with 14-channel scanning
    • Battery LED for checking available runtime
    • Light and compact transmitter for comfortable handheld performance

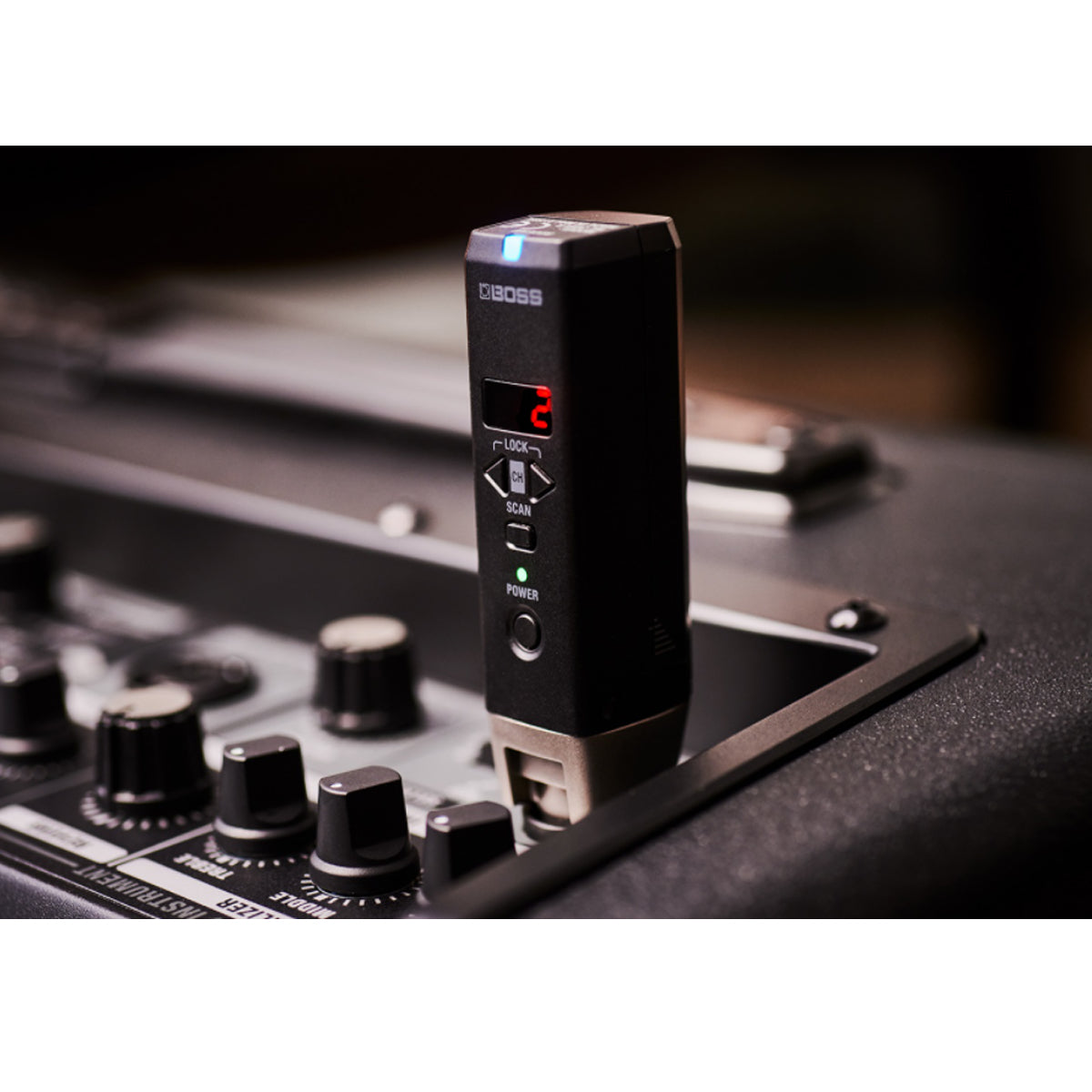

    • Receiver connects to an XLR mic input on a mixer, amplifier, audio interface, etc.
    • Channel lock function for worry-free operation
    • *The transmission range may vary due to local conditions.

    Step Up to Wireless Freedom

    For any performer or speaker who uses a microphone to communicate with an audience, nothing beats the liberation of wireless. Movement is unrestricted, with no cables to trip over and get in the way. And for stand-mounted applications, it eliminates the need to route yet another cable to the audio mixer or stage amp. Once you experience wireless freedom with the WL-30XLR, you’ll never want to go back to a mic cable again.

    One, Two, Done

    The WL-30XLR makes wireless set up simple, thanks to an automatic scanning process that’s smooth, reliable, and hassle-free. After connecting the receiver to an XLR mic input on your mixer or other audio destination and the transmitter to your dynamic mic, you can get up and running with a quick two-step process. Just press a button on the receiver to automatically scan 14 channels and find the best one for your environment, and then confirm the setting on the transmitter—that’s it!

    Premium Performance with BOSS Wireless Innovation

    The WL-30XLR leverages the innovative BOSS technologies behind the acclaimed WL-series wireless products for guitar, bass, and other instruments, as well as the Waza-Air and Katana-Air wireless amplification systems. Lightning fast processing provides exceptional sound with ultra-low latency, plus robust line-of-sight transmission up to 230 feet/70 meters.

    No Charging Needed

    The WL-30XLR’s receiver and transmitter each use a single AA alkaline battery, allowing you to quickly refresh their power with no need to wait for charging. Runtime is up to 11 hours, good for multiple gigs and rehearsals. And when the juice runs out, you can swap batteries in seconds and be back in action right away.


    Specifications

    Wireless FormatBOSS proprietary digital audio formatWireless carrier frequency2.4 GHzCompatible Channels14
    (May vary due to local conditions)Transmission Range230 feet line-of-sight
    (May vary due to local conditions)Latency2.3 msDynamic Range110 dB or greaterFrequency Response20 Hz--20 kHzNominal Output Level-40 dBuNon Clip Maximum Output level (1 kHz, typ.)0 dBuOutput Impedance600 ohmRecommended Load Impedance10 k ohms or greaterControlsPOWER button
    CH button
    SCAN buttonDisplay7 segments, 2 characters (LED)IndicatorsPOWER
    RECEIVEConnectorsOutput plug: XLR typePower SupplyAlkaline battery (AA, LR6) x 1Current Draw130 mAExpected battery life under continuous useAlkaline battery (AA, LR6): Approximately 11 hours
    * These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
    Leaflet USING THE UNIT SAFELY

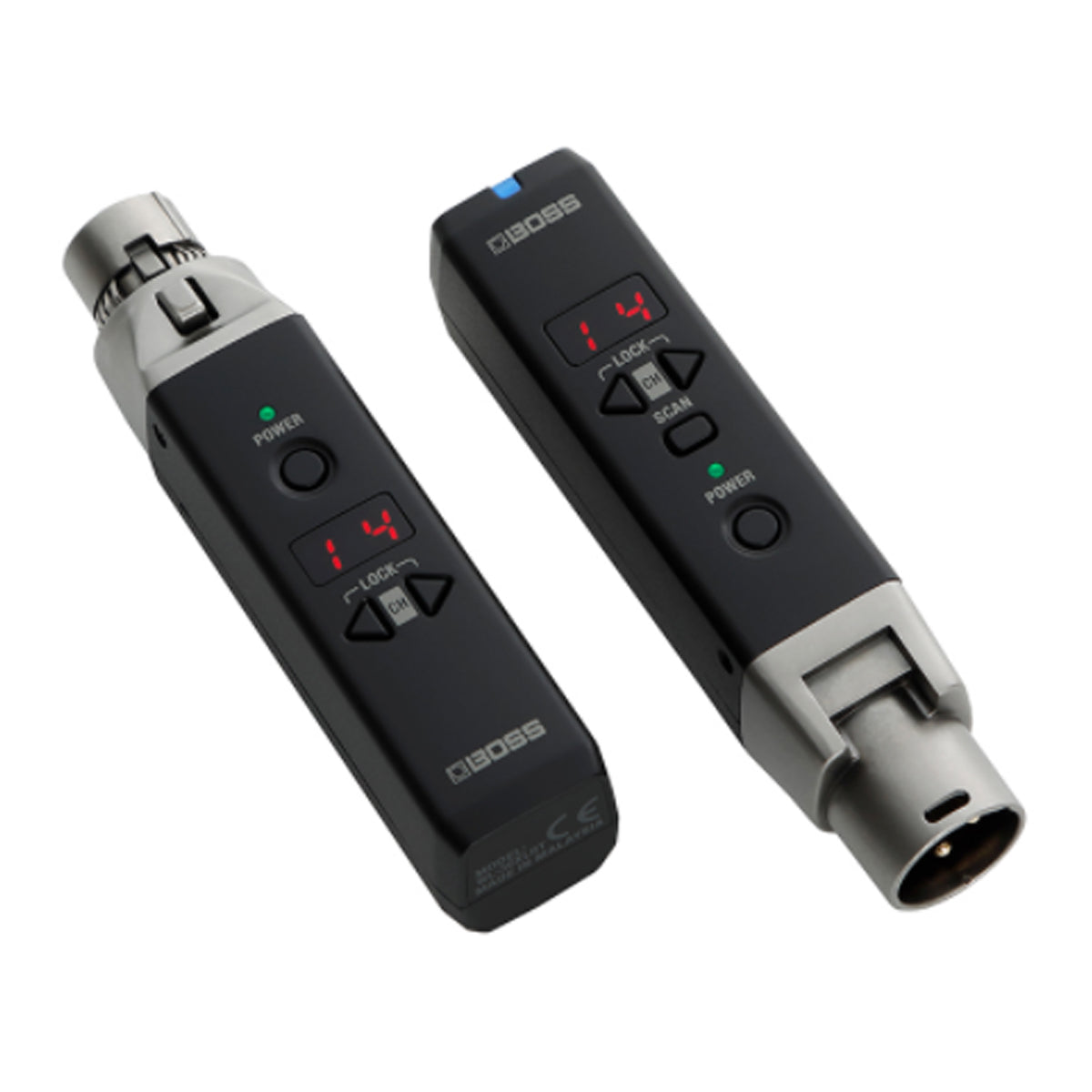

    Transmitter
    Alkaline battery (AA, LR6) x 1SIZE AND WEIGHT(RECEIVER)Width23 mm
    15/16 inchesDepth27 mm
    1-1/16 inchesHeight99 mm
    3-15/16 inchesWeight (including battery)90 g
    3 ozSPECIFICATIONS (TRANSMITTER (WL-30XLRT))Nominal Input Level-40 dBu (4 k ohms)Non Clip Maximum Output level (1 kHz, typ.)0 dBuControlsPOWER button
    CH buttonDisplay7 segments, 2 characters (LED)IndicatorPOWERConnectorsInput plug: XLR typePower SupplyAlkaline battery (AA, LR6) x 1Current Draw120 mAExpected battery life under continuous useAlkaline battery (AA, LR6): Approximately 14 hours
    * These figures will vary depending on the actual conditions of use.SIZE AND WEIGHT (TRANSMITTER (WL-30XLRT))Width23 mm
    15/16 inchesDepth27 mm
    1-1/16 inchesHeight99 mm
    3-15/16 inchesWeight90 g
    3 oz



  • Warranty

    1 Year Warranty
  • Shipping & Delivery

    All orders over $50 will be automatically eligible for FREE Shipping Australia Wide, if you order is under $50 there will be a flat rate of $7.

    Belfield Music is well known for its top online customer service. We treat all online customers with the same excellent service we give to our in store customer. We will ensure that you receive all the support you need while your goods are in transit and ensure the goods arrive promptly. All of our shipments have tracking numbers available and we cover every single unit by our own shipping insurance.

    Online orders are normally processed within 1-3 business days. Once processed, your order should take between 1-8 business days to arrive depending on your location. Please note that your order may take up to 10 business days to arrive from the day you place your order.

    If it transpires that the product is out of stock due to a stock discrepancy and/or there will be a delay in shipment, we will contact you within 2 business days of placing your order and give you the option of waiting or cancelling your order. The products we advertise online should show if they are in stock or not. We do our best to keep the website stock count up to date, but there may be an occasional error.

    If you wish to utilize an Express Delivery Service to receive your item, please contact us for a shipping quote before you place your order at admin@belfieldmusic.com.au or by using the Chat icon on the bottom right of the page.

    Deliver is made during the hours from 8:00am till 5:30pm Monday to Friday. As such, please ensure you nominate an address which is capable of receiving goods during 8am and 5.30pm.  Given the restrictions on PO Box deliveries we cannot deliver larger sized items to a PO Box.

    If for any reason our selected carriers don't service your area we will contact you before processing your order if this applys to you.

    Returns Policy

    If you wish to return an item which is not damaged or faulty in any way and you have simply changed your mind or made the wrong decision, you must let us know within 7 days of receiving the item.  We will not agree to refund an item because you simply changed your mind or made the wrong decision if we have not been advised of your intention within 7 days of receiving your item. Once we have provided a return authority, it is the buyer’s responsibility to return the item, at their own costs within 30 days from original purchase. If the item is returned with any damage or alteration to its original packaging, we will refund the item subject to applying a minimum 15% restocking fee.  We will not refund the costs of the initial shipping charges.

    It is in Belfield Music best interests to keep our customers happy with their purchases. If you are not happy with your purchase, please talk to us first. We will always attempt to resolve any problems you may have as best we can. To contact us please email us at admin@belfieldmusic.com.au or by using the Chat icon on the bottom right of the page.
